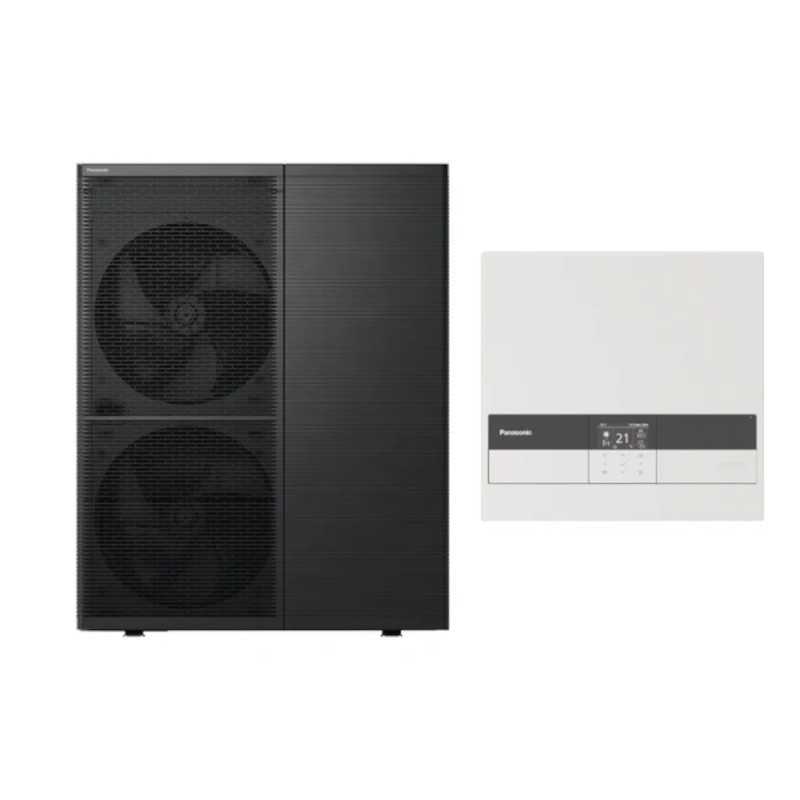

Aerotermia monobloc WH-WXG16ME8 with WH-CME8 control module Panasonic R290

Energy efficiency (35 ° C / 55 ° C)

Nominal power (A + 7 ° C, W35 ° C): 16.00 kW

NOMINAL COP (A + 7 ° C, W35 ° C): 4,14

Nominal power (A + 7 ° C, W55 ° C): 16.00 kW

NOMINAL COP (A + 7 ° C, W55 ° C): 2,52

Refrigerator capacity (A35 ° C, W7 ° C): 12,20 kW

Nominal EER (A35 ° C, W7 ° C): 2,40

SCOP temperate climate (W35): 4.50 (tag A +++)

SCOP temperate climate (W55): 3.40 (tag A ++)

Mechanical specifications and installation

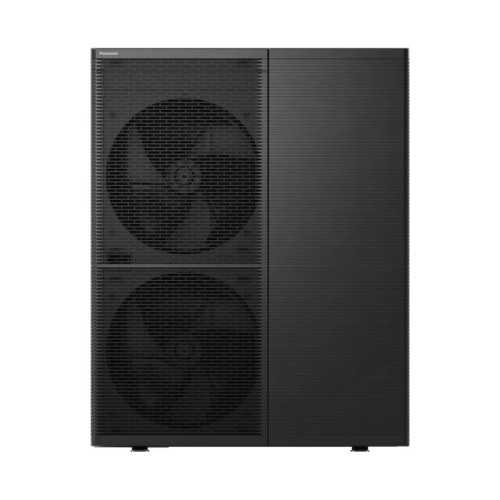

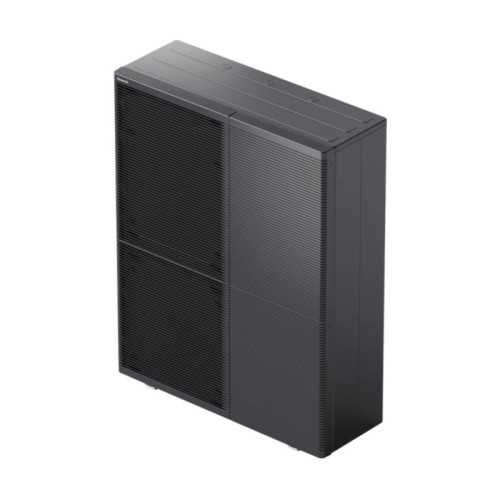

Dimensions Outdoor Unit (Alxanxpr): 1520 x 1200 x 430 mm

Internal control module: WH-CME8 (installation mural)

Net weight Outdoor Unit: 171 kg

Sounding power (exterior): 55 dB (A)

Gas Refrigerant Gas Natural / Load: R290 (propane) / 1,77 kg

Maximum impulse temperature: 75 ° C

Recommended electrical disconnector: 25 a

Electrical supply from the set: Three-phase, 400V, 50Hz

✔️ Refrigerant Gas Natural ecological R290: The purified propane is the future response to global warming. It has exceptional thermophysical properties with an insignificant PCA of only 3, allowing you to work in a loose form by providing water at 75 ° C drive.

✔️ Internal connectivity module WH-CME8: Designed specifically for networks at 400V. Centralizes the control terminals, optimizes the synchronization of the three-phase electronic logics and facilitates the interconnection with domotic catwalks and smart networks.

✔️ Rolling professional phases: When working at three-phase tensions, it symmetrically distributes the large current load required by the Inverter compressor between the three general lines, avoiding imbalances and voltage drops in the building.

✔️ Super silent chassis of comfort: Developed with an advanced acoustic insulation architecture that cushions the vibrations of the three-phase inverter compressor, lowering external emissions to only 55 dB (A) for an ideal integration without neighborhood discomfort.

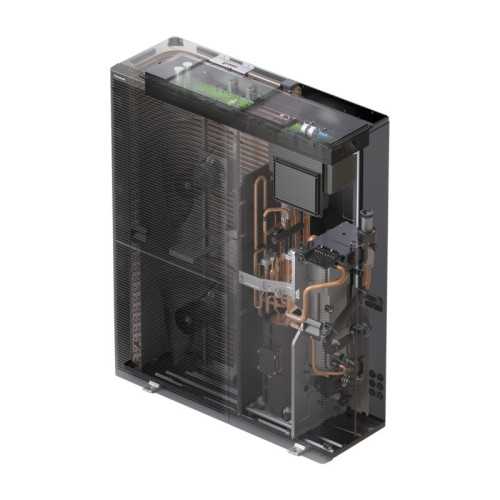

✔️ Hydraulic components integrated abroad: It houses an intelligent Hydraulic Class A flow pump with integrated flow sensor, optimized expansion cup and a high-retention magnetic water filter that traps ferrous sludge protecting the plaque exchanger.

✔️ Advanced solar compatibility: Automation List to directly be coupled to photovoltaic panel systems or solar thermal kits. It allows to produce sanitary hot water by taking advantage of clean energy surpluses, drastically minimizing the electric bill.

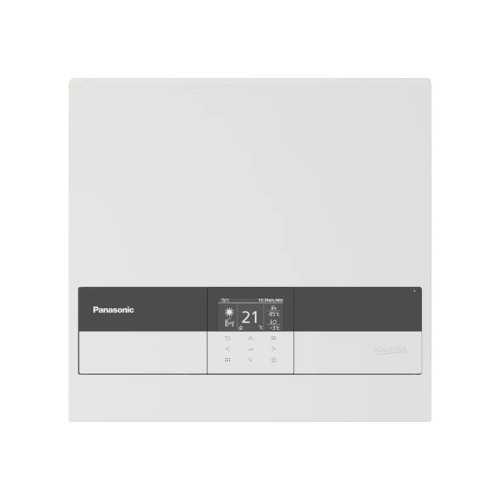

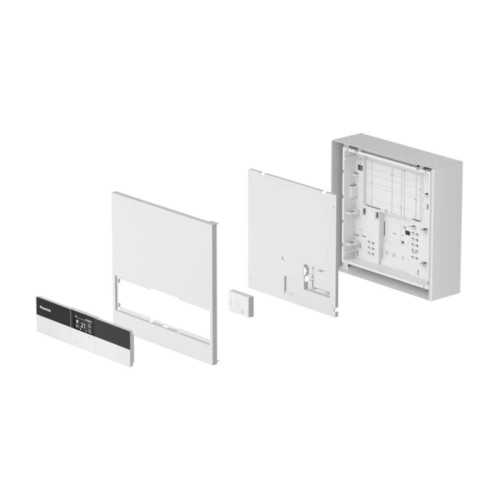

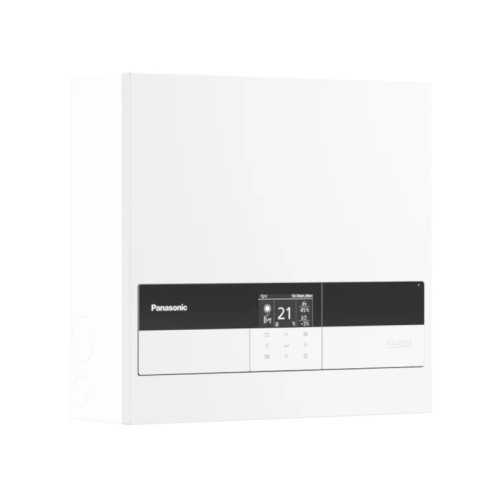

What function does the WH-CME8 control module meet exactly?

The WH-CME8 module is an internal wall component that centralizes the three-phase electrical connections, control probes and electronic source of the heat pump management. When we are located inside, it streamlines maintenance tasks and centralizes Wi-Fi and wired communications without the need to install bulky elements that consume living space on the ground.

Is this three-phase 16 kW system compatible with a network of traditional radiators?

Yes, perfectly. When using high pressure R290 refrigerant, the machine directly reaches a water outlet temperature of up to 75 ° C without activating support resistance. This allows to directly replace old fossil fuel boilers while maintaining pre-existing radiators with total thermal comfort.

How does T-CAP technology respond against extreme winter frosts?

Traditional Aerothermia teams drastically reduce their thermal delivery when the outside temperature drops. The Aquarea T-CAP models of Panasonic 16 kW incorporate an advanced coolant injection into the compressor that allows them to keep the 16.00 kW of nominal capacity at low outer temperatures, operating effective up to -28 ° C and ensuring constant heating without Performance falls.
