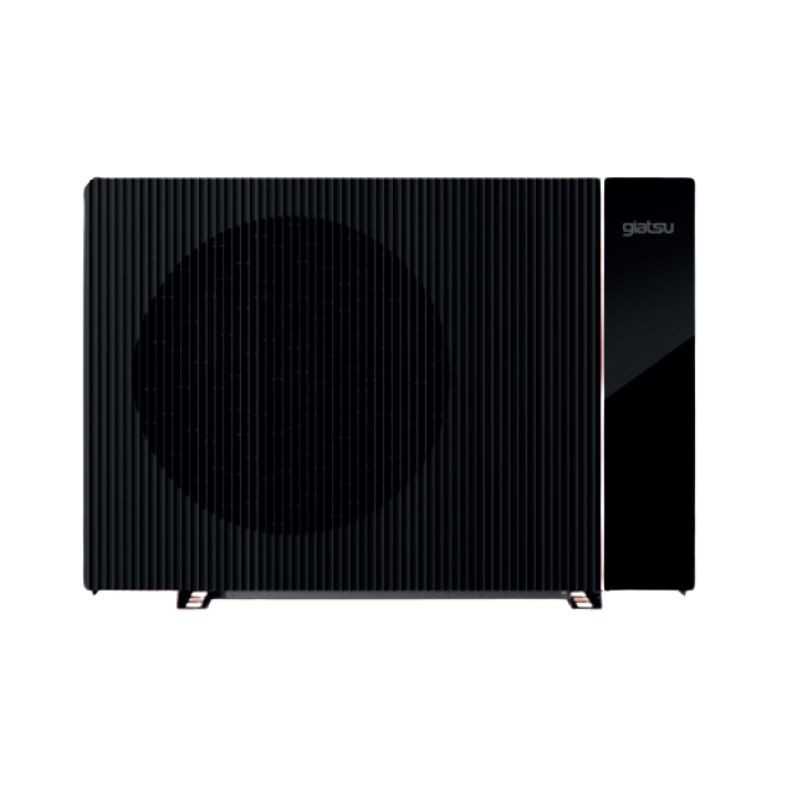

Giatsu EVO-THERMAL HOTAKA GIA-HP-MB13MPA R290 (13 kW)

Heat Pump aerotérmica Monobloc 13 kW fed 220-240V single-phase. Refrigerant Gas ecological R290, Twin compressor Rotary Full DC Inverter, maximum classification at +++ at 35 ° C and 55 ° C, 316L stainless steel exchanger, Blue END protection and IOT control with photovoltaic integration.

Refrigerant Gas Natural R290, Full DC technology Inverter and double classification A +++

The Aerotérmica monobloc heat pump Giatsu Evo-Thermal Hotak Gia-HP-MB13MPA offers an advanced and highly efficient solution for large residential projects or commercial premises that require heating, refrigeration and sanitary hot water (DHW). Works through natural coolant gas R290 with a potential for global warming practically null (GWP 3And a burden of 1.15 kg. This model equips electronic components provided with reinforced security architecture and an independent ventilation channel with respect to electrical areas. Thanks to your compressor Twin Rotary DC Inverter and to your DC fan motor, it reaches exceptional seasonal yields of Scop 5,12 (A +++) at 35 ° C and SCOP 3,94 (A +++) at 55 ° C, delivering a capacity up 16,20 kW in heating and 12,15 kW in refrigeration.

Extensive range of work in demanding climates: Operability insured in heating and DHW from -25 ° C to +45 ° C of outside temperature.

Robust monobloc construction, electric safety and hydraulic connectivity

The outdoor Unit monobloc Gia-HP-MB13MPa integrates the entire circuit airtight coolant in its chassis of 1183 x 825 x 510 mm and a net weight of 143.6 kg, significantly simplifying the assembly work at no Require gas manipulations on site.

Its inside design isolates the electronic components with respect to the aeration channels, guaranteeing the strictest safety levels under IPX4 standard when working with R290 refrigerant.

It tools 1-inch threaded water connections, facilitating direct coupling with radiant floor systems, coil fan units or high temperature radiators.

Technical recommendations for installation and maintenance

For the correct installation of the monobloc pump Giatsu GIA-HP-MB13MPA, locate the machine in an outer area with adequate ventilation and respecting the maintenance-free spaces specified by the brand. Perform the 220-240V single-phase electrical assembly with the corresponding intensity and derivation protections.

Connect the hydraulic circuit with 1 "pipe including filter EN and, expansion ves, safety valve and relevant antifreeze elements. Configure the LCD IOT control screen to synchronize the Wi-Fi network and adapt the operation with the Photovoltaic installation.
