Cassette Daikin FCAG35B + RXM35R9
Round Flow 35 Monofásico - Inverter R-32
Cassette Daikin Round Flow 35 - Residential cassette air conditioning system with Japanese Round Flow radial distribution technology, ideal for spaces up to 35m2. Power 3.5kW cooling and 4.2kW heating with efficiency A+/A++ and silent operation since 27dBA.
3.5 kW
Cold power
4.2 kW
Power Calor
A++/A++
Energy Label
27 dBA
Sound level
12.5 m3/min
Maximum rate
193 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet ▪ Residential use Panel 950mm Tecnología Japanese technology

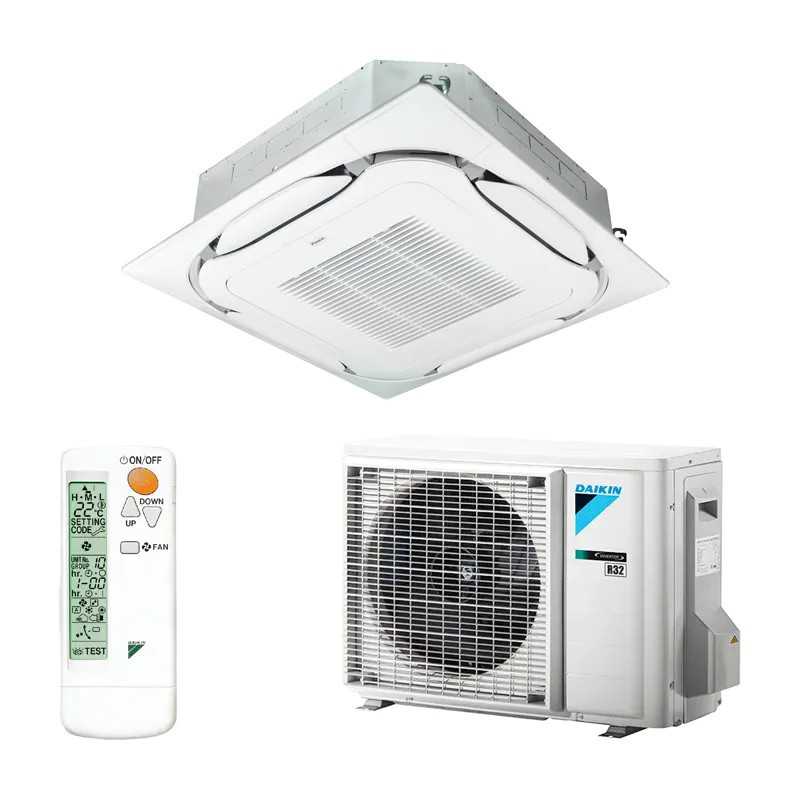

Full model: Indoor Unit FCAG35B + Outdoor Unit RXM35R9
Series: Round Flow - Japanese radial distribution technology
Application: Ideal for small residential and commercial spaces up to 35m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Higher efficiency: SEER 6,35 / SCOP 4,90 with inverter compressor SWING
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Daikin CASG35B
Referencia: CASG35B
€1,698.61
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Daikin FCAG35B + RXM35R9
Round Flow 35 Monofásico - Inverter R-32
Cassette Daikin Round Flow 35 - Residential cassette air conditioning system with Japanese Round Flow radial distribution technology, ideal for spaces up to 35m2. Power 3.5kW cooling and 4.2kW heating with efficiency A+/A++ and silent operation since 27dBA.
3.5 kW
Cold power
4.2 kW
Power Calor
A++/A++
Energy Label
27 dBA
Sound level
12.5 m3/min
Maximum rate
193 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet ▪ Residential use Panel 950mm Tecnología Japanese technology
Full model: Indoor Unit FCAG35B + Outdoor Unit RXM35R9
Series: Round Flow - Japanese radial distribution technology
Application: Ideal for small residential and commercial spaces up to 35m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Higher efficiency: SEER 6,35 / SCOP 4,90 with inverter compressor SWING
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Daikin Round Flow 35 - Japanese Residential Technology
Residential cassette air conditioning system with Japanese leader Round Flow technology
Cassette System Round Flow 35 - Advanced Residential Technology
The Air Conditioning Cassette Daikin Round Flow CASG35B combines residential efficiency with japanese radial distribution. With 3.5kW cooling power and 4.2kW in heat mode, this system is designed to provide optimal comfort in residential spaces up to 35m2 with energy efficiency A++/A++.
️ TECHNOLOGY ROUND FLOW JAPONESA
Radial Distribution with Inverter SWING Technology
Japanese Round Flow technology creates a radial airflow that ensures a uniform air conditioning in residential spaces, completely eliminating the dead areas and providing exceptional comfort with ultrasilnitic operation since 27dBA.
↓ Technical Specifications Residential
3.5 kW
Refrigeration capacityOptimal power up to 35m2
4.2 kW
Capacity HeatingHeat Pump efficient
SEER 6,35
Seasonal efficiencyA++ guaranteed classification
SCOP 4,90
Efficient heatingMaximum A++ performance
Technology Round Flow Residential
Exclusive technology Round Flow Japanese distributes air through radial distribution with flows up to 12.5 m3/min, creating a uniform flow. The 950×950mm dimension panel is perfectly integrated into false residential ceilings, offering an optimal distribution for spaces up to 35m2.
️
Round Flow JapaneseRadial distribution up to 12.5 m3/min
📐
950×950mm panelComplete residential coverage
️
Monofic ControlEfficient management 220V
🌀
Total coverageNo dead areas 35m2
▪ Optimized Residential Performance
The Round Flow 35 system is designed for residential applications, providing 3 vent speeds flow rate from 8.7 to 12.5 m3/min. This capacity allows to efficiently air residential spaces while maintaining homogeneous comfort and optimized energy consumption.
Residential Air Stations
- High Speed: 12.5 m3/min - Quick cooling
- Medium speed: 10.6 m3/min - Standard daily use
- Low speed: 8.7 m3/min - Silent night operation
- Sound level: 27-35 dBA at speed

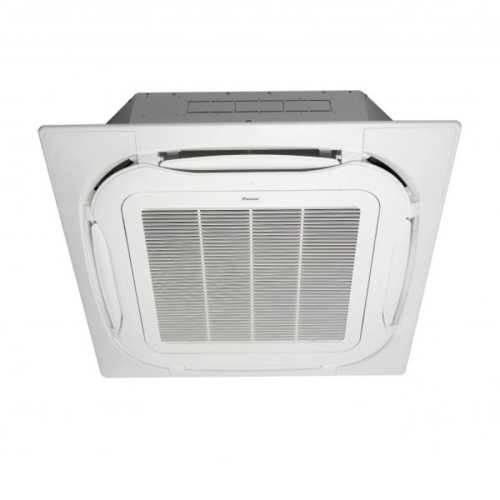

▪ Indoor Unit FCAG35B
Cassette Round Flow residential impotrable with radial distribution
Full model: FCAG35B - Cassette Round Flow residential with Japanese technology inverter SWING
S Technical Specifications Interior
3.5 kW
Nominal Cold Power
4.2 kW
Nominal heat power
27 dBA
Minimum Sound Level
12.5 m3/min
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 204×840×840 mm |
| Weight Indoor Unit | 18.0 kg |
| Food | 1Ph/220V |
| Air distribution | Round Flow Japanese radial |
| Caudales (A/M/B) | 12.5/10,6/8,7 m3/min |
| Sound levels (A/M/B) | 35/29/27 dB(A) |
| Ventilator speeds | 3 speeds |
| Option control | Wi-Fi BRP069C81 |
Panel Decoration panel BYCQ140E
| Specification Panel | Measures |
|---|---|
| Dimensions Panel | 950×950×50 mm |
| Weight Panel | 5.4 kg |
| Type Installation | Recessed in residential false ceiling |
🌟 Japanese Technologies:
Inverter compressor SWING, Round Flow radial distribution, high efficiency lavable filter and BRC7FA532F command included for advanced local control.
Inverter compressor SWING, Round Flow radial distribution, high efficiency lavable filter and BRC7FA532F command included for advanced local control.

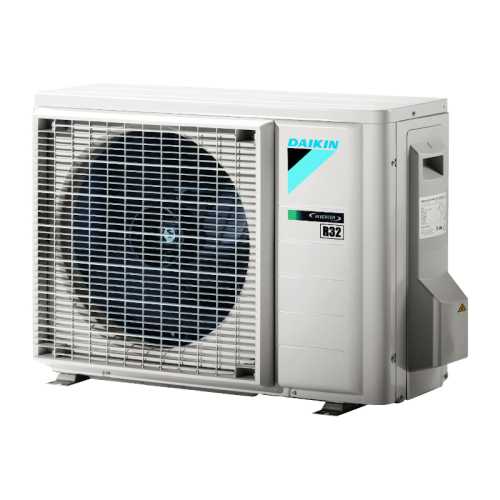

🏭 Outdoor Unit RXM35R9
Compact Monophase Condenser with SWING Inverter Compressor
Full model: RXM35R9 - Compact condenser unit with inverter compressor SWING and gas R32
S️ Foreign Technical Specifications
49 dBA
External sound level
R32
Refrigerant Gas Ecological
32 kg
Weight Unit
SWING
Compressor Type
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 552×840×350 mm |
| Weight | 32 kg |
| Compressor | Inverter SWING hermetic |
| Refrigerant Gas | R32 (0.76 kg preload) |
| Air Fridge Refrigeration | 36,0 m3/min |
| Air heating | 28.3 m3/min |
| TCO2eq | 0.52 kg |
S Advanced technical characteristics:
SWING inverter compressor with variable frequency control, hydrophilic fin exchanger, optimised expansion valve and maximum durability anti-red protection.
SWING inverter compressor with variable frequency control, hydrophilic fin exchanger, optimised expansion valve and maximum durability anti-red protection.
Y Energy and Consumption
A++
Label Cold
A++
Label Calor
193 kWh/a
Annual Consumption Cold
948 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- SEER 6,35: Optimized residential seasonal efficiency
- SCOP 4,90: High performance heating guaranteed A++
- Charge cold design: 3.50 kW nominal
- Charge heat design: 3.32 kW to -10°C
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 6.4 mm (1/4") |
| Tubería Gas | Ø 9.5 mm (3/8") |
| Maximum Length Tuberia | 20 meters |
| Maximum level | 15 meters |
| Charge Refrigerant Gas | Standard 10m |
| Additional charge | 20 gr/m |
▪ Compressor Inverter SWING Residencial
Equipped with inverter SWING compressor optimized for residential use which provides accurate temperature control. The Japanese inverter technology automatically adjusts the power by maintaining the energy efficiency A++/A++ with ultrasilious operation.
🌿 Refrigerant Gas R32 Ecological
Use coolant Organic R32 with less environmental impact and greater efficiency. The 0.76kg charge is optimal for residential facilities, ensuring perfect operation with TCO2eq of only 0.52kg.
Request Information from Round Flow 35
Find out why the Cassette Daikin Round Flow 35 is the perfect choice for your home or small office.
📞
Technical informationConsultation technology Round Flow Japanese
💰
Residential budgetCustomized cooking for your home
️
Official ServiceCertified professional installation
▷ Warranty Daikin
Cassette Daikin Round Flow 35 with official guarantee and technical service specialized in Japanese technology.
Cassette Daikin Round Flow 35 with official guarantee and technical service specialized in Japanese technology.
CASG35B
Data sheet
- Brand
- Daikin
- Indoor Unit
- FCAG35B
- Outdoor Unit
- RXM35R9
- Panel
- BYCQ140E
- I send
- BRC7FA532F
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 25 a 35 m2
- Refrigerator capacity (W)
- 3.500
- Refrigerator capacity (kcal / h)
- 3.010
- Nominal consumption Cold (W)
- 940
- Energy class (cold)
- A++
- SEER
- 6,4
- Heat capacity (W)
- 4.200
- Heat capacity (Kcal / h)
- 3.612
- Nominal heat consumption (W)
- 1.100
- Energy class (heat)
- A++
- SCOP
- 4,9
- Minimum sound pressure UI DB
- 27
- Dimensions u.i (anxfxh) mm
- 840 x 840 x204
- Dimensions u.e (anxfxh) mm
- 840 x 350 x552
- Weight Indoor Unit (Kg)
- 18,0
- Weight Outdoor Unit (Kg)
- 32,0
- Net weight (kg)
- 52,5
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- Optional WiFi
