LG CT12F CONFORT+
Technology R32 LG Δ EER 3.50 Δ Tag A++/A+
▪ Balanced power
3,40kW cold / 4,10kW heat
EER 3,50 high efficiency
Tecnología Technology R32
Refrigerant Gas ecological
1.2 kg preload
o️ Compact Panel
620x620mm PT-QAGW0
Distribution 4 tracks
Silence
32 dBA minimum
Discreet operation
▪ Versatile Application: Large bedrooms, medium studies and small offices of 12-16m2 that require balanced power and energy efficiency EER 3.50
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette LG 60x60 Comfort + 12 MONOF.
Referencia: CONFORT+ 12 MONO CAS
€1,131.93
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG CT12F CONFORT+
Technology R32 LG Δ EER 3.50 Δ Tag A++/A+
▪ Balanced power
3,40kW cold / 4,10kW heat
EER 3,50 high efficiency
Tecnología Technology R32
Refrigerant Gas ecological
1.2 kg preload
o️ Compact Panel
620x620mm PT-QAGW0
Distribution 4 tracks
Silence
32 dBA minimum
Discreet operation
▪ Versatile Application: Large bedrooms, medium studies and small offices of 12-16m2 that require balanced power and energy efficiency EER 3.50
Security policy
Delivery policy
Refund policy

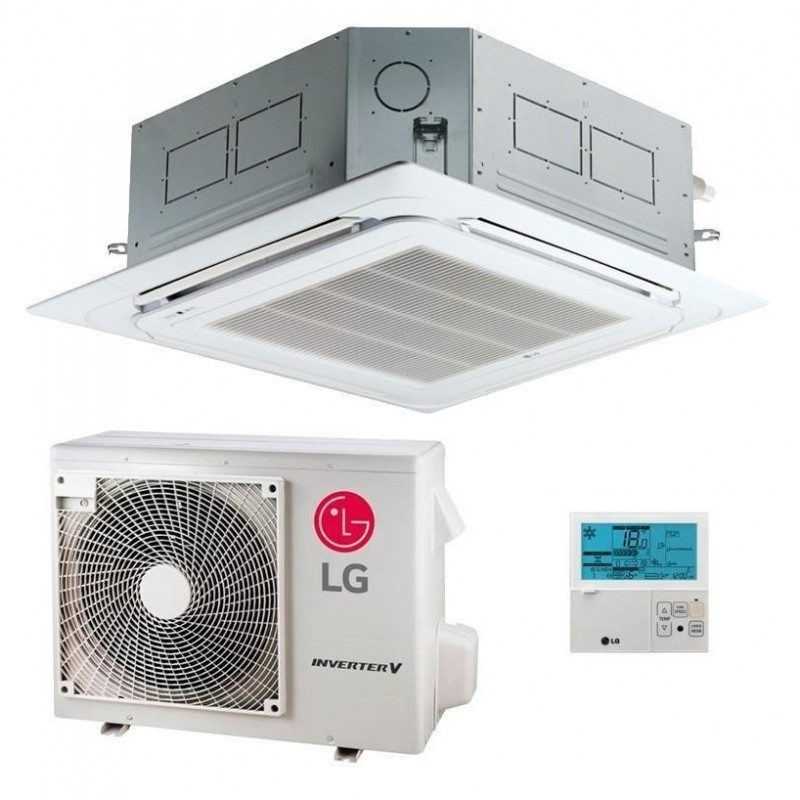

LG CT12F CONFORT+ - Cassette Compacto
Set 12 - Compact Solution
The LG CT12F CONFORT+ of Set 12 offers capabilities 1,50-3,40-4,50 kW cold and 1,80-4,10-5,00 kW in heat (minin-nom-max), achieving a EER 3.50 and SEER of 6,70 with energy label A++/A+. This compact cassette with panel PT-QAGW0 of 620x35x620 mm weight 12.4 kg and represents the perfect balance between power and efficiency in medium spaces.
▪ Balanced Consortments
- Cold capacity: 1,50-3,40-4,50 kW (min-nom-máx)
- Heat capacity: 1,80-4,10-5,00 kW
- Cold consumption: 0,30-0,98-1,62 kW (min-nom-máx)
- Consumption heat: 0,30-1,11-1,57 kW (min-nom-máx)
S Certified Energy Efficiencies
- EER: 3.50 (high compact efficiency)
- SEER: 6.70 (A++ classification)
- COP: 3.71 (coefficient heat performance)
- SCOP: 4,00 (seasonal heat ratio)
️ Specifications Indoor Unit CT12F.NR0
Dimensions 570x214x570 mm
IDU weight 12.4 kg
PT-QAGW0 Panel 620x35x620 mm (3 kg)
Sound and Air Caudal Pressure
Cold Sonic Pressure (H/M/L)
High (H): 38 dBA
Average (M): 35 dBA
Low (L): 32 dBA
Air flow rate (H/M/L)
High (H): 9.5 m3/min
Average (M): 8 m3/min
Low (L): 7 m3/min
S Frigorific connections
Liquid Line
Ø 6,35 mm (1/4")
Gas line
Ø 9,52 mm (3/8")

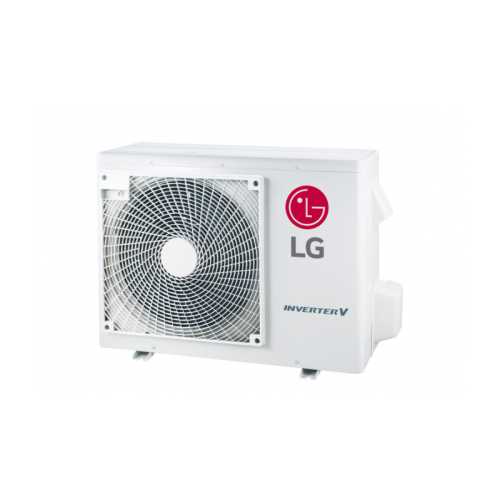

🏭 Outdoor Unit UUB1.U20
Dimensions 870x650x330 mm
Weight 44,5 kg
Air flow rate 50 x 1 m3/min
Sound Pressure Outdoor Unit
Cold mode
49 dBA
Calor mode
52 dBA
🌿 Refrigerant Gas R32
- Preload: 1.2 kg Organic R32
- Length pipe preloading: 10 meters
- T-CO2eq: 0,810
- Refrigerant Gas additional: 20 g/m
De️ Operation Range
- Cold (Máx/Mín): 50°C / -15°C (CB)
- Heat (Máx/Mín): 18°C / -20°C (WB)
- Operation: Broad climate range
- Reliability: Extreme temperatures
De Installation Specifications
Longitudes
Total min/max: 5/30 meters
Uneven: 30 meters
Frigorific connections
Liquid: Ø 6,35 mm (1/4")
Gas: Ø 12.7 mm (1/2")
Energy Label
Average climate: A++/A+
Certification: High efficiency
Applications Versatiles
Os️ Bedrooms Spacious
12-16m2 night comfort
Media Medium studies
Spacious work spaces
S Small Offices
Individual equipment
S Small shops
Shops and consultations
Joint Technical Summary 12
Certified capacities
Cold nom: 3,40 kW
Calor nom: 4,10 kW
Cold range: 1.50-4.50 kW
Hot range: 1,80-5,00 kW
Certified efficiency
EER: 3.50 (balanced)
SEER: 6.70 (A++)
COP: 3.71 (heat)
SCOP: 4,00 (seasonal)
Compact Installation
Distance: 30 meters
Max: 30 meters
Total weight: 56.9 kg (IDU+ODU)
Silence: 32 dBA minimum
: CT12F: Perfect Balance Power and Efficiency
With 3,40 kW nominal, , EER 3.50 efficient, , 32 dBA silent and label A++/A+, CT12F offers the perfect balance between power and efficiency with technology Green R32 LG.
CONFORT+ 12 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- CT12F.NR0
- Outdoor Unit
- UUA1.UL0
- Panel
- PT-QAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 25 a 35 m2
- Refrigerator capacity (W)
- 3.400
- Refrigerator capacity (kcal / h)
- 2.924
- Nominal consumption Cold (W)
- 970
- Energy class (cold)
- A++
- SEER
- 6.7
- Heat capacity (W)
- 4.100
- Heat capacity (Kcal / h)
- 3.526
- Nominal heat consumption (W)
- 1.110
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 32
- Dimensions u.i (anxfxh) mm
- 570 x 570 x 214
- Dimensions u.e (anxfxh) mm
- 770 x 288 x 545
- Weight Indoor Unit (Kg)
- 12,4
- Weight Outdoor Unit (Kg)
- 33,3
- Net weight (kg)
- 48,7
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi
