LG UT36F CONFORT+ Triphasic
Cassette Comercial 60x60 Triphasic with Ecological R32 technology
9,50 kW
FRENCH POTENCE
10,80 kW
CALOR POTENCE
EER 4,20
RÉCORD
SEER 7,00
STATIONAL EFFECTIVE
41 dBA
LEVEL SONORO MINE
A++/A+
ENERGÉTIC ETIQUETA
The LG UT36F CONFORT+ Set 36 Classical represents maximum efficiency in commercial air conditioning with its exceptional EER 4,20 record and SEER 7,00. With 9,50kW of frigorific power and 10,80kW heated, is the perfect solution for medium commercial spaces who seek maximum energy efficiency and ultra silent operation since 41 dBA.
▷✅ Ecological R32 Technology • Dual Vane 950mm • Tag A+/A+ • Triphasic Feeding
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

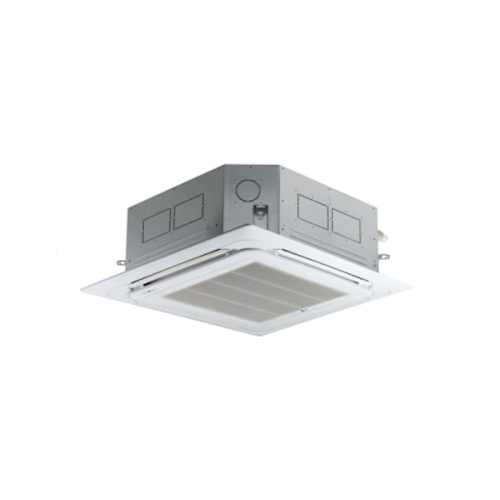

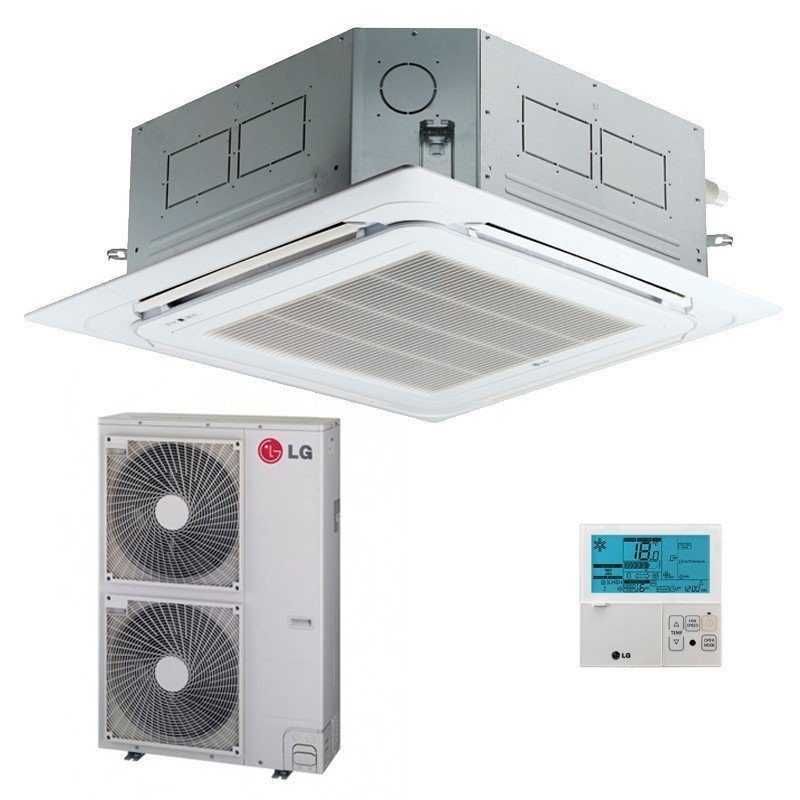

Cassette 90x90 LG Comfort + 42 trif.
Referencia: CONFORT+ 42 TRI CAS
€3,045.03
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG UT36F CONFORT+ Triphasic
Cassette Comercial 60x60 Triphasic with Ecological R32 technology
9,50 kW
FRENCH POTENCE
10,80 kW
CALOR POTENCE
EER 4,20
RÉCORD
SEER 7,00
STATIONAL EFFECTIVE
41 dBA
LEVEL SONORO MINE
A++/A+
ENERGÉTIC ETIQUETA
The LG UT36F CONFORT+ Set 36 Classical represents maximum efficiency in commercial air conditioning with its exceptional EER 4,20 record and SEER 7,00. With 9,50kW of frigorific power and 10,80kW heated, is the perfect solution for medium commercial spaces who seek maximum energy efficiency and ultra silent operation since 41 dBA.
▷✅ Ecological R32 Technology • Dual Vane 950mm • Tag A+/A+ • Triphasic Feeding
Security policy
Delivery policy
Refund policy
LG UT36F CONFORT+ - Excellence in Triphasic Commercial Climatization
Advanced Triphasic Commercial Technology
The LG UT36F CONFORT+ Set 36 Classical establishes a new standard in professional commercial air conditioning. With its advanced technology industrial triphase and coolant Organic R32, offers a perfect combination exceptional energy efficiency, , robust commercial power and environmental respect.
Triphasic Commercial Power
- 🔹 Cold capacity: 3,80 - 9,50 - 12,54 kW (min-nom-máx)
- 🔹 Capacity Heat: 4,30 - 10,80 - 13,39 kW (min-nom-máx)
- 🔹 EER 4,20: Energy efficiency record
- 🔹 SEER 7,00: Maximum seasonal savings
Advanced Sustainability
- 🔹 Refrigerant Gas R32: Global warming potential reduced
- 🔹 Tag A++/A+: Maximum energy classification
- 🔹 COP 4.45: Exceptional heating performance
- 🔹 SCOP 4,30: Seasonal heat efficiency
S Technical Specifications Set of 36
Energy consumption
Cold: 0.50 - 2.26 - 3.44 kW
Heat: 0.50 - 2.43 - 3.30 kW
Heat: 0.50 - 2.43 - 3.30 kW
Efficiency
EER: 4,20 (Récord)
SEER: 7.00 (Excellent)
SEER: 7.00 (Excellent)
Heat performance
COP: 4.45 (Excellent)
SCOP: 4,30 (Optimo)
SCOP: 4,30 (Optimo)
Classification
Tag: A++/A+
Climate: Media
Climate: Media
S Triphasic Commercial Applications
Perfect for medium commercial spaces with three-phase feeding: Large offices (80-120 m2), large meeting rooms, medium stores, medical offices, professional offices, university classrooms and industrial spaces that require efficient and robust air conditioning

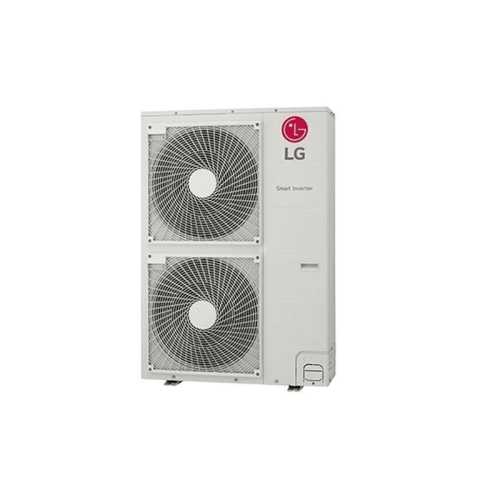

🏭 Outdoor Unit UUD3.U30 - Industrial Triphasic Power
La outdoor Unit UUD3.U30 triphase uT36F system is designed for demanding commercial applications. Its robust construction and advanced technology guarantee continuous operation, , maximum durability and higher energy efficiency in any weather condition.
Nivel External sound level
Cold mode: 50-54 dBA
Heat mode: 50-54 dBA
Discreet operation for commercial environments
Air flow rate
55 × 2 m3/min
Double fan for maximum thermal exchange
Dimensions
950 × 1.380 × 330 mm
Weight: 89 kg
Compact design for versatile installation
️ System Refrigerant Gas R32 Advanced
Charge Refrigerant Gas
Preload: 3.0 kg R32
Preload length: 20 ml
Preload length: 20 ml
Environmental Impact
T-CO2eq: 2,205
Additional: 50 g/m
Additional: 50 g/m
Operational range
Cold: -20°C to +52°C
Heat: -25°C to +18°C
Heat: -25°C to +18°C
Connections
Liquid: 9,52mm (3/8")
Gas: 15,88mm (5/8")
Gas: 15,88mm (5/8")
De Installation flexibility
Total length: 5 - 85 meters
Maximum location versatility
Maximum location versatility
Maximum Level: 30 meters
Adaptation to any building
Adaptation to any building
␡️ Requerida Professional Installation
Triphasic system for installation by certified professionals. It requires three-phase electrical connection, specialized R32 coolant management and compliance with commercial safety regulations.
CONFORT+ 42 TRI CAS
Data sheet
- Brand
- LG
- Indoor Unit
- UT42F.NA0
- Outdoor Unit
- UUD3.U30
- Panel
- PT-AAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 3.310
- SEER
- 7,0
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.510
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 41
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 25,3
- Weight Outdoor Unit (Kg)
- 85,0
- Net weight (kg)
- 113,3
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
