Cassette Haier AB105S2SR1FA(H) + 1U105S2SQ1FA
Round-Flow 105 Monofásico - Balanced Commercial Power
Cassette Haier Round-Flow 105 - Balanced commercial power cassette air conditioning system with 8-way Round-Flow technology, ideal for medium commercial spaces up to 105m2. Circular air distribution with integrated Wi-Fi and UVC sterilization.
9.5 kW
Cold power
10.5 kW
Power Calor
3,40
EER
A++/A++
Energy Label
34 dBA
Sound level
1920 m3/h
Maximum rate
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Commercial use ▪ Double Inverter Panel 950mm

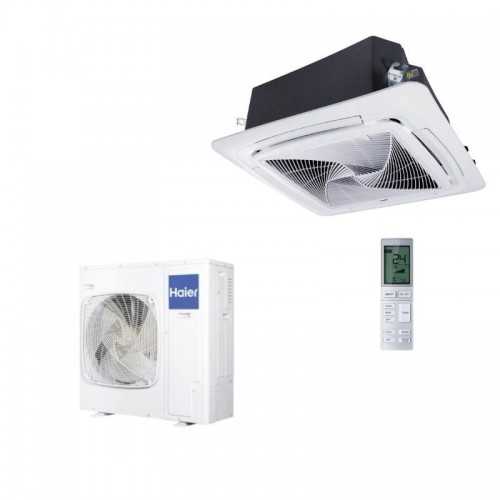

Full model: Indoor Unit AB105S2SR1FA(H) + Outdoor Unit 1U105S2SQ1FA
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for medium commercial spaces up to 105m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Balanced power: 9,5kW with maximum efficiency A++ and inverter technology
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Haier Round-flow 105 Monof. AB105S2SR1FA (H) + 1U105S2SQ1FA
Referencia: HAIROUNDCAS105MHC
€1,630.87
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB105S2SR1FA(H) + 1U105S2SQ1FA
Round-Flow 105 Monofásico - Balanced Commercial Power
Cassette Haier Round-Flow 105 - Balanced commercial power cassette air conditioning system with 8-way Round-Flow technology, ideal for medium commercial spaces up to 105m2. Circular air distribution with integrated Wi-Fi and UVC sterilization.
9.5 kW
Cold power
10.5 kW
Power Calor
3,40
EER
A++/A++
Energy Label
34 dBA
Sound level
1920 m3/h
Maximum rate
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Commercial use ▪ Double Inverter Panel 950mm
Full model: Indoor Unit AB105S2SR1FA(H) + Outdoor Unit 1U105S2SQ1FA
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for medium commercial spaces up to 105m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Balanced power: 9,5kW with maximum efficiency A++ and inverter technology
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Haier Round-Flow 105 - Balanced Commercial Power
Balanced cassette air conditioning system with optimal commercial Round-Flow technology
Cassette System Round-Flow 105 - Perfect Commercial Balance
The Air Conditioning Cassette Haier Round-Flow 105 represents the perfect balance between power and efficiency with circular distribution of 8 independent channels. With 9,5kW cooling power and 10.5kW in heat mode, this system is designed to provide optimal comfort in medium-sized commercial facilities up to 105m2 with energy efficiency A++ higher.
️ TECHNOLOGY ROUND-FLOW EQUILIBRADA
Balanced Circular Distribution with 8 Independent Ways
Round-Flow 105 balanced technology creates a circular airflow that ensures even air conditioning in medium-sized commercial facilities, completely eliminating dead areas and providing exceptional comfort with maximum energy efficiency.
Qualified Technical Specifications
9.5 kW
Refrigeration capacityBalanced power up to 105m2
10.5 kW
Capacity HeatingHeat Pump balanced
EER 3.40
Energy efficiencyOptimized for balance
SEER 6,20
Seasonal efficiencyA++ higher classification
Round-Flow Balanced Technology
Exclusive technology Round-Flow 105 distributes air through 8 independent tracks with flow rates of up to 1920 m3/h, creating a balanced circular flow. The 950×950mm dimension panel is perfectly integrated into false commercial ceilings, offering optimal radial distribution for medium-sized commercial installations.
️
8 Balanced roadsCircular distribution up to 1920 m3/h
📐
950×950mm panelOptimal commercial coverage
️
Efficient controlBalanced management 1Ph
🌀
Total coverageNo dead areas 105m2
Balanced Commercial Performance
The Round-Flow 105 system is designed for medium-sized commercial applications with balanced demand, providing 4 vent speeds with flows from 1250 to 1920 m3/h. This capacity allows efficient air conditioning of medium-sized commercial facilities while maintaining homogeneous comfort and optimized energy consumption.
Balanced Air Flows
- Maximum speed: 1920 m3/h - Efficient cooling
- High Speed: 1750 m3/h - Standard commercial use
- Medium speed: 1550 m3/h - Balanced operation
- Quiet speed: 1250 m3/h - Night performance 34dBA

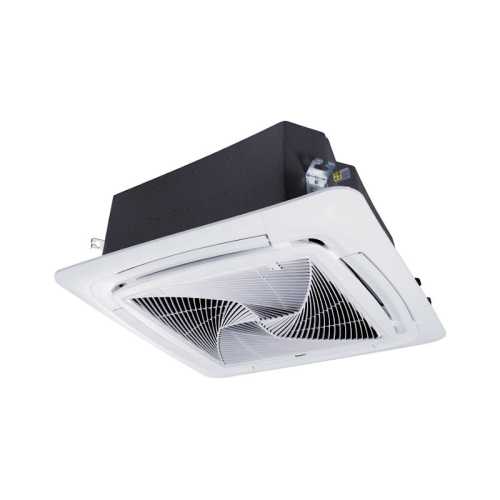

▪ Indoor Unit AB105S2SR1FA(H)
Cassette Round-Flow fitting with 8 independent tracks
Full model: AB105S2SR1FA(H) - Cassette Round-Flow balanced with professional Wi-Fi and UVC sterilization
S Technical Specifications Interior
9.5 kW
Nominal Cold Power
10.5 kW
Nominal heat power
34 dBA
Minimum Sound Level
1920 m3/h
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 840×840×246 mm |
| Gross dimensions (An×Pr×Al) | 978×978×269 mm |
| Weight Neto/Bruth | 24/31 kg |
| Food | 1Ph/220~240V/50/60Hz |
| Air distribution | 8 independent Round-Flow tracks |
| (H/M/L/Q) | 1920/1750/1550/1250 m3/h |
| Sound levels (H/M/L/Q) | 45/42/38/34 dB(A) |
| Connectivity | Integrated professional Wi-Fi |
| High Power Sound | 62 dB |
) Decorative panel PB-950QB(H)
| Specification Panel | Measures |
|---|---|
| Dimensions Netas Panel | 950×950×50 mm |
| Brute dimensions Panel | 1013×1035×125 mm |
| Weight Neto/Bruth Panel | 5.5.5 kg |
| Type Installation | Impotrable in false commercial ceiling |
Interior Exclusive Technologies:
Balanced UVC sterilization, outdoor cooling, 8-way Round-Flow distribution, washable high efficiency filter and professional anti-bacterial system.
Balanced UVC sterilization, outdoor cooling, 8-way Round-Flow distribution, washable high efficiency filter and professional anti-bacterial system.
Technical Specifications Details
Haier Round-Flow 105 - Balanced Components

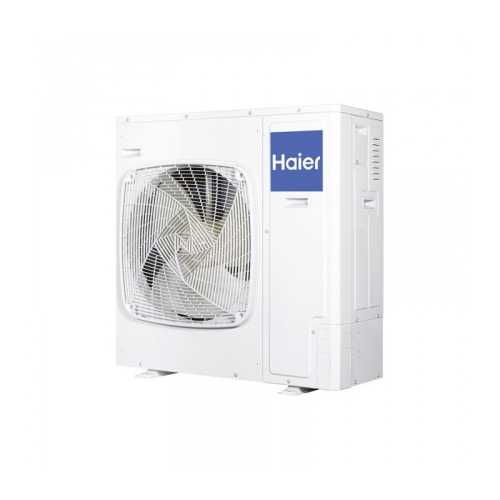

🏭 Outdoor Unit 1U105S2SQ1FA
Balanced monophase condemner with rotary inverter double compressor
Full model: 1U105S2SQ1FA - Balanced condenser unit with double rotary inverter compressor and R32 gas
S️ Foreign Technical Specifications
2.79 kW
Consumption Frío Nominal
2.83 kW
Nominal heat consumption
54 dBA
External sound level
R32
Refrigerant Gas Ecological
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 950×370×815 mm |
| Gross dimensions (An×Pr×Al) | 1085×465×850 mm |
| Weight Neto/Bruth | 56.0/60.0 kg |
| Compressor | Double hermetic rotary inverter |
| Refrigerant Gas | R32 (1.70 kg preload factory) |
| Food | 1Ph/220~240V/50/60Hz |
| Power supply | 3 x 4.0 mm2 |
| Interconnection cable | 4 x 2.5 mm2 |
| Maximum intensity | 16.5 A cold/heat |
| Intensity Start | 3.0 A |
| Sonora Power | 68 dB |
S Advanced technical characteristics:
Double balanced rotary inverter compressor with optimized variable frequency control for medium commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve, marine antico-red protection and smart automatic discard.
Double balanced rotary inverter compressor with optimized variable frequency control for medium commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve, marine antico-red protection and smart automatic discard.
Y Professional Connectivity and UVC Purification Balanced
Integrated technology includes Professional Wi-Fi which allows total control and centralized management from multiple devices with optimized business protocols for medium-sized commercial facilities. The system incorporates balanced UVC sterilization which eliminates bacteria and viruses in balanced volumes of air, ensuring a healthy environment in commercial facilities. Includes outdoor fresh air intake up to 20% of nominal flow.
📱
Professional Wi-FiBalanced centralized control
🦠
UVC BalancedCommercial purification
🌿
Air FrescoRenovation up to 20%
🔇
Silence 34dBADiscreet operation
Y Energy and Consumption
A++
Label Cold
A++
Label Calor
544 kWh/a
Annual Consumption Cold
2792 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- EER 3.40: Optimized higher energy efficiency for balance
- SEER 6,20: Maximum guaranteed seasonal performance A++
- COP 3.71: Efficient balanced heat pump
- SCOP 5,00: Maximum annual energy use A++
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9,52 mm (3/8") |
| Tubería Gas | Ø 15.88 mm (5/8") |
| Standard length without charge | 30 meters |
| Maximum Length Tuberia | 50 meters |
| Maximum UI-EU | 30 meters |
| Additional charge | 45 g/m on standard length |
| Limits Functioning Cold | -20°C to +46°C |
| Limits Calor operation | -20°C to +24°C |
| TCO2eq Refrigerant Gas | 1,15 kg |
▼ Energy Saving:
The Round-Flow 105 system can generate savings of up to 35% compared to conventional systems of similar power, thanks to its optimized rotary inverter compressor and efficient circular distribution that eliminates dead areas in medium spaces.
The Round-Flow 105 system can generate savings of up to 35% compared to conventional systems of similar power, thanks to its optimized rotary inverter compressor and efficient circular distribution that eliminates dead areas in medium spaces.
: Balanced capacities:
Balanced commercial power of 9,5kW, flows up to 1920 m3/h, intensity of 16,5A and optimized weight of 56kg for medium-sized commercial facilities with monophase power.
Balanced commercial power of 9,5kW, flows up to 1920 m3/h, intensity of 16,5A and optimized weight of 56kg for medium-sized commercial facilities with monophase power.
▪ Inverter Double Compressor Balanced
Equipped with rotary double inverter compressor optimized for balanced capacity which provides precise control in medium thermal loads. The state-of-the-art inverter technology automatically adjusts power by maintaining superior A++ energy efficiency even to a balanced power of 9.5kW.
🌿 Refrigerant Gas R32 Balance
Use coolant Organic R32 optimized for balanced powers with less environmental impact. Compatible with R410A to facilitate renovations. The 1.70kg factory load ensures optimal operation with pipes up to 30 meters without additional charge, ideal for medium commercial installations.
Es Balanced Commercial Applications
Round-Flow 105 is especially suitable for median offices, shops, restaurants, medical centers and educational spaces that require a balanced and uniform air conditioning. Its capacity of 9.5kW guarantees optimal comfort in medium occupancy conditions and balanced thermal load with standard monophase power.
Es Facilities Ideal Balanced
- Medium offices: Up to 105m2 with balanced occupation
- Shops and shops: Medium trade spaces
- Small restaurants: Dining rooms and care areas
- Medical centers: Consultations and treatment rooms
- Educational spaces: Classrooms and training rooms
- Professional staff: Technical studies and offices
️ Cassette Haier Round-Flow 105
AB105S2SR1FA(H) + 1U105S2SQ1FA ⌘ Perfect Commercial Balance 9,5kW
🏢
Perfect Commercial Balance
9.5kW cooling and 10.5kW heating. Ideal balance between power and efficiency for medium spaces.
️
Round-Flow Balance
Circular distribution with 8 tracks up to 1920 m3/h. Eliminates dead areas in spaces up to 105m2.
▪
Maximum efficiency A++
Rotary double inverter compressor with SEER 6,20 and SCOP 5,00 for maximum savings.
📱
Professional Wi-Fi + UVC
Professional centralized control and balanced UVC sterilization for medium spaces.
🔇
Ultra Silence 34dBA
4 balanced speeds (1250-1920 m3/h). Ideal discreet operation for offices.
💰
Maximum Saving
Optimized consumption: only 544 kWh/a in cold. ROI guaranteed in 2-3 years.
S Exclusive Features Round-Flow 105
Complete model
AB105S2SR1FA(H) + 1U105S2SQ1FA
AB105S2SR1FA(H) + 1U105S2SQ1FA
Round-Flow Panel
PB-950QB(H) 950×950mm
PB-950QB(H) 950×950mm
Balanced flows
1250/1550/1750/1920 m3/h
1250/1550/1750/1920 m3/h
Annual summary
544 kWh/ cold
544 kWh/ cold
Interior dimensions
840×840×246 mm
840×840×246 mm
Refrigerant Gas
Organic R32 (1.70 kg)
Organic R32 (1.70 kg)
Es Commercial applications Balanced ideals
Medium offices
Up to 105m2 with balanced occupation
Up to 105m2 with balanced occupation
Shops and Trades
Medium trade spaces
Medium trade spaces
Small restaurants
Dining rooms and care areas
Dining rooms and care areas
Medical Centres
Consultations and treatment rooms
Consultations and treatment rooms
Educational spaces
Classrooms and training rooms
Classrooms and training rooms
Professional Offices
Technical studies and offices
Technical studies and offices
Exclusive Competitive Advantages
Perfect balance
9,5kW with A++ top rating
9,5kW with A++ top rating
Maximum Efficiency
SEER 6,20 leader in your category
SEER 6,20 leader in your category
Guaranteed savings
544 kWh/minimum consumption
544 kWh/minimum consumption
Complete technology
Wi-Fi + UVC + fresh air
Wi-Fi + UVC + fresh air
The Perfect Balance for your Commercial Space!
ONLY BENEFITS OF ROUND-FLOW 105
AHORRO MÁXIMO
Higher A+ efficiency reduces costs up to 35% vs conventional models
Higher A+ efficiency reduces costs up to 35% vs conventional models
️ CONFORT EQUILIBRATE
Round-Flow technology eliminates dead areas with perfect distribution
Round-Flow technology eliminates dead areas with perfect distribution
CONTROL INTELIGENT
Remote Wi-Fi hOn management with advanced programming
Remote Wi-Fi hOn management with advanced programming
INSTALATION SIMPLE
Drying pump included, installation without complications
Drying pump included, installation without complications
HEALTH ENVIRONMENT
Optional UVC antibacterial filters and sterilization
Optional UVC antibacterial filters and sterilization
TOTAL SILENCE
Only 34 dB(A) in silent mode - Ideal for offices
Only 34 dB(A) in silent mode - Ideal for offices
SPECIAL OFFER ROUND-FLOW 105
Take advantage of our exclusive promotion for commercial spaces!
INSTALATION FOR FREE
Professional installation without additional cost
Professional installation without additional cost
️ GARANTIA EXTENDED
5 years of official warranty Haier
5 years of official warranty Haier
FINANCING
ENERGÉTIC STUDY
Custom Saving Analysis
Custom Saving Analysis
ASSESSMENT
Technical consultancy
Technical consultancy
WHERE'S THE HAIER ROUND-FLOW 105 CASSETTE?
Đ ONLY:
Perfect balance between power, efficiency and cost
Perfect balance between power, efficiency and cost
▪ LINE EFFICIENCY:
SEER 6,20 and SCOP 5,00 - A++ higher classification
SEER 6,20 and SCOP 5,00 - A++ higher classification
ROI GARANTIZED:
Investment recovery in 2-3 years
Investment recovery in 2-3 years
PERFECT DISTRIBUTION:
8 independent pathways eliminate dead areas
8 independent pathways eliminate dead areas
️ PROFESSIONAL CONTROL:
Wi-Fi integrated with centralized management
Wi-Fi integrated with centralized management
PURIFICATION:
Healthy environment with UVC and antibacterial filters
Healthy environment with UVC and antibacterial filters
CONTACT NOW - CERTIFIED SPECIALISTS
📋 Budget in 24h
No commitment
No commitment
️ Technical advice
Specialized
Specialized
📦 Delivery and installation
Professional guaranteed
Professional guaranteed
🔧 Official Service Haier
In all España
In all España
Limited Offer - Book your Round-Flow 105 today!
Del Request Information of Round-Flow 105
Find out why the Cassette Haier Round-Flow 105 is the perfect choice for your balanced commercial project.
📞
Technical informationRound-Flow balanced technology consultation
💰
Commercial budgetQuotation for medium-sized projects
️
Professional ServiceAdvice for balanced applications
▷✅ Round-Flow
Cassette Haier Round-Flow 105 with official guarantee and technical service specialized in balanced circular technology.
Cassette Haier Round-Flow 105 with official guarantee and technical service specialized in balanced circular technology.
Ada️ Balanced Exclusive Technology
8-way Round-Flow distribution with flows up to 1920 m3/h. Perfect balance for medium commercial facilities.
8-way Round-Flow distribution with flows up to 1920 m3/h. Perfect balance for medium commercial facilities.
Ada Balanced Commercial Solution
Ideal for offices, shops, restaurants and medical centers up to 105m2 with standard monophase feeding.
Ideal for offices, shops, restaurants and medical centers up to 105m2 with standard monophase feeding.
ROI Guaranteed
Only 544 kWh/a consumption with 9.5kW power. Secured investment recovery in 2-3 years.
Only 544 kWh/a consumption with 9.5kW power. Secured investment recovery in 2-3 years.
HAIROUNDCAS105MHC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB105S2SR1FA(H)
- Outdoor Unit
- 1U105S2SQ1FA
- Panel
- PB-950QB(H)
- I send
- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.790
- Energy class (cold)
- A++
- SEER
- 6,2
- Heat capacity (W)
- 10.500
- Heat capacity (Kcal / h)
- 9.030
- Nominal heat consumption (W)
- 2.830
- Energy class (heat)
- A++
- SCOP
- 5,0
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 245
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 815
- Weight Indoor Unit (Kg)
- 24,0
- Weight Outdoor Unit (Kg)
- 56,0
- Net weight (kg)
- 81,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
New
No customer reviews for the moment.
