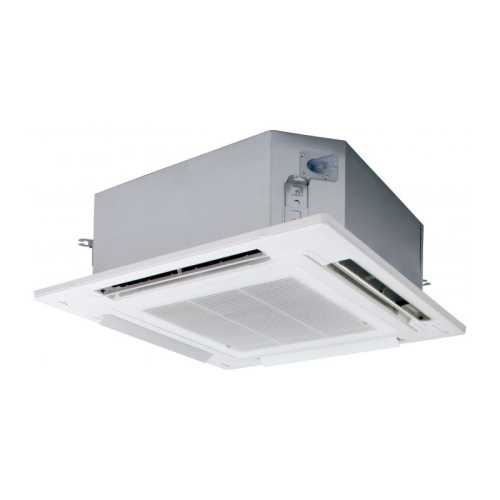

Air Conditioning Cassette Panasonic KIT-140PU3Z5-6W
Refrigeration 14000W 日本語 Heating 14000W 日本語 SEER 6,5 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-140PU3Z5-6W represents ultra maximum industrial power pACi NX Standard Series with 14000W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and smart control for industrial spaces up to 170m2.
️ 14000W Refrigeration
Range 3.3-15.0 kW
14 14000W Heating
Rank 3.4-16.0 kW
▪ SEER 6,5 A++
SCOP 4,2 A+
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 140
Indoor Unit: S-1014PU3E

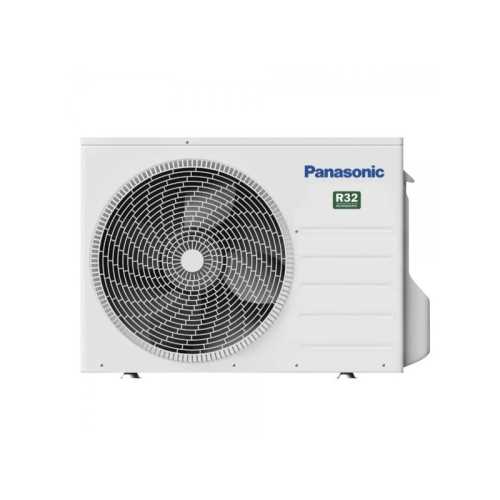

Outdoor Unit: U-140PZ3E5
Air flow: 20,0-38,0 m3/min
Sonic Pressure: 40 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 4,34 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-140Pu3Z5-6W Paci NX Standard
Referencia: KIT-140PU3Z5-6W
€3,314.63
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-140PU3Z5-6W
Refrigeration 14000W 日本語 Heating 14000W 日本語 SEER 6,5 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-140PU3Z5-6W represents ultra maximum industrial power pACi NX Standard Series with 14000W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and smart control for industrial spaces up to 170m2.
️ 14000W Refrigeration
Range 3.3-15.0 kW
14 14000W Heating
Rank 3.4-16.0 kW
▪ SEER 6,5 A++
SCOP 4,2 A+
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 140
Indoor Unit: S-1014PU3E
Outdoor Unit: U-140PZ3E5
Air flow: 20,0-38,0 m3/min
Sonic Pressure: 40 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 4,34 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy

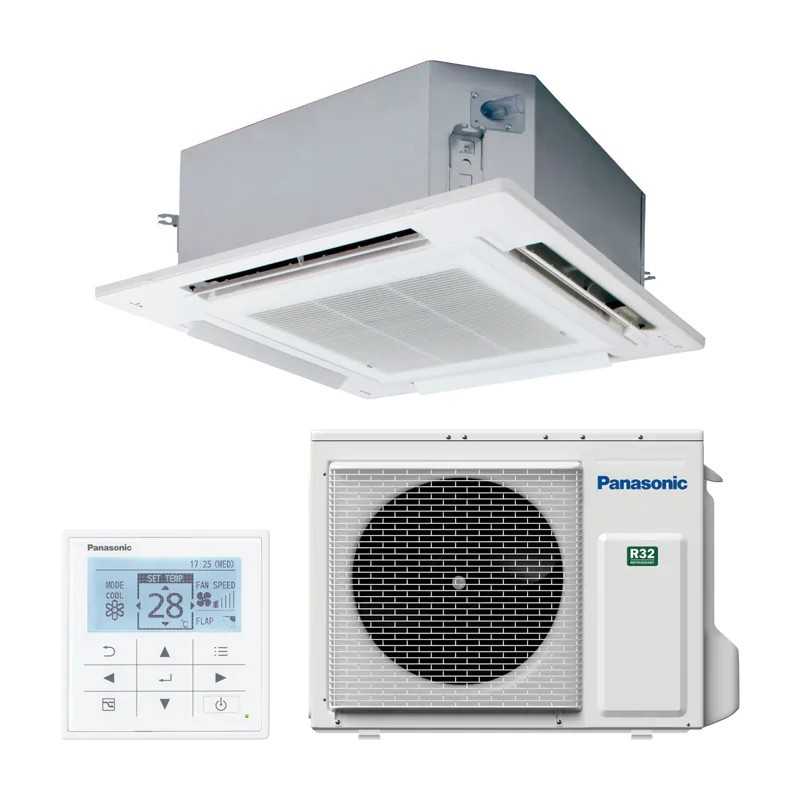

Panasonic KIT-140PU3Z5-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD • 14000W/14000W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard 140: Ultra Maximum Industrial Power + Intelligent Technology
The Panasonic KIT-140PU3Z5-6W establishes the ultra maximum industrial power absolute in the PACi NX Standard Series 14000W in cooling and heating for industrial complexes and ultra wide spaces. Integrates cZ-RTC6BLW controller with Wi-Fi + Bluetooth which allows total remote control and intelligent configuration, while technology nanoeTM X Mark 1 series guarantees purified air with 4.8 billion hydroxyl radicals per second in massive industrial spaces.
Designed for industrial ships, logistics centers, large commercial complexes and spaces of up to 170sqm, combine the high performance turboventilator with intelligent Econavi sensor which automatically optimizes energy consumption in ultra high demand industrial installations. His 4-way air distribution with cassette 90x90 cm ensures uniform and ultra powerful air conditioning SEER 6,5 A++, maintaining excellent efficiency at ultra maximum power.
️ Ultra Maximum Industrial Power
14000W Refrigeration: Modulant range 3.3-15.0 kW
14000W Heating: Modulant range 3.4-16,0 kW
Coverage: 110-170m2 industrial spaces
Industrial Wi-Fi Control

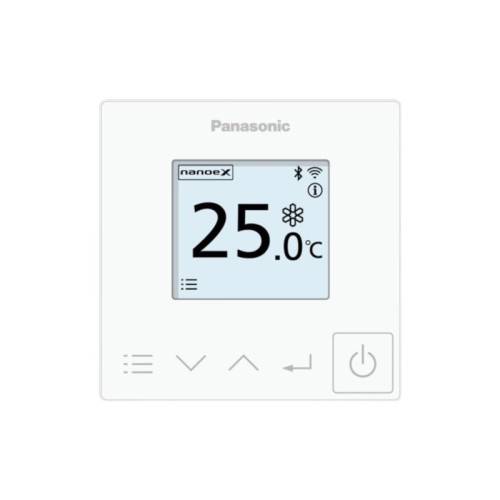

CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Industrial Setup: Professional configuration
Total management: Remote industrial control
Tecnología Advanced technology PACi NX Standard Ultra Maximum Power
🌀
Turboventilator Ultra
High performance ultra maximum power
️
Sensor Econavi Ultra
Optimization of industrial spaces
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
💧
Ultra Drying Pump
Integrated ultra capacity light
Ultra Maximum Energy Efficiency Power A++
SEER 6,5 A++
Refrigeration ultra maximum power
SCOP 4,2 A+
Industrial heating
EER 3.23
Ultra instant performance
COP 4,18
Coefficient ultra heat
Technical Specifications • PACi NX Standard KIT-140PU3Z5-6W
INVERTER+ • 4 4 Vias 90x90 • W WI-FI + BLUETOOTH • R32 ECOLÓGICO
Cassette 4 Via Technology + Ultra Maximum Power Turboventilator
The 4-way cassette 90x90 cm kIT-140PU3Z5-6W incorporates a high-performance turboventilator optimized for ultra maximum power that maximizes the air trajectory through the heat exchanger. With variable flow rate from 20,0 to 38,0 m3/min, adapts automatically to the needs of air conditioning of massive industrial spaces maintaining a sound level of 40 dBA in medium speed, exceptional for its ultra maximum industrial power.
The sensor Econavi industrial intelligent automatically detects the activity in massive industrial spaces and adjusts the operation for optimize energy consumption without compromising the ultra maximum power. Technology Green R32 with 2.80 kg load offers superior thermodynamic properties for ultra maximum power while maintaining the SEER 6,5 A++, exceptional for its category of ultra maximum industrial power.
Re️ Ultra Maximum Air Performance Power
Variable flow rate: 20,0-38,0 m3/min
Distribution: 4 tracks 90x90
Sound level: 40 dBA (middle speed)
Dehumidification: 6.0 L/h elimination
Electrical Specifications
Food: 220-240V monophasic
Consumption Cold: 4,34 kW (nominal)
Consumption Calor: 3.35 kW (nominal)
Intensity: 19,20-21,00 A (cold)
S Dimensions and Technical Specifications
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-1014PU3E |
| Interior dimensions | High x Width x Deep | 319 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 25 / 5 kg |
| Outdoor Unit | Model | U-140PZ3E5 |
| Outer dimensions | High x Width x Deep | 996 x 980 x 370 mm |
| Tuberias | Liquid / Gas | 3/8" (9,52mm) / 5/8" (15,88mm) |
| Maximum length | Tuberia | 5-50 meters |
Es Industrial applications Ultra Maximum Power
🏭
Industrial ships
110-170m2 industrial spaces
📦
Logistics Centres
Warehouses
🏬
Commercial complexes
Ultra wide spaces
️
Industrial plants
Heated production
Ultra Maximum Power Cassette
▷ Advantages Ultra Maximum Power:
- Ultra fast air conditioning industrial spaces
- Uniform ultra maximum capacity
- Variable air flow rate up to 38,0 m3/min
- Ultra powerful 60.0 L/h
- Precise control large industrial areas
: Industrial characteristics:
- Indoor Unit robust industrial
- nanoetm X purification industrial volumes
- Wi-Fi + Bluetooth industrial management
- R32 high load 2,80 kg ultra maximum power
- Maximum intensity 21,00 A power supply
IT'S THE ULTIMATE INDUSTRIAL POWER!
Panasonic KIT-140PU3Z5-6W • 14000W/14000W • SEER 6,5 A+ • CZ-RTC6BLW
ULTRA MÁXIMA INDUSTRIAL POTENCE: 14000W + Intelligent Technology
The ultra maximum absolute power solution for massive industrial spaces that require industrial level air conditioning. Cassette 4 tracks with uniform distribution up to 170m2, total Wi-Fi control and nanoeTM X purification for industrial volumes. The perfect ultra-maximum power model for industrial ships, logistics centers and production plants that need ultra-powerful and efficient air conditioning.
Cassette Ultra Maximum Power
14000W Industrial: Range 3.3-16.0 kW
Caudal Ultra: 20,0-38,0 m3/min
Coverage: 110-170m2 industrial spaces
Industrial Wi-Fi Control
CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Industrial Setup: Professional configuration
Industrial management: Ultra Advanced Remote Control
WHY DO I ELEGATE PANASONIC KIT-140PU3Z5-6W?
▷ Ultra Maximum Technical Advantages:
- SEER 6,5 A++ ultra maximum power efficiency
- 14000W power ultra wide industrial
- Turboventilator Ultra 38,0 m3/min flow rate
- Sensor Econavi Ultra savings
- 40 dBA silent despite ultra maximum power
: Industrial applications:
- Industrial ships 110-170m2 production
- Logistics centres warehouses
- Commercial complex ultra wide spaces
- Industrial plants heated production
- Industrial projects ultra maximum power
Es Industrial Features Ultra Maximum Power
SEER 6,5 A++
Ultra maximum power efficiency
COP 4,18
Ultra heat performance
NanoeTM X
Purification of industrial volumes
6.0 L/h
Ultra powerful dehumidification
INDUSTRIAL TECHNOLOGIES
Turboventilator Ultra
Ultra maximum power 38,0 m3/min
️ Econavi Industrial
Sensor massive industrial spaces
Ultra Pump
Ultra maximum drainage capacity
R32 Ultra
Ecological 2,80kg ultra load
CHECK YOUR TAPE NOW!
Industrial air conditioning specialists Panasonic • Industrial technical advice • Ultra-high power solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-140PU3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PU3E
- Outdoor Unit
- U-140PZ3E5
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 120 a 135 m2
- Refrigerator capacity (W)
- 14.000
- Refrigerator capacity (kcal / h)
- 12.040
- Nominal consumption Cold (W)
- 4.340
- Heat capacity (W)
- 14.000
- Heat capacity (Kcal / h)
- 12.040
- Nominal heat consumption (W)
- 3.350
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 319
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 87,0
- Net weight (kg)
- 117,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
5/8" - Possibility Integration
- WiFi Included
