Air conditioning floor-ceiling Giatsu
Office range Admires Plus • Model GIA-CF-24AdM2R32 • Single-phase
Excellent installation flexibility, robustness and high capacity commercial air conditioning They merge in the SPLIT floor-ceiling system Giatsu Gia-cf.-24adm2r32. Belonging to the advanced line Admires Plus of the Office range, this powerful single-phase set develops a nominal refrigeration capacity of 7.03 kW (24,000 BTU / H) and a heat power of 7,62 kW (26,000 BTU / H). Its polyvalent design allows you to install the indoor Unit Suspendedly suspended from the roof or vertical supported on the ground, fully adapting to the architecture of its commercial premises, office or home. Equipped with a robust GMCC compressor, DC Inverter fans and anticorrosive protection Golden End Standard, this equipment ensures a continuous thermal flow and a high durability. All this operating under the efficient ecological refrigerant R-32 and backed by one of the most solid market coverage with 5 years warranty in the compressor.
Flexibility Floor-ceiling: Horizontal installation on ceiling or vertical low on floor
High seasonal energy efficiency: Cold and A + A ++ rating in heating
Golden Protection End Included SERIES FOR MAXIMUM LIFE SDLEZLE BACK
Premium Commercial Warranty: 3 years Total and 5 years in the compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

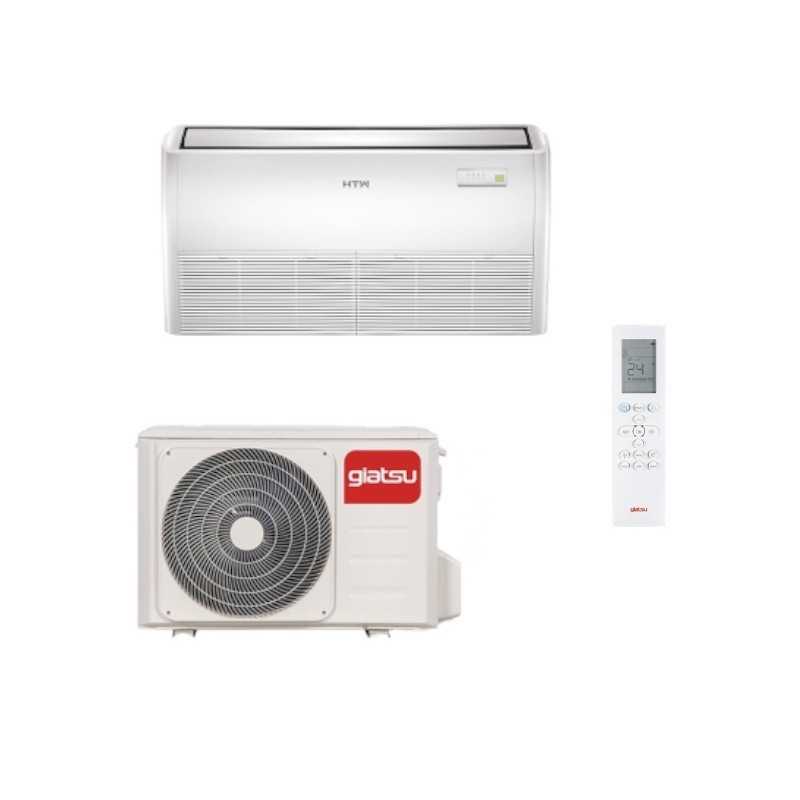

Air conditioning Floor-roof Gia-CF-24Adm2R32 Giatsu Admires MONOF.
Referencia: GIA-CF-24ADMR32
€1,338.37
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air conditioning floor-ceiling Giatsu
Office range Admires Plus • Model GIA-CF-24AdM2R32 • Single-phase
Excellent installation flexibility, robustness and high capacity commercial air conditioning They merge in the SPLIT floor-ceiling system Giatsu Gia-cf.-24adm2r32. Belonging to the advanced line Admires Plus of the Office range, this powerful single-phase set develops a nominal refrigeration capacity of 7.03 kW (24,000 BTU / H) and a heat power of 7,62 kW (26,000 BTU / H). Its polyvalent design allows you to install the indoor Unit Suspendedly suspended from the roof or vertical supported on the ground, fully adapting to the architecture of its commercial premises, office or home. Equipped with a robust GMCC compressor, DC Inverter fans and anticorrosive protection Golden End Standard, this equipment ensures a continuous thermal flow and a high durability. All this operating under the efficient ecological refrigerant R-32 and backed by one of the most solid market coverage with 5 years warranty in the compressor.
Flexibility Floor-ceiling: Horizontal installation on ceiling or vertical low on floor
High seasonal energy efficiency: Cold and A + A ++ rating in heating
Golden Protection End Included SERIES FOR MAXIMUM LIFE SDLEZLE BACK
Premium Commercial Warranty: 3 years Total and 5 years in the compressor
Security policy
Delivery policy
Refund policy
Product description
The Air conditioning floor-ceiling Giatsu Admires Plus 24 it represents the balanced solution for medium-large spaces that require powerful, efficient and versatile air conditioning. With a nominal power of 7.03 kW in refrigeration (24,000 BTU / H) and 7,62 kW in heating (26,000 BTU / H), this range of the Office Admiral Plus combines DC Advanced Inverter technology, elegant and exceptional design Energy Efficiency A ++ / A + to provide optimal comfort in spacious offices, large commercial premises, medium-sized restaurants and large-area housing that demand high performance with silent and efficient operation.

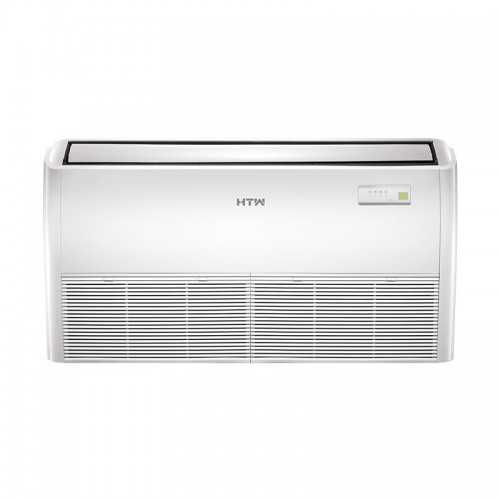

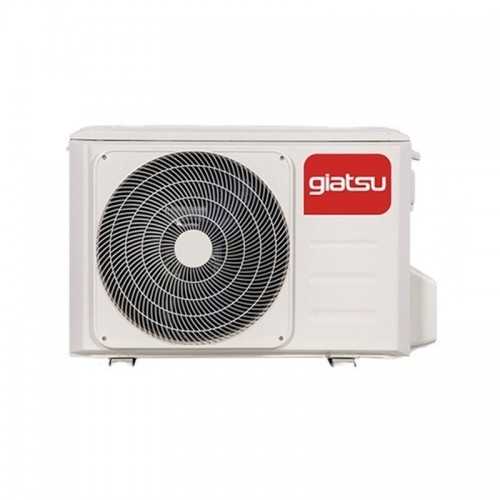

Composed of the indoor Unit GIA-CFI-24Adm2R32 compact design with dimensions 1068 x 675 x 235 mm and outdoor Unit GIA-UO-24Adm2R32 with high reliability GMCC compressor, this system stands out for its intelligent modulation capacity ranging from 3.22 to 7.95 kW in refrigeration and from 2.72 to 8.50 kW in heating. With an optimized air flow of up to 1,192 m³ / h and ultrasilence sound levels from 22.5 dB (A), it provides effective and uniform air distribution by guaranteeing homogeneous comfort with exceptional discrete operation.
The unit incorporates DC Inverter technology in compressor and fan that guarantees maximum Seer 6.3 (A ++) maximum energy efficiency, golden end protection for maximum durability in demanding environments, remote control of serial and wifi connectivity Optional Wifiufo for smart management from smartphone. With selectable temperature range of 16-30 ° C, Ecological Refrigerant R32, maximum 50m pipe length and total 3-year warranty with 5 years in compressor, it offers the perfect combination between balanced power, maximum energy efficiency and reliability for projects Residential and commercial that seek the ideal balance between performance and consumption.
Main features
⚡
Balanced power 7.03 kW
Power of 7.03 kW (24,000 BTU / H) with DC Inverter technology that provides effective air conditioning for medium-large spaces with maximum efficiency.
🌟
Exceptional Efficiency A ++
SEER 6.3 (A ++) exceptionally guarantees maximum energy savings with optimized consumption for intensive residential and commercial use.
🔇
Ultrasilencious 22.5 dB (A)
Exceptionally silent operation from 22.5 dB (A) thanks to the optimized DC Inverter technology and advanced acoustic design.
🛡️
Golden End Protection Premium
Golden anti-corrosion treatment fin that protects the exchanger against saline and corrosive environments for maximum durability.
🌊
Optimized flow 1.192 m³ / h
Optimized air flow up to 1,192 m³ / h that guarantees uniform and effective distribution in medium-large spaces.
📱
Wifi smart wifiufo
Optional WiFiufo wifi module for smart control from smartphone, 24h programming and advanced system monitoring.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | GIA-CFI-24Adm2R32 + GIA-UO-24Adm2R32 |
| Cold nominal power (min-nom-max) | 3,22 - 7.03 - 7,95 kW (10,990 - 24,000 - 27,100 BTU / H) |
| Nominal power heat (min-nom-max) | 2,72 - 7,62 - 8.50 kW (9,280 - 26,000 - 29,000 BTU / H) |
| Nominal consumption Cold (Lo-nom-Max) | 0.75 - 2,30 - 2,73 kW |
| Nominal heat consumption (Lo-nom-Max) | 0.65 - 1.98 - 2,94 kW |
| Seer / Scop | 6.3 / 4.1 |
| Energy label (cold / heat) | A ++ / A + |
| Dimensions Indoor Unit (Anxalxpr) | 1.068 x 675 x 235 mm |
| Dimensions Outdoor Unit (Anxalxpr) | 890 x 673 x 342 mm |
| Air flow (high / medium / low) | 1.192 / 1,023 / 853 m³ / h |
| Internal sound pressure (high / medium / low / quiet) | 49.5 / 45.5 / 36.5 / 22.5 dB (A) |
| Exterior sound pressure | 60.5 dB (A) |
| Refrigerant Gas / Load | R32 / 1.4 kg |
| Maximum tubing length | 50 m |
| Maximum | 25 m |
| Liquid connections / gas | 3/8 "/ 5/8" |
| Weight Indoor Unit Outdoor | 28.0 / 41.9 kg |
| Compressor | GMCC DC Inverter |
| Electrical supply | 220-240V (1 phase ~ 50Hz) |
| Range Running cold / heat | -15 ° C A + 50 ° C / -20 ° C A + 24 ° C |
Benefits of air conditioning Giatsu Admires Plus 24
✓
Perfect for medium-sized residential and commercial spaces
With 7.03 kW (24,000 BTU / H) of power, ideal for spaces of 60-90 m², spacious offices, large medical consultations, medium-sized restaurants and large homes that require powerful and efficient air conditioning.
✓
Exceptional Energy Efficiency A ++
SEER 6.3 (A ++) that positions this model among the most efficient in its category, guaranteeing maximum energy savings and minimum operating environmental impact.
✓
Ultrasilencious operation from 22.5 dB (A)
Optimized DC Inverter technology that provides exceptionally silent operation from 22.5 dB (A), ideal for environments that require maximum acoustic comfort.
✓
Flexible installation up to 50m with extended warranty
Maximum tubing length of 50m with Golden protection End and 3-year warranty Total + 5 years in compressor that ensures total tranquility and exceptional durability.
Why choose the Giatsu Admire Plus 24?
Main applications
🏠
Large homes
Single-amymiliary houses, spacious floors, Large rooms and residential spaces of 60-90 m² that require powerful, silent and efficient air conditioning.
🏢
Spacious offices
Corporate offices, spacious meeting rooms, large medical consultations and professional spaces that need silent and controlled environment.
🏪
Medium businesses
Medium Stores, Restaurants, Beauty Salons, Small Gyms, and Commercial Spaces that require balanced air conditioning for customer comfort.
Optimized DC Inverter Technology
⚡
Optimized efficiency Seer 6.3
GMCC DC Inverter compressor that automatically adjusts the speed according to the demand, guaranteeing SEER 6.3 (A ++) and maximum continued energy saving.
🎵
Premium acoustic comfort
Operation from 22.5 dB (A) that eliminates annoying noises and provides silent atmosphere ideal for work, rest and concentration.
📱
Intelligent Wifi Control
Optional WiFiufo WiFi module for total remote management, 24h custom programming and advanced monitoring from any smartphone.
The perfect balance between power, efficiency and silence!
The air conditioning Giatsu Admires Plus 24 combines 7.03 kW balanced power (24,000 BTU / H), exceptional SEER 6.3 efficiency (A ++), ultrasilencious operation from 22.5 dB (A), Optimized DC Inverter technology, Flexible installation up to 50m and connectivity Optional WiFi to provide the most balanced and advanced air conditioning solution for medium-large spaces. Office range with extended warranty for maximum tranquility and professional performance.
Ask your personalized budget today!
GIA-CF-24ADMR32
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-CFI-24ADMR32
- Outdoor Unit
- GIA-UO-24ADMR32
- I send

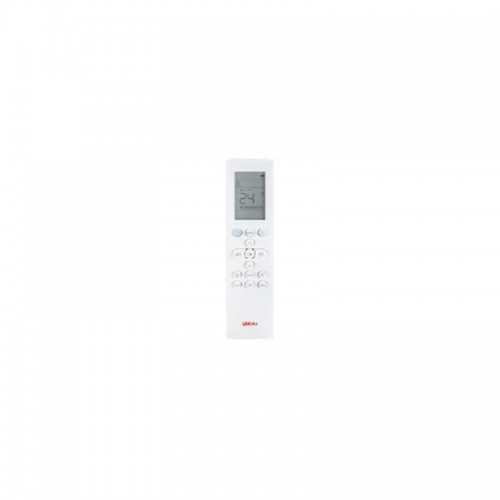

- Mando Infrarrojos
- Color
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 70 m2
- Refrigerator capacity (W)
- 7.030
- Refrigerator capacity (kcal / h)
- 6.046
- Nominal consumption Cold (W)
- 2.300
- Energy class (cold)
- A++
- SEER
- 6,10
- Heat capacity (W)
- 7.620
- Heat capacity (Kcal / h)
- 6.553
- Nominal heat consumption (W)
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- Dimensions u.i (anxfxh) mm
- 1068 x 675 x 235
- Dimensions u.e (anxfxh) mm
- 890 x 342 x 673
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- Net weight (kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi
