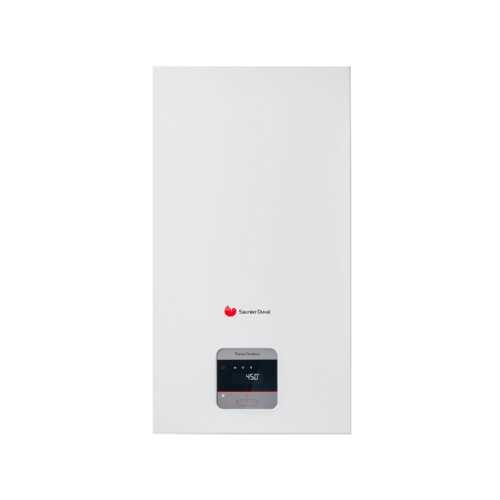

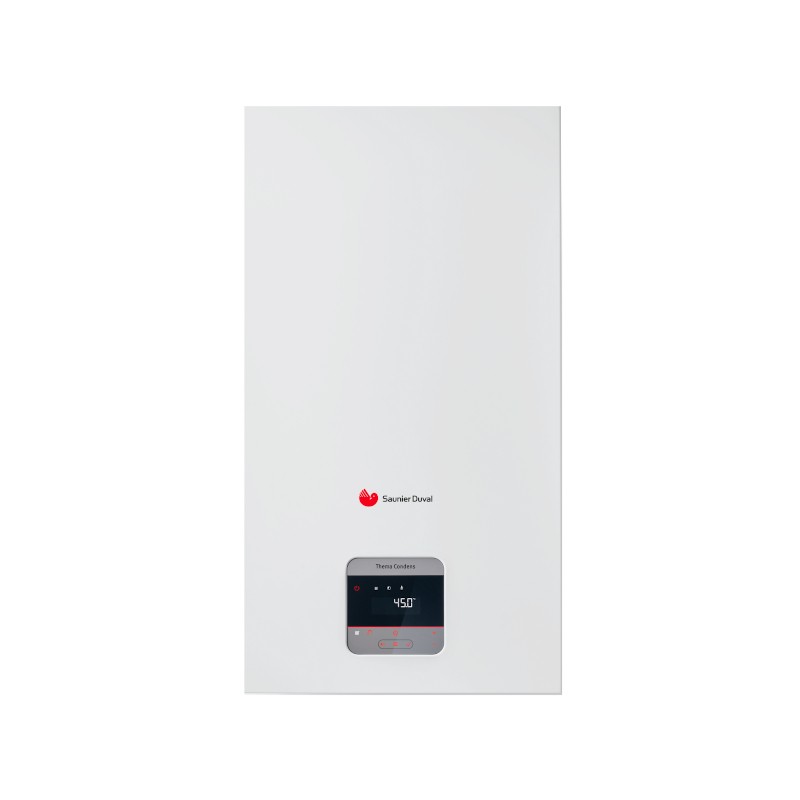

Gas boiler Saunier Duval Thema Condens Miset Wiring 26 CS / 1-C Instantaneous GN

The Saunier Duval Thema Condens Miset 26 represents the evolution in condensation boilers with advanced technology, incorporating the fLAMEFIT combustion system with modulation 1: 9 for maximum savings and comfort. With modular useful power from 2.9 kW up to 20.0 kW for heating and up to 26.0 kW for Sanitary, offers perfect adaptation to any demand with superior efficiency.

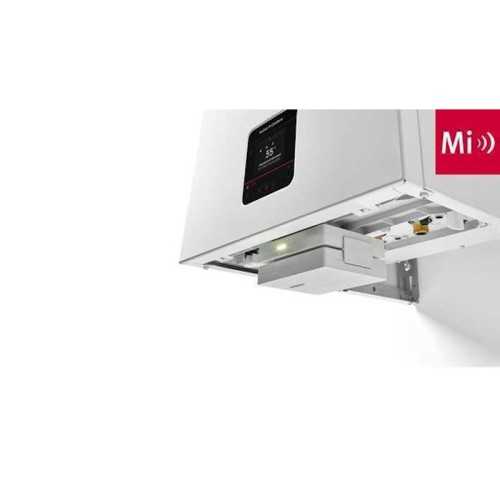

The mISET control included series serial it allows advanced management with the possibility of getting classification A + connecting an outer probe. The transformation to propane (G31) from the control panel at the time of start-up it eliminates the need for additional kits, maximizing installation versatility.

The continuous supervision of combustion leads to a great savings and great security even with emergency operation. The stainless steel primary exchanger guarantees maximum durability with exceptional yields of 98% at nominal power and 106.2% in low temperature.

The new design with control panel with tactile zones and large screen includes graphics, codes and symbols of simple and intuitive use. The energy consumption reading on screen it allows real-time monitoring of performance and energy expenditure.

The ease of installation is exceptional thanks to the same size and same accessories as the previous range with nozzle 60/100 with jacks for front combustion analysis. It is integrable in kitchen cabinets with depth less than 35cm, offering maximum location flexibility.

The production of sanitary hot water offers 14.7 l / min with temperature range of 35-60 ° C, guaranteeing immediate comfort for the whole family. The sound level of only 47 dB (A) ensures discrete operation in any housing environment.

Dimensions of 418 x 740 x 344 mm and weight of 29.5 kg, combine power and compactness in an elegant design. The eRP yield 94% and energy classification they confirm maximum energy efficiency and environmental commitment.

TheMA Condens Miset 26 represents the perfect solution for medium homes, combining FLAMEFIT technology, intelligent MISET control and maximum versatility in a boiler that guarantees absolute comfort, exceptional energy savings and total installation ease.

Main features

Technical specifications

Options Evacuation of fumes

Energy classification

Saunier Duval Thema Condens Miset 26 - Flamefit Technology!

Modulation 1: 9, MISET Cable included, propane transformation from display and integrable in kitchen. Intelligent control and maximum versatility!
