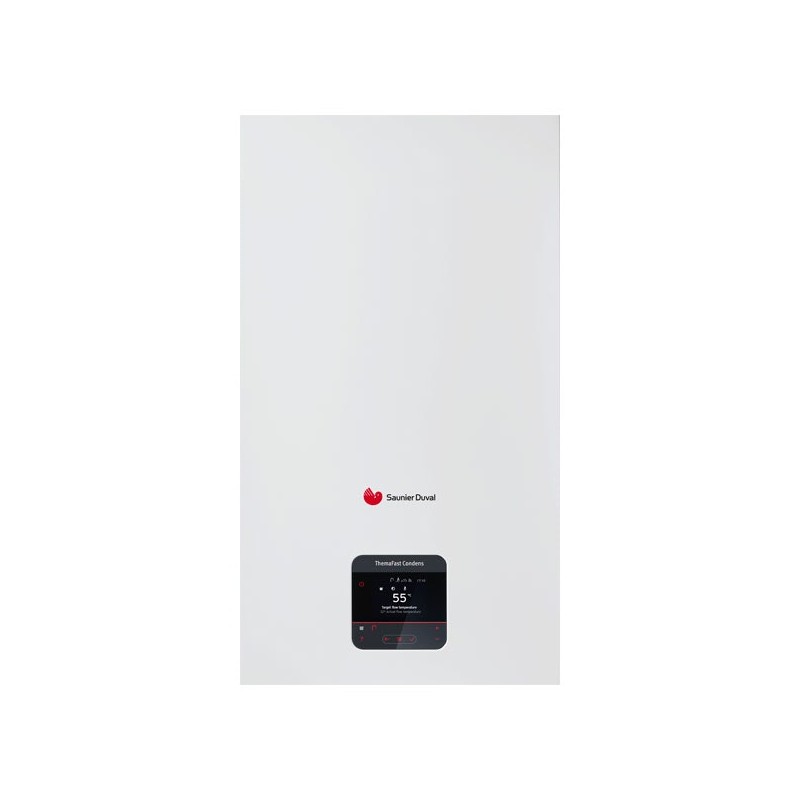

Gas boiler Saunier Duval Thema Condens Miset Wiring 31 CS / 1-C Instantaneous GN

The Saunier Duval Thema Condens Miset 31 it represents maximum expression in snapshot condensation boilers, combining maximum power with advanced technology for large residential facilities. With modulable useful power from 3.4 kw up to 25.0 kW for heating and exceptional 31.0 kW for Sanitary, offers immediate response to the largest demands of hot water without commitment in comfort.

It incorporates the evolution of Warm Start technology now called Aquafast, which improves the rapid response in hot water not only decreasing the waiting time, but offering more comfort and savings. The fLAMEFIT combustion system with intelligent modulation 1: 9 it provides exceptional savings and maximum comfort with continuous supervision of combustion.

The new design incorporates control panel with tactile zones and large screen with advanced graphics, diagnostic codes and intuitive use symbols. The transformation to propane (G31) from the control panel at the time of commissioning, it eliminates the need for additional conversion kits completely.

The mISET control included series serial it allows advanced management of the system with the possibility of getting classification A + by connecting an outer probe via radio. The continuous supervision of combustion guarantees great savings and maximum security even with emergency operation in any condition.

The instant production of hot water sanitary provides 17.8 l / min with temperature range of 35-60 ° C, guaranteeing abundant comfort for numerous families and high demand applications. The stainless steel primary exchanger ensures exceptional durability with eRP yield 94%.

The installation is extremely simple maintaining the same size and accessories as the previous range with nozzle 60/100 and shots for front combustion analysis. It is integrable in kitchen cabinets with depth less than 35cm dimensions of 418 x 740 x 344 mm and weight of 33.8 kg.

The sound level of only 47 dB (A) ensures discreet performance, while the wide range of smoke evacuation configurations it offers maximum installation flexibility with approved types C13, C33, C43, C53, C83 and B23P.

TheMA Condens MIST 31 represents the final solution for maximum demand facilities, combining Aquafast technology, Flamefit system, MISET control and exceptional power in an instant boiler that guarantees absolute comfort, superior energy savings and maximum reliability for Large residential facilities.

Main features

Technical specifications

Options Evacuation of fumes

Energy classification

Saunier Duval Thema Condens Miset 31 - Maximum instant power!

31kw Instant with Aquafast, Flamefit 1: 9, MISET included and 17.8 l / min. The definitive solution for great demands of DHW!
