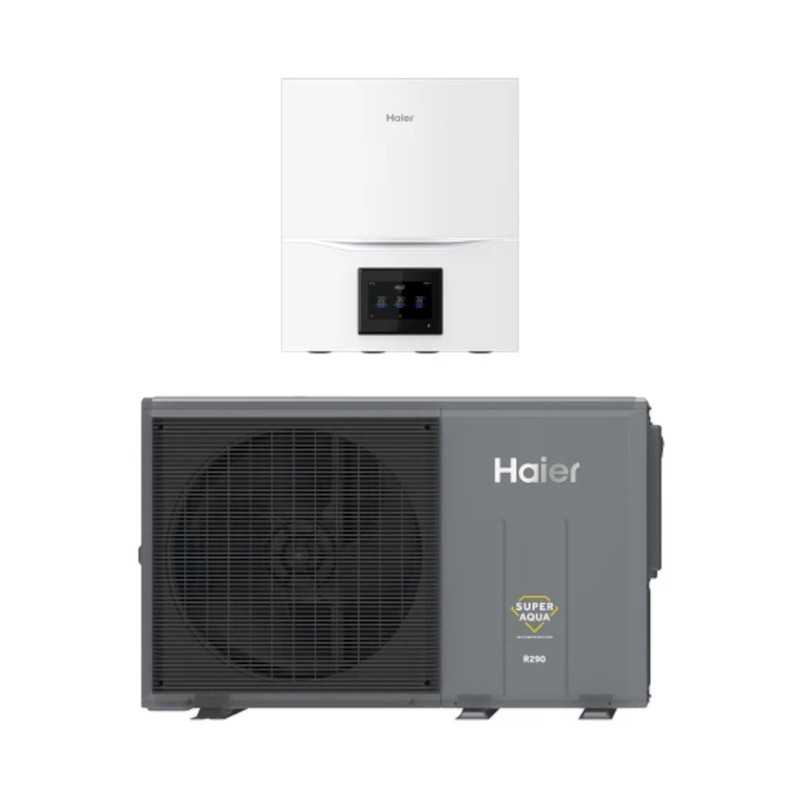

Aerotermia Pump Heat Monobloc Haier AW16NMXGHA R290 Three-phase

Large capacity thermal renewal without interior reforms

The air / water heat pump Haier Monobloc GT AW16NMXGHA is consolidated as the high-capacity solution in three-phase format to undertake very demanding energy reforms in single-family homes, large volume residential chalets or commercial premises that have an installation 400V. This powerful System Inverter unifies high demand centralized heating services, refreshing refrigeration in summer by cycle investment and complete management for the production of sanitary hot water (DHW) by connecting to an external interacutulator. Being designed in a monobloc format, the entire propane coolant circuit comes hermetically sealed factory in the outer module, which substantially simplifies the technical assembly tasks and eliminates the need to manipulate gas lines in the rooms Interiors of the building.

🌿 Refrigerant Gas Natural R-290: Vanguard and Savings Performance

Ecological excellence and maximum monthly savings merge in the Haier Monobloc GT 16 KW thanks to the integration of natural propane gas R-290. This refrigerant stands out for its magnificent thermodynamic qualities and an insignificant global warming potential, which allows the system to work with total freedom in the face of stricter European environmental regulations. Squeezing the performance of your DC Inverter Twin Rotary compressor, the equipment reaches an exceptional energy rating of To +++ in heating of space at low temperature (W35 ° C), recording a SCOP of 4.80 and a nominal COP of 4.95 under three-phase optimized conditions. This guarantees a drastically reduced electricity consumption, translating into direct relief on supplies invoices during the winter.

🔧 Pre-installed hydraulic components at the factory

The monobloc GT range has been meticulously developed to optimize the space of residential technical rooms and streamline installation tasks abroad. Within its robust vertical chassis, the unit houses a factory integrated hydraulic assembly that includes: an electronic variable speed circulation pump, an expansion vessel of 8 liters, safety valve, flow switch and automatic deaerator valve. Standard standard equipment is completed with antivibratory support gums for lower base, a type water filter and to protect the circuit impurities and high-strength anti-corrosive treatment.

🌡️ Water impulsion at 80 ° C and resistance to rigorous climates

Thanks to the excellent mechanical performance of propane Gas R-290, the AW16NMXGHA unit is capable of boosting hot water to 80 ° C directly and purely hydronic manner. This allows the replacement of ancient gasoil boilers while maintaining intact the network of conventional radiators without the need to carry out reforms or add costly electrical support systems. Its climate operating limits guarantee uninterrupted comfort under the most severe conditions: in heating mode it maintains a stable and continuous operation even before winter frosts up to -25 ° C exterior. During the summer, it reverses its cycle in an agile form to provide refreshing refreshing through refreshing floor or fancails in an outside temperature range of up to 48 ° C.

🔌 Advanced digital management: App WiFi, Smart Grid and Modbus

The total control of the system is managed intuitively through the digital control of Intelligent HW-WA101DBT cable that is included as standard. This wall touch panel acts as an advanced environment thermostat, allowing programming automated climate curves and controlling up to 2 independent climate control zones. Thanks to its WiFi connectivity as standard, the user can regulate comfort, establish detailed weekly programming and visualize full real-time energy measurement readings through the official application of Haier on your smartphone. For automated residential and commercial projects, the Modbus protocol incorporates as standard to facilitate the link to centralized BMS systems and SMART Grid connectivity to intelligently coordinate electrical consumption with Solar Plates Production Surroundings Photovoltaic.

🎯 Technical characteristics

All the technical information detailed below faithfully reflects the official performance data for this three-phase model, configured as standard with the ATW-A03-N control module:
