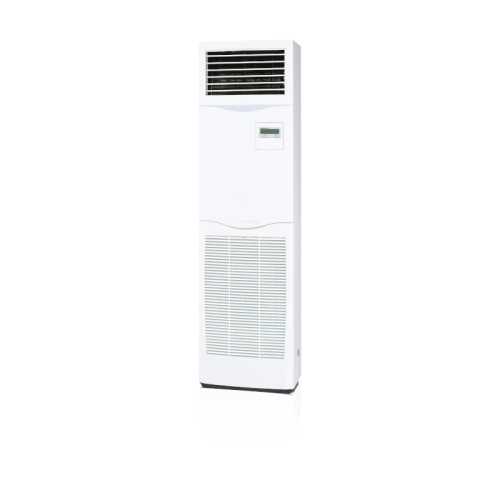

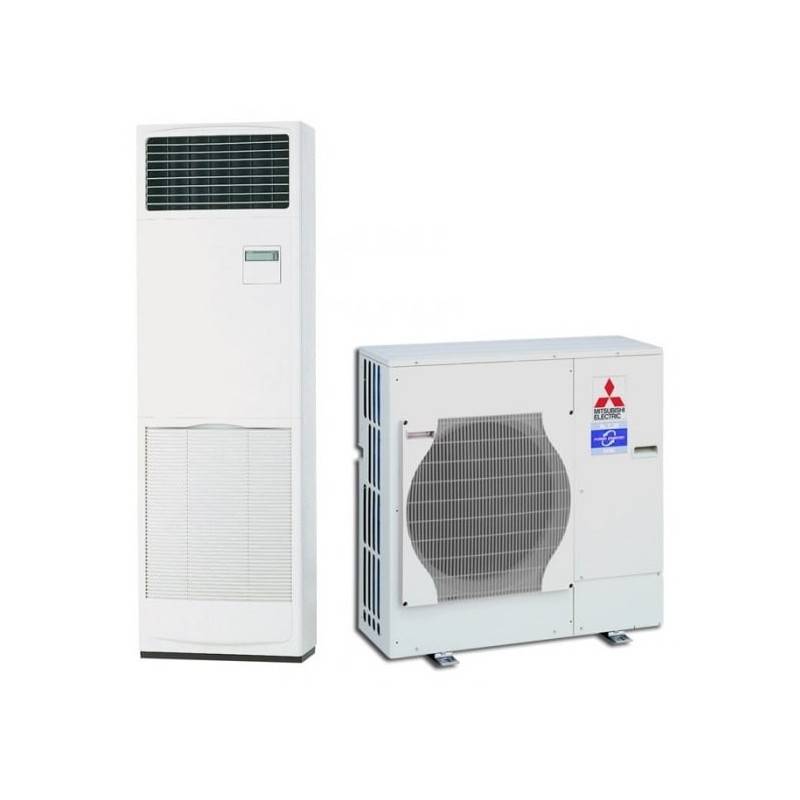

Mitsubishi MSPSZ-100YKA2
Column Mr. Slim - Japanese Technology Standard Inverter Three-phase
Technical specifications
| Cold / heat power: | 10.0 kW / 11.2 kW |
| Energy efficiency: | To ++ / a + |
| Seer / scop: | 6.0 / 4.1 |
| Indoor Unit: | PSA-m100ska |
| Outdoor Unit: | Puz-m100yka2 |
| Power: | Three-phase 400V |
| Refrigerant Gas: | R-32 ecological |
Technology Mr. Slim Three-phase Inverter
- Three-phase Standard STANDARD INVERTER technology
- Functional design minimum space
- Three-phase professional installation
- Integrated remote control pair-41maa
- Built-in weekly programmer
- Melcloud ™ optional connectivity
- Long-time filter 2,500 hours
- Total Flexibility Installation 4 Sides
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi MSPSZ-100YKA TRIF column. Air conditioning
Referencia: MSPSZ-100YKA
€4,062.73
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Mitsubishi MSPSZ-100YKA2
Column Mr. Slim - Japanese Technology Standard Inverter Three-phase
Technical specifications
| Cold / heat power: | 10.0 kW / 11.2 kW |
| Energy efficiency: | To ++ / a + |
| Seer / scop: | 6.0 / 4.1 |
| Indoor Unit: | PSA-m100ska |
| Outdoor Unit: | Puz-m100yka2 |
| Power: | Three-phase 400V |
| Refrigerant Gas: | R-32 ecological |
Technology Mr. Slim Three-phase Inverter
- Three-phase Standard STANDARD INVERTER technology
- Functional design minimum space
- Three-phase professional installation
- Integrated remote control pair-41maa
- Built-in weekly programmer
- Melcloud ™ optional connectivity
- Long-time filter 2,500 hours
- Total Flexibility Installation 4 Sides
Security policy
Delivery policy
Refund policy
Mitsubishi MSPSZ-100YKA2
Column Mr. Slim Three-phase - High Power - Complete technical description
🎯 High power three-phase introduction
The Mitsubishi MSPSZ-100YKA2 it is the three-phase solution of high power for large commercial and industrial spaces of 100-120 m². With 10.0 KW of refrigeration power and 11.2 KW Heatific, this system is specifically designed for three-phase feed 400V, providing robustness that require more demanding professional applications, ideal for large offices, shopping centers and industrial buildings.
⚡ Three-phase superior power
| Refrigeration capacity: | 10.0 kW (8,600 kcal / h) |
| Capacity Heating: | 11.2 kW (9,632 kcal / h) |
| Cold Modulation Range: | 9.4 - 13.2 kW |
| Range Modulation Heat: | 9.4 - 13.2 kW |
| EER / COP: | 3.23 / 3,41 |
| SEER / SCOP: | 6.0 / 4.1 |
🔧 Units of the three-phase system
| Indoor Unit: | PSA-m100ska |

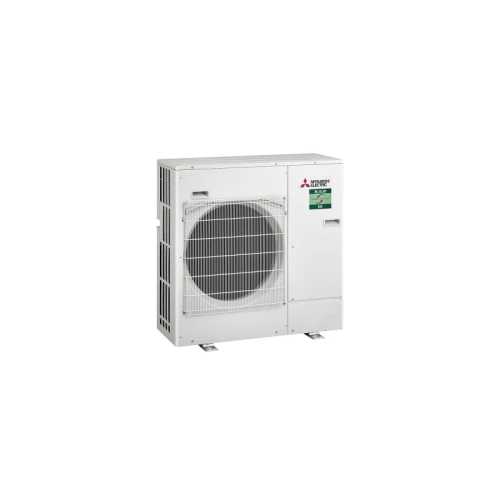

| Outdoor Unit: | Puz-m100yka2 |
| Control included: | Pair-41maa |
| Optional WiFi: | Mac-567if |
| Power: | Three-phase 400V / 50Hz |
| Refrigerant Gas: | R-32 ecological |
🏭 Three-phase advantages for high power
Balanced distribution
Top-phase loads
Greater energy efficiency
Optimized energy transport
Stable performance
Lower current per phase
Greater electrical safety
Stable variable loads
Industrial integration
Industrial standard
Industrial facilities
Smaller voltage
⚙️ Advanced three-phase inverter technology
Control Large Spaces
100-120 m²
Precise temperature ± 0.5 ° C
Automatic adaptation load
Professional boot
Soft progressive
Without electric overload
Stable performance
Industrial efficiency
Energy saving
Optimized commercial use
Intensive schedules
🌿 Industrial R32 Environmental Technology
Industrial regulations
68% less GWP
Trade regulations
Business certifications
Thermal efficiency
Greater performance
High power applications
Top transfer
Industrial security
A2L Class
Low flammability
Secure installation
📏 Robust industrial construction
| Indoor Unit: | 1,900 x 600 x 360 mm |
| Interior weight: | 39 kg |
| Outdoor Unit: | 981 x 1.050 x 330 mm |
| Exterior weight: | 76 kg |
| Air flow: | 79 m³ / min |
| Sound level: | 51 dB (A) / 51 dB (A) |
🌡️ Three-phase upper performance
| Cold consumption: | 3,25 kW |
| Consumption Heat: | 2,745 kW |
| Cold operating range: | -15 ° C A + 46 ° C |
| Operational range heat: | -10 ° C A + 24 ° C |
| Voltage: | 400V ± 10% |
| Sonora power: | 65 dB (A) |
📐 PSA design - Total flexibility for large three-phase spaces
Left
Installations
industrial
large corners
Right
Industrial walls
distribution
optimized
Rear connection
Installation
discrete
commercial applications
Lower connection
Connections
from soil
total flexibility
🎮 Advanced Business Management and Management
Commercial par-41
- Commercial programming business schedules
- Display Multi Language diverse
- Control Ranges specific applications
- Lock anti-handling
Industrial management
- Self-off timer energy saving
- Consult functions entire state
- Accuracy ± 0,5 ° C
- Integrated diagnosis predictive
Melcloud ™ Business Enterprise
- Centralized management multiple equipment
- Monitoring real time consumption
- Complex programming different areas
- Preventive alerts maintenance
🛠️ Maintenance for commercial intensive use
Industrial filter
2,500 hours
Intensive commercial use
Minimum interruptions
Simplified access
Accessible components
Minimum intervention
Frontal
Advanced diagnosis
Self-diagnosis
Error codes
Predictive maintenance
🏢 High power three-phase applications
Large corporate offices (100-120 m²)
Spaces work open
Large boards
Corporate centers
Industrial trade
Dealers, Showrooms
Shopping centers
Large surfaces
Light industry
Workshops, medium ships
Distribution centers
Heated warehouses
Professional hospitality
Hotels, Big Restaurants
Business dining room
Events centers
🏭 High power three-phase Mitsubishi Electric
Mr. Slim • Three-phase Inverter • 10KW • 400V • Melcloud ™ • R32
Japanese technology for commercial and industrial applications - power, efficiency and guaranteed three-phase reliability
MSPSZ-100YKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PSA-M100KA
- Outdoor Unit
- PUZ-M100YKA
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.690
- Energy class (cold)
- A+
- SEER
- 6
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 3.250
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 45
- Dimensions u.i (anxfxh) mm
- 600 x 360 x 1900
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 39
- Weight Outdoor Unit (Kg)
- 78
- Net weight (kg)
- 117
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi accessory MAC-587IF
