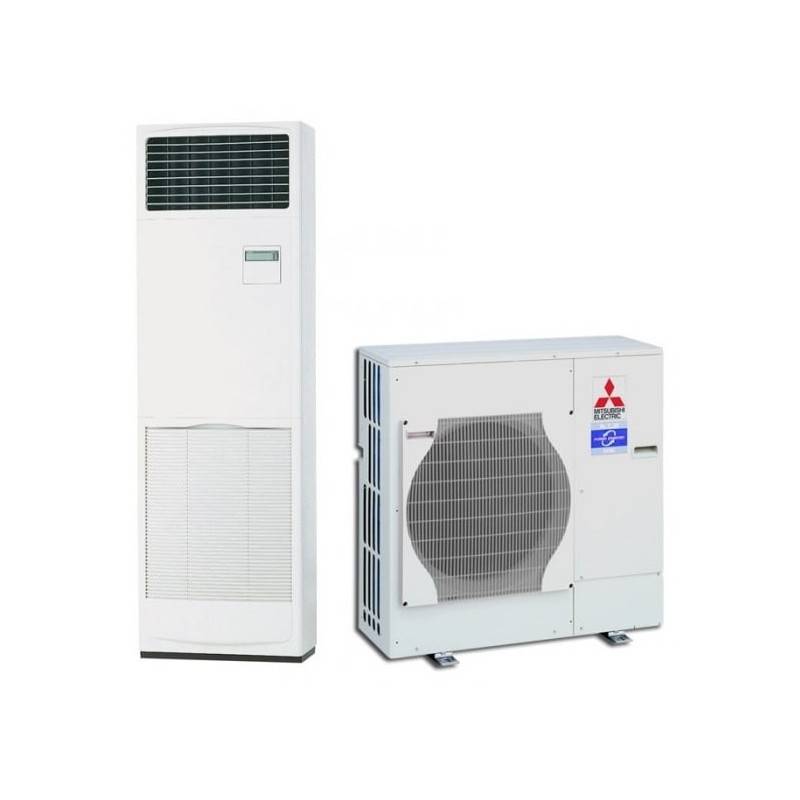

MITSUBISHI MSPSZ-125YKA2
Columna Mr. SLIM - Japanese technology Standard Inverter TRIFÁSICO
Technical Specifications
| Cold Power/Calor: | 12.5 kW / 13.5 kW |
| Energy Efficiency: | A++/A+ |
| SEER/SCOP: | 5,2 / 4,1 |

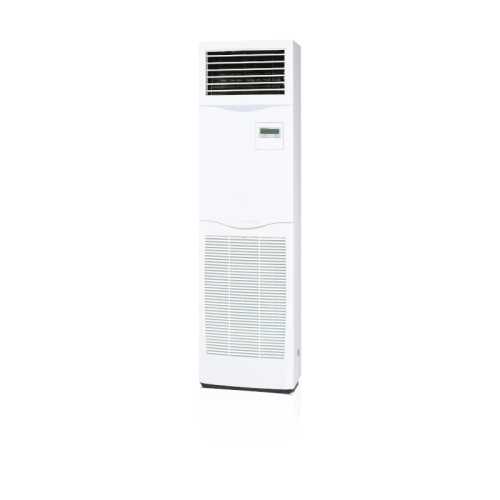

| Indoor Unit: | PSA-M125SKA |

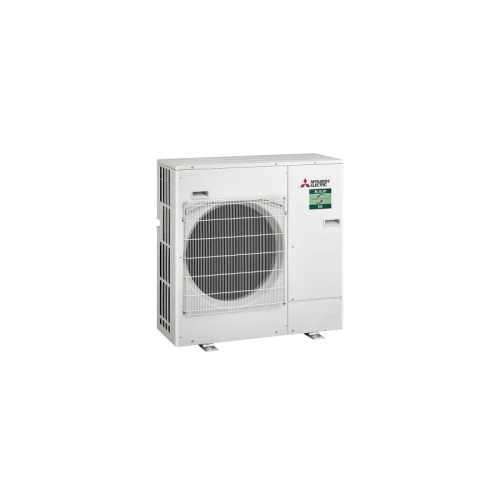

| Outdoor Unit: | PUZ-M125YKA2 |
| Food: | Triphasic 400V |
| Refrigerant Gas: | R-32 Ecological |
Technology Mr. SLIM Inverter Triphasic
- Technology Japanese Inverter Standard Three-phase
- Functional design PSA minimum space
- Three-phase professional installation
- Integrated remote control PAR-41MAA
- Built-in weekly programmer
- MELCloudTM optional connectivity
- Long filter lasting 2,500 hours
- Total installation flexibility 4 sides
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi MSPSZ-125YKA TRIF column. Air conditioning
Referencia: MSPSZ-125YKA
€5,007.89
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
MITSUBISHI MSPSZ-125YKA2
Columna Mr. SLIM - Japanese technology Standard Inverter TRIFÁSICO
Technical Specifications
| Cold Power/Calor: | 12.5 kW / 13.5 kW |
| Energy Efficiency: | A++/A+ |
| SEER/SCOP: | 5,2 / 4,1 |
| Indoor Unit: | PSA-M125SKA |
| Outdoor Unit: | PUZ-M125YKA2 |
| Food: | Triphasic 400V |
| Refrigerant Gas: | R-32 Ecological |
Technology Mr. SLIM Inverter Triphasic
- Technology Japanese Inverter Standard Three-phase
- Functional design PSA minimum space
- Three-phase professional installation
- Integrated remote control PAR-41MAA
- Built-in weekly programmer
- MELCloudTM optional connectivity
- Long filter lasting 2,500 hours
- Total installation flexibility 4 sides
Security policy
Delivery policy
Refund policy
MITSUBISHI MSPSZ-125YKA2
Columna Mr. SLIM TRIFÁSICO - High Industrial Power - Full Technical Description
De High Power Industrial Triphasic Introduction
The Mitsubishi MSPSZ-125YKA2 represents the summit of the three-phase industrial climate 12.5 kW of frigorific power and 13,5 kW heat. This high power column system is designed for large commercial surfaces, industrial ships and spaces of 120-150 m2 which requires 400V triphase power supply, providing intensive air conditioning with maximum energy efficiency A++ and the reliability that characterizes Japanese technology for demanding industrial applications.
Higher Industrial Power
| Refrigeration capacity: | 12.5 kW (10,750 kcal/h) |
| Capacity Heating: | 13,5 kW (11,610 kcal/h) |
| Cold Modulation Range: | 12.1 - 150.0 kW |
| Calor Modulation Range: | 12.1 - 150.0 kW |
| EER / COP: | 3,01 / 3,41 |
| SEER / SCOP: | 5,2 / 4,1 |
Es Triphasic System Units
| Indoor Unit: | PSA-M125SKA |
| Outdoor Unit: | PUZ-M125YKA2 |
| Control included: | PAR-41MAA |
| Optional WiFi: | MAC-567IF |
| Food: | Triphasic 400V/50Hz |
| Refrigerant Gas: | R-32 Ecological |
Triphasic Advantages for High Industrial Power
Industrial distribution
Balanced loads
Maximum energy efficiency
Critical applications
Extreme stability
Optimized current
Maximum electrical safety
Intensive variable loads
Total integration
Industrial standard
Critical facilities
Solid infrastructure
S️ Inverter Standard technology for Triphasic demanding applications
Industrial Control
Spaces 120-150 m2
High thermal load
Stable operation
Potential Start
Rapid air conditioning
Large volumes
Variable loads
Efficiency A++
Maximum savings
Intensive applications
Industrial use 24/7
S R32 Environmental Technology for Triphasic Industrial Applications
Compliance
68% less GWP
Industrial regulations
Business certification
Thermal efficiency
Increased performance
High power applications
Higher transfer
Industrial safety
Class A2L
Low inflammation
Safe installation
Industrial construction Robusta
| Indoor Unit: | 1.900 x 600 x 360 mm |
| Interior weight: | 40 kg |
| Outdoor Unit: | 961 x 1.050 x 330 mm |
| Outer weight: | 84 kg |
| Air flow: | 86 m3/min |
| Sound level: | 54 dB(A) / 54 dB(A) |
S️ Industrial Benefits
| Consumption Cold: | 4,36 kW |
| Consumption Calor: | 3,095 kW |
| Cold Operative Range: | -15°C to +46°C |
| Calor Operating Range: | -10°C to +24°C |
| Tension: | 400V ±10% |
| Sonora Power: | 66 dB(A) |
PSA Design - Total Flexibility for Triphasic Complex Installations
Left connection
Facilities
industrial ships
complex corners
Right connection
Industrial walls
distribution
optimized
Trash connection
Installation
discreet
critical applications
Inferior connection
Flexibility
total
technical connections
Advanced control PAR-41MAA for Triphatic Industrial Applications
Industrial functions
- Industrial programme operation 24/7
- Multi-language display international operation
- Control Critical ranges industrial processes
- Maximum safety critical environments
Professional management
- Advanced Diagnosis full performance
- Consultation of functions detailed status
- Precision control ±0.5°C
- Predictive maintenance preventive
MELCloudTM Industrial
- Monitoring 24/7 critical facilities
- Immediate alerts abnormalities
- Total remote control maintenance
- Integration BMS business
S️ Maintenance for Triphasic Critic Applications
Industrial filter
2,500 hours
24/7 critical applications
Uninterrupted operation
Industrial access
Accessible components
Minimum stops
Fast maintenance
Professional Diagnosis
Advanced self-diagnosis
Error codes
Predictive maintenance
S Specific Industrial Applications
Large Warehouses (120-150 m2)
Commercial areas
Distribution centres
Warehouses
Industrial ships
Factorys, plants production
Specialized workshops
Manufacturing centres
Logistics Centres
Automated warehouses
Distribution centres
Logistics facilities
Sports facilities
Gyms, sports
Sports pavilions
Training centers
ALTA POTENCIA INDUSTRIAL TRIFÁSICA MITSUBISHI ELECTRIC
MR. SLIM • INVERTER TRIFÁSICO • 12.5KW • 400V • MELCLOUDTM • R32
Japanese technology for high-power industrial applications - Guaranteed triphase reliability and efficiency
MSPSZ-125YKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PSA-M125KA
- Outdoor Unit
- PUZ-M125YKA
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 4.480
- Energy class (cold)
- TO
- SEER
- 5,2
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 4.360
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 45
- Dimensions u.i (anxfxh) mm
- 600 x 360 x 1900
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 40
- Weight Outdoor Unit (Kg)
- 85
- Net weight (kg)
- 125
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi accessory MAC-587IF
