Mitsubishi MSPSZ-125VKA2
Column Mr. Slim Standard Inverter Series
Mitsubishi MSPSZ-125VKA2 - Air conditioning column Mr. Slim High power with 12.1 kW refrigerators and 13.5 kW heat. Energy efficiency A + / A + with high-performance Japanese inverter technology and ecological refrigerant R-32. Industrial flow 86 m³ / min with robust PSA design for demanding applications. Includes PSA-M125SKA + PUZ-M125VKA2 units, integrated remote control pair-41MAA with weekly programmer and optional Melcloud ™ connectivity. LONG FILTER DURATION Up to 2,500 hours and sound level 54 DBA. Ideal for large industrial spaces, spacious shopping centers, sports facilities and applications that demand high power with japanese cutting-edge technology and simplified installation.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

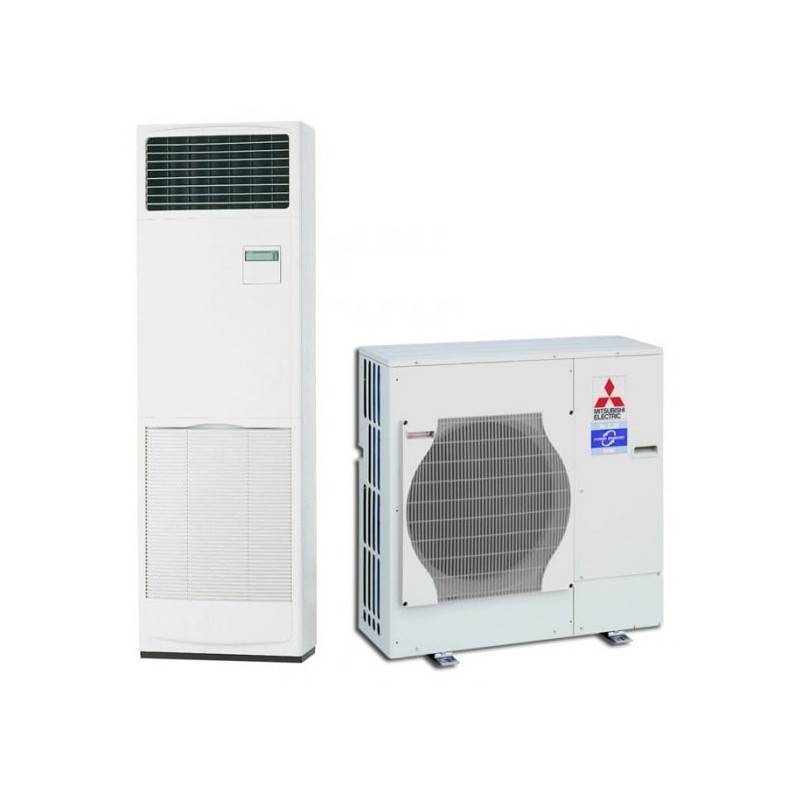

Mitsubishi Column MSPSZ-125VKA MONOF. Air conditioning
Referencia: MSPSZ-125VKA
€4,729.15
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Mitsubishi MSPSZ-125VKA2
Column Mr. Slim Standard Inverter Series
Mitsubishi MSPSZ-125VKA2 - Air conditioning column Mr. Slim High power with 12.1 kW refrigerators and 13.5 kW heat. Energy efficiency A + / A + with high-performance Japanese inverter technology and ecological refrigerant R-32. Industrial flow 86 m³ / min with robust PSA design for demanding applications. Includes PSA-M125SKA + PUZ-M125VKA2 units, integrated remote control pair-41MAA with weekly programmer and optional Melcloud ™ connectivity. LONG FILTER DURATION Up to 2,500 hours and sound level 54 DBA. Ideal for large industrial spaces, spacious shopping centers, sports facilities and applications that demand high power with japanese cutting-edge technology and simplified installation.
Security policy
Delivery policy
Refund policy
Mitsubishi MSPSZ-125VKA2
Column Mr. Slim - High Industrial Power - Full Technical Description
🎯 High power industrial introduction
The Mitsubishi MSPSZ-125VKA2 represents the summit of industrial air conditioning with 12.5 kW of refrigeration power and 13.5 kW heat. This high-power column system is designed for large commercial surfaces, industrial buildings and spaces of 120-150 m² that require intensive air conditioning with maximum energy efficiency A ++ and reliability that characterizes Japanese technology Mitsubishi Electric.
⚡ Superior industrial power
| Refrigeration capacity: | 12.5 kW (10,750 kcal / h) |
| Capacity Heating: | 13.5 kW (11,610 kcal / h) |
| Cold Modulation Range: | 12.1 - 15.0 kw |
| Range Modulation Heat: | 12.1 - 15.0 kw |
| EER / COP: | 3.01 / 3,41 |
| SEER / SCOP: | 5.2 / 4.1 |
🔧 System units

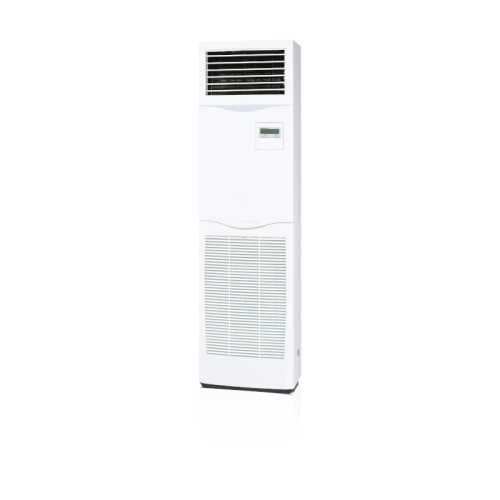

| Indoor Unit: | PSA-m125ska |

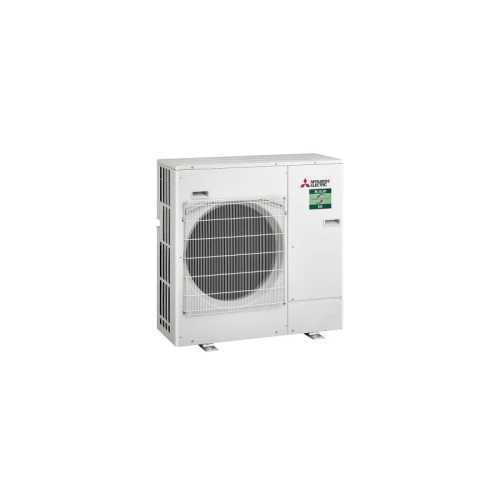

| Outdoor Unit: | Puz-m125vka2 |
| Control included: | Pair-41maa |
| Optional WiFi: | Mac-567if |
| Power: | 230v single-phase |
| Refrigerant Gas: | R-32 ecological |
⚙️ STANDARD Inverter technology for demanding applications
Industrial control
Spaces 120-150 m²
High heat load
Stable performance
Power-start
Quick air conditioning
Large volumes
Variable loads
Efficiency A ++
Maximum saving
Intensive applications
Use 24/7
🌿 Environmental technology R32 for industrial applications
Regulatory compliance
68% less GWP
Environmental regulations
Business certifications
Thermal efficiency
Greater performance
High power applications
Top transfer
Industrial security
A2L Class
Low flammability
Secure installation
📏 Robust industrial construction
| Indoor Unit: | 1,900 x 600 x 360 mm |
| Interior weight: | 40 kg |
| Outdoor Unit: | 961 x 1.050 x 330 mm |
| Exterior weight: | 84 kg |
| Air flow: | 86 m³ / min |
| Sound level: | 54 dB (A) / 54 dB (A) |
🌡️ Industrial benefits
| Cold consumption: | 4,36 kW |
| Consumption Heat: | 3,095 kW |
| Cold operating range: | -15 ° C A + 46 ° C |
| Operational range heat: | -10 ° C A + 24 ° C |
| Voltage: | 230V ± 10% |
| Sonora power: | 66 dB (A) |
📐 PSA design - Total flexibility for complex facilities
Left
Installations
industrial buildings
complex corners
Right
Industrial walls
distribution
optimized
Rear connection
Installation
discrete
critical applications
Lower connection
Connections
from soil
maximum flexibility
🎮 Advanced control pair-41MAA for industrial applications
Industrial functions
- Industrial programming operation 24/7
- Display Multi Language international operation
- Control critical ranges industrial processes
- Maximum security critical environments
Professional management
- Advanced diagnosis full performance
- Consult functions detailed status
- Accuracy ± 0,5 ° C
- Predictive maintenance preventive
Melcloud ™ Industrial
- 24/7 monitoring critical
- Immediate alerts failures
- Total remote control maintenance
- Integration BMS business
🛠️ Maintenance for critical applications
Industrial filter
2,500 hours
Critical applications 24/7
Uninterrupted performance
Industrial access
Accessible components
Minimum stops
Fast maintenance
Professional diagnosis
Advanced self-diagnosis
Error codes
Predictive maintenance
🏭 Specific industrial applications
Large stores (120-150 m²)
Commercial surfaces
Distribution centers
Heated warehouses
Industrial buildings
Factories, Production plants
Specialized Workshops
Centers Manufacturing
Logistics Centers
Automated warehouses
Distribution centers
Logistics facilities
Sports facilities
Gyms, Sports
Sports pavilions
Training centers
🎌 High power industrial Mitsubishi Electric
Mr. Slim • Standard Inverter • 12,5KW • Melcloud ™ • Ecological R32
Japanese technology for high power industrial applications - guaranteed reliability and efficiency
MSPSZ-125VKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PSA-M125KA
- Outdoor Unit
- PUZ-M125VKA
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 4.480
- Energy class (cold)
- TO
- SEER
- 5,2
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 4.360
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 45
- Dimensions u.i (anxfxh) mm
- 600 x 360 x 1900
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 40
- Weight Outdoor Unit (Kg)
- 84
- Net weight (kg)
- 124
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi accessory MAC-587IF
