SAMSUNG AC100BNPDKH/EU
Air Conditioning Vertical Column - Compressor Twin BLDC Rotary

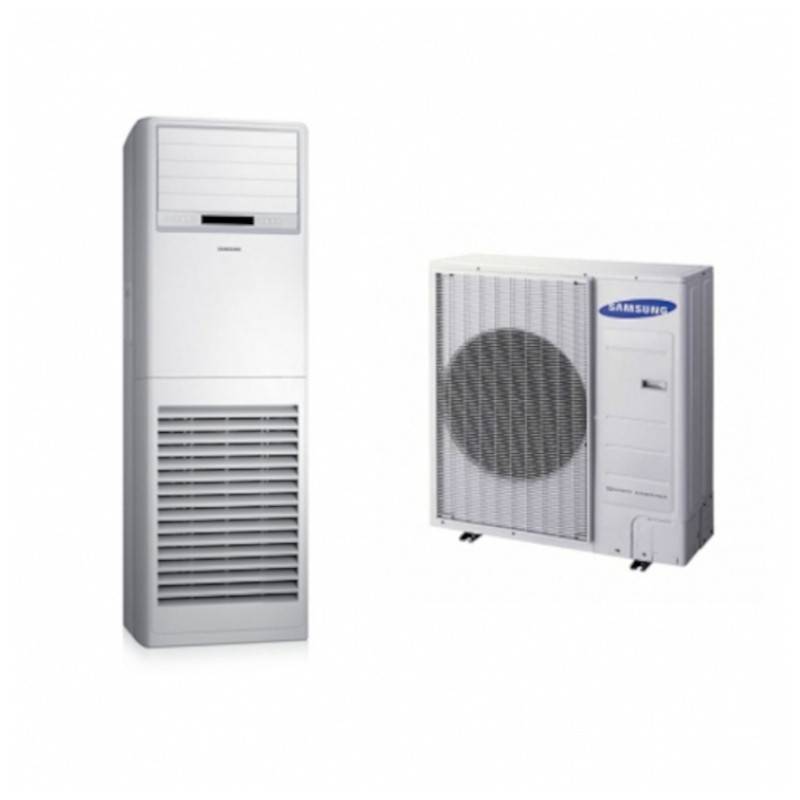

SAMSUNG AC100BNPDKH/EU - Air Conditioning Vertical Floor with 10,0 kW of frigorific power and 11,2 kW heat. Energy efficiency A++ in cold and A+ in heat with BLDC Twin rotary and coolant compressor R-410A. 450-step integrated electronic expansion valve for accurate control of refrigerant flow. Elegant vertical floor design of 61cm wide x 185cm high with ultrasilency performance from 30 dB(A). Includes AC100BNPDKH/EU interior units + exterior AC100BXPDKH/EU, wireless remote control AR-EH03E, washable permanent filter and Auto Restart function. Air flow rate up to 35.0 m3/min. Perfect for 100-120 m2 spaces that require efficient and silent air conditioning with vertical installation.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Column Samsung F-vertical100m Air conditioning
Referencia: F-VERTICAL100M
€2,452.88
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
SAMSUNG AC100BNPDKH/EU
Air Conditioning Vertical Column - Compressor Twin BLDC Rotary
SAMSUNG AC100BNPDKH/EU - Air Conditioning Vertical Floor with 10,0 kW of frigorific power and 11,2 kW heat. Energy efficiency A++ in cold and A+ in heat with BLDC Twin rotary and coolant compressor R-410A. 450-step integrated electronic expansion valve for accurate control of refrigerant flow. Elegant vertical floor design of 61cm wide x 185cm high with ultrasilency performance from 30 dB(A). Includes AC100BNPDKH/EU interior units + exterior AC100BXPDKH/EU, wireless remote control AR-EH03E, washable permanent filter and Auto Restart function. Air flow rate up to 35.0 m3/min. Perfect for 100-120 m2 spaces that require efficient and silent air conditioning with vertical installation.
Security policy
Delivery policy
Refund policy
SAMSUNG AC100BNPDKH/EU
Air Conditioning Type Vertical Column
Overview
The SAMSUNG AC100BNPDKH/EU is a vertical floor air conditioning 10,0 kW of frigorific power and 11,2 kW heat power. It incorporates BLDC Twin high efficiency rotary compressor with R-410A refrigerant. Its 450-step electronic expansion valve (EEV) ensures accurate control of refrigerant flow. Compact vertical floor design makes it the ideal solution for spaces 100-120 m2 where efficient air conditioning and ultrasilination are required.
Power and Efficiency
| Refrigeration capacity: | 10.0 kW (34.100 BTU/h) |
| Capacity Heating: | 11,2 kW (38,200 BTU/h) |
| Cold Efficiency: | A++ (SEER 6,1) |
| Calor Efficiency: | A+ (SCOP 4,2) |
| EER / COP: | 2,86 / 3,30 |
System components

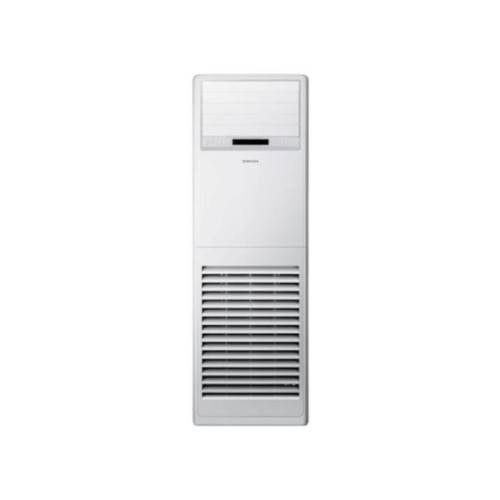

| Indoor Unit: | AC100BNPDKH/EU |

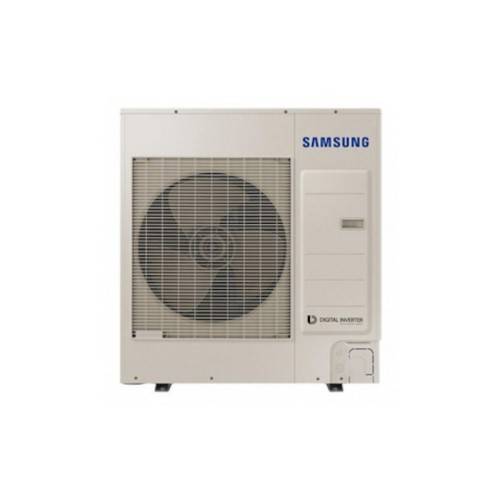

| Outdoor Unit: | AC100BXPDKH/EU |
| Food: | 220-240V (1 Phase) |
| Refrigerant Gas: | R-410A (3.0 kg) |
| Compressor: | BLDC Twin Tour |
BLDC Twin Rotary Technology
It incorporates state-of-the-art BLDC Twin rotary compressor that ensures maximum energy efficiency and ultrasilency performance. The 450-step electronic expansion valve (EEV) allows precise control of the coolant flow, optimizing performance in all operating conditions.
EEV valve 450 steps
Precise refrigerant control
Precise refrigerant control
Quiet operation
From 30 dB(A)
From 30 dB(A)
Permanent filter
Long-term washable
Long-term washable
Auto Restart
Automatic reinstatement
Automatic reinstatement
Dimensions and Weight
| Interior: | 610 x 1.850 x 400 mm |
| Interior weight: | 43 kg |
| Exterior: | 940 x 998 x 330 mm |
| Outer weight: | 72.5 kg |
Benefits
| Air flow: | 35,0 m3/min (max.) |
| Internal sound level: | 41-47 dB(A) |
| External sound level: | 53-55 dB(A) |
| Operational range: | -15°C to +50°C / -20°C to +24°C |
Accessories and Controls

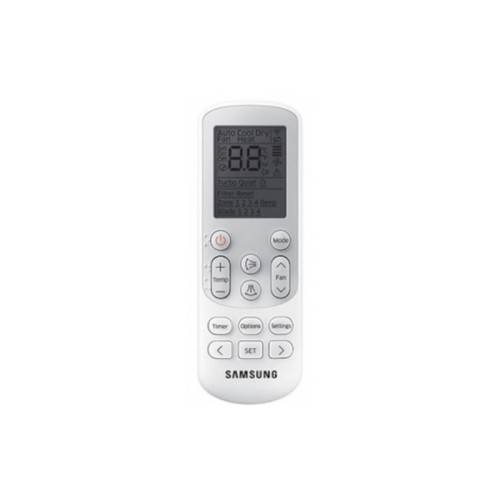

Remote control AR-EH03E
Wireless included
Wireless included
MWR-SH11N Tactile Control
Optional
Optional
Kit Wi-Fi MIM-H04EN
Smart control
Smart control
Termostato MRW-TA
Optional External
Optional External
Recommended applications
Ideal for airing spaces 100-120 m2 where compact vertical installation and silent operation are required.
Offices
Commercial premises
Consultants
Small spaces
Salaries
Studies
F-VERTICAL100M
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC100BNPDKH/EU
- Outdoor Unit
- AC100BXPDKH/EU
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R410
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 10.000
- Refrigerator capacity (kcal / h)
- 8.600
- Nominal consumption Cold (W)
- 3.496
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 3.394
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 41
- Dimensions u.i (anxfxh) mm
- 610 x 400 x 1850
- Dimensions u.e (anxfxh) mm
- 940 x 330 x 998
- Weight Indoor Unit (Kg)
- 43
- Weight Outdoor Unit (Kg)
- 72,5
- Net weight (kg)
- 115,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
