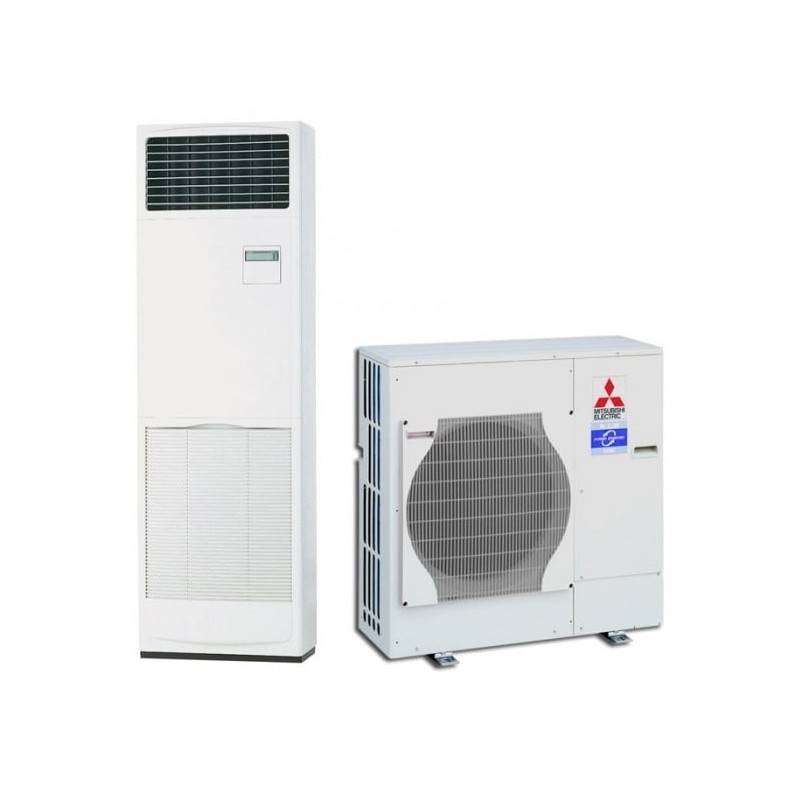

MITSUBISHI MSPSZ-140VKA2
Columna Mr. SLIM - Japanese technology Standard Inverter
Technical Specifications
| Cold Power/Calor: | 14,0 kW / 14,0 kW |
| Energy Efficiency: | A++/A+ |
| SEER/SCOP: | 5,1 / 4,0 |
| Indoor Unit: | PSA-M140SKA |
| Outdoor Unit: | PUZ-M140VKA2 |
| Refrigerant Gas: | R-32 Ecological |
Technology Mr. SLIM Inverter
- Japanese Inverter Technology Standard
- Functional design PSA minimum space
- Easy and fast installation
- Integrated remote control PAR-41MAA
- Built-in weekly programmer
- MELCloudTM optional connectivity
- Long filter lasting 2,500 hours
- Total installation flexibility 4 sides
Performance and Maximum consumption
Efficiency A++
EER/COP: 2,50/3,50
Cold consumption: 4,76 kW
Heat consumption: 3,609 kW
Benefits
Caudal: 86 m3/min
Sound level: 55 dBA
Sound power: 66 dBA
Operational range
Cold: -15°C to +46°C
Heat: -10°C to +24°C
Comprehensive operation
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Column MSPSZ-140VKA MONOF. Air conditioning
Referencia: MSPSZ-140VKA
€5,377.29
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
MITSUBISHI MSPSZ-140VKA2
Columna Mr. SLIM - Japanese technology Standard Inverter
Technical Specifications
| Cold Power/Calor: | 14,0 kW / 14,0 kW |
| Energy Efficiency: | A++/A+ |
| SEER/SCOP: | 5,1 / 4,0 |
| Indoor Unit: | PSA-M140SKA |
| Outdoor Unit: | PUZ-M140VKA2 |
| Refrigerant Gas: | R-32 Ecological |
Technology Mr. SLIM Inverter
- Japanese Inverter Technology Standard
- Functional design PSA minimum space
- Easy and fast installation
- Integrated remote control PAR-41MAA
- Built-in weekly programmer
- MELCloudTM optional connectivity
- Long filter lasting 2,500 hours
- Total installation flexibility 4 sides
Performance and Maximum consumption
Efficiency A++
EER/COP: 2,50/3,50
Cold consumption: 4,76 kW
Heat consumption: 3,609 kW
Benefits
Caudal: 86 m3/min
Sound level: 55 dBA
Sound power: 66 dBA
Operational range
Cold: -15°C to +46°C
Heat: -10°C to +24°C
Comprehensive operation
Security policy
Delivery policy
Refund policy
MITSUBISHI MSPSZ-140VKA2
Mr. SLIM Column - MAXIMUM POWER - Complete Technical Description
Introduction - Maximum Power Available
The Mitsubishi MSPSZ-140VKA2 is the model of maximum power of the range Mr. SLIM column, with 14.0 kW both in cooling and in heating. Designed for the most demanding applications, this system represents the summit of Japanese industrial air conditioning, ideal for large industrial ships, shopping centers and critical spaces of 150-170 m2 which requires extreme air conditioning with maximum energy efficiency and 24/7 operation.
▪ Maximum Industrial Power
| Refrigeration capacity: | 14.0 kW (12.040 kcal/h) |
| Capacity Heating: | 14.0 kW (12.040 kcal/h) |
| Cold Modulation Range: | 13,6 - 15.8 kW |
| Calor Modulation Range: | 13,6 - 15.8 kW |
| EER / COP: | 2,50 / 3,50 |
| SEER / SCOP: | 5,1 / 4,0 |
Es System Units
| Indoor Unit: | PSA-M140SKA |
| Outdoor Unit: | PUZ-M140VKA2 |
| Control included: | PAR-41MAA |
| Optional WiFi: | MAC-567IF |
| Food: | Monof Classic 230V |
| Refrigerant Gas: | R-32 Ecological |
Para️ Inverter Technology for Maximum Performance
Ultra-Precise control
Spaces 150-170 m2
Great air volume
Stable temperature
Potential Start
Instant air conditioning
Extreme loads
Ultra-stable operation
Maximum Saving
Critical applications
Operation 24/7
Automatic adaptation
Tecnología R32 Environmental Technology for Critical Installations
Critical regulations
68% less GWP
Industrial facilities
Strict certifications
Maximum efficiency
Increased performance
High power applications
Higher transfer
Critical security
Class A2L
Critical facilities
Maximum security
M Construction Maximum Robustez
| Indoor Unit: | 1.900 x 600 x 360 mm |
| Interior weight: | 44 kg |
| Outdoor Unit: | 981 x 1.050 x 330 mm |
| Outer weight: | 85 kg |
| Air flow: | 86 m3/min |
| Sound level: | 55 dB(A) / 55 dB(A) |
Ciones️ Benefits
| Consumption Cold: | 4.76 kW |
| Consumption Calor: | 3,609 kW |
| Cold Operative Range: | -15°C to +46°C |
| Calor Operating Range: | -10°C to +24°C |
| Tension: | 230V ±10% |
| Sonora Power: | 66 dB(A) |
PSA Design - Ultra Flexibility for Critical Installations
Left connection
Facilities
complex criticism
technical corners
Right connection
Distribution
optimized maximum
technical walls
Trash connection
Installation
ultra discreet
critical applications
Inferior connection
Flexibility
total
technical connections
Advanced control PAR-41MAA for Critical Applications
Critical functions
- Critical programme 24/7 operation
- Multi-language display international operation
- Ultra-precise control critical processes
- Maximum safety ultra-critical environments
Critical management
- Ultra-advanced diagnostic maximum performance
- Consultation of functions full critical state
- Ultra-precision control ±0.5°C
- Predictive maintenance ultra-preventive
Critical MELCloudTM
- Monitoring 24/7 ultra-critical facilities
- Immediate alerts critical failures
- Total remote control critical maintenance
- Integration BMS critical systems
Para️ Maintenance for Critical Installations 24/7
Ultra-Industrial filter
2,500 hours
Continuous critical operation
Essential applications
Critical access
Ultra-accessible components
Critical minimum stops
Ultra-fast maintenance
Critical Diagnosis
Ultra-advanced self-diagnosis
Critical error codes
Ultra-predictive maintenance
De Maximum Power Critical Applications
Shopping centers (150-170 m2)
Large surfaces, malls
Commercial centres
Hypermarkets
Data Centers
Critical server rooms
Processing centres
Critical equipment
Hospitals
Medical critical areas
O.R., ICU
Constant air conditioning
Laboratories
Strict environmental control
Research, pharmacy
Critical processes
MÁXIMA POTENCIA CRÍTIC MITSUBISHI ELECTRIC
MR. SLIM • INVERTER STANDARD • 14KW • MÁXIMA POTENCIA • MELCLOUDTM • R32
Japanese technology for top power critical applications - Absolute reliability guaranteed
MSPSZ-140VKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PSA-M140KA
- Outdoor Unit
- PUZ-M140VKA
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.040
- Energy class (cold)
- TO
- SEER
- 5,1
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 4.760
- Energy class (heat)
- A+
- SCOP
- 4
- Minimum sound pressure UI DB
- 45
- Dimensions u.i (anxfxh) mm
- 600 x 360 x 1900
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 44
- Weight Outdoor Unit (Kg)
- 84
- Net weight (kg)
- 128
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi accessory MAC-587IF
