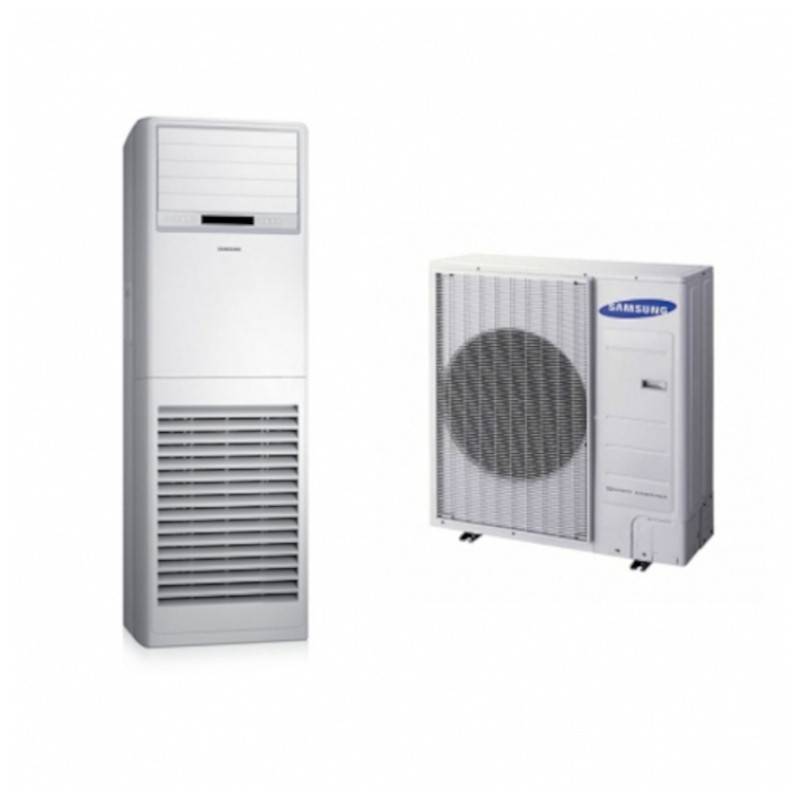

SAMSUNG AC140BNPDKH/EU Air Conditioning Vertical Column
SAMSUNG AC140BNPDKH/EU - Air Conditioning Triphasic Vertical Floor with 13.4 kW of frigorific power and 15.5 kW heat. Energy efficiency A++ in cold and A+ in heat with compressor BLDC Twin Double and refrigerant R-410A. Three-phase 380-415V power supply ideal for industrial installations. 450-step integrated electronic expansion valve for precision control of refrigerant flow. Compact vertical floor design of 61cm wide x 185cm high with ultrasilency performance from 30 dB(A). Includes AC140BNPDKH/EU interior units + exterior AC140BXPDNH/EU, wireless remote control AR-EH03E, washable permanent filter and Auto Restart function. Air flow rate up to 35.0 m3/min. Perfect for commercial and industrial installations of 130-160 m2 that require efficient and silent triphase air conditioning.
▪ TRIFÁSICA 380-415V • COMPRESOR DOBLE • EEV 450 PASOS
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Column Samsung F-VERTICAL140T
Referencia: F-VERTICAL140T
€3,159.81
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
SAMSUNG AC140BNPDKH/EU Air Conditioning Vertical Column
SAMSUNG AC140BNPDKH/EU - Air Conditioning Triphasic Vertical Floor with 13.4 kW of frigorific power and 15.5 kW heat. Energy efficiency A++ in cold and A+ in heat with compressor BLDC Twin Double and refrigerant R-410A. Three-phase 380-415V power supply ideal for industrial installations. 450-step integrated electronic expansion valve for precision control of refrigerant flow. Compact vertical floor design of 61cm wide x 185cm high with ultrasilency performance from 30 dB(A). Includes AC140BNPDKH/EU interior units + exterior AC140BXPDNH/EU, wireless remote control AR-EH03E, washable permanent filter and Auto Restart function. Air flow rate up to 35.0 m3/min. Perfect for commercial and industrial installations of 130-160 m2 that require efficient and silent triphase air conditioning.
▪ TRIFÁSICA 380-415V • COMPRESOR DOBLE • EEV 450 PASOS
Security policy
Delivery policy
Refund policy
SAMSUNG AC140BNPDKH/EU
Air Conditioning Type Vertical Triphasic Column
▪ 380-415V • BUY DOBLE BLDC • EEV 450 PASOS
General description
The SAMSUNG AC140BNPDKH/EU is a three-phase vertical floor air conditioning with 13,4 kW of frigorific power and 15.5 kW heat power. It incorporates BLDC Twin high-efficiency double spinner with R-410A coolant. Its 380-415V triphase power supply is designed for large industrial and commercial installations. The 450-step electronic expansion valve (EEV) ensures precision control of refrigerant flow, optimizing performance for spaces 130-160 m2 which requires powerful and silent triphase air conditioning.
Power and Triphase Efficiency
| Refrigeration capacity: | 13.4 kW (45,700 BTU/h) |
| Capacity Heating: | 15.5 kW (52,900 BTU/h) |
| Cold Efficiency: | A++ (SEER 5.8) |
| Calor Efficiency: | A+ (SCOP 4.0) |
| EER / COP: | 3,1 / 3,44 |
Advanced Triphase System

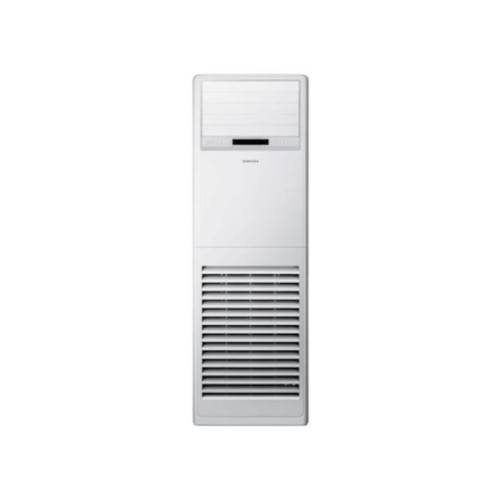

| Indoor Unit: | AC140BNPDKH/EU |

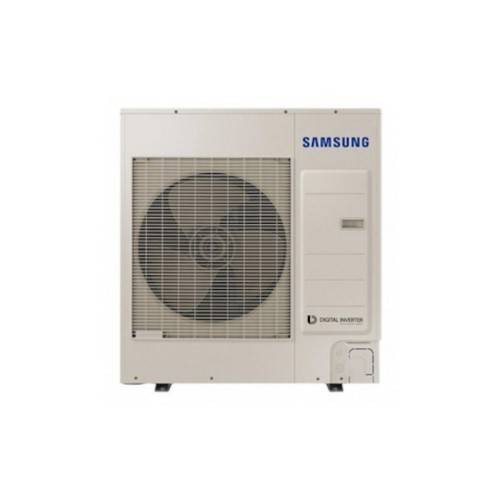

| Outdoor Unit: | AC140BXPDNH/EU |
| Food: | 380-415V (3 Phases) |
| Refrigerant Gas: | R-410A (3.5 kg) |
| Compressor: | BLDC Twin Double Spinning |
Dual-Triphaic BLDC Technology
Triphasic system with BLDC Twin rotary compressor that guarantees balanced distribution of loads, greater electrical stability and lower energy consumption. The 450-step electronic expansion valve (EEV) allows ultra-precise control of refrigerant flow, optimizing efficiency in high-power industrial installations that require continuous and silent operation.
EEV 450 Steps
Ultra-precise control
Ultra-precise control
Double compressor
BLDC Twin Tour
BLDC Twin Tour
Ultrasilination
From 30 dB(A)
From 30 dB(A)
Permanent filter
Long-term washable
Long-term washable
Dimensions and Weight
| Interior: | 610 x 1.850 x 400 mm |
| Interior weight: | 44,5 kg |
| Exterior: | 940 x 1.210 x 330 mm |
| Outer weight: | 86.5 kg |
Triphase benefits
| Air flow: | 35,0 m3/min (max.) |
| Internal sound level: | 45-51 dB(A) |
| External sound level: | 53-54 dB(A) |
| Operational range: | -15°C to +50°C / -20°C to +24°C |
Advantages of the Triphasic System
Higher stability
Balanced distribution of loads
Balanced distribution of loads
Reduced consumption
Three-phase higher efficiency
Three-phase higher efficiency
Start Suave
Lower current peak
Lower current peak
Industrial installation
For large facilities
For large facilities
Accessories and Controls Available

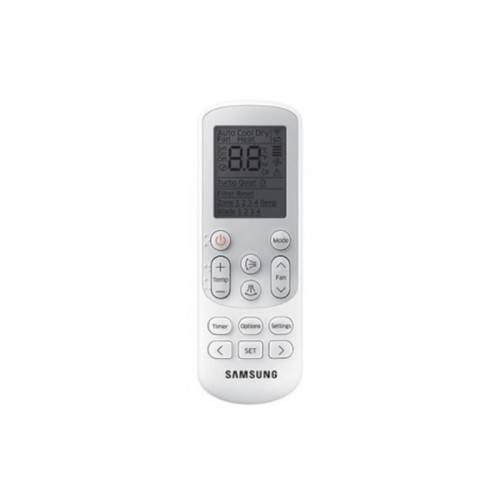

Remote control AR-EH03E
Wireless included
Wireless included
Advanced control MWR-WG00JN
Optional cable
Optional cable
Kit Wi-Fi MIM-H04EN
Smart control
Smart control
Termostato MRW-TA
Optional External
Optional External
Recommended Industrial Applications
Ideal for three-phase installations 130-160 m2 which requires powerful, efficient and silent air conditioning with compact vertical installation.
Large Offices
Industrial facilities
Shopping Centres
Industrial ships
Workshops
Storage
F-VERTICAL140T
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC140BNPDKH/EU
- Outdoor Unit
- AC140BXPDNH/EU
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R410
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 4.322
- SEER
- 5,8
- Heat capacity (W)
- 15.500
- Heat capacity (Kcal / h)
- 13.330
- Nominal heat consumption (W)
- 4.505
- SCOP
- 4
- Minimum sound pressure UI DB
- 45
- Dimensions u.i (anxfxh) mm
- 610 x 400 x 1850
- Dimensions u.e (anxfxh) mm
- 940 x 330 x 1210
- Weight Indoor Unit (Kg)
- 44,5
- Weight Outdoor Unit (Kg)
- 86,5
- Net weight (kg)
- 131
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
