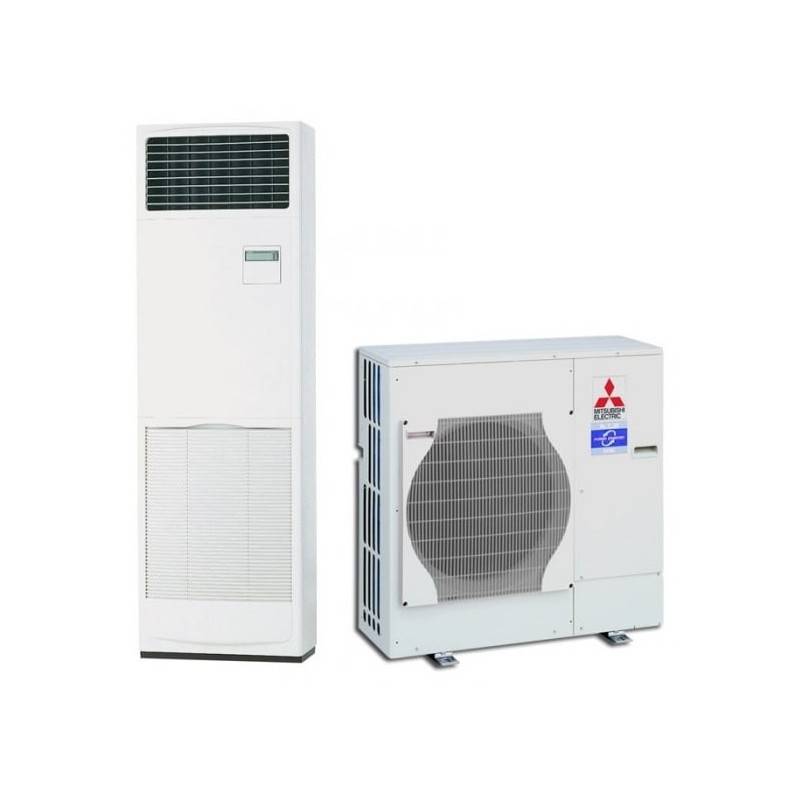

MITSUBISHI MSPSZ-140YKA2
Columna Mr. SLIM - Japanese technology Standard Inverter TRIFÁSICO
Technical Specifications
| Cold Power/Calor: | 14,0 kW / 14,0 kW |
| Energy Efficiency: | A++/A+ |
| SEER/SCOP: | 5,1 / 4,0 |
| Indoor Unit: | PSA-M140SKA |
| Outdoor Unit: | PUZ-M140YKA2 |
| Food: | Triphasic 400V |
| Refrigerant Gas: | R-32 Ecological |
Technology Mr. SLIM Inverter Triphasic
- Technology Japanese Inverter Standard Three-phase
- Functional design PSA minimum space
- Three-phase professional installation
- Integrated remote control PAR-41MAA
- Built-in weekly programmer
- MELCloudTM optional connectivity
- Long filter lasting 2,500 hours
- Total installation flexibility 4 sides
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Column MSPSZ-140YKA TRIF. Air conditioning
Referencia: MSPSZ-140YKA
€5,712.87
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
MITSUBISHI MSPSZ-140YKA2
Columna Mr. SLIM - Japanese technology Standard Inverter TRIFÁSICO
Technical Specifications
| Cold Power/Calor: | 14,0 kW / 14,0 kW |
| Energy Efficiency: | A++/A+ |
| SEER/SCOP: | 5,1 / 4,0 |
| Indoor Unit: | PSA-M140SKA |
| Outdoor Unit: | PUZ-M140YKA2 |
| Food: | Triphasic 400V |
| Refrigerant Gas: | R-32 Ecological |
Technology Mr. SLIM Inverter Triphasic
- Technology Japanese Inverter Standard Three-phase
- Functional design PSA minimum space
- Three-phase professional installation
- Integrated remote control PAR-41MAA
- Built-in weekly programmer
- MELCloudTM optional connectivity
- Long filter lasting 2,500 hours
- Total installation flexibility 4 sides
Security policy
Delivery policy
Refund policy
MITSUBISHI MSPSZ-140YKA2
Columna Mr. SLIM TRIFASICO - MAXIM POTENCE
Introduction - Maximum Triphasic Power Available
The Mitsubishi MSPSZ-140YKA2 is the model of maximum triphase power of the range Mr. SLIM column, with 14.0 kW both in cooling and in heating 400V triphase power supply. Designed for the most demanding applications of the industrial and commercial sector, this system represents the summit of the Japanese industrial air conditioning, ideal for large industrial ships, critical shopping centers and spaces of 150-170 m2 which requires extreme air conditioning with maximum energy efficiency and industrial operation 24/7.
Máxima Industrial Power Triphasic
| Refrigeration capacity: | 14.0 kW (12.040 kcal/h) |
| Capacity Heating: | 14.0 kW (12.040 kcal/h) |
| Cold Modulation Range: | 13,6 - 15.8 kW |
| Calor Modulation Range: | 13,6 - 15.8 kW |
| EER / COP: | 2,50 / 3,50 |
| SEER / SCOP: | 5,1 / 4,0 |
Es Triphasic System Units

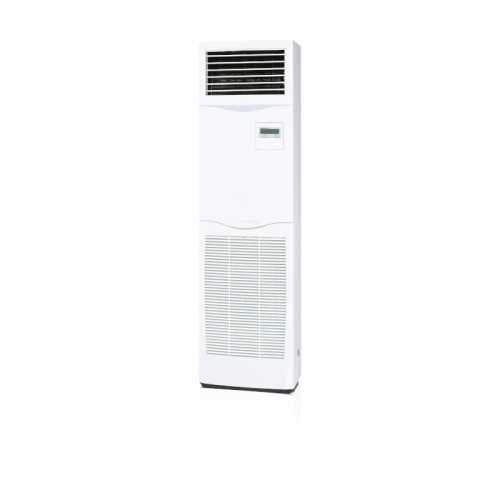

| Indoor Unit: | PSA-M140SKA |

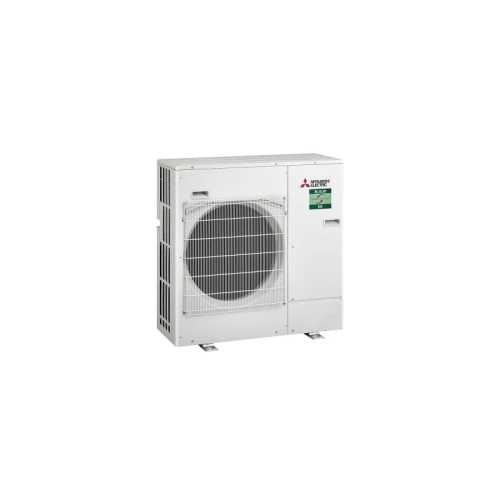

| Outdoor Unit: | PUZ-M140YKA2 |
| Control included: | PAR-41MAA |
| Optional WiFi: | MAC-567IF |
| Food: | Triphasic 400V/50Hz |
| Refrigerant Gas: | R-32 Ecological |
Triphasic Advantages for Maximum Critical Power
Critical distribution
Maximum balanced loads
Extreme energy efficiency
Ultra-critical applications
Maximum stability
Ultra-optimized current
Maximum electrical safety
Stable extreme loads
Critical integration
Critical industrial standard
Ultra-critical installations
Maximum infrastructure
Tecnología️ Inverter Technology for Maximum Triphasic Performance
Ultra-Precise control
Spaces 150-170 m2
Great air volume
Ultra-stable temperature
Potential Start
Instant air conditioning
Extreme loads
Ultra-stable operation
Maximum Saving
Ultra-critical applications
Operation 24/7
Automatic adaptation
S R32 Environmental Technology for Triphasic Critical Installations
Critical regulations
68% less GWP
Ultra-critical installations
Strict certifications
Maximum efficiency
Increased performance
Maximum power applications
Ultra-superior transfer
Critical security
Class A2L
Ultra-critical installations
Maximum security
M Maximum construction Robustez Triphasic
| Indoor Unit: | 1.900 x 600 x 360 mm |
| Interior weight: | 44 kg |
| Outdoor Unit: | 981 x 1.050 x 330 mm |
| Outer weight: | 85 kg |
| Air flow: | 86 m3/min |
| Sound level: | 55 dB(A) / 55 dB(A) |
S️ Triphasic Extreme Benefits
| Consumption Cold: | 4.76 kW |
| Consumption Calor: | 3,609 kW |
| Cold Operative Range: | -15°C to +46°C |
| Calor Operating Range: | -10°C to +24°C |
| Tension: | 400V ±10% |
| Sonora Power: | 66 dB(A) |
PSA Design - Ultra Flexibility for Triphasic Critical Installations
Left connection
Facilities
complex ultra-critical
technical corners
Right connection
Distribution
maximum ultra-optimized
technical walls
Trash connection
Installation
ultra-discreet
ultra-critical applications
Inferior connection
Flexibility
total ultra-maximum
ultra-technical connections
Advanced PAR-41MAA Control for Triphatic Critic Applications
Ultra-Critical functions
- Ultra-critical programming 24/7 operation
- Multi-language display international operation
- Ultra-precise control ultra-critical processes
- Ultra-maximum safety ultra-critical environments
Ultra-Critical Management
- Ultra-advanced diagnostic maximum performance
- Consultation of functions complete ultra-critical state
- Ultra-precision control ±0.5°C
- Ultra-predictive maintenance ultra-preventive
MELCloudTM Ultra-Critical
- Monitoring 24/7 ultra-critical facilities
- Ultra-immediate alerts ultra-critical faults
- Ultra-total remote control ultra-critical maintenance
- Integration BMS ultra-critical systems
S️ Maintenance for Ultra-Classic Installations 24/7
Ultra-Industrial filter
2,500 hours
Continuous ultra-critical operation
Ultra-essential applications
Ultra-Critical access
Ultra-accessible components
Ultra-minority critical stops
Ultra-fast maintenance
Ultra-Critical Diagnosis
Ultra-advanced self-diagnosis
Codes ultra-critical error
Ultra-predictive maintenance
De Maximum Core Power Critical Applications
Shopping centers (150-170 m2)
Large surfaces, malls
Commercial centres
Triphasic hypermarkets
Data Centers Triphasic
Critical server rooms
Processing centres
Ultra-critical equipment
Triphasic Hospitals
Medical critical areas
O.R., ICU
Constant air conditioning 400V
Industrial laboratories
Ultra-strict environmental control
Research, pharmacy
Ultra-critical processes
MÁXIMA POTENCIA ULTRA-CRÍTICA TRIFÁSICA MITSUBISHI ELECTRIC
MR. SLIM • INVERTER TRIFÁSICO • 14KW • 400V • MÁXIMA POTENCIA • MELCLOUDTM • R32
Japanese technology for ultra-critical applications of maximum three-phase power - Absolute reliability guaranteed
MSPSZ-140YKA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PSA-M140KA
- Outdoor Unit
- PUZ-M140YKA
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.040
- Energy class (cold)
- TO
- SEER
- 5,1
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 4.760
- Energy class (heat)
- A+
- SCOP
- 4
- Minimum sound pressure UI DB
- 45
- Dimensions u.i (anxfxh) mm
- 600 x 360 x 1900
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 44
- Weight Outdoor Unit (Kg)
- 85
- Net weight (kg)
- 129
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
5/8" - Possibility Integration
- Optional WiFi accessory MAC-587IF
