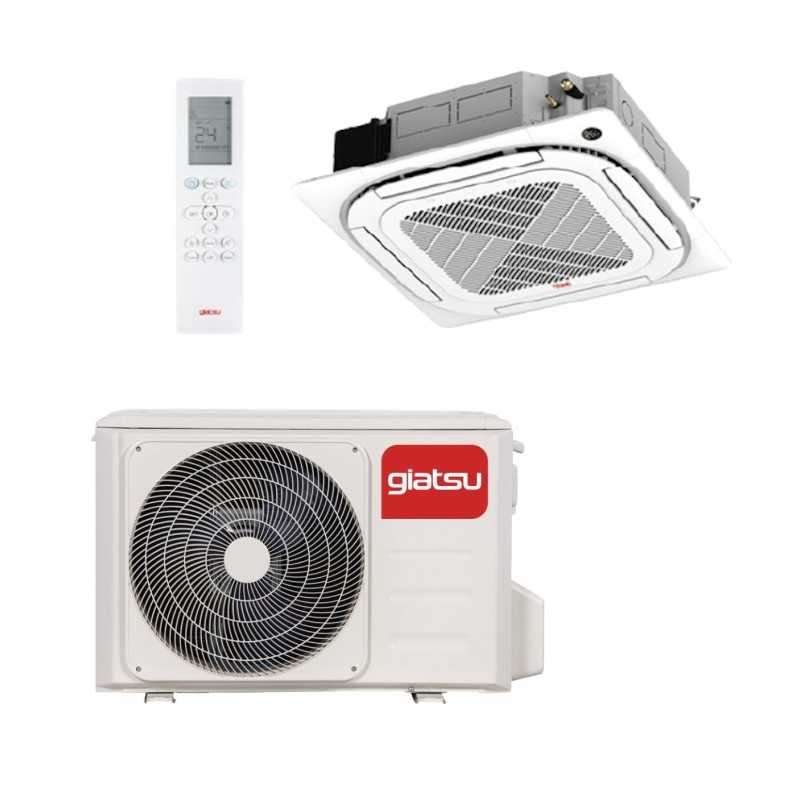

Air Conditioning Cassette Giatsu GIAC9T3-36ADM2R32WF
Refrigeration 10550W 日本語 Heating 11140W 日本語 SEER 6,4 A++ Δ Triphasic Panel 90x90
The Air Conditioning Cassette Giatsu GIAC9T3-36ADM2R32WF represents high stable triphase power of the Cassette Admira Plus Series 10550W in cooling and 11140W in heating. Power supply 380-415V triphase, panel 90x90 standard and technology DC Inverter complete, offers ultra-stable 4-way air conditioning with remote control included for commercial and industrial facilities that require maximum stability.
️ 10550W Refrigeration
Rank 2,70-11,43 kW
Calefacción 11140W Heating
Rank 2,78-12,66 kW
▪ SEER 6,4 A++
SCOP 4.0 A+
3 380-415V Triphasic
Maximum stability
Key Specifications Cassette Admira Plus T3-36
Indoor Unit: GIA-C9I-36ADM2R32WF
Outdoor Unit: GIA-UOT3-36ADM2R32
Air flow: 1300-1700 m3/h
Sonic Pressure: 40-51 dBA
Food: 380-415V Triphase
Nominal consumption: 4,00 kW cold
Refrigerant Gas: R-32 (2.4 kg)
Protection: Golden Fin
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 90x90 Giatsu GIA-C9T3-36ADM2R32WF trif.
Referencia: GIA-C9T3-36ADM2R32WF
€1,757.08
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Giatsu GIAC9T3-36ADM2R32WF
Refrigeration 10550W 日本語 Heating 11140W 日本語 SEER 6,4 A++ Δ Triphasic Panel 90x90
The Air Conditioning Cassette Giatsu GIAC9T3-36ADM2R32WF represents high stable triphase power of the Cassette Admira Plus Series 10550W in cooling and 11140W in heating. Power supply 380-415V triphase, panel 90x90 standard and technology DC Inverter complete, offers ultra-stable 4-way air conditioning with remote control included for commercial and industrial facilities that require maximum stability.
️ 10550W Refrigeration
Rank 2,70-11,43 kW
Calefacción 11140W Heating
Rank 2,78-12,66 kW
▪ SEER 6,4 A++
SCOP 4.0 A+
3 380-415V Triphasic
Maximum stability
Key Specifications Cassette Admira Plus T3-36
Indoor Unit: GIA-C9I-36ADM2R32WF
Outdoor Unit: GIA-UOT3-36ADM2R32
Air flow: 1300-1700 m3/h
Sonic Pressure: 40-51 dBA
Food: 380-415V Triphase
Nominal consumption: 4,00 kW cold
Refrigerant Gas: R-32 (2.4 kg)
Protection: Golden Fin
Security policy
Delivery policy
Refund policy
1 Triphase and DC Inverter Technology Stable
The Cassette Air Conditioner Giatsu GIAC9T3-36ADM2R32WF integration 380-415V for maximum operational stability, combined with technology DC Inverter complete both in compressor and fan. With SEER 6,4 A++ in cooling and SCOP 4.0 A+ in heating, its power 10550W cold and 11140W in heat position it as the ideal solution for commercial and industrial installations that require maximum stability and efficiency.
The triphasic system modifies its power from 2700W up to 11430W in cold and from 2780W up to 12660W in heat, distributing electrical loads in a balanced way and ensuring ultra-stable operation with minimal fluctuations in any operating condition.
2 Panel 90x90 Standard and Industrial Distribution

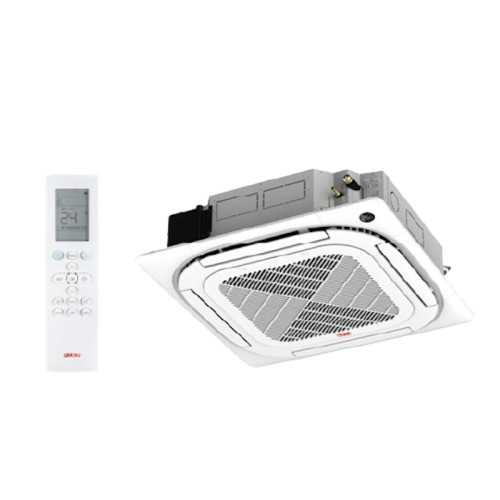

Equipped with standard panel 90x90 cm without independent control of lamas, the GIAC9T3-36ADM2R32WF provides uniform air distribution through its 4 directional lanes. The variable flow rate 1300 to 1700 m3/h guarantees optimal coverage for spaces 80 to 110 m2, maintaining homogeneous temperature in demanding commercial and industrial facilities.
La indoor Unit of 830x245x830 mm is integrated into false standard industrial ceilings, while their operation 40 to 51 dBA maintains acoustic comfort suitable for workers in commercial and industrial environments of high three-phase power.
3 Intelligent Control and Advanced Industrial Features
The equipment includes remote serial control with programming functions 24 hours, allowing advanced time and temperature configuration to optimize energy consumption in continuous industrial applications. La protection Golden Fin in exchangers protects against marine corrosion and aggressive industrial environments, while the integrated capacitor pump facilitates automatic evacuation of condensed water without additional installations.
4 Refrigerant Gas R32 Ecological and Triphasic Operational Efficiency
Use coolant Organic R32 with load of 2.4 kg, reducing environmental impact and improving energy efficiency.The three-phase system operates over an extended range of -15°C to +50°C in refrigeration and -20°C to +24°C in heating, guaranteeing reliable operation throughout the year in industrial facilities with demanding weather conditions.
La outdoor Unit three-phase 946x810x410 mm facilitates installation in industrial spaces, with cold connections 3/8" liquid and 5/8" gas and maximum pipe length of 75 meters with a slope of up to 30 meters, providing maximum flexibility in large-scale complex industrial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 10550W (2700-11430W) | Heating | 11140W (2780-12660W) |
| SEER / SCOP | 6.4 A++ / 4.0 A+ | Nominal consumption | 4000W / 3000W |
| Food | 380-415V Triphase | Air flow | 1300-1700 m3/h |
| Sound level | 40-51 dBA | Refrigerant Gas | R32 (2.4 kg) |
| Max Pipe | 75m / 30m deseven | Weight Neto UI | 27.2 kg + 6 kg panel |
Recommended Commercial and Industrial Applications
S Corporate Offices
Corporate 80-110m2 spaces that require high power with stable three-phase power and ultra-reliable operation.
Es Industrial facilities
Small and medium-sized industrial ships that need stable air conditioning with balanced triphase feeding.
S️ Gastronomic Complexes
Large restaurants and gastronomic complexes that require powerful air conditioning with maximum electrical stability.
Medical Centres
Hospitals and medical centers that need ultra-stable air conditioning with continuous and reliable 24/7 operation.
Extended warranty Giatsu
3 years guarantee total + 5 years warranty compressor
GIA-C9T3-36ADM2R32WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-C9I-36ADM2R32WF
- Outdoor Unit
- GIA-UOT3-36ADM2R32
- Panel
- GIA-C9P-ADM2R32
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 10.500
- Refrigerator capacity (kcal / h)
- 9.030
- Nominal consumption Cold (W)
- 3.950
- Energy class (cold)
- A++
- SEER
- 6.7
- Heat capacity (W)
- 11.140
- Heat capacity (Kcal / h)
- 9.580
- Nominal heat consumption (W)
- 3.000
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 40
- Dimensions u.i (anxfxh) mm
- 830 x 830 x 245
- Dimensions u.e (anxfxh) mm
- 946 x 410 x 810
- Weight Indoor Unit (Kg)
- 27,2
- Weight Outdoor Unit (Kg)
- 66,9
- Net weight (kg)
- 96,6
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
