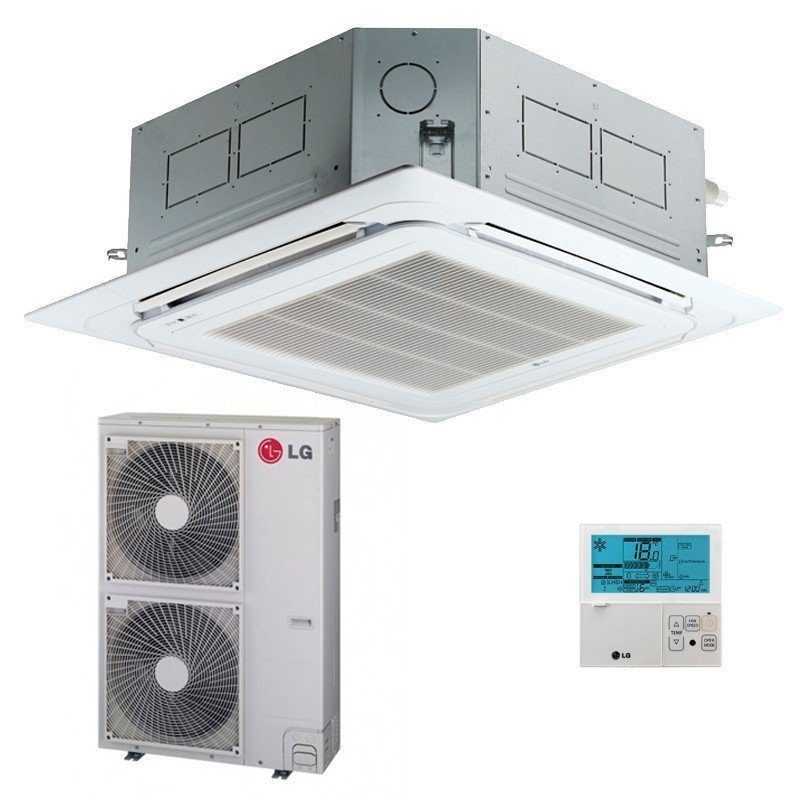

LG UT48F CONFORT+ FREE COMBINATION
Cassette Monofásico Conjunto 48 - Ecological R32 Technology
Maximum Power
13,40kW nominal cold - Industrial capacity
15,50kW nominal heat - Heat Pump COP 3.55
E Solid Efficiency
EER 3.15 - Energy efficiency
SEER 6,50 - Seasonal performance
Quiet operation
42 dBA minimum - Acoustic comfort
Dual Vane 950mm panel - Uniform distribution
Tecnología Green Technology
Refrigerant Gas R32 - Ecological under GWP
SCOP 4,20 - Seasonal heat performance
▷ Cassette commercial LG UT48F CONFORT+ with 13,40kW high power for large industrial and commercial spaces
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 90x90 LG Comfort + 48 Monof.
Referencia: CONFORT+ 48 MONO CAS
€3,522.12
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG UT48F CONFORT+ FREE COMBINATION
Cassette Monofásico Conjunto 48 - Ecological R32 Technology
Maximum Power
13,40kW nominal cold - Industrial capacity
15,50kW nominal heat - Heat Pump COP 3.55
E Solid Efficiency
EER 3.15 - Energy efficiency
SEER 6,50 - Seasonal performance
Quiet operation
42 dBA minimum - Acoustic comfort
Dual Vane 950mm panel - Uniform distribution
Tecnología Green Technology
Refrigerant Gas R32 - Ecological under GWP
SCOP 4,20 - Seasonal heat performance
▷ Cassette commercial LG UT48F CONFORT+ with 13,40kW high power for large industrial and commercial spaces
Security policy
Delivery policy
Refund policy
LG UT48F CONFORT+
Cassette Monofásico Conjunto 48 - Ecological R32 Technology
Maximum Power
13,40kW nominal cold - Industrial capacity
15,50kW nominal heat - Heat Pump COP 3.55
E Solid Efficiency
EER 3.15 - Energy efficiency
SEER 6,50 - Seasonal performance
Quiet operation
42 dBA minimum - Acoustic comfort
Dual Vane 950mm panel - Uniform distribution
Tecnología Green Technology
Refrigerant Gas R32 - Ecological under GWP
SCOP 4,20 - Seasonal heat performance
▷ Cassette commercial LG UT48F CONFORT+ with 13,40kW high power for large industrial and commercial spaces

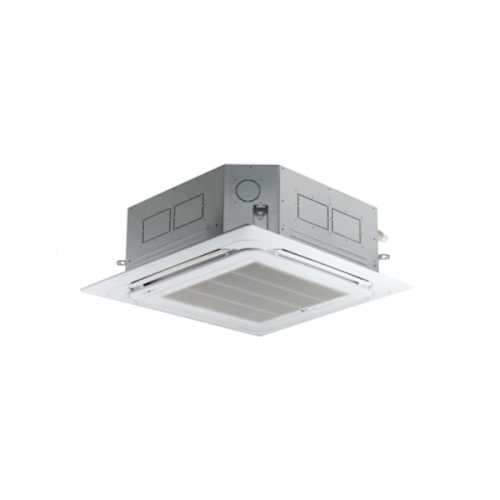

️ Indoor Unit UT48F.NA0 - Industrial Design Robust
High-capacity industrial Cassette with 950mm Dual Vane PT-AAGW0 panel for efficient air distribution in high volume spaces and demanding industrial applications.
Es Dimensions and Weights
- Indoor Unit: 840×288×840 mm (An×Al×Pr)
- IDU weight: 25.3 kg
- Dual Vane Panel: 950×35×950 mm
- Weight Panel: 7.1 kg
S Frigorific connections
- Liquid Line: 9,52 mm (3/8 inch)
- Gas Line: 15.88 mm (5/8 inch)
- Standard Panel: PT-AAGW0 Dual Vane
- Optional panel: PT-AFGW0 available
️ Outdoor Unit UUD1.U30 - Robustez Industrial
Acoustic benefits
Cold Sonic Pressure: 52 dBA
Calor Sonic Pressure: 53 dBA
Air flow: 55 × 2 m3/min
S Physical Specifications
Dimensions: 950×1.380×330 mm
Weight: 89 kg
Settings: Vertical robusta
️ System Refrigerant Gas R32
Preload: 3.0 kg
Length Preload: 20 ml
T-CO2eq: 2,205
Tivos️ Operating Ranges
Máx/Mín Cold: 52°C / -20°C (CB)
Calor Máx/Mín: 18°C / -25°C (WB)
Refrigerant Gas Additional: 50 g/m
Industrial installation
- Liquid Line: 9,52 mm (3/8 inch)
- Gas Line: 15.88 mm (5/8 inch)
- Total length: 5 - 85 meters
- Maximum Level: 30 meters
Advanced technology
- FREE COMBINATION: Flexible configurations
- Dual Vane Panel: Distribution 4 addresses
- Inverter technology: Precise power control
- Ecological R32: Industrial sustainability
Es Industrial and Commercial Sectors Ideal
🏭 Industrial: Mediumships (100-120m2)
🏢 Corporate: Offices wide open space
🏪 Retail: Shops and shopping centres
🎪 Events: Large multipurpose rooms
🏥 Sanitary: Hospital areas
🎓 Education: College girls
UT48F Competitive Advantages
√ High Capacity: 13,40kW cold for spacious spaces
Acoustic comfort: 42 dBA minimum operating
Sustainable: R32 low environmental impact
Installation: Flexibility up to 85m length
▷ LG UT48F CONFORT+ Set 48 - High capacity industrial casette with 13,40kW, designed for large commercial and industrial spaces that require robust, efficient and sustainable air conditioning
CONFORT+ 48 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- UT48F.NA0
- Outdoor Unit
- UUD1.U30
- Panel
- PT-AAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 4.250
- SEER
- 6,5
- Heat capacity (W)
- 15.500
- Heat capacity (Kcal / h)
- 13.330
- Nominal heat consumption (W)
- 4.370
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 42
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 330 x 1380
- Weight Indoor Unit (Kg)
- 25,3
- Weight Outdoor Unit (Kg)
- 89,0
- Net weight (kg)
- 117,3
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
