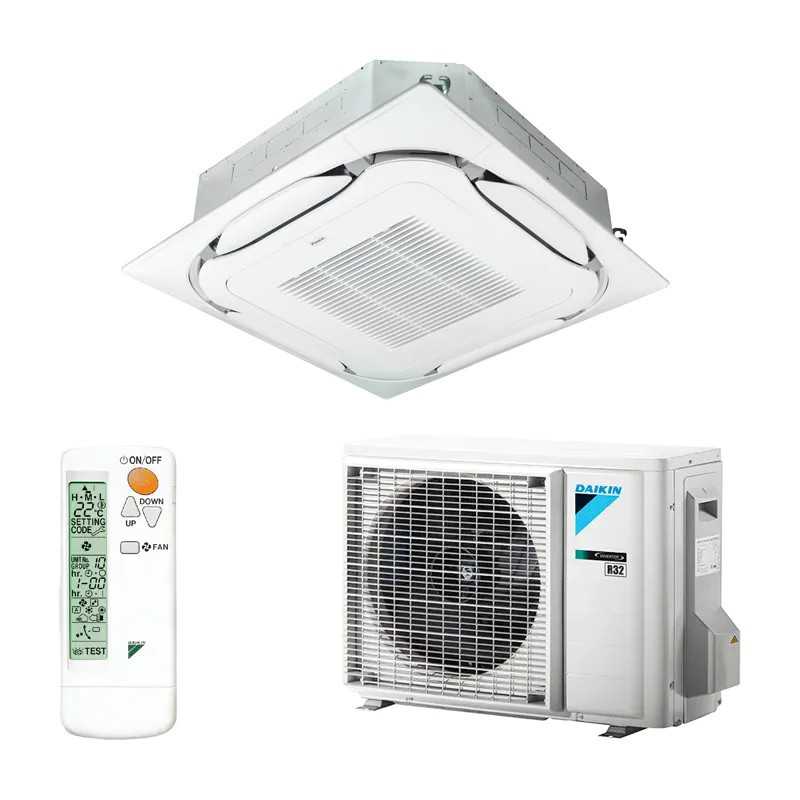

Cassette Daikin FCAG50B + RXM50R
Round Flow 50 Monofásico - Inverter R-32
Cassette Daikin Round Flow 50 - Professional cassette air conditioning system with Round Flow circular distribution technology, ideal for commercial spaces up to 50m2. Power 5,0kW cooling and 6,0kW heating with efficiency A+/A+ and inverter SWING compressor.
5,0 kW
Cold power
6.0 kW
Power Calor
A++/A+
Energy Label
27 dBA
Sound level
12.6 m3/min
Maximum rate
266 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Commercial use Panel 950mm Tecnología Japanese technology
Full model: Indoor Unit FCAG50B + Outdoor Unit RXM50R
Series: Round Flow - Japanese circular distribution technology
Application: Ideal for commercial spaces and offices up to 50m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Higher efficiency: SEER 6,54 / SCOP 4,30 with inverter compressor SWING
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Daikin CASG50B
Referencia: CASG50B
€2,357.21
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Daikin FCAG50B + RXM50R
Round Flow 50 Monofásico - Inverter R-32
Cassette Daikin Round Flow 50 - Professional cassette air conditioning system with Round Flow circular distribution technology, ideal for commercial spaces up to 50m2. Power 5,0kW cooling and 6,0kW heating with efficiency A+/A+ and inverter SWING compressor.
5,0 kW
Cold power
6.0 kW
Power Calor
A++/A+
Energy Label
27 dBA
Sound level
12.6 m3/min
Maximum rate
266 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Commercial use Panel 950mm Tecnología Japanese technology
Full model: Indoor Unit FCAG50B + Outdoor Unit RXM50R
Series: Round Flow - Japanese circular distribution technology
Application: Ideal for commercial spaces and offices up to 50m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Higher efficiency: SEER 6,54 / SCOP 4,30 with inverter compressor SWING
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Daikin Round Flow 50 - Professional Japanese Technology
Professional cassette air conditioning system with Japanese leader Round Flow technology
Cassette System Round Flow 50 - Advanced Professional Technology
The Air Conditioning Cassette Daikin Round Flow CASG50B combines professional power with japanese circular distribution. With 5,0kW cooling power and 6.0kW in heat mode, this system is designed to provide optimal comfort in commercial spaces up to 50m2 with energy efficiency A++/A+.
️ PROFESSIONAL ROUND FLOW TECHNOLOGY
Circular Distribution with Inverter SWING Technology
Professional Round Flow technology creates a circular airflow that ensures a uniform air conditioning in commercial spaces, completely eliminating dead areas and providing exceptional comfort with silent operation since 27dBA.
Professional Technical Specifications
5,0 kW
Refrigeration capacityProfessional power up to 50m2
6.0 kW
Capacity HeatingHeat Pump efficient
SEER 6,54
Seasonal efficiencyA++ guaranteed classification
SCOP 4,30
Efficient heatingA+ professional performance
Professional Round Flow Technology
Exclusive technology Round Flow Japanese distributes air through circular distribution with flows up to 12.6 m3/min, creating a professional uniform flow. The 950×950mm dimension panel is perfectly integrated into false commercial ceilings, offering an optimal distribution for spaces up to 50m2.
️
Round Flow ProfessionalCircular distribution up to 12.6 m3/min
📐
950×950mm panelFull commercial coverage
️
Monofic ControlProfessional management 220V
🌀
Total coverageNo dead areas 50m2
Optimized Business Performance
The Round Flow 50 system is designed for professional commercial applications, providing 3 vent speeds flow rate from 8.7 to 12.6 m3/min. This capacity allows efficient air conditioning of commercial spaces while maintaining homogeneous comfort and optimized energy consumption.
De Professional Air Cups
- High Speed: 12.6 m3/min - Quick commercial cooling
- Medium speed: 10.7 m3/min - Standard commercial use
- Low speed: 8.7 m3/min - Silent night operation
- Sound level: 27-31 dBA according to speed

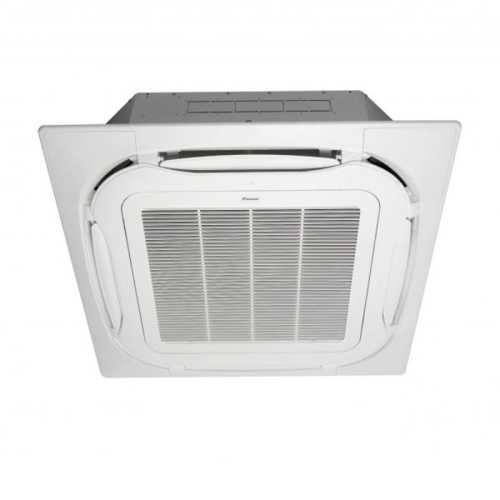

🏢 Indoor Unit FCAG50B
Cassette Round Flow professional drawer with circular distribution
Full model: FCAG50B - Cassette Round Flow professional with Japanese technology inverter SWING
S Technical Specifications Interior
5,0 kW
Nominal Cold Power
6.0 kW
Nominal heat power
27 dBA
Minimum Sound Level
12.6 m3/min
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 204×840×840 mm |
| Weight Indoor Unit | 19.0 kg |
| Food | 1Ph/220V |
| Air distribution | Japanese circular Round Flow |
| Caudales (A/M/B) | 12.6/10,7/8,7 m3/min |
| Sound levels (A/M/B) | 31/29/27 dB(A) |
| Ventilator speeds | 3 speeds |
| Option control | Wi-Fi BRP069C81 |
🌟 Japanese Technologies:
Professional SWING inverter compressor, circular Round Flow distribution, high-efficiency washable filter and BRC7FA532F remote control included for advanced local control.
Professional SWING inverter compressor, circular Round Flow distribution, high-efficiency washable filter and BRC7FA532F remote control included for advanced local control.

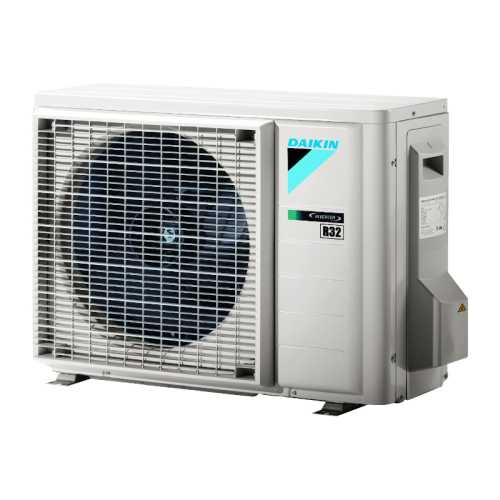

🏭 Outdoor Unit RXM50R
Professional Monophase Condenser with SWING Inverter Compressor
Full model: RXM50R - Professional condensing unit with SWING inverter compressor and R32 gas
S️ Foreign Technical Specifications
48 dBA
External sound level
R32
Refrigerant Gas Ecological
49 kg
Weight Unit
SWING
Compressor Type
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 734×954×401 mm |
| Weight | 49 kg |
| Compressor | Inverter SWING hermetic |
| Refrigerant Gas | R32 (1.15 kg preload) |
| Air Fridge Refrigeration | 46.6 m³/min |
| Air heating | 44.1 m3/min |
| TCO2eq | 0.78 kg |
S Advanced technical characteristics:
SWING inverter compressor with professional variable frequency control, exchanger with high-performance hydrophilic fins, optimized expansion valve and marine antico-red protection.
SWING inverter compressor with professional variable frequency control, exchanger with high-performance hydrophilic fins, optimized expansion valve and marine antico-red protection.
Y Energy and Consumption
A++
Label Cold
A+
Label Calor
266 kWh/a
Annual Consumption Cold
1419 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- SEER 6.54: Professional optimized seasonal efficiency
- SCOP 4,30: High performance heating guaranteed A+
- Charge cold design: 5.00 kW nominal
- Charge heat design: 4.36 kW at -10°C
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 6.4 mm (1/4") |
| Tubería Gas | Ø 12.7 mm (1/2") |
| Maximum Length Tuberia | 30 meters |
| Maximum level | 20 meters |
| Charge Refrigerant Gas | Standard 10m |
| Additional charge | 20 gr/m |
Del Request Information of Round Flow 50
Find out why the Cassette Daikin Round Flow 50 is the perfect choice for your professional commercial project.
📞
Technical informationProfessional Round Flow Technology Consultation
💰
Commercial BudgetQuote for professional spaces
️
Official ServiceCertified professional installation
▷ Warranty Daikin
Cassette Daikin Round Flow 50 with official guarantee and technical service specialized in professional Japanese technology.
Cassette Daikin Round Flow 50 with official guarantee and technical service specialized in professional Japanese technology.
CASG50B
Data sheet
- Brand
- Daikin
- Indoor Unit
- FCAG50B
- Outdoor Unit
- RXM50R9
- Panel
- BYCQ140E
- I send
- BRC7FA532F
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 35 a 45 m2
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.400
- Energy class (cold)
- A++
- SEER
- 6,5
- Heat capacity (W)
- 6.000
- Heat capacity (Kcal / h)
- 5.160
- Nominal heat consumption (W)
- 1.620
- Energy class (heat)
- A+
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 27
- Dimensions u.i (anxfxh) mm
- 840 x 840 x204
- Dimensions u.e (anxfxh) mm
- 954 x 401 x 734
- Weight Indoor Unit (Kg)
- 19,0
- Weight Outdoor Unit (Kg)
- 49,0
- Net weight (kg)
- 70,5
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- Optional WiFi
