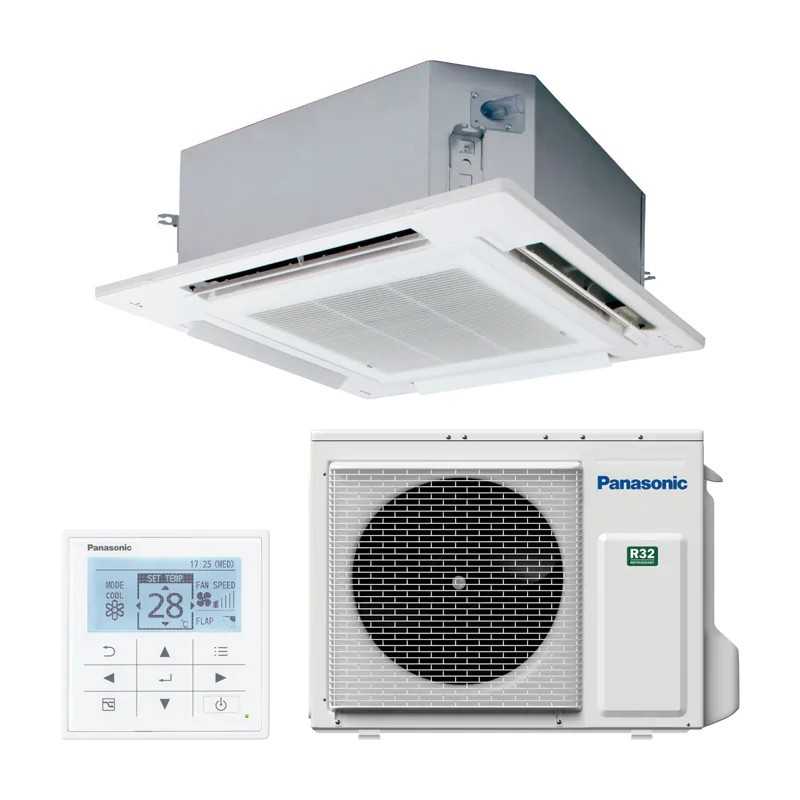

Air Conditioning Cassette Panasonic KIT-100PU3Z8-6W
Refrigeration 10000W 日本語 Heating 10000W 日本語 SEER 6,7 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X Δ TRIFÁSICO
The Air Conditioning Cassette Panasonic KIT-100PU3Z8-6W represents high three-phase commercial power pACi NX Standard Series with 10000W in cooling and heating. With 380-415V and command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and maximum stability for large commercial spaces.
10️ 10000W Refrigeration
Range 3.0-11.5 kW
10000W Heating
Range 3.0-14.0 kW
▪ SEER 6,7 A++
SCOP 4,4 A+
Triphasic + nanoeTM X
380-415V
Specifications Cassette PACi NX Standard 100 Triphasic

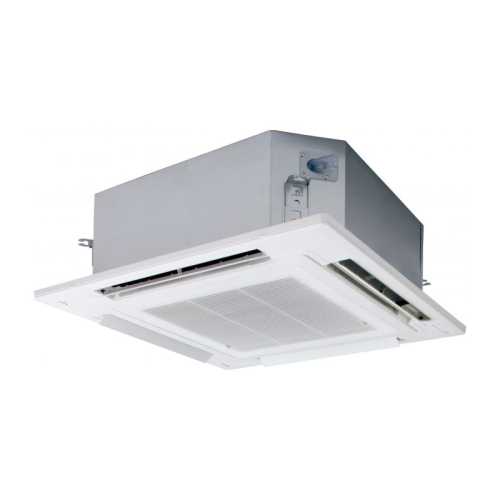

Indoor Unit: S-1014PU3E

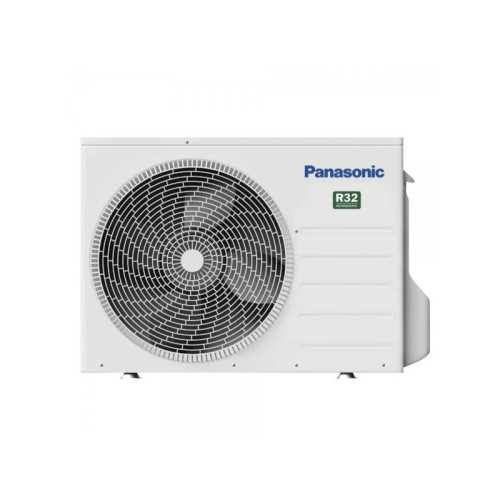

Outdoor Unit: U-100PZ3E8
Air flow: 18,0-36,0 m3/min
Sonic Pressure: 45 dBA

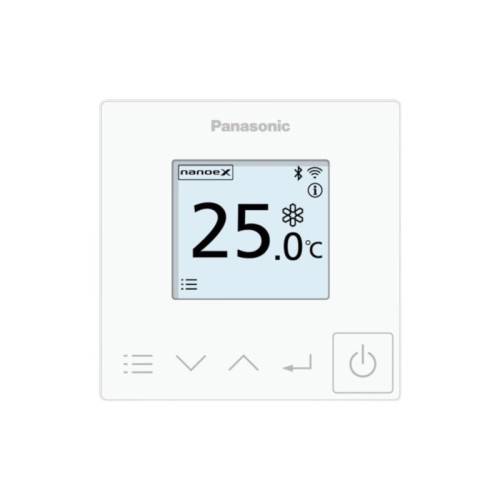

Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 2.62 kW cold
Refrigerant Gas: R-32 (2.40 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-100PU3Z8-6W PACI NX Standard
Referencia: KIT-100PU3Z8-6W
€2,485.16
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-100PU3Z8-6W
Refrigeration 10000W 日本語 Heating 10000W 日本語 SEER 6,7 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X Δ TRIFÁSICO
The Air Conditioning Cassette Panasonic KIT-100PU3Z8-6W represents high three-phase commercial power pACi NX Standard Series with 10000W in cooling and heating. With 380-415V and command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and maximum stability for large commercial spaces.
10️ 10000W Refrigeration
Range 3.0-11.5 kW
10000W Heating
Range 3.0-14.0 kW
▪ SEER 6,7 A++
SCOP 4,4 A+
Triphasic + nanoeTM X
380-415V
Specifications Cassette PACi NX Standard 100 Triphasic
Indoor Unit: S-1014PU3E
Outdoor Unit: U-100PZ3E8
Air flow: 18,0-36,0 m3/min
Sonic Pressure: 45 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 2.62 kW cold
Refrigerant Gas: R-32 (2.40 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy
Panasonic KIT-100PU3Z8-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD TRIFÁSICO • 10000W/10000W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard Triphasic: High Commercial Power + Maximum Stability
The Panasonic KIT-100PU3Z8-6W establishes a new standard in three-phase commercial air conditioning with 10000W in cooling and heating for large commercial spaces of 70-100m2. Integra 380-415V guaranteeing maximum stability and efficiency in commercial facilities, while cZ-RTC6BLW controller with Wi-Fi + Bluetooth allows total professional remote control.
Designed for malls, large offices and industrial ships, combine the high performance turboventilator with commercial Econavi sensor which automatically optimizes energy consumption. His 4-way air distribution with reinforced cassette 90x90 cm ensures uniform air conditioning in large spaces with nanoeTM X Mark 1 series technology for continuous air purification.
Tri Commercial Triphasic Food
380-415V Triphasic: Maximum stability
Balanced consumption: Phase distribution
Commercial Installation: 70-100m2 ideal
▪ High Power 10000W
Refrigeration: 10000W (3.0-11.5 kW)
Heating: 10000W (3.0-14.0 kW)
SEER 6,7 A++: Trade efficiency
Tecnología Advanced Technology PACi NX Standard Triphasic
🌀
Turboventilator
High commercial benefits
️
Sensor Econavi
Automatic commercial savings
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
🏭
Commercial design
Reinforced unit 25 kg
Commercial Energy Efficiency A++
SEER 6,7 A++
Efficient commercial cooling
SCOP 4,4 A+
Commercial heating
EER 3,82
High nominal performance
COP 4,93
Coefficient commercial heat
Technical Specifications • PACi NX Standard KIT-100PU3Z8-6W Triphasic
INVERTER+ TRIFÁSICO • 4 4 Vias 90x90 • W WI-FI + BLUETOOTH • R32 ECOLÓGICO
Technology Cassette 4 Commercial Routes + High Power Turboventilator
The 4-way cassette 90x90 cm reinforced kIT-100PU3Z8-6W incorporates a high-performance turboventilator optimized for high power that maximizes air distribution through the heat exchanger. With flow rate from 18,0 to 36,0 m3/min, adapts automatically to business needs by maintaining a controlled sound level of 45 dBA high speed, ideal for commercial environments.
La 380-415V guarantees balanced distribution of loads and maximum stability in continuous commercial operation. The sensor Econavi commercial detects occupation in large spaces and automatically optimizes performance maximise energy savings SEER 6,7 A++ while maintaining comfort. Technology Green R32 with 2.40 kg load offers superior thermodynamic properties for high power.
Aire️ High Power Air Performance
Variable flow rate: 18,0-36,0 m3/min
Distribution: 4 commercial routes 90x90
Sound level: 45 dBA (high speed)
Dehumidification: 2.7 L/h elimination
↓
Food: 380-415V triphase
Consumption Cold: 2.62 kW (nominal)
Consumption Calor: 2,03 kW (nominal)
Intensity: 4,00-4,35 A (cold)
S Dimensions and Technical Specifications
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-1014PU3E |
| Interior dimensions | High x Width x Deep | 319 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 25 / 5 kg |
| Outdoor Unit | Model | U-100PZ3E8 |
| Outer dimensions | High x Width x Deep | 996 x 980 x 370 mm |
| Tuberias | Liquid / Gas | 3/8" (9,52mm) / 5/8" (15,88mm) |
| Maximum length | Tuberia | 5-50 meters |
S Ideal Triphasic Commercial Applications
🏭
▷ Advantages Cassette Triphasic:
- Uniform distribution 4 large spaces
- Maximum three-phase power stability
- Ideal coverage for commercial spaces 70-100m2
- Continuous commercial operation
- Precise temperature control
: Commercial characteristics:
- SEER 6,7 A++ trade efficiency
- nanoetm X purification continuous air
- Wi-Fi + Bluetooth professional control
- Series Integrated Drain Pump
- Reinforced unit 25 kg commercial
🏢
Large Offices
70-100m2 corporate spaces
🏪
Shopping Centres
Large commercial premises
️
Restaurants Grandes
Large main halls
🏭
Industrial ships
Climated spaces
COMMERCIAL TRIFASCETTE WITH WI-FI + NANOETM X!
Panasonic KIT-100PU3Z8-6W • 10000W/10000W • SEER 6.7 A+ • 380-415V Triphasic
TRIFÁSICA TRADE POTENCE: 10000W + Wi-Fi + nanoeTM X
The perfect triphase solution for large commercial spaces. 380-415V stable, cassette 4 high power and nanoeTM X purification for demanding shopping centers. The ideal solution for large offices, shopping centers and industrial ships that require powerful air conditioning with maximum stability.
Tri Triphasic food
380-415V: Maximum trade stability
Balanced distribution: Balanced loads
Commercial Installation: Ideal 70-100m2
▪ High Power 10000W
SEER 6,7 A++: Trade efficiency
Variable flow rate: 18,0-36,0 m3/min
Modulant Range: 3,0-11.5 kW cold
WHY TO ELEGATE THE KIT-100PU3Z8-6W TRIFÁSICO PANASONIC?
▷ Unique technical advantages:
- Three-phase food 380-415V stable
- SEER 6,7 A++ trade efficiency
- High power 10000W modulant
- Reinforced unit 25 kg commercial
- Tubería up to 50m total flexibility
: Commercial applications:
- Large offices 70-100m2 corporate
- Commercial centres spacious premises
- Large restaurants main halls
- Industrial ships air-conditioned spaces
- Commercial projects high power
S Advanced Included Series Technologies
Turboventilator
High commercial benefits
️ Econavi
Automatic commercial sensor
NanoeTM X
4.8 billion OH/second
R32
Ecological 2,40kg
CHECK IT OUT NOW!
Air conditioning specialists Panasonic • Personalized technical advice • Integral solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-100PU3Z8-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PU3E
- Outdoor Unit
- U-100PZ3E8
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 90 a 100 m2
- Refrigerator capacity (W)
- 10.000
- Refrigerator capacity (kcal / h)
- 8.600
- Nominal consumption Cold (W)
- 2.620
- Energy class (cold)
- A++
- Heat capacity (W)
- 10.000
- Heat capacity (Kcal / h)
- 8.600
- Nominal heat consumption (W)
- 2.030
- Energy class (heat)
- A+
- Minimum sound pressure UI DB
- 32
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 319
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 83,0
- Net weight (kg)
- 113,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
