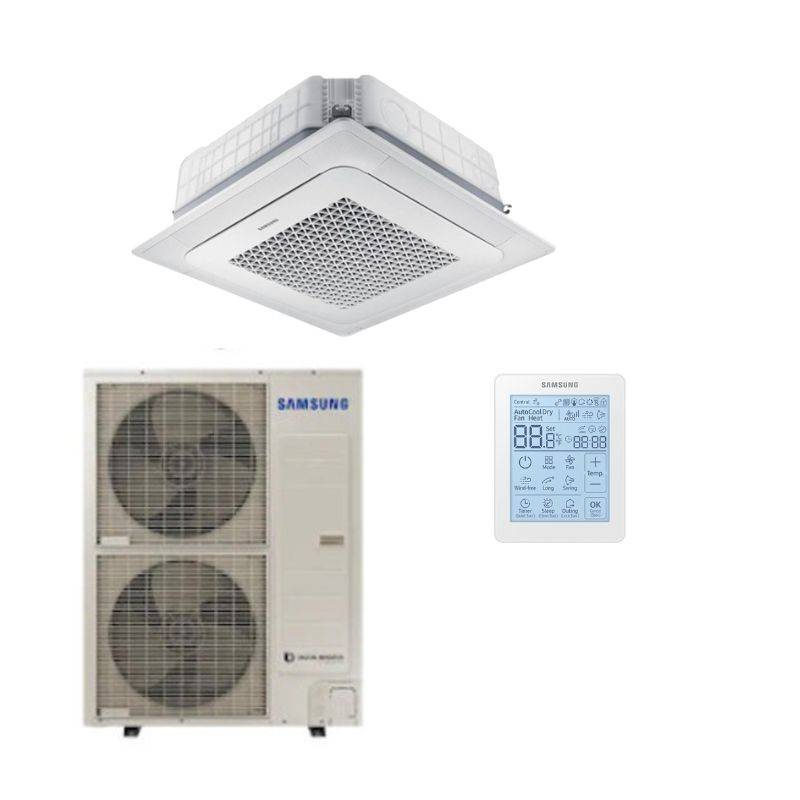

SAMSUNG F-CST4VTF140R
Cassette 4 WindFreeTM Semi-Industrial Series
SAMSUNG F-CST4VTF140R - Cassette 4 WindFreeTM Absolute flagship with 13.4 kW refrigerators and 15.5 kW hot. Energy efficiency A++/A++ with revolutionary high performance windFreeTM technology. 380-415V triphase power supply with optimized protection 16A. Absolute maximum flow 110 m3/min, high ceiling mode up to 4.6m and adjustable 84mm premium lamas 34°-68°. Dimensions flagship 84x28,8x84cm and panel PC4NUFMAN 95x95cm. Maximum three-phase installation: 75m length, 30m height. Includes AC140RN4DKG/EU + AC140RXADNG/EU triphasic, MWR-SH11N touch control and optional SPi ionizer. The absolute hub of WindFreeTM technology for the most demanding industrial facilities with three-phase infrastructure and maximum electrical efficiency.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Samsung F-CST4VTF140R Windfree
Referencia: F-CST4VTF140R
€3,415.32
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
SAMSUNG F-CST4VTF140R
Cassette 4 WindFreeTM Semi-Industrial Series
SAMSUNG F-CST4VTF140R - Cassette 4 WindFreeTM Absolute flagship with 13.4 kW refrigerators and 15.5 kW hot. Energy efficiency A++/A++ with revolutionary high performance windFreeTM technology. 380-415V triphase power supply with optimized protection 16A. Absolute maximum flow 110 m3/min, high ceiling mode up to 4.6m and adjustable 84mm premium lamas 34°-68°. Dimensions flagship 84x28,8x84cm and panel PC4NUFMAN 95x95cm. Maximum three-phase installation: 75m length, 30m height. Includes AC140RN4DKG/EU + AC140RXADNG/EU triphasic, MWR-SH11N touch control and optional SPi ionizer. The absolute hub of WindFreeTM technology for the most demanding industrial facilities with three-phase infrastructure and maximum electrical efficiency.
Security policy
Delivery policy
Refund policy
SAMSUNG F-CST4VTF140R
Cassette 4 WindFreeTM - Absolute Triphasic Flagship
Technical Specifications
| Cold Power/Calor: | 13.4 kW / 15.5 kW |
| Energy Efficiency: | A++/A++ |
| SEER/SCOP: | 6,6 / 4,3 |
| Indoor Unit: | AC140RN4DKG/EU |
| Outdoor Unit: | AC140RXADNG/EU |
| Food: | 380-415V Triphase |
WindFreeTM Absolute Triphasic Flagship
- Absolute WindFreeTM Technology
- Maximum power 13,4kW + triphase efficiency
- Triphasic 380-415V industrial
- Optimized protection 16A vs 40A monophase
- Absolute maximum rate: 110.0 m3/min
- Three-phase supreme electrical efficiency
- Maximum installation: 75m length
- Flagship of the entire range Samsung WindFreeTM
Supreme Court Flagship
Supreme efficiency
16A trifle
vs 40A monophasic
-60% total current
Installation
Lower cable section
Balanced distribution
Infrastructure flagship
Leadership
Minimum losses
Maximum stability
Supreme functioning
Absolute Flagship Performance
Maximum Power
EER: 3,16
COP: 3.16
Consumption: 4.6 kW
Supreme benefits
Caudal: 110.0 m3/min
Sound: 37-45 dBA
Exterior: 53-54 dBA
Maximum range
Min/Máx: 3.5-15,0 kW
Heat: 3.5-18.0 kW
Supreme modulation
Exclusive Flagship Features
Absolute Caudal
110.0 m3/min
Total leader of the range
No competition
Supreme Power
13,4kW + triphase
Perfect combination
Maximum efficiency
Optimized protection
16A trifle
Maximum efficiency
Minimum losses
Flagship Triphasic Installation
Dimensions Flagship
Interior: 840x288x840mm
Exterior: 940x1210x330mm
Total weight: 109.5kg
Maximum connections
Liquid/Gas: 3/8" - 5/8"
Preload: 30m included
Additional: 50g/m
Supreme flexibility
Long. max. 75m
Height: 30m
Protection: 16A
Flagship Electrical Specifications
Supreme
380-415V Triphase
3, 4 yarn, 50Hz
Optimized protection
16A trifle
Section: 1.5 mm2
Refrigerant Gas Maximum
R32: 2.9 kg
Capacity flagship
Supreme Flagship Technologies
Mood Top
Up to 4.6m height
Supreme optimization
Flagship Panel
PC4NUFMAN 95x95cm
Supreme design
Supreme control
Touch MWR-SH11N
Interface flagship
Maximum Level Flagship Applications
Industrial Complexes
100+ m2 three-phase infrastructure
Industrial plants
Three-phase large factories
Shopping Centres
Hypermarkets flagship
Airports
Terminals, hangars
Central Hospitals
Health complexes
Data centres
Industrial Critical CPD
Laboratories
Scientific facilities
Universities
Campus, maximum auditoriums
FLAGSHIP ABSOLUTE TRIFÁSICA • 110M3/MIN • 13,4KW • 16A • 75M
IN THE CASE OF A VESSEL FLYING THE FLAG OF A MEMBER STATE OTHER THAN THAT OF THE MEMBER STATE OF WHICH IT IS THE FLAG VESSEL, THE MEMBER STATE OF WHICH IT IS THE FLAG VESSEL SHALL INFORM THE OTHER MEMBER STATES ACCORDINGLY
The absolute supreme peak of WindFreeTM technology with triphase efficiency without equal
F-CST4VTF140R
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC140RN4DKG/EU
- Outdoor Unit
- AC140RXADNG/EU
- Panel
- PC4NUFMAN
- I send
- MWR-SH11N
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 4.600
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 15.500
- Heat capacity (Kcal / h)
- 13.330
- Nominal heat consumption (W)
- 4.900
- Energy class (heat)
- A++
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 37
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 940 x 330 x 1210
- Weight Indoor Unit (Kg)
- 18,0
- Weight Outdoor Unit (Kg)
- 91,5
- Net weight (kg)
- 112,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
