Cassette Haier AB105S2SR1FA(H) + 1U105S2SS1FB
Round-Flow 105 Triphasic - Commercial and Industrial
Cassette Haier Round-Flow 105 Triphasic - Industrial cassette air conditioning system with 8-way Round-Flow technology and stable triphase feeding, ideal for industrial and commercial installations up to 105m2. Circular air distribution with integrated Wi-Fi and maximum electrical stability.
9,2 kW
Cold power
10.5 kW
Power Calor
3,00
EER
A+/A++
Energy Label
34 dBA
Sound level
6.8 A
Triphase Intensity
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Industrial Use Triphasic 380V Panel 950mm

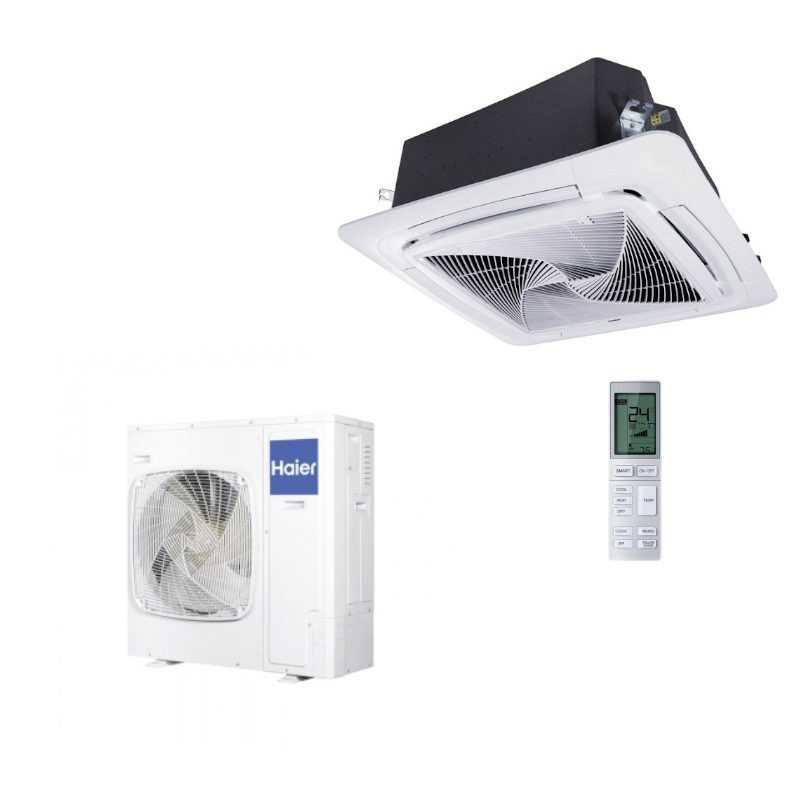

Full model: Indoor Unit AB105S2SR1FA(H) + Outdoor Unit 1U105S2SS1FB
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for industrial and commercial installations up to 105m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Triphasic food: 380-415V with only 6,8A maximum intensity
・ Advantages Triphasic 380V
Intensity Reduced:
Only 6.8A vs 16.5A monophasic
Only 6.8A vs 16.5A monophasic
Greater Stability:
Balanced operation
Balanced operation
Menor Cableado:
More economical installation
More economical installation
Industrial Ideal:
Compatible with three-phase networks
Compatible with three-phase networks
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Haier Round-flow 105 trif. AB105S2SR1FA (H) + 1U105S2SS1FB
Referencia: HAIROUNDCAS105THC
€1,983.88
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB105S2SR1FA(H) + 1U105S2SS1FB
Round-Flow 105 Triphasic - Commercial and Industrial
Cassette Haier Round-Flow 105 Triphasic - Industrial cassette air conditioning system with 8-way Round-Flow technology and stable triphase feeding, ideal for industrial and commercial installations up to 105m2. Circular air distribution with integrated Wi-Fi and maximum electrical stability.
9,2 kW
Cold power
10.5 kW
Power Calor
3,00
EER
A+/A++
Energy Label
34 dBA
Sound level
6.8 A
Triphase Intensity
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Industrial Use Triphasic 380V Panel 950mm
Full model: Indoor Unit AB105S2SR1FA(H) + Outdoor Unit 1U105S2SS1FB
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for industrial and commercial installations up to 105m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Triphasic food: 380-415V with only 6,8A maximum intensity
・ Advantages Triphasic 380V
Intensity Reduced:
Only 6.8A vs 16.5A monophasic
Only 6.8A vs 16.5A monophasic
Greater Stability:
Balanced operation
Balanced operation
Menor Cableado:
More economical installation
More economical installation
Industrial Ideal:
Compatible with three-phase networks
Compatible with three-phase networks
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Haier Round-Flow 105 Triphasic - Industrial Stability
Triphasic cassette air conditioning system with Round-Flow technology for maximum industrial stability
Sistema Cassette System Round-Flow 105 Triphasic - Maximum Industrial Stability
The Air Conditioning Cassette Haier Round-Flow 105 Triphasic combines technology circular distribution of 8 independent channels with the superior stability of 380-415V. With 9,2kW cooling power and 10.5kW in heat mode, this system is designed for industrial and commercial installations up to 105m2 that require maximum electrical stability and reduced intensity of only 6,8A.
ROUND-FLOW TRIFÁSICA INDUSTRIAL TECHNOLOGY
Industrial Circular Distribution with 8 Independent Ways and Triphase Feeding
The Round-Flow 105 Triphasic technology combines the perfect circular distribution with the superior electrical stability of the triphasic feeding, completely eliminating the dead areas and providing stable and reliable operation for demanding industrial and commercial installations.
Technical specifications
9,2 kW
Refrigeration capacityThree-phase power up to 105m2
10.5 kW
Capacity HeatingHeat Pump three-phase
EER 3,00
Energy efficiencyOptimized for triphase
6.8 A
Triphase IntensityUltra low vs monophasic
▪ Exclusive benefits 380-415V
▪
Ultra Low Intensity6.8A vs 16.5A monophasic
🏭
Industrial stabilityBalanced operation
💰
Minor CableMore economical installation
🔧
Industrial CompatibleStandard three-phase networks
Round-Flow Industrial Technology
Exclusive technology Round-Flow 105 Classical distributes air through 8 independent tracks with flows of up to 1920 m3/h, creating a circular flow uniform with the superior stability of the triphase feeding. The 950×950mm dimension panel is perfectly integrated into false industrial ceilings, offering optimal radial distribution for installations that require maximum reliability.
️
8 Industrial routesDistribution up to 1920 m3/h
📐
950×950mm panelComplete industrial coverage
️
Triphasic controlStable 380V management
🌀
Total coverageNo dead areas 105m2
Triphasic Industrial Performance
The Round-Flow 105 Triphasic system is designed for industrial applications that require maximum electrical stability, providing 4 vent speeds with flows from 1250 to 1920 m3/h. Triphasic feeding allows a more stable and efficient operation, with an ultra-low intensity of only 6.8A compared to 16.5A of the equivalent monophasic model.
Industrial Air Flows
- Maximum speed: 1920 m3/h - Fast industrial cooling
- High Speed: 1750 m3/h - Standard industrial use
- Medium speed: 1550 m3/h - Balanced industrial operation
- Quiet speed: 1250 m3/h - Night performance 34dBA

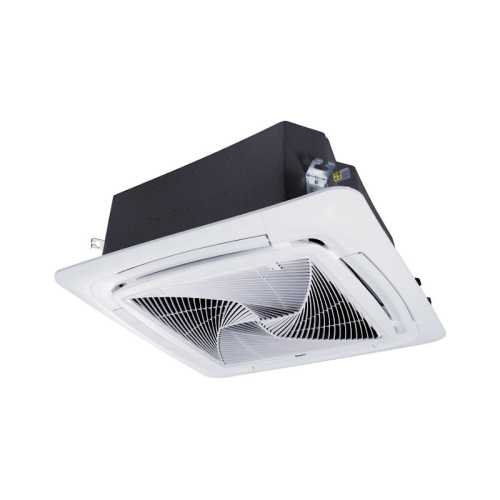

▪ Indoor Unit AB105S2SR1FA(H)
Cassette Round-Flow industrial impotrable with 8 independent tracks
Full model: AB105S2SR1FA(H) - Cassette Round-Flow industrial with professional Wi-Fi and UVC sterilization
S Technical Specifications Interior
9,2 kW
Nominal Cold Power
10.5 kW
Nominal heat power
34 dBA
Minimum Sound Level
1920 m3/h
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 840×840×246 mm |
| Gross dimensions (An×Pr×Al) | 978×978×269 mm |
| Weight Neto/Bruth | 24/31 kg |
| Internal food | 1Ph/220~240V/50/60Hz |
| Air distribution | 8 independent Round-Flow tracks |
| (H/M/L/Q) | 1920/1750/1550/1250 m3/h |
| Sound levels (H/M/L/Q) | 45/42/38/34 dB(A) |
| Connectivity | Integrated professional Wi-Fi |
| High Power Sound | 63 dB |
) Decorative panel PB-950QB(H)
| Specification Panel | Measures |
|---|---|
| Dimensions Netas Panel | 950×950×50 mm |
| Brute dimensions Panel | 1013×1035×125 mm |
| Weight Neto/Bruth Panel | 5.5.5 kg |
| Type Installation | Impotrable in false industrial ceiling |
Interior Exclusive Technologies:
Industrial UVC sterilization, outdoor cooling, 8-way Round-Flow distribution for industrial use, washable high efficiency filter and professional anti-bacterial system optimized for continuous operation.
Industrial UVC sterilization, outdoor cooling, 8-way Round-Flow distribution for industrial use, washable high efficiency filter and professional anti-bacterial system optimized for continuous operation.
Technical Specifications Triphasic Detailed
Haier Round-Flow 105 Triphasic - Industrial components

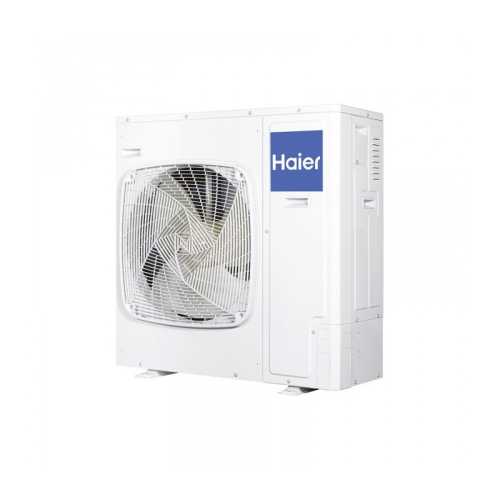

🏭 Outdoor Unit 1U105S2SS1FB TRIFÁSICA
Industrial triphase condensor with optimized rotary inverter double compressor
Full model: 1U105S2SS1FB - 380-415V three-phase condenser unit with double rotative inverter compressor and R32 gas
S️ Technical Specifications Foreign Triphasic
3,25 kW
Consumption Frío Nominal
3.10 kW
Nominal heat consumption
54 dBA
External sound level
6.8 A
Triphase Intensity
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 920×372×765 mm |
| Gross dimensions (An×Pr×Al) | 1085×485×830 mm |
| Weight Neto/Bruth | 61.0/66.0 kg |
| Compressor | Double hermetic rotary inverter |
| Refrigerant Gas | R32 (1.70 kg preload factory) |
| Tripha | 3Ph/380~415V/50/60Hz |
| Power supply | 5 x 4.0 mm2 |
| Interconnection cable | 4 x 2.5 mm2 |
| Maximum intensity | 6.8 A (lower) |
| Intensity Start | 1.0 A (suave) |
| Sonora Power | 68 dB |
S Technical Characteristics Advanced Triphasic:
Double rotary inverter compressor optimized for three-phase power with variable frequency control, heat exchanger with ultra-high performance hydrophilic fins, precision electronic expansion valve, marine anticorrhage protection and smart automatic discard.
Double rotary inverter compressor optimized for three-phase power with variable frequency control, heat exchanger with ultra-high performance hydrophilic fins, precision electronic expansion valve, marine anticorrhage protection and smart automatic discard.
▪ Exclusive Advantages Industrial Triphasic Food
▪
Ultra-Reduced Intensity6.8A vs 16.5A monophasic - 58% less
🏭
Balanced operationStable three-phase distribution
💰
Minor CableCables 5x4,0mm2 vs 3x6,0mm2
🔧
Start SuaveOnly 1.0A vs 3.0A monophasic
Y Professional Connectivity and UVC Industrial Purification
Integrated technology includes Professional Wi-Fi which allows total control and centralized management from multiple devices with optimized business protocols for three-phase industrial facilities. The system incorporates uVC industrial sterilization which eliminates bacteria and viruses in large volumes of air, ensuring a healthy environment in critical industrial facilities. Includes outdoor fresh air intake up to 20% of nominal flow.
📱
Wi-Fi IndustrialTriphasic centralized control
🦠
UVC IndustrialProfessional purification
🌿
Air FrescoRenovation up to 20%
🔇
Silence 34dBADiscreet operation
S Energy Performance and Triphasic Consumms
A+
Label Cold
A++
Label Calor
555 kWh/a
Annual Consumption Cold
2136 kWh/a
Annual Calor consumption
S Guaranteed Triphasic Efficiencies
- EER 3.00: Optimized energy efficiency for triphase
- SEER 5.90: Seasonal performance guaranteed A+
- COP 3.50: Efficient three-phase heat pump
- SCOP 4,80: Maximum annual energy use A++
Triphase Installation Data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9,52 mm (3/8") |
| Tubería Gas | Ø 15.88 mm (5/8") |
| Standard length without charge | 30 meters |
| Maximum Length Tuberia | 50 meters |
| Maximum UI-EU | 30 meters |
| Additional charge | 45 g/m on standard length |
| Limits Functioning Cold | -20°C to +46°C |
| Limits Calor operation | -20°C to +24°C |
| TCO2eq Refrigerant Gas | 1,15 kg |
▼ Triphasic Energy Saving:
The Round-Flow 105 Triphasic system optimizes electrical consumption through balanced load distribution, reducing losses and improving overall system efficiency in industrial facilities.
The Round-Flow 105 Triphasic system optimizes electrical consumption through balanced load distribution, reducing losses and improving overall system efficiency in industrial facilities.
S Triphasic Industrial Capacity:
Stable industrial power of 9.2kW, flow rate up to 1920 m3/h, ultra low intensity of 6.8A and robust weight of 61kg for industrial installations with triphase power.
Stable industrial power of 9.2kW, flow rate up to 1920 m3/h, ultra low intensity of 6.8A and robust weight of 61kg for industrial installations with triphase power.
▪ Triphasic Double Inverter Compressor
Equipped with rotary double inverter compressor optimized for triphase feeding which provides precise and stable control. Triphasic inverter technology allows a smoother and more efficient modulation, significantly reducing operating intensity and improving system stability.
🌿 Refrigerant Gas R32 Industrial
Use coolant Organic R32 optimized for triphasic operation with less environmental impact. The 1.70kg factory load ensures optimal operation with pipes up to 30 meters without additional charge, ideal for large-scale three-phase industrial installations.
S Triphasic Industrial Applications
The Round-Flow 105 Triphasic is especially suitable for industrial facilities, production ships, technical workshops, laboratories and data centres which require stable and efficient triphase feeding. Its capacity of 9.2kW with ultra low intensity of 6.8A makes it ideal for facilities that already have triphase power.
S Triphasic Ideal Installations
- Industrial ships: Up to 105m2 with three phase feeding
- Technical workshops: Specialized workspaces
- Laboratories: Industrial controlled environments
- Data centres: Technical rooms with high electric charge
- Production facilities: Areas with three-phase machinery
- Technical stores: Industrial logistic spaces
Cassette Haier Round-Flow 105 Triphasic
AB105S2SR1FA(H) + 1U105S2SS1FB Δ Triphasic Industrial Stability 9,2kW
🏭
Tripha Industrial Power
9,2kW with 380-415V triphase power. Maximum stability for professional industrial facilities.
▪
Ultra Low Intensity
Only 6.8A vs 16.5A monophasic. I save 58% in intensity for efficient installations.
️
Round-Flow Industrial
Circular distribution with 8 tracks up to 1920 m3/h. Eliminates dead areas on industrial ships.
📱
Wi-Fi Industrial + UVC
Professional centralized control and industrial UVC sterilization for critical environments.
🔇
Stable operation
Soft start with only 1.0A. Continuous and stable operation 24/7 for industrial use.
️
Optimized installation
Optimized 5x4,0mm2 cabling. Compatible with existing three-phase infrastructures.
S Exclusive Features Round-Flow 105 Triphasic
Complete model
AB105S2SR1FA(H) + 1U105S2SS1FB
AB105S2SR1FA(H) + 1U105S2SS1FB
Tripha
380-415V with only 6,8A
380-415V with only 6,8A
Industrial flows
1250/1550/1750/1920 m3/h
1250/1550/1750/1920 m3/h
Annual summary
555 kWh/ cold
555 kWh/ cold
Start Suave
Only 1.0A vs 3.0A monophasic
Only 1.0A vs 3.0A monophasic
Refrigerant Gas
Organic R32 (1.70 kg)
Organic R32 (1.70 kg)
S Ideal Industrial applications
Industrial ships
Up to 105m2 with three phase feeding
Up to 105m2 with three phase feeding
Technical workshops
Specialized workspaces
Specialized workspaces
Laboratories
Industrial controlled environments
Industrial controlled environments
Data centres
Technical rooms with high electric charge
Technical rooms with high electric charge
Production facilities
Areas with three-phase machinery
Areas with three-phase machinery
Technical stores
Industrial logistic spaces
Industrial logistic spaces
Exclusive Triphase Advantages
Ultra Low Intensity
6.8A - 58% less than monophase
6.8A - 58% less than monophase
Start Suave
1.0A vs 3.0A - Less impact network
1.0A vs 3.0A - Less impact network
Balanced operation
Stable three-phase distribution
Stable three-phase distribution
Industrial Compatible
Integration with three-phase networks
Integration with three-phase networks
The Industrial Triphase Solution you need!
ROUND-FLOW 105 TRIFÁSICO
▪ INTENSITY ULTRA REDUCED
Only 6.8A vs 16.5A monophasic - 58% saving in intensity
Only 6.8A vs 16.5A monophasic - 58% saving in intensity
INDUSTRIAL ESTABILITY
Balanced operation 24/7 with triphase feeding
Balanced operation 24/7 with triphase feeding
OPTIMIZED INSTALMENT
5x4.0mm2 cabling more economical than monophase equivalent
5x4.0mm2 cabling more economical than monophase equivalent
ARRANQUE SUAVE
Only 1.0A startup - Lower impact on the power grid
Only 1.0A startup - Lower impact on the power grid
️ DISTRIBUTION PERFECTA
Round-Flow eliminates dead areas in industrial ships
Round-Flow eliminates dead areas in industrial ships
CONTINUED FUNCTIONING
Designed for 24/7 industrial use with maximum reliability
Designed for 24/7 industrial use with maximum reliability
WHERE'S THE HAIER ROUND-FLOW 105 TRIFÁSICO?
Đ ONE TRIFÁSICO:
Maximum stability with 8 Round-Flow tracks
Maximum stability with 8 Round-Flow tracks
▪ MINIMUM INTENSITY:
6,8A for maximum electrical efficiency
6,8A for maximum electrical efficiency
INDUSTRIAL DESIGN:
Optimized for 24/7 operation
Optimized for 24/7 operation
TOTAL DISTRIBUTION:
No dead areas in industrial ships
No dead areas in industrial ships
️ PROFESSIONAL CONTROL:
Industrial Wi-Fi with centralized management
Industrial Wi-Fi with centralized management
INDUSTRIAL PURIFICATION:
UVC and professional antibacterial filters
UVC and professional antibacterial filters
CONTACT WITH SPECIALISTS
📋 Industrial budget
Three-phase specialization
Three-phase specialization
️ Technical advice
Facilities experts
Facilities experts
📦 Certified installation
Specialized technicians
Specialized technicians
🔧 Industrial service
Maintenance 24/7
Maintenance 24/7
Check availability for your industrial installation!
Del Request Information of Round-Flow 105 Triphasic
Find out why the Cassette Haier Round-Flow 105 Triphasic is the perfect choice for your industrial installation.
📞
Technical informationIndustrial triphase specialists
💰
Industrial budgetQuotation for three-phase facilities
▷ Triphase Industrial Guarantee
Cassette Haier Round-Flow 105 Triphasic with official warranty and technical service specialized in industrial installations.
Cassette Haier Round-Flow 105 Triphasic with official warranty and technical service specialized in industrial installations.
▪ Exclusive Triphase Technology
Only 6.8A of intensity with 8-way Round-Flow distribution. Maximum efficiency for industrial installations.
Only 6.8A of intensity with 8-way Round-Flow distribution. Maximum efficiency for industrial installations.
Complete Industrial Solution
Ideal for industrial ships, technical workshops and laboratories with 380-415V triphase feeding.
Ideal for industrial ships, technical workshops and laboratories with 380-415V triphase feeding.
Triphasic Competitive Advantage
Intensity 58% lower than equivalent monophasic. Soft start and stable operation 24/7.
Intensity 58% lower than equivalent monophasic. Soft start and stable operation 24/7.
HAIROUNDCAS105THC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB105S2SR1FA(H)
- Outdoor Unit
- 1U105S2SS1FB
- Panel
- PB-950QB(H)

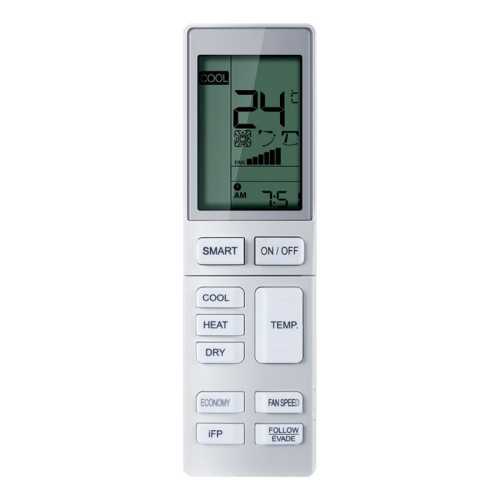

- I send
- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 3.250
- Energy class (cold)
- A+
- SEER
- 5,9
- Heat capacity (W)
- 10.500
- Heat capacity (Kcal / h)
- 9.030
- Nominal heat consumption (W)
- 3.100
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 245
- Dimensions u.e (anxfxh) mm
- 920 x 372 x 765
- Weight Indoor Unit (Kg)
- 24,0
- Weight Outdoor Unit (Kg)
- 61,0
- Net weight (kg)
- 87
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
New
No customer reviews for the moment.
