SAMSUNG F-CST4VMF100R
Cassette 4 WindFreeTM Semi-Industrial Series
SAMSUNG F-CST4VMF100R - Cassette 4 WindFreeTM industrial power roads with 10.0 kW refrigerators and 11.2 kW heaters. Energy efficiency A++/A++ with revolutionary industrial WindFreeTM technology. Maximum flow rate 72 m3/min with adjustable 84mm premium beds 34°-68°. Industrial dimensions 84x28,8x84cm, high ceiling mode up to 3.9m and PC4NUFMAN panel 95x95cm. Industrial installation: 50m length, 30m height, pipes 3/8"-5/8". Includes AC100RN4DKG/EU + AC100RXADKG/EU monophasic, MWR-SH11N touch control and optional SPi ionizer. Ideal for large shopping centers, industrial ships, hotels and applications that demand maximum power WindFreeTM without air currents.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

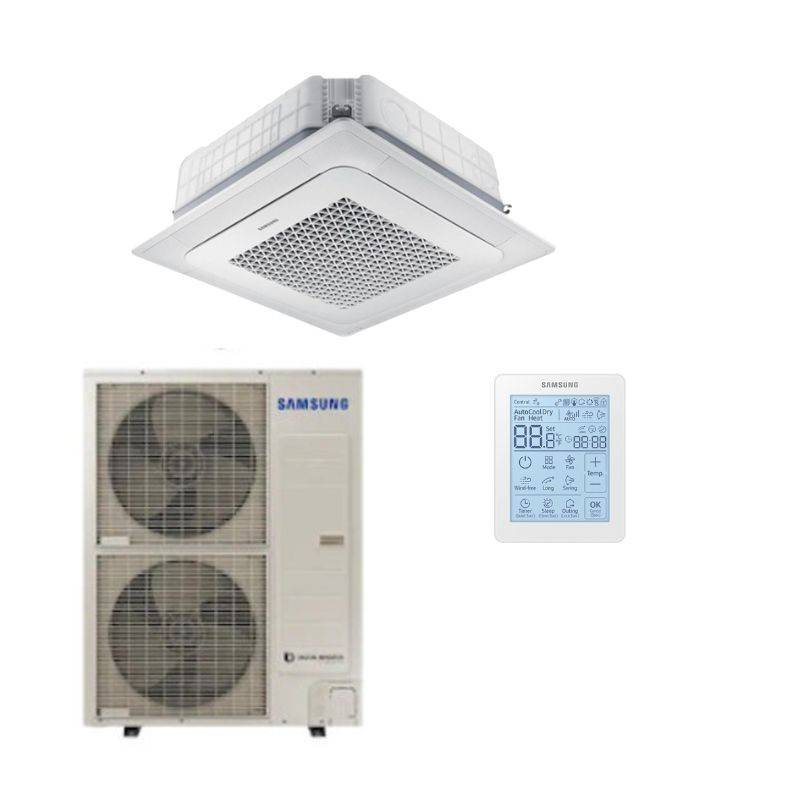

Cassette Samsung F-CST4VTF100R Windfree
Referencia: F-CST4VTF100R
€2,839.72
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
SAMSUNG F-CST4VMF100R
Cassette 4 WindFreeTM Semi-Industrial Series
SAMSUNG F-CST4VMF100R - Cassette 4 WindFreeTM industrial power roads with 10.0 kW refrigerators and 11.2 kW heaters. Energy efficiency A++/A++ with revolutionary industrial WindFreeTM technology. Maximum flow rate 72 m3/min with adjustable 84mm premium beds 34°-68°. Industrial dimensions 84x28,8x84cm, high ceiling mode up to 3.9m and PC4NUFMAN panel 95x95cm. Industrial installation: 50m length, 30m height, pipes 3/8"-5/8". Includes AC100RN4DKG/EU + AC100RXADKG/EU monophasic, MWR-SH11N touch control and optional SPi ionizer. Ideal for large shopping centers, industrial ships, hotels and applications that demand maximum power WindFreeTM without air currents.
Security policy
Delivery policy
Refund policy
SAMSUNG F-CST4VMF100R
Cassette 4 Vías WindFreeTM - Industrial Power Media
Technical Specifications
| Cold Power/Calor: | 10,0 kW / 11,2 kW |
| Energy Efficiency: | A++/A++ |
| SEER/SCOP: | 7,0 / 4,3 |
| Indoor Unit: | AC100RN4DKG/EU |
| Outdoor Unit: | AC100RXADKG/EU |
| Food: | 220-240V Monof |
WindFreeTM Industrial Power
- Dual industrial cooling: Fast + WindFreeTM
- Total removal of air currents large spaces
- Maximum rate: 72.0 m3/min (+41% vs 71R)
- Industrial scales 84mm angle 34°-68°
- High ceiling mode up to 3.9m industrial
- Industrial dimensions 84x28,8x84cm
- Ionizer SPi industrial purification
- Professional MWR-SH11N Touch Control
Higher Industrial Performance
Industrial Power
EER: 2.92
COP: 3.61
Consumption: 3.4 kW
Benefits
Caudal: 72.0 m3/min
Sound: 33-44 dBA
Exterior: 52-54 dBA
Operational range
Min/Máx: 3.0-12,0 kW
Heat: 2.2-15.5 kW
Industrial modulation
Industrial installation Robusta
Dimensions
Interior: 840x288x840mm
Exterior: 940x998x330mm
Total weight: 89.5kg
Connections
Liquid/Gas: 3/8" - 5/8"
Preload: 30m included
Additional: 50g/m
Industrial flexibility
Long. max. 50m
Height: 30m
Protection: 25A
Advanced Industrial Specifications
Refrigerant Gas R32
Charge: 2.7 kg
Industrial eco-friendly
Industrial consumption
Cold: 3.4 kW
Heat: 3.1 kW
Protection
25A monophasic
Section: 1.5 mm2
Exclusive Industrial Characteristics
High ceiling mode
Up to 3.9m height
Industrial optimization
Industrial Panel
PC4NUFMAN 95x95cm
Robust design
Elevation Pump
750mmH2O industrial
Capacity: 24 L/h
Industrial Applications and Grand Format
Shopping Centres
80-90 m2 large surfaces
Industrial ships
Workshops, department stores
Grande Hotels
Living rooms, large dining rooms
Sports Centres
Gyms, sports
Corporate offices
Open spaces wide
Logistics Centres
Storage, distribution
Healthy spaces
Hospitals, large clinics
Educational centres
Auditors, pavilions
WINDFREETM INDUSTRIAL POTENCE • 72M3/MIN • 10KW • MONOFÁSICA
DIMENSIONS 84x28,8x84CM • CARGA 2,7KG • PROTECTION 25A • A++
WindFreeTM industrial power solution for large spaces that require maximum performance
F-CST4VTF100R
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC100RN4DKG/EU
- Outdoor Unit
- AC100RXADNG/EU
- Panel
- PC4NUFMAN
- I send
- MWR-SH11N
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 10.000
- Refrigerator capacity (kcal / h)
- 8.600
- Nominal consumption Cold (W)
- 3.400
- Energy class (cold)
- A++
- SEER
- 7,0
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 3.100
- Energy class (heat)
- A++
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 33
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 940 x 330 x 998
- Weight Indoor Unit (Kg)
- 14,5
- Weight Outdoor Unit (Kg)
- 75,0
- Net weight (kg)
- 92,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
