ABSOLUTE EXTREME POTENCE
Air Conditioning Cassette Haier Round-Flow 160 Classic
MOST POTENT MODEL OF ALL GAMA
▪ TRIFASTIC EXTREME POTENCE
15,0kW cold / 16,0kW heat
Power supply: 380-415V triphasic
Ultra low intensity: 13,0A
MÁXIMA EFICIENCIA
SEER 5,96 (A+) / SCOP 4,60 (A+)
Consumption: 895 kWh/ cold
Maximum energy saving
️ ROUND-FLOW TECHNOLOGY
8 independent tracks
Caudal: up to 2200 m3/h
+23% more airflow
SPA_LATN OTHER
From 36 dB(A)
Silent night mode
Discreet industrial operation
THE ABSOLUTE COVER OF ROUND-FLOW TECHNOLOGY
Capacity to air up to 160m2 Δ 12.900 fridges / 13,760 calories
EXTREME POTENCE ▪ TRIFÁSICO CONTROL Wi-Fi OPCIONAL UVC ️ R32 ECO 160m2 MAX
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Haier Round-flow 160 trif. AB160S2SR1FA (H) + 1U160S2SP1FB
Referencia: HAIROUNDCAS160THC
€2,978.17
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
ABSOLUTE EXTREME POTENCE
Air Conditioning Cassette Haier Round-Flow 160 Classic
MOST POTENT MODEL OF ALL GAMA
▪ TRIFASTIC EXTREME POTENCE
15,0kW cold / 16,0kW heat
Power supply: 380-415V triphasic
Ultra low intensity: 13,0A
MÁXIMA EFICIENCIA
SEER 5,96 (A+) / SCOP 4,60 (A+)
Consumption: 895 kWh/ cold
Maximum energy saving
️ ROUND-FLOW TECHNOLOGY
8 independent tracks
Caudal: up to 2200 m3/h
+23% more airflow
SPA_LATN OTHER
From 36 dB(A)
Silent night mode
Discreet industrial operation
THE ABSOLUTE COVER OF ROUND-FLOW TECHNOLOGY
Capacity to air up to 160m2 Δ 12.900 fridges / 13,760 calories
EXTREME POTENCE ▪ TRIFÁSICO CONTROL Wi-Fi OPCIONAL UVC ️ R32 ECO 160m2 MAX
Security policy
Delivery policy
Refund policy
IT'S THE FIRST TIME I'VE EVER SEEN IT
Absolute Extreme Power - The Most Powerful Model of All Round-Flow Game
MODEL: AB160S2SR1FA(H) + 1U160S2SP1FB
▪ TECHNICAL SPECIFICATIONS OF EXTREMA POTENCE
ABSOLUTE EXTREME CAPACITY
- Refrigeration power: 15.0 kW (12,900 kcal/h)
- Heating power: 16.0 kW (13.760 kcal/h)
- Maximum coverage: Up to 160 m2 industrial
- Ideal application: Megacomplete, critical facilities
▪ EXTREMA TRIFÁSICA
- Tension: 380-415V triphase
- Ultra Low Intensity: 13,0A (vs 35,0A monophasic)
- Arrange Ultra Suave: 2,8A (vs 5,5A monophasic)
- Electrical Saving: 63% less intensity

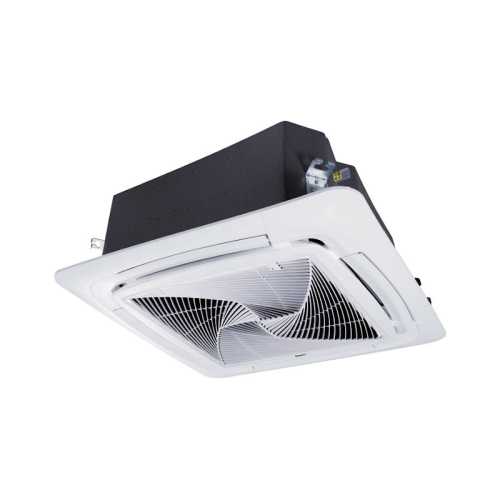

️ Indoor Unit ROUND-FLOW - THE BEST TECHNOLOGY
DISTRIBUTION SYSTEM OF 8 INDEPENDENT DAYS - MAXIM POTENCE
The exclusive Round-Flow technology Haier reaches its maximum expression in model 160, providing a fully uniform 360° air distribution through 8 independent outputs with the highest flow of the entire range, eliminating any dead area even in large surface facilities.
Đ EXTREMA DIFERENCEL VENTAY: +23% more airflow vs. traditional cassettes + Maximum range flow
INDUSTRIAL APPLICATIONS OF MÁXIMA ABSOLUTELY
INDUSTRIAL MEGACOMPLEJES
Extensive industrial ships, logistics megacentres, massive production plants that require the maximum available power.
CRITIC INSTALATIONS
Extensive research laboratories, high-tech centers, critical pharmaceutical and scientific facilities.
MASSIVE DATA CENTRES
Large server rooms, mass processing centers, IT infrastructures of maximum capacity and demand.
SANITARIAN INSTALATIONS
Large hospitals, specialized medical centers, O.R.s and treatment rooms of maximum demand.
ENERGY EFFECTIVE EFFICIENCY
ENERGY CLASIFICATION
A+
SEER: 5,96 (Refrigeration)
SCOP: 4.60 (Calefaction)
ANNUAL CONSULTATION
895 kWh/year
Refrigeration: 895 kWh/a
Heating: 3820 kWh/a
GARANTIZED EXTREMA POTENCE
The 160 Triphasic model represents the absolute summit of Round-Flow technology for the world's most demanding facilities

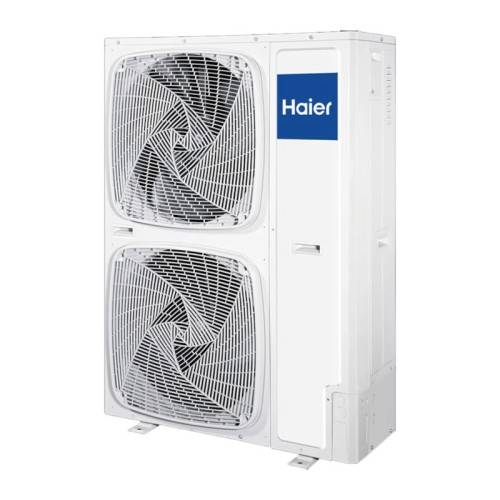

🏭 Outdoor Unit TRIFÁSICA - ABSOLUTE EXTREMA POTENCE
▪ EXCLUSIVE VENTAGES OF THE TWENTY-FOURTH POTENCE
Ultra Optimized Intensity: 13.0A vs 35.0A monophasic (63% less)
Arrange Ultra Suave: 2,8A vs 5.5A monophasic (49% less)
:️ Extreme Balance: Ultra stable triphase distribution
: Industrial wiring: 5 x 6.0 mm2 for maximum safety
ENERGÉTIC EFFICIENCY OF MÁXIMO ABSOLUTE LEVEL
ENERGY CLASIFICATION
A+
SEER: 5,96 (Refrigeration)
SCOP: 4.60 (Calefaction)
ANNUAL CONSURE
895 kWh/year
Refrigeration: 895 kWh/a
Heating: 3820 kWh/a
MÁXIMO AHORRO ECONOMIC GARANTIZED
The maximum A+ energy efficiency of the 160 Triphasic model, combined with the advantages of triphasic power and maximum power, ensures an energy saving of 35-45% on conventional systems, with an estimated 2-3-year ROI in intensive use mega-installations.
MAXIMO LEVEL ADVANCED TECHNOLOGIES
CONTROL INTELIGENTE Wi-Fi hOn AVANZADO
Integrated Wi-Fi control system with hOn app for complete remote management, advanced smart programming, real-time consumption monitoring and predictive diagnostics.
UVC MÁXIMA (OPCIONAL)
Optional maximum power UVC system that eliminates 99.9% of viruses and bacteria, ideal for mega-installations that require maximum air hygiene.
️ OPTIMIZED ECHOGIC R32
Refrigerant Gas Last generation R32 with 2.40 kg optimized load, 68% less global warming potential vs R410A. Maximum efficiency.
INDUSTRIAL DRENAJE BOMBA INCLUDED
Factory integrated industrial drainage pump for mega installations, elevation up to 750mm, maximum installation flexibility.
️ AUTODIAGNÓSTICO INTELIGENTE AVANZADO
Predictive autodiagnosis system that automatically detects and reports any anomaly, minimizing stop times in critical facilities.
️ EXTREME FUND T3
Operation guaranteed from -15°C to +52°C (T3), maximum resistance to extreme conditions, 24/7 operation without limitations.
️ _
Fresh air input system up to 20% of the nominal flow without compromising cooling capacity, ideal for RITE regulation.
SMART CLEAN AVANZADO
Smart Clean function that freezes moisture to remove dirt and bacteria through cold expansion, optimized automatic maintenance.
SPECIFICATIONS OF AVANZADA TRIFACTIC INSTALATION
▪ INDUSTRIAL SPECIFIC REQUIREMENTS
ALIMENTATION
380-415V ~ 3N 50Hz
CABLE
5 x 6.0 mm2
PROTECTION
Difference 30mA
MAGNETOTÉRMICO
32A Curva C
LONGITUD MÁXIMA
75m pipe
DESNIVEL MÁXIMO
30m vertical
▼ EXTREMA TRIFACTIC INSTALATION
The three-phase installations of model 160 allow perfect integration with existing industrial mega-infrastructures, significantly reducing electrical intensity and ensuring ultra-stable and efficient 24-hour operation in the most demanding conditions.
ROUND-FLOW 160 TRIFÁSICO: THE ABSOLUTE BODY OF INDUSTRIAL TECHNOLOGY
Extreme power, maximum efficiency, absolute electrical stability. The 160 Triphasic model represents the definitive solution for industrial mega-installations that demand the maximum available power without performance and reliability commitments.
THE MOST POTENT MODEL OF ALL GAMA ROUND-FLOW
THE ABSOLUTE EXTREME POTENCE TO YOUR FLOOD!
Haier Round-Flow 160 Triphasic - The Most Powerful Model of All Game
MÁXIMA POTENCIA: 15kW FRÍO / 16kW CALOR
▪ EXTREMOUS TRIFASTIC VENTAGES
- 63% LESS Intensity: 13,0A vs 35,0A monophasic
- Arrange Ultra Suave: 2,8A without current peaks
- Extreme Stability 24/7: For critical mega-installations
- Industrial integration: With massive three-phase infrastructures
MÁXIMA RENTABILITY
- Efficiency A+: SEER 5,96 / SCOP 4,60
- 35-45% Energy Saving: vs. conventional systems
- ROI 2-3 years: In industrial mega-installations
- Maximum Cost Reduction: Ultra optimized intensity
️ SUPREMA TECHNOLOGY
- Round-Flow 8 Ways: Maximum flow rate 2200 m3/h
- Control Wi-Fi hOn: Advanced smart management
- Ultra Silence: From 36 dB(A)
- Operation T3: Up to +52°C outside
IDEAL IMPLICATIONS OF THE MODEL 160 TRIFÁSICO
MEGACOMPLEJES
Large logistic centers, industrial megaplants, manufacturing complexes up to 160m2
CRITIC INSTALATIONS
Extensive laboratories, research centers, critical pharmaceutical facilities
MASSIVE DATA CENTRES
Large server rooms, mass processing centers, critical IT infrastructures
SANITARIAN INSTALATIONS
Large hospitals, specialized medical centers, most demanding O.R
INDUSTRIA PESADA AVANZADA
Mass industrial workshops, advanced factories, high-tech facilities
SPECIAL IMPLEMENTATION
Clean rooms, control centers, installations that require maximum power
WHERE IS THE ROUND-FLOW 160 TRIFÁSICO?
INDISCUTIBLE ABSOLUTE
The maximum absolute power in triphasic round-flow cassette of the world market. Exclusive 8-way technology with maximum flow rate.
√ ROBUSTEZ INDUSTRIAL EXTREMA
Designed for 24/7 operation in the most extreme conditions. T3 resistance guaranteed up to +52°C in critical mega-installations.
MÁXIMO AMBIENTAL RESPONSE
Refrigerant Gas R32 optimized with maximum efficiency. 68% less environmental impact vs traditional refrigerants with maximum power.
FUTURE AT ALL
Absolute cutting edge technology with advanced OTA updates. Smartest investment for mega-enterprises of the future.
EXCLUSIVE DIFERENCES OF THE MODEL 160
UNIQUE EXTREMA POTENCE
15kW cold / 16kW heat - The maximum power available in Round-Flow cassette. No competition on the market.
️ ABSOLUTE CAUDAL
2200 m3/h maximum flow with 8-way Round-Flow technology. Coverage up to 160m2 guaranteed.
▪ INTENSITY ULTRA OPTIMIZED
Only 13,0A of triphasic intensity vs 35,0A monophasic. 63% less power consumption with maximum power.
TECHNOLOGY T3 EXTREMA
Guaranteed operation up to +52°C outside. Absolute resistance to extreme industrial conditions.
INFORMATION AND BUDGET FOR MEGAPROJECTS
SPECIALIZED ASSESSMENT
Technical consulting specialized in industrial mega-installations and extreme power calculation for unique projects.
TÉCNICO AVANZADO
Complete analysis of megaprojects with ROI calculation, energy amortization and triphase optimization.
INDUSTRIAL PROVISIONS
Stock available for megaprojects. Official guarantee Haier with specialized industrial technical service 24/7.
DEFINITIVE INDUSTRIAL OPORTUNITY!
The Round-Flow 160 Triphasic is the smartest investment for industrial mega-installations that require absolute power, extreme energy efficiency and electrical stability without any commitments.
: MODEL: AB160S2SR1FA(H) + 1U160S2SP1FB
The Absolute Summit of Industrial Round-Flow Technology
HAIROUNDCAS160THC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB160S2SR1FA(H)
- Outdoor Unit
- 1U160S2SP1FB
- Panel
- PB-950QB(H)
- I send

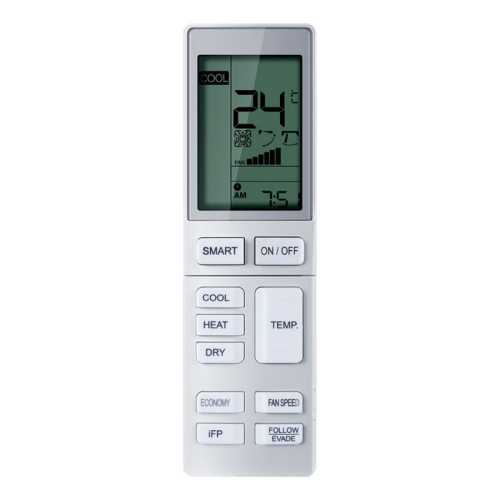

- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Stay from 125 to 140 m2
- Refrigerator capacity (W)
- 15.000
- Refrigerator capacity (kcal / h)
- 12.900
- Nominal consumption Cold (W)
- 5.030
- Energy class (cold)
- A+
- SEER
- 6,0
- Heat capacity (W)
- 16.000
- Heat capacity (Kcal / h)
- 13.760
- Nominal heat consumption (W)
- 5.260
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 1350
- Weight Indoor Unit (Kg)
- 27,0
- Weight Outdoor Unit (Kg)
- 101,0
- Net weight (kg)
- 130,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 3/4
- Possibility Integration
- WiFi Included
