Cassette Haier AB125S2SR1FA(H) + 1U125S2SN3FB
Round-Flow 125 Triphasic - Maximum Industrial Power
Cassette Haier Round-Flow 125 Triphase - Maximum industrial cassette air conditioning system with 8-way Round-Flow technology and stable three-phase feeding, ideal for large industrial facilities up to 125m2. Circular air distribution with integrated Wi-Fi and maximum triphase efficiency.
12.4 kW
Cold power
13.5 kW
Power Calor
3,00
EER
A++/A++
Energy Label
34 dBA
Sound level
10.0 A
Triphase Intensity
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Industrial Use Triphasic 380V Panel 950mm

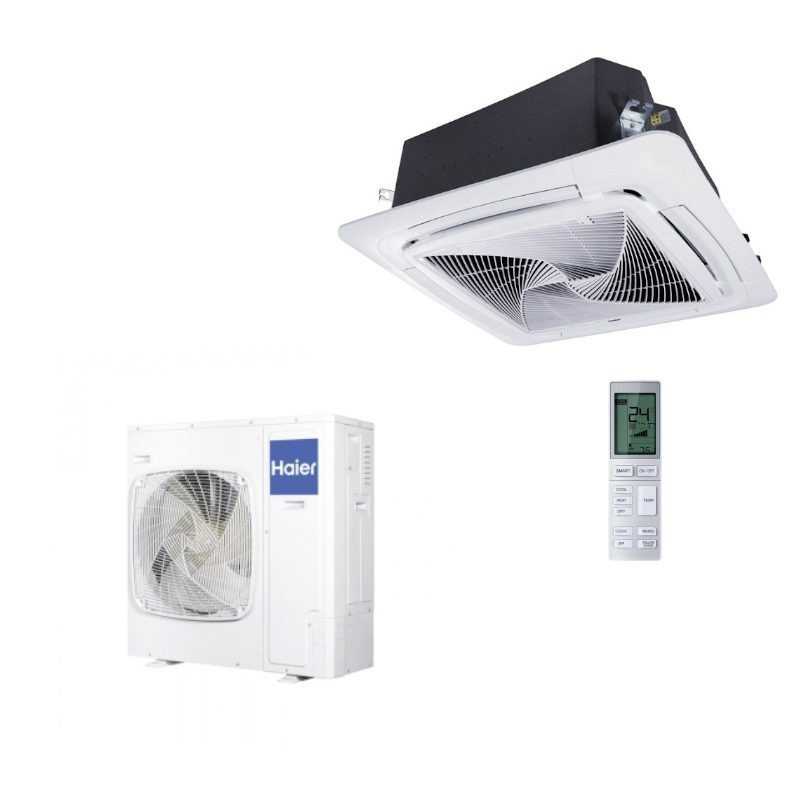

Full model: Indoor Unit AB125S2SR1FA(H) + Outdoor Unit 1U125S2SN3FB
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for large industrial facilities up to 125m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Maximum Triphasic Power: 12,4kW with only 10,0A intensity
▪ Advantages Maximum Triphasic Power 380V
Intensity Reduced:
10,0A vs 26.0A monophasic
10,0A vs 26.0A monophasic
Maximum Stability:
Balanced operation
Balanced operation
Arranque Suave:
Only 2.0A vs 4.0A monophasic
Only 2.0A vs 4.0A monophasic
Industrial Power:
12,4kW for large spaces
12,4kW for large spaces
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Haier Round-Flow 125 Trif. AB125S2SR1FA (H) + 1U125S2SN3FB
Referencia: HAIROUNDCAS125THC
€1,887.33
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB125S2SR1FA(H) + 1U125S2SN3FB
Round-Flow 125 Triphasic - Maximum Industrial Power
Cassette Haier Round-Flow 125 Triphase - Maximum industrial cassette air conditioning system with 8-way Round-Flow technology and stable three-phase feeding, ideal for large industrial facilities up to 125m2. Circular air distribution with integrated Wi-Fi and maximum triphase efficiency.
12.4 kW
Cold power
13.5 kW
Power Calor
3,00
EER
A++/A++
Energy Label
34 dBA
Sound level
10.0 A
Triphase Intensity
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Industrial Use Triphasic 380V Panel 950mm
Full model: Indoor Unit AB125S2SR1FA(H) + Outdoor Unit 1U125S2SN3FB
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for large industrial facilities up to 125m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
Maximum Triphasic Power: 12,4kW with only 10,0A intensity
▪ Advantages Maximum Triphasic Power 380V
Intensity Reduced:
10,0A vs 26.0A monophasic
10,0A vs 26.0A monophasic
Maximum Stability:
Balanced operation
Balanced operation
Arranque Suave:
Only 2.0A vs 4.0A monophasic
Only 2.0A vs 4.0A monophasic
Industrial Power:
12,4kW for large spaces
12,4kW for large spaces
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Haier Round-Flow 125 Triphasic - Maximum Commercial Power
High-powered three-phase cassette air conditioning system with industrial Round-Flow technology
Cassette System Round-Flow 125 Triphasic - Maximum Industrial Power
The Air Conditioning Cassette Haier Round-Flow 125 Triphase represents the maximum power available in technology circular distribution of 8 independent channels with three-phase feeding. With 12.4kW cooling power and 13,5kW in heat mode, this system is designed for large industrial installations up to 125m2 that require maximum power optimized intensity of only 10,0A triphasic.
TECNOLOGY ROUND-FLOW DE MÁXIMA POTENCIA TRIFÁSICA
Circular Distribution of Maximum Power with 8 Independent Ways and Triphase Power
The Round-Flow 125 Triphasic technology combines the maximum power available with the superior stability of the triphasic power, completely eliminating the dead areas and providing stable and powerful operation for the most demanding industrial installations with optimized intensity.
Technical Specifications of Maximum Triphasic Power
12.4 kW
Refrigeration capacityMaximum three phase power up to 125m2
13.5 kW
Capacity HeatingHeat Pump maximum power
EER 3,00
Energy efficiencyOptimized for maximum power
10.0 A
Triphase IntensityOptimized vs monophasic
▼ Advantages Exclusive Maximum Triphasic Power 380-415V
▪
Optimized Intensity10,0A vs 26.0A monophasic
🏭
Maximum Power12.4kW industrial
💰
Start Suave2.0A vs 4.0A monophasic
🔧
Total stabilityBalanced operation
Round-Flow Technology of Maximum Industrial Power
Exclusive technology Round-Flow 125 Triphase distributes air through 8 independent tracks with flows up to 1950 m3/h, creating a uniform circular flow of maximum power with the superior stability of the triphasic feeding. The 950×950mm dimension panel is perfectly integrated into false industrial ceilings, offering optimal radial distribution for the most demanding installations.
️
8 Ways Maximum PowerDistribution until 1950 m3/h
📐
950×950mm panelMaximum industrial coverage
️
Triphasic controlStable 380V management
🌀
Total coverageNo dead areas 125m2
De High-Power Industrial Performance
The Round-Flow 125 Triphasic system is designed for industrial applications that require maximum power with superior electrical stability, providing 4 vent speeds with flows from 1250 to 1950 m3/h. Triphasic feeding allows for more stable and efficient operation, with an optimized intensity of only 10,0A compared to 26.0A of the equivalent monophasic model.
Maximum Industrial Power Air Capdales
- Maximum speed: 1950 m3/h - Ultra-fast industrial cooling
- High Speed: 1650 m3/h - Intensive industrial use
- Medium speed: 1480 m3/h - Standard industrial operation
- Quiet speed: 1250 m3/h - Night performance 34dBA

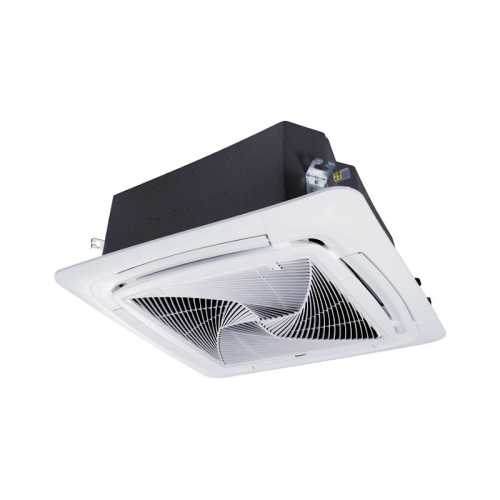

▪ Indoor Unit AB125S2SR1FA(H)
Cassette Round-Flow maximum industrial power with 8 independent tracks
Full model: AB125S2SR1FA(H) - Cassette Round-Flow of maximum industrial power with professional Wi-Fi and UVC sterilization
S Technical Specifications Interior
12.4 kW
Nominal Cold Power
13.5 kW
Nominal heat power
34 dBA
Minimum Sound Level
1950 m3/h
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 840×840×288 mm |
| Gross dimensions (An×Pr×Al) | 978×978×353 mm |
| Weight Neto/Bruth | 27/33 kg |
| Internal food | 1Ph/220~240V/50/60Hz |
| Air distribution | 8 independent Round-Flow tracks |
| (H/M/L/Q) | 1950/1650/1480/1250 m3/h |
| Sound levels (H/M/L/Q) | 47/44/38/34 dB(A) |
| Connectivity | Integrated professional Wi-Fi |
| High Power Sound | 64 dB |
) Decorative panel PB-950QB(H)
| Specification Panel | Measures |
|---|---|
| Dimensions Netas Panel | 950×950×50 mm |
| Brute dimensions Panel | 1013×1035×125 mm |
| Weight Neto/Bruth Panel | 5.5.5 kg |
| Type Installation | Impotrable in false industrial ceiling |
Interior Exclusive Technologies:
Maximum industrial UVC sterilization, outdoor cool air intake, 8-way Round-Flow distribution, ultra-high lavable filter and professional anti-bacterial system optimized for continuous industrial operation.
Maximum industrial UVC sterilization, outdoor cool air intake, 8-way Round-Flow distribution, ultra-high lavable filter and professional anti-bacterial system optimized for continuous industrial operation.
S Maximum Power Triphase Technical Specifications
Haier Round-Flow 125 Triphasic - Industrial Components of Maximum Power

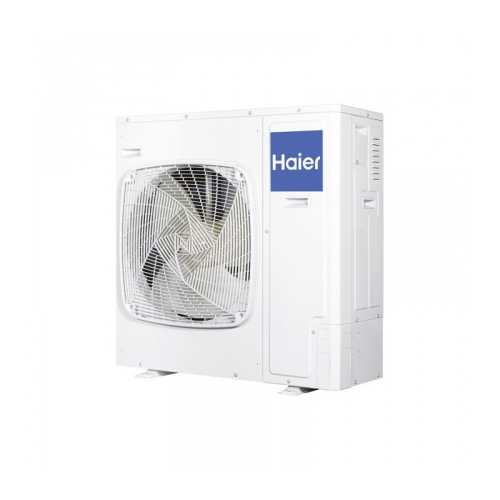

🏭 Outdoor Unit 1U125S2SN3FB TRIFÁSICA
Triphasic Condenser with maximum industrial power with optimized rotary inverter
Full model: 1U125S2SN3FB - maximum power 380-415V three-phase condenser unit with double rotative inverter compressor and R32 gas
S️ Technical Specifications Foreign Triphasic of Maximum Power
4,13 kW
Consumption Frío Nominal
3,85 kW
Nominal heat consumption
58 dBA
External sound level
10.0 A
Triphase Intensity
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 950×370×965 mm |
| Gross dimensions (An×Pr×Al) | 1050×485×1130 mm |
| Weight Neto/Bruth | 63.0/73.0 kg |
| Compressor | Double hermetic rotary inverter |
| Refrigerant Gas | R32 (2.30 kg preload factory) |
| Tripha | 3Ph/380~415V/50/60Hz |
| Power supply | 5 x 4.0 mm2 |
| Interconnection cable | 4 x 2.5 mm2 |
| Maximum intensity | 10.0 A (optimized) |
| Intensity Start | 2.0 A (suave) |
| Sonora Power | 72 dB |
S Advanced Technical Characteristics of Maximum Triphasic Power:
Double rotary inverter compressor optimized for maximum three-phase power with advanced variable frequency control, heat exchanger with ultra-high performance hydrophilic fins, precision electronic expansion valve, marine antico-red protection and intelligent automatic discard.
Double rotary inverter compressor optimized for maximum three-phase power with advanced variable frequency control, heat exchanger with ultra-high performance hydrophilic fins, precision electronic expansion valve, marine antico-red protection and intelligent automatic discard.
▪ Exclusive Advantages Maximum Industrial Triphasic Power
▪
Optimized Intensity10.0A vs 26.0A monophasic - 61% less
🏭
Maximum Power12.4kW stable and balanced
💰
Ultra Suave Start2.0A vs 4.0A monophasic
🔧
Total stabilityBalanced operation 24/7
Y Professional Connectivity and UVC Purification of Maximum Power
Integrated technology includes Professional Wi-Fi which allows total control and centralized management from multiple devices with optimized business protocols for high-power triphase industrial installations. The system incorporates uVC sterilization of maximum industrial power which eliminates bacteria and viruses in large volumes of air, ensuring a healthy environment in critical industrial facilities of maximum demand. Includes outdoor fresh air intake up to 20% of nominal flow.
📱
Wi-Fi IndustrialMaximum power centralized control
🦠
UVC Maximum PowerIndustrial purification
🌿
Air FrescoRenovation up to 20%
🔇
Silence 34dBADiscreet operation
De Energy Performance and Consuls of Maximum Triphasic Power
A++
Label Cold
A++
Label Calor
736 kWh/a
Annual Consumption Cold
3003 kWh/a
Annual Calor consumption
S Guaranteed Efficiencies of Maximum Triphasic Power
- EER 3.00: Optimized energy efficiency for maximum triphase power
- SEER 6,10: High seasonal performance guaranteed A++
- COP 3.50: Efficient three-phase maximum heat pump
- SCOP 4,80: Maximum annual energy use A++
Installation Data for Maximum Triphasic Power
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9,52 mm (3/8") |
| Tubería Gas | Ø 15.88 mm (5/8") |
| Standard length without charge | 30 meters |
| Maximum Length Tuberia | 50 meters |
| Maximum UI-EU | 30 meters |
| Additional charge | 45 g/m on standard length |
| Limits Functioning Cold | -20°C to +46°C |
| Limits Calor operation | -20°C to +24°C |
| TCO2eq Refrigerant Gas | 1.55 kg |
▼ Energy Saving of Maximum Triphasic Power:
The Round-Flow 125 Triphasic system optimizes electrical consumption through balanced distribution of maximum power loads, reducing losses and improving the overall efficiency of the system in the most demanding industrial installations.
The Round-Flow 125 Triphasic system optimizes electrical consumption through balanced distribution of maximum power loads, reducing losses and improving the overall efficiency of the system in the most demanding industrial installations.
Es Industrial capabilities of Maximum Triphasic Power:
Maximum stable industrial power of 12,4kW, flows up to 1950 m3/h, optimized intensity of 10,0A and robust weight of 63kg for the most demanding industrial installations with triphase power.
Maximum stable industrial power of 12,4kW, flows up to 1950 m3/h, optimized intensity of 10,0A and robust weight of 63kg for the most demanding industrial installations with triphase power.
▼ Dual Inverter Compressor of Maximum Triphasic Power
Equipped with rotary double inverter compressor optimized for maximum triphase power which provides precise and stable control in the largest industrial thermal loads. The maximum-power triphase inverter technology allows a smoother and more efficient modulation, significantly reducing the operating intensity and improving the stability of the industrial system.
🌿 Refrigerant Gas R32 of Maximum Industrial Power
Use coolant Organic R32 optimized for maximum three-phase power with less environmental impact. The factory load of 2,30kg ensures optimal operation with pipes of up to 30 meters without additional charge, ideal for the most demanding three-phase industrial installations of large scale.
Es Industrial Applications of Maximum Triphasic Power
The Round-Flow 125 Triphasic is especially suited for large industrial facilities, large-scale production ships, logistics centres, large laboratories and high-capacity data centres which requires stable three-phase power and maximum power. Its capacity of 12.4kW with optimized intensity of 10,0A makes it ideal for the most demanding facilities that already have triphase power.
Es Facilities Ideal for Maximum Triphasic Power
- Large industrial ships: Up to 125m2 with maximum thermal load
- Production centres: High demand industrial spaces
- Large laboratories: Maximum precision controlled environments
- Main data centres: High-capacity technical rooms
- Logistics facilities: Large automated warehouses
- Industrial complexes: Areas of maximum energy demand
Cassette Haier Round-Flow 125 Triphase
AB125S2SR1FA(H) + 1U125S2SN3FB Δ Maximum Industrial Power Triphasic 12,4kW
🏭
Maximum Industrial Power
12.4kW with 380-415V triphase power. Maximum power for the most demanding industrial facilities.
▪
Super Optimized Intensity
Only 10,0A vs 26.0A monophasic. I save 61% in intensity for maximum efficiency.
️
Round-Flow Maximum Power
Circular distribution with 8 tracks until 1950 m3/h. Eliminates dead areas in large industrial ships.
📱
Wi-Fi Industrial + UVC
Professional centralized control and maximum UVC sterilization for critical environments.
🔇
Stable operation 24/7
Ultra soft start 2.0A. Designed for continuous and stable industrial operation.
🎯
Leader in Power
Maximum power available in Round-Flow triphasic cassette for industrial applications.
S Exclusive Features Round-Flow 125 Triphasic
Complete model
AB125S2SR1FA(H) + 1U125S2SN3FB
AB125S2SR1FA(H) + 1U125S2SN3FB
Maximum Triphasic Power
380-415V with only 10,0A
380-415V with only 10,0A
Maximum Power Capdales
1250/1480/1650/1950 m3/h
1250/1480/1650/1950 m3/h
Annual summary
736 kWh/ cold
736 kWh/ cold
Ultra Suave Start
2.0A vs 4.0A monophasic
2.0A vs 4.0A monophasic
Refrigerant Gas
Organic R32 (2.30 kg)
Organic R32 (2.30 kg)
Es Industrial Applications of Maximum Triphasic Power
Great Industrial Ships
Up to 125m2 with maximum thermal load
Up to 125m2 with maximum thermal load
Production Centres
High demand industrial spaces
High demand industrial spaces
Large Laboratories
Maximum precision controlled environments
Maximum precision controlled environments
Main Data Centres
High-capacity technical rooms
High-capacity technical rooms
Logistics facilities
Large automated warehouses
Large automated warehouses
Industrial Complexes
Areas of maximum energy demand
Areas of maximum energy demand
Exclusive Advantages Maximum Triphasic Power
Super Optimized Intensity
10.0A - 61% less than monophase
10.0A - 61% less than monophase
Ultra Suave Start
2.0A vs 4.0A - Minimum impact
2.0A vs 4.0A - Minimum impact
Maximum Power
12.4kW leader in triphasic cassette
12.4kW leader in triphasic cassette
Stable operation
Balanced triphase distribution
Balanced triphase distribution
The Maximum Industrial Triphase Power You're looking for!
SINGLE BENEFITS OF MÁXIMA POTENCIA ROUND-FLOW 125 TRIFÁSICO
▪ _
Only 10.0A vs 26.0A monophasic - 61% saving in intensity
Only 10.0A vs 26.0A monophasic - 61% saving in intensity
INDUSTRIAL POTENCE
12.4kW for the most demanding industrial facilities
12.4kW for the most demanding industrial facilities
ELECTRIC OPTIMIZATION
Optimized 5x4,0mm2 cabling for maximum power
Optimized 5x4,0mm2 cabling for maximum power
ARRANQUE ULTRA SUAVE
2.0A boot - Low impact on the network
2.0A boot - Low impact on the network
️ TOTAL DISTRIBUTION
Round-Flow eliminates dead areas in large ships
Round-Flow eliminates dead areas in large ships
24/7
Designed for continuous industrial use maximum power
Designed for continuous industrial use maximum power
AND TECHNICAL CHARACTERISTICS
Check availability for your maximum power industrial installation!
TECHNICAL SPECIFICATIONS
Specialized technical consultation
Specialized technical consultation
️ OFFICIAL GARANTIA
Warranty manufacturer included
Warranty manufacturer included
TECHNICAL SOPORT
Professional advice
Professional advice
TRADE CONDITIONS
Special conditions
Special conditions
TECHNICAL CLAIMS
Dimension and analysis
Dimension and analysis
EXPERT ASSESSMENT
Specialists in maximum power
Specialists in maximum power
WHERE'S THE HAIER ROUND-FLOW 125 TRIFÁSICO?
Đ _
Absolute leader in Round-Flow triphasic cassette
Absolute leader in Round-Flow triphasic cassette
▪ MINIMUM INTENSITY:
10,0A for maximum electrical efficiency
10,0A for maximum electrical efficiency
INDUSTRIAL DESIGN:
Optimized for operation 24/7 maximum requirement
Optimized for operation 24/7 maximum requirement
DISTRIBUTION:
No dead areas in large industrial ships
No dead areas in large industrial ships
️ INDUSTRIAL CONTROL:
Professional Wi-Fi with centralized management
Professional Wi-Fi with centralized management
MÁXIMA PURIFICATION:
UVC and maximum industrial power filters
UVC and maximum industrial power filters
CONTACT WITH SPECIALISTS IN MÁXIMA POTENCIA TRIFÁSICA
📋 Technical budget
Maximum three-phase power
Maximum three-phase power
️ Expert advice
Industrial specialists
Industrial specialists
📦 Availability
Check stock and deadlines
Check stock and deadlines
🔧 Technical support
Professional assistance
Professional assistance
Check availability for your maximum power installation!
Del Request Information of Round-Flow 125 Triphasic
Find out why the Cassette Haier Round-Flow 125 Triphasic is the perfect choice for your maximum power industrial installation.
📞
Technical informationSpecialists in maximum three-phase power
💰
Industrial budgetQuotation for maximum power
️
Specialized ServiceSupport for industrial applications
▷ Industrial Warranty Maximum Power
Cassette Haier Round-Flow 125 Triphasic with official warranty and technical support specialized in high-power industrial installations.
Cassette Haier Round-Flow 125 Triphasic with official warranty and technical support specialized in high-power industrial installations.
High Power Triphasic Technology
Only 10.0A of intensity with 12.4kW of 8-way Round-Flow power and distribution. Absolute leader in triphase power.
Only 10.0A of intensity with 12.4kW of 8-way Round-Flow power and distribution. Absolute leader in triphase power.
De Maximum Power Industrial Solution
Ideal for large industrial ships, production centers and industrial complexes with 380-415V triphase feeding.
Ideal for large industrial ships, production centers and industrial complexes with 380-415V triphase feeding.
En Leader in Maximum Triphasic Power
Intensity 61% lower than equivalent monophasic. Ultra soft start and stable operation for maximum industrial demand 24/7.
Intensity 61% lower than equivalent monophasic. Ultra soft start and stable operation for maximum industrial demand 24/7.
HAIROUNDCAS125THC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB125S2SR1FA(H)
- Outdoor Unit
- 1U125S2SN3FB
- Panel
- PB-950QB(H)

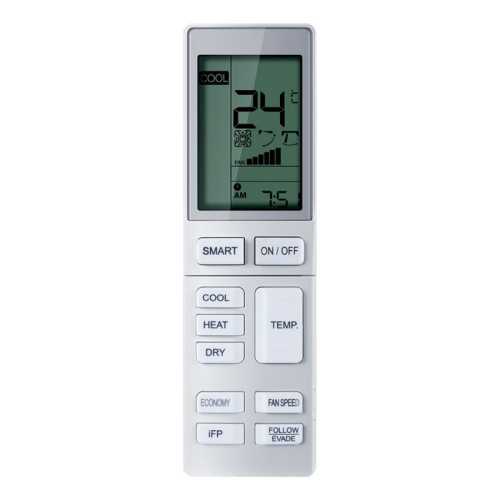

- I send
- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.400
- Refrigerator capacity (kcal / h)
- 10.664
- Nominal consumption Cold (W)
- 4.810
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.850
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 950 x 370 x 965
- Weight Indoor Unit (Kg)
- 27,0
- Weight Outdoor Unit (Kg)
- 63,0
- Net weight (kg)
- 92,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
New
No customer reviews for the moment.
