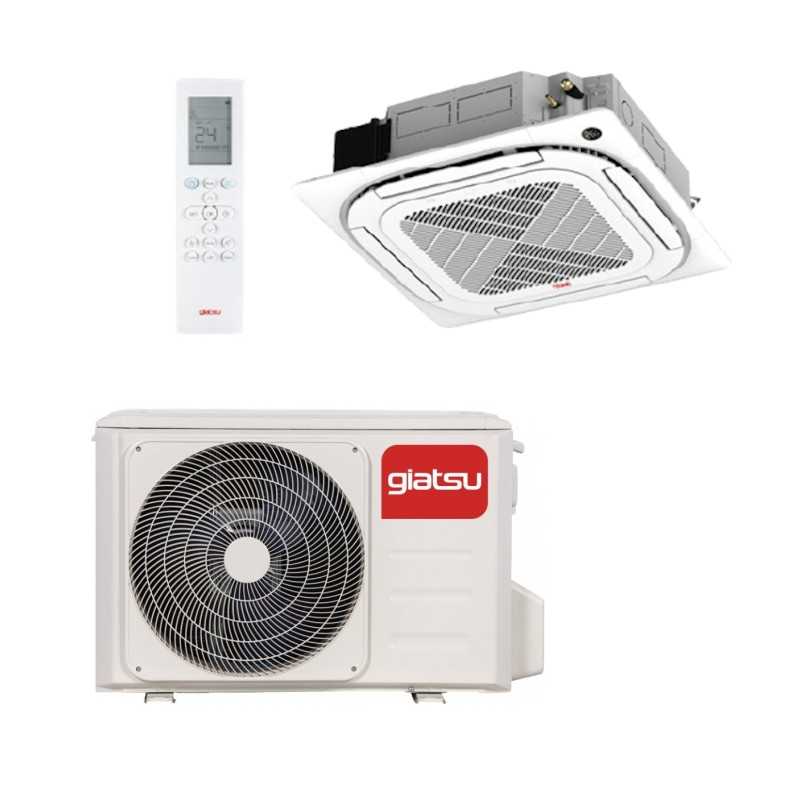

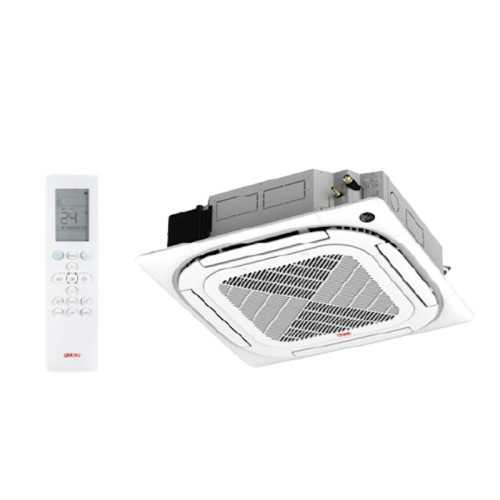

Air Conditioning Cassette Giatsu GIAC9-36ADM2R32-WF
Refrigeration 10550W 日本語 Heating 11140W 日本語 SEER 6,7 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-36ADM2R32-WF represents high commercial power of the Cassette Admira Plus Series 10550W in cooling and 11140W in heating. With panel 90x90 standard and technology DC Inverter complete, offers ultra-powerful 4-way air conditioning with included remote control and Golden Fin protection for large and demanding commercial spaces.
️ 10550W Refrigeration
Rank 2,70-11,43 kW
Calefacción 11140W Heating
Rank 2,78-12,30 kW
▪ SEER 6,7 A++
SCOP 4.0 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 36
Indoor Unit: GIA-C9I-36ADM2R32WF
Outdoor Unit: GIA-UO-36ADM2R32
Air flow: 1300-1700 m3/h
Sonic Pressure: 40-51 dBA
Remote control: Serial included
Nominal consumption: 3,95 kW cold
Refrigerant Gas: R-32 (2.4 kg)
Protection: Golden Fin
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 90x90 Giatsu GIA-C9-36ADM2R32-WF Monof.
Referencia: GIA-C9-36ADM2R32-WF
€1,619.84
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Giatsu GIAC9-36ADM2R32-WF
Refrigeration 10550W 日本語 Heating 11140W 日本語 SEER 6,7 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-36ADM2R32-WF represents high commercial power of the Cassette Admira Plus Series 10550W in cooling and 11140W in heating. With panel 90x90 standard and technology DC Inverter complete, offers ultra-powerful 4-way air conditioning with included remote control and Golden Fin protection for large and demanding commercial spaces.
️ 10550W Refrigeration
Rank 2,70-11,43 kW
Calefacción 11140W Heating
Rank 2,78-12,30 kW
▪ SEER 6,7 A++
SCOP 4.0 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 36
Indoor Unit: GIA-C9I-36ADM2R32WF
Outdoor Unit: GIA-UO-36ADM2R32
Air flow: 1300-1700 m3/h
Sonic Pressure: 40-51 dBA
Remote control: Serial included
Nominal consumption: 3,95 kW cold
Refrigerant Gas: R-32 (2.4 kg)
Protection: Golden Fin
Security policy
Delivery policy
Refund policy
1 Advanced DC Inverter Technology and Maximum Performance
The Cassette Air Conditioner Giatsu GIAC9-36ADM2R32-WF integrate technology DC Inverter complete both in compressor and fan, ensuring ultra-efficient operation with SEER 6,7 A++ in cooling and SCOP 4.0 A+ in heating. Your power 10550W cold and 11140W in heat positions it as the ideal solution for large commercial spaces that require powerful and economical air conditioning.
The system modulates its power from 2700W up to 11430W in cold and from 2780W to 12300W in heat, adapting perfectly to variable load conditions and ensuring maximum comfort with minimal energy consumption at any season of the year.

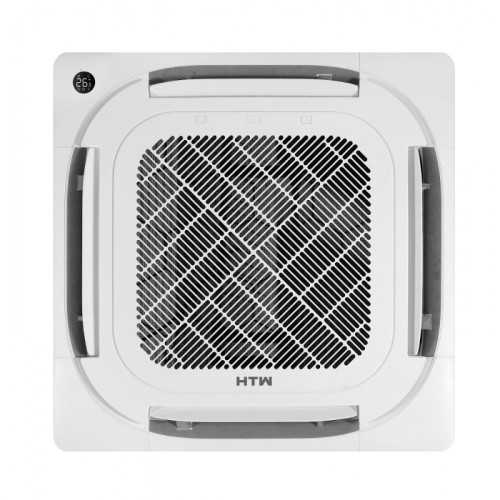

2 90x90 Standard and Powerful Distribution Panel
Equipped with standard panel 90x90 cm without independent control of lamas, the GIAC9-36ADM2R32-WF provides uniform air distribution through its 4 directional lanes. The variable flow rate 1300 to 1700 m3/h guarantees optimal coverage for spaces 80 to 110 m2, maintaining a homogeneous temperature throughout the commercial area.
La indoor Unit of 830x245x830 mm integrates discreetly into standard false ceilings, while its operation is 40 to 51 dBA maintains acoustic comfort suitable for users and workers in high-power commercial environments.
3 Intelligent Control and Commercial Features
The equipment includes remote serial control with 24-hour scheduling functions, allowing advanced configuration of schedules and temperatures to optimize energy consumption in commercial applications protection Golden Fin in exchangers protects against marine corrosion and aggressive environments, while the integrated capacitor pump facilitates automatic evacuation of condensed water without additional installations.
4 Refrigerant Gas R32 Ecological and Operational Efficiency
Use coolant Organic R32 with load of 2.4 kg, reducing environmental impact and improving energy efficiency. The system operates in extended range -15°C to +50°C in refrigeration and -20°C to +24°C in heating, ensuring reliable operation year-round in any weather conditions.

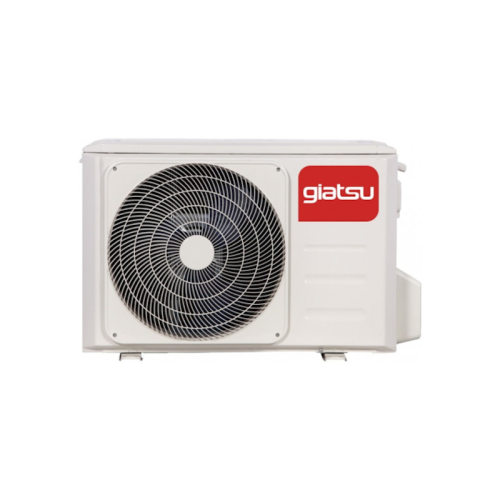

La outdoor Unit of 946x810x410 mm facilitates installation in commercial spaces, with cold connections 3/8" liquid and 5/8" gas and maximum pipe length of 75 meters with a slope of up to 30 meters, providing maximum flexibility in complex commercial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 10550W (2700-11430W) | Heating | 11140W (2780-12300W) |
| SEER / SCOP | 6.7 A++ / 4.0 A+ | Nominal consumption | 3950W / 3000W |
| Air flow | 1300-1700 m3/h | Sound level | 40-51 dBA |
| Refrigerant Gas | R32 (2.4 kg) | Dimensions IU | 830x245x830 mm |
| Max Pipe | 75m / 30m deseven | Weight Neto UI | 27.2 kg + 6 kg panel |
Recommended Commercial Applications
S Large Offices
Corporate 80-110m2 spaces that require powerful air conditioning with efficient operation and precise temperature control.
️ Shopping Centres
Large locations and shopping centers that need powerful air distribution and high energy efficiency.
S️ Restaurants Grandes
Wide rooms that require ultra-powerful air conditioning to maintain high-occupancy comfort and high thermal loads.
S Industrial spaces
Small ships and industrial spaces that need powerful air conditioning with reliable and resistant operation.
Extended warranty Giatsu
3 years guarantee total + 5 years warranty compressor
GIA-C9-36ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-C9I-36ADM2R32WF
- Outdoor Unit
- GIA-UO-36ADM2R32
- Panel
- GIA-C9P-ADM2R32
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 80 a 90 m2
- Refrigerator capacity (W)
- 10.500
- Refrigerator capacity (kcal / h)
- 9.030
- Nominal consumption Cold (W)
- 3.950
- Energy class (cold)
- A++
- SEER
- 6.7
- Heat capacity (W)
- 11.140
- Heat capacity (Kcal / h)
- 9.580
- Nominal heat consumption (W)
- 3.000
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 40
- Dimensions u.i (anxfxh) mm
- 830 x 830 x 245
- Dimensions u.e (anxfxh) mm
- 946 x 410 x 810
- Weight Indoor Unit (Kg)
- 27,2
- Weight Outdoor Unit (Kg)
- 66,9
- Net weight (kg)
- 96,6
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
