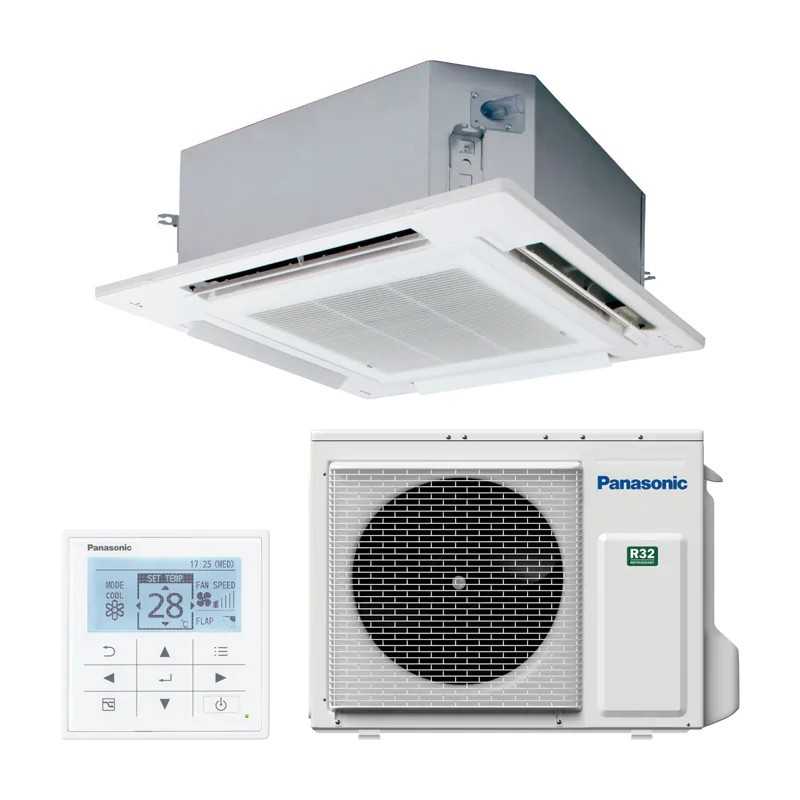

Air Conditioning Cassette Panasonic KIT-125PU3Z5-6W
Refrigeration 12500W 日本語 Heating 12500W 日本語 SEER 6,7 A++ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-125PU3Z5-6W represents maximum commercial power pACi NX Standard Series with 12500W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and smart control for large commercial spaces up to 130m2.
12️ 12500W Refrigeration
Range 3.2-13.5 kW
12 12500W Heating
Range 3.3-15.0 kW
▪ SEER 6,7 A++
SCOP 4,4 A+
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 125

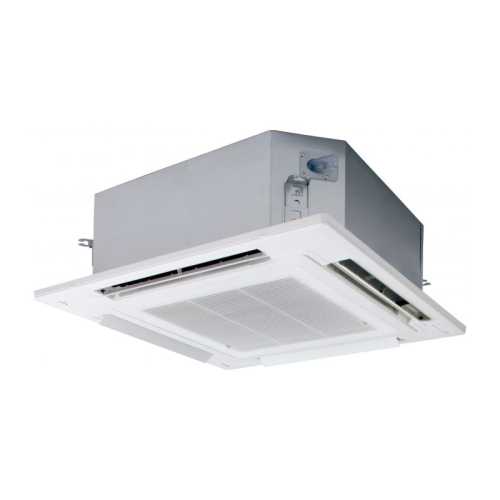

Indoor Unit: S-1014PU3E

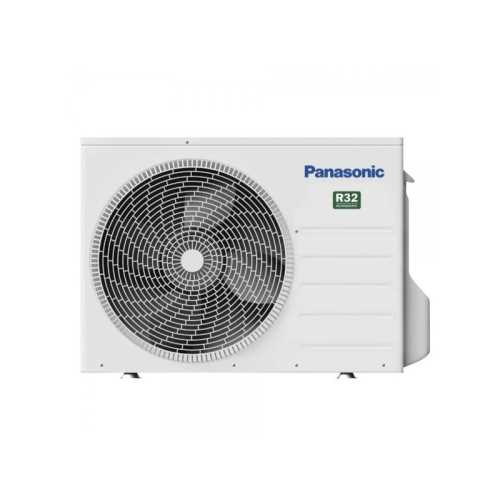

Outdoor Unit: U-125PZ3E5
Air flow: 19,0-37,0 m3/min
Sonic Pressure: 39 dBA

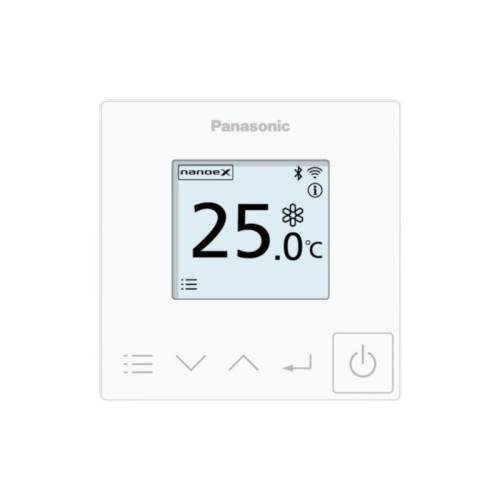

Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 3,49 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-125PU3Z5-6W PACI NX Standard
Referencia: KIT-125PU3Z5-6W
€2,561.59
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-125PU3Z5-6W
Refrigeration 12500W 日本語 Heating 12500W 日本語 SEER 6,7 A++ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-125PU3Z5-6W represents maximum commercial power pACi NX Standard Series with 12500W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and smart control for large commercial spaces up to 130m2.
12️ 12500W Refrigeration
Range 3.2-13.5 kW
12 12500W Heating
Range 3.3-15.0 kW
▪ SEER 6,7 A++
SCOP 4,4 A+
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 125
Indoor Unit: S-1014PU3E
Outdoor Unit: U-125PZ3E5
Air flow: 19,0-37,0 m3/min
Sonic Pressure: 39 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 3,49 kW cold
Refrigerant Gas: R-32 (2.80 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy
Panasonic KIT-125PU3Z5-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD • 12500W/12500W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard 125: Maximum Commercial Power + Intelligent Technology
The Panasonic KIT-125PU3Z5-6W establishes the maximum absolute commercial power in the PACi NX Standard Series 12500W in cooling and heating for large commercial and industrial complexes. Integrates cZ-RTC6BLW controller with Wi-Fi + Bluetooth which allows total remote control and intelligent configuration, while technology nanoeTM X Mark 1 series guarantees purified air with 4.8 billion hydroxyl radicals per second in ultra wide spaces.
Designed for shopping centers, industrial ships, large restaurants and spaces up to 130m2, combine the high performance turboventilator with intelligent Econavi sensor which automatically optimizes energy consumption in high demand facilities. His 4-way air distribution with cassette 90x90 cm ensures uniform and ultra powerful air conditioning SEER 6,7 A++, keeping excellent efficiency at maximum power.
M️ Maximum Commercial Power
12500W Refrigeration: Modulant range 3.2-13.5 kW
12500W Heating: Modulant range 3.3-15.0 kW
Coverage: 90-130m2 commercial spaces
Commercial Control Wi-Fi
CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Commercial Setup: Professional configuration
Total control: Advanced remote management
Tecnología Advanced technology PACi NX Standard Maximum Power
🌀
Turboventilator Max
High maximum power performance
️
Sensor Econavi Pro
Optimization of ultra large spaces
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
💧
Drying pump
Maximum capacity integrated light
Energy Efficiency Maximum Power A+
SEER 6,7 A++
Maximum power cooling
SCOP 4,4 A+
Commercial heating
EER 3.58
Instant performance
COP 4,43
Maximum heat coefficient
Technical Specifications • PACi NX Standard KIT-125PU3Z5-6W
INVERTER+ • 4 4 Vias 90x90 • W WI-FI + BLUETOOTH • R32 ECOLÓGICO
Cassette 4 Via Technology + Turboventilator Maximum Power
The 4-way cassette 90x90 cm kIT-125PU3Z5-6W incorporates a high-performance turboventilator optimized for maximum power that maximizes the air path through the heat exchanger. With flow rate from 19.0 to 37.0 m3/min, adapts automatically to the air conditioning needs of ultra wide spaces while maintaining a sound level of 39 dBA at medium speed, exceptional for maximum commercial power.
The sensor Econavi intelligent professional automatically detects the activity in ultra large spaces and adjusts the operation for optimize energy consumption without compromising maximum power. Technology Green R32 with 2.80 kg load offers superior thermodynamic properties for maximum power while maintaining the SEER 6,7 A++, exceptional for its maximum power category.
Re️ Maximum Air Performance Power
Variable flow rate: 19,0-37,0 m3/min
Distribution: 4 tracks 90x90
Sound level: 39 dBA (average rate)
Dehumidification: 4.8 L/h elimination
Electrical Specifications
Food: 220-240V monophasic
Consumption Cold: 3,49 kW (nominal)
Consumption Calor: 2.82 kW (nominal)
Intensity: 15,40-16,90 A (cold)
S Dimensions and Technical Specifications
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-1014PU3E |
| Interior dimensions | High x Width x Deep | 319 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 25 / 5 kg |
| Outdoor Unit | Model | U-125PZ3E5 |
| Outer dimensions | High x Width x Deep | 996 x 980 x 370 mm |
| Tuberias | Liquid / Gas | 3/8" (9,52mm) / 5/8" (15,88mm) |
| Maximum length | Tuberia | 5-50 meters |
Es Shopping applications Ideals Maximum Power
🏬
Shopping Centres
90-130m2 large premises
🏭
Industrial ships
Industrial spaces
️
Restaurants Grandes
Large main halls
🏢
Corporate offices
Complete plants
Advantages Maximum Power Cassette
▷ Advantages Maximum Power:
- Ultra fast air conditioning wide spaces
- Maximum uniform distribution capacity
- Variable air flow rate up to 37,0 m3/min
- Powerful dehumidification 4.8 L/h
- Precise control large commercial areas
: Commercial characteristics:
- Indoor Unit robust professional
- nanoetm X purification ultra large volumes
- Wi-Fi + Bluetooth business management
- R32 high load 2,80 kg maximum power
- Up to 50m commercial flexibility
🚀 MAXIMUM COMMERCIAL POWER + WI-FI!
Panasonic KIT-125PU3Z5-6W • 12500W/12500W • SEER 6,7 A+ • CZ-RTC6BLW
MXIMA TRADE POTENCE: 12500W + Intelligent Technology
The maximum absolute power solution for ultra wide commercial spaces that require industrial air conditioning. Cassette 4 tracks with uniform distribution up to 130m2, total Wi-Fi control and nanoeTM X purification for maximum volumes. The perfect maximum power model for shopping centers, industrial ships and large restaurants that need ultra-powerful and efficient air conditioning.
Cassette Maximum Power
12500W Commercial: Range 3.2-15.0 kW
Maximum flow rate: 19,0-37,0 m3/min
Coverage: 90-130m2 ultra wide spaces
Commercial Control Wi-Fi
CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Industrial Setup: Commercial configuration
Total management: Advanced remote control
WHERE'S THE PANASONIC KIT-125PU3Z5-6W?
▷ Best Technical Advantages:
- SEER 6,7 A++ maximum efficiency
- 12500W powerpower ultra wide trade
- Turboventilator Max 37,0 m3/min flow rate
- Sensor Econavi Pro saving ultra large spaces
- 39 dBA silent despite maximum power
: Commercial applications:
- Commercial centres 90-130m2 large premises
- Industrial ships air-conditioned spaces
- Large restaurants main halls
- Corporate offices complete plants
- Industrial projects maximum power
Es Commercial Characteristics Maximum Power
SEER 6,7 A++
Maximum power efficiency
COP 4,43
Maximum heat performance
NanoeTM X
Ultra large volume purification
4, 4,8 L/h
Maximum dehumidification
MÁXIMA TRADE TECHNOLOGIES
Turboventilator Max
Maximum power 37,0 m3/min
️ Econavi Ultra
Sensor ultra wide spaces
Max Pump
Maximum capacity
R32 Max
Ecological 2,80kg ultra load
CHECK YOUR TAPE NOW, MAXIMUM POWER!
Industrial air conditioning specialists Panasonic • Commercial Technical Advice • Maximum Power Solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-125PU3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PU3E
- Outdoor Unit
- U-125PZ3E5
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.500
- Refrigerator capacity (kcal / h)
- 10.750
- Nominal consumption Cold (W)
- 3.490
- SEER
- 6.7
- Heat capacity (W)
- 12.500
- Heat capacity (Kcal / h)
- 10.750
- Nominal heat consumption (W)
- 2.820
- SCOP
- 4,4
- Minimum sound pressure UI DB
- 33
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 319
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 87,0
- Net weight (kg)
- 117,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
- Model/form
- Air Conditioning Cassette Panasonic KIT-125PU3Z5-6W PACi NX Standard
