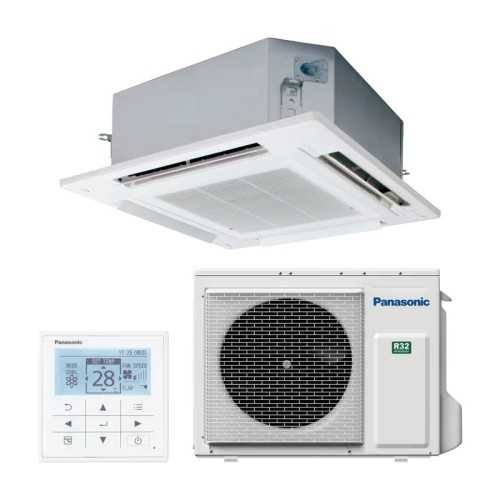

Air Conditioning Cassette Panasonic KIT-60PU3Z5-6W
Refrigeration 6000W 日本語 Heating 6000W 日本語 SEER 7,8 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-60PU3Z5-6W offers ideal medium power pACi NX Standard Series with 6000W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, provides ultra-efficient 4-way air conditioning with advanced air purification and smart control for medium commercial spaces up to 60m2.
6️ 6000W Refrigeration
Rank 2.0-7.1 kW
Calefacción 6000W Heating
Rank 1.8-7.0 kW
▪ SEER 7,8 A++
SCOP 4,9 A++
Wi Wi-Fi + nanoeTM X

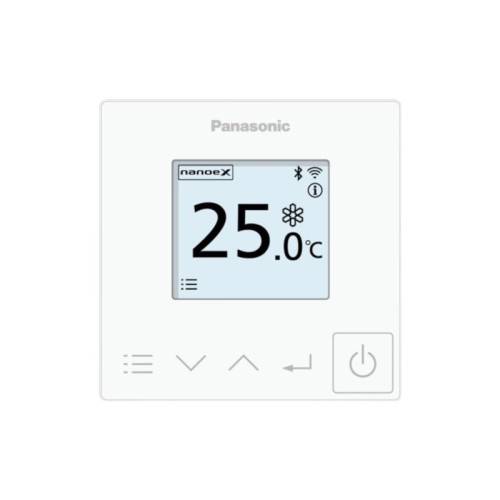

CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 60

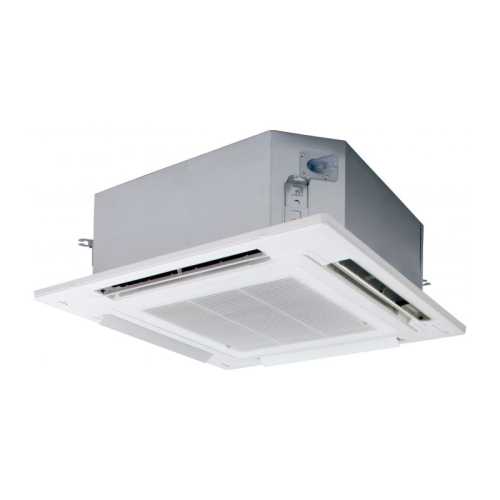

Indoor Unit: S-6071PU3E

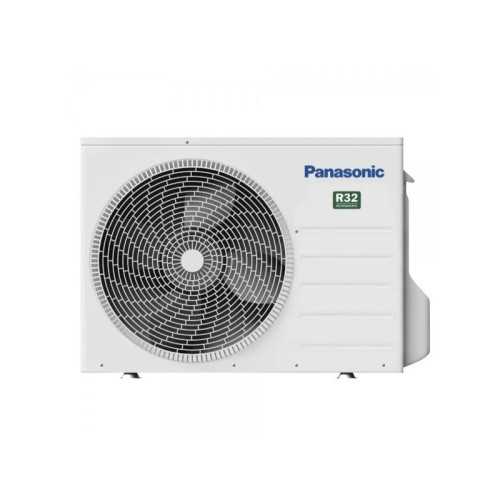

Outdoor Unit: U-60PZ3E5A
Air flow: 13,0-21,0 m3/min
Sonic Pressure: 31 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 1.61 kW cold
Refrigerant Gas: R-32 (1.15 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-60PU3Z5-6W PACI NX Standard
Referencia: KIT-60PU3Z5-6W
€1,802.13
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-60PU3Z5-6W
Refrigeration 6000W 日本語 Heating 6000W 日本語 SEER 7,8 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-60PU3Z5-6W offers ideal medium power pACi NX Standard Series with 6000W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, provides ultra-efficient 4-way air conditioning with advanced air purification and smart control for medium commercial spaces up to 60m2.
6️ 6000W Refrigeration
Rank 2.0-7.1 kW
Calefacción 6000W Heating
Rank 1.8-7.0 kW
▪ SEER 7,8 A++
SCOP 4,9 A++
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 60
Indoor Unit: S-6071PU3E
Outdoor Unit: U-60PZ3E5A
Air flow: 13,0-21,0 m3/min
Sonic Pressure: 31 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 1.61 kW cold
Refrigerant Gas: R-32 (1.15 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy
Panasonic KIT-60PU3Z5-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD • 6000W/6000W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard 60: Media Power + Maximum Efficiency
The Panasonic KIT-60PU3Z5-6W represents perfect average power with maximum efficiency in the PACi NX Standard Series 6000W in cooling and heating for medium commercial spaces. Integrates cZ-RTC6BLW controller with Wi-Fi + Bluetooth which allows total remote control and intelligent configuration, while technology nanoeTM X Mark 1 series guarantees purified air with 4.8 billion hydroxyl radicals per second.
Designed for offices, commercial premises and spaces up to 60m2, combine the high performance turboventilator with intelligent Econavi sensor which automatically reduces energy consumption. His 4-way air distribution with cassette 90x90 cm ensures uniform and comfortable air conditioning SEER 7,8 A++, the highest efficiency of your category.
Media️ Media Power Maximum Efficiency
6000W Refrigeration: Modulant range 2.0-7.1 kW
6000W Heating: Modulant range 1.8-7.0 kW
Coverage: 45-60m2 commercial spaces
Intelligent Control Wi-Fi
CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Easy configuration: Bluetooth for setup
Remote control: Total from smartphone
Advanced technology PACi NX Standard
🌀
Turboventilator
High performance + exchanger
️
Sensor Econavi
Reduces automatic energy loss
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
🔇
Quiet operation
Ultra silent slow fan mode
E Higher Energy Efficiency A++
SEER 7,8 A++
Record cooling efficiency
SCOP 4,9 A++
Higher heating record
EER 3.73
Instant performance
COP 4,48
Coefficient upper heat
Technical Specifications • PACi NX Standard KIT-60PU3Z5-6W
INVERTER+ • 4 4 Vias 90x90 • W WI-FI + BLUETOOTH • R32 ECOLÓGICO
Cassette 4 Via Technology + Optimized Turboventilator
The 4-way cassette 90x90 cm kIT-60PU3Z5-6W incorporates a high-performance turboventilator which optimizes the air path through the heat exchanger. With variable flow rate from 13.0 to 21.0 m3/min, adapts automatically to air conditioning needs while maintaining a sound level of only 31 dBA in medium speed, ideal for working environments that require concentration and comfort.
The sensor Econavi intelligent automatically detects the activity in the room and adjusts the operation for reduce energy consumption without compromising comfort. Technology Ecological R32 with 1,15 kg load offers superior thermodynamic properties while significantly reducing environmental impact, achieving the record SEER 7,8 A++ in his category.
️ Cassette Air Performance
Variable flow rate: 13,0-21,0 m3/min
Distribution: 4 tracks 90x90
Sound level: 31 dBA (average rate)
Dehumidification: 1.7 L/h elimination
Electrical Specifications
Food: 220-240V monophasic
Consumption Cold: 1.61 kW (nominal)
Consumption Calor: 1,34 kW (nominal)
Intensity: 6,85-7.45 A (cold)
S Dimensions and Technical Specifications
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-6071PU3E |
| Interior dimensions | High x Width x Deep | 256 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 20 / 5 kg |
| Outdoor Unit | Model | U-60PZ3E5A |
| Outer dimensions | High x Width x Deep | 695 x 875 x 320 mm |
| Tuberias | Liquid / Gas | 1/4" (6.35mm) / 1/2" (12.70mm) |
| Maximum length | Tuberia | 3-40 meters |
Es Ideal Commercial Applications Cassette
🏢
Medium offices
45-60m2 workspaces
️
Commercial premises
Shops and shops
️
Restaurants
Halls and dining rooms
💼
Meetings
Conferences and boards
Advantages Cassette vs Other Types
▷ Advantages Cassette:
- Uniform air distribution in 4 directions
- Discreet integration in false ceiling
- Ideal coverage for square/rectar spaces
- Easy maintenance from the bottom
- Precise temperature control throughout the room
: Differential Characteristics:
- 90x90 standard panel easy installation
- nanoetm X Continuous Air Purification
- Wi-Fi + Bluetooth control total
- Integrated series drainage pump
- Sensor Econavi automatic energy saving
CASSETTE PACI NX MÁXIMA EFICIENCIA + WI-FI!
Panasonic KIT-60PU3Z5-6W • 6000W/6000W • SEER 7,8 A+ • CZ-RTC6BLW
MEDIA + RÉCORD EFFICIENCE: 6000W + SEER 7,8 A++
The perfect combination of medium power and maximum energy efficiency. Cassette 4 tracks with uniform distribution, total Wi-Fi control and nanoeTM X purification for medium commercial spaces that prioritize efficiency. The best power/efficiency/technology model of the PACi NX Standard range.
Cassette 4 Vias 90x90
Perfect distribution: 4 uniform directions
Variable flow rate: 13,0-21,0 m3/min
Coverage: 45-60m2 ideal
Intelligent Control Wi-Fi
CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Bluetooth Setup: Easy configuration
Total control: Remote Smartphone
WHERE'S THE PANASONIC KIT-60PU3Z5-6W?
▷ Unique technical advantages:
- SEER 7,8 A++ record energy efficiency
- SCOP 4,9 A++ upper heating
- Turboventilator high integrated benefits
- Sensor Econavi automatic intelligent
- 31 dBA ultra silent operation
: Perfect applications:
- Medium-sized offices 45-60m2 efficient
- Commercial premises uniform distribution
- Restaurants comfortable air conditioning
- Meeting rooms smart silent control
- Centers that prioritize maximum efficiency
Energy efficiency Récord A++
SEER 7,8 A++
Refrigeration category
SCOP 4,9 A++
Record heating category
NanoeTM X
4.8 billion OH/second
R32
Ecological 1,15kg
INCLUDED TECHNOLOGIES
Turboventilator
High performances optimized exchanger
️ Econavi
Automatic Smart Sensor Savings
Ultra Quiet
31 dBA medium operation
Drying pump
Serial Included
📞 CONSULT NOW YOUR TAPE EFFICIENCY RECORD!
Air conditioning specialists Panasonic • Personalized technical advice • Efficient solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-60PU3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-6071PU3E
- Outdoor Unit
- U-60PZ3E5
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 50 a 60 m2
- Refrigerator capacity (W)
- 6.000
- Refrigerator capacity (kcal / h)
- 5.160
- Nominal consumption Cold (W)
- 1.610
- Energy class (cold)
- A++
- SEER
- 7,8
- Heat capacity (W)
- 6.000
- Heat capacity (Kcal / h)
- 5.160
- Nominal heat consumption (W)
- 1.340
- Energy class (heat)
- A++
- SCOP
- 4,9
- Minimum sound pressure UI DB
- 28
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 256
- Dimensions u.e (anxfxh) mm
- 875 x 320 x 695
- Weight Indoor Unit (Kg)
- 20,0
- Weight Outdoor Unit (Kg)
- 42,0
- Net weight (kg)
- 67,0
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- WiFi Included
