Cassette Daikin FCAG140B + RZASG140MV1
Round Flow 140 Monofásico - Inverter R-32 Ultra Power
Cassette Daikin Round Flow 140 - Ultra-power cassette air conditioning system with maximum circular distribution Round Flow technology, ideal for large commercial facilities up to 140m2. Power 13,4kW cooling and 15,5kW heating efficiency A+/A+ and outdoor Unit RZASG140MV1.
13.4 kW
Cold power
15.5 kW
Power Calor
A++/A+
Energy Label
29 dBA
Sound level
26,0 m3/min
Maximum rate
1231 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Ultra Power Panel 950mm Advance series

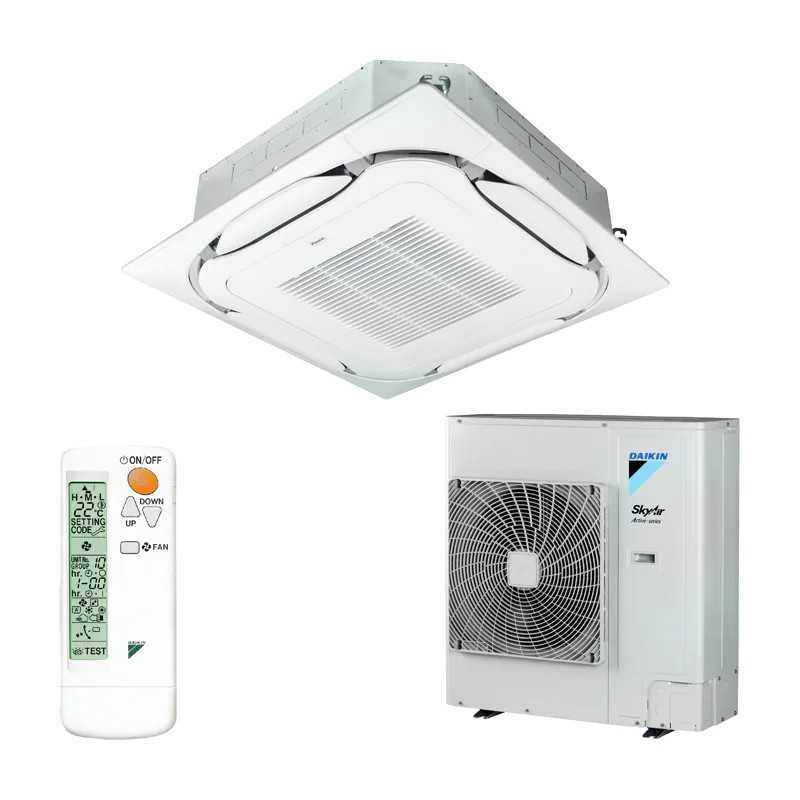

Full model: Indoor Unit FCAG140B + Outdoor Unit RZASG140MV1
Series: Sky Air Series Advance - Ultra Japanese Commercial Power
Application: Ideal for large commercial facilities up to 140m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Ultra Efficiency: SEER 6,53 / SCOP 4,31 with ultra capacity SWING compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Daikin CASG140B
Referencia: CASG140B
€5,207.17
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Daikin FCAG140B + RZASG140MV1
Round Flow 140 Monofásico - Inverter R-32 Ultra Power
Cassette Daikin Round Flow 140 - Ultra-power cassette air conditioning system with maximum circular distribution Round Flow technology, ideal for large commercial facilities up to 140m2. Power 13,4kW cooling and 15,5kW heating efficiency A+/A+ and outdoor Unit RZASG140MV1.
13.4 kW
Cold power
15.5 kW
Power Calor
A++/A+
Energy Label
29 dBA
Sound level
26,0 m3/min
Maximum rate
1231 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Ultra Power Panel 950mm Advance series
Full model: Indoor Unit FCAG140B + Outdoor Unit RZASG140MV1
Series: Sky Air Series Advance - Ultra Japanese Commercial Power
Application: Ideal for large commercial facilities up to 140m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Ultra Efficiency: SEER 6,53 / SCOP 4,31 with ultra capacity SWING compressor
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Daikin Round Flow 140 - Ultra Commercial Power Advance Series
Ultra-power cassette air conditioning system with Round Flow Series Advance world leader
Cassette System Round Flow 140 - Ultra Power Series Advance
The Air Conditioning Cassette Daikin Round Flow CASG140B combines ultra commercial power with circular distribution Maximum Advance series. With 13,4kW cooling power and 15.5kW in heat mode, this system is designed to provide optimal comfort in large commercial facilities up to 140m2 with energy efficiency A++/A+.
️ ROUND FLOW TECHNOLOGY OF ULTRA CAPACITY
Ultra Capacity Circular Distribution with RZASG140MV1 Unit
The ultra-capacity Round Flow Series Advance technology creates a circular airflow that ensures a uniform air conditioning in large commercial facilities, completely eliminating dead areas and providing exceptional comfort in ultra thermal demand conditions with high thermal power outdoor Unit RZASG140MV1.
≤ Technical Specifications of Ultra Power
13.4 kW
Refrigeration capacityUltra power up to 140m2
15.5 kW
Capacity HeatingHeat Pump ultra-capacity
SEER 6,53
Seasonal efficiencyA++ guaranteed classification
SCOP 4,31
Efficient heatingA+ ultra capacity performance
Ultra Capacity Round Flow Technology Advance Series
Exclusive technology Round Flow Ultra Capacity Advance Series distributes air through maximum circular distribution with flows up to 26,0 m3/min, creating a uniform circular flow of ultra capacity. The 950×950mm dimension panel is perfectly integrated into false commercial ceilings, offering optimal radial distribution for large installations up to 140m2.
️
Round Flow Ultra CapacityCircular distribution up to 26.0 m3/min
📐
950×950mm panelMaximum commercial coverage
️
RZASG140MV1Outdoor Unit ultra power
🌀
Total coverageNo dead areas 140m2
Ultra Capacity Commercial Performance
The Round Flow 140 system is designed for ultra demand commercial applications, providing 3 vent speeds flow rate from 12.4 to 26.0 m3/min. This capacity allows efficient air conditioning of large commercial facilities while maintaining homogeneous comfort and optimized energy consumption.
Ultra Capacity Air Flows
- Maximum speed: 26,0 m3/min - Commercial ultra-fast cooling
- High Speed: 19.2 m3/min - Intensive commercial use
- Medium speed: 12.4 m3/min - Standard commercial operation
- Sound level: 29-41 dBA depending on speed

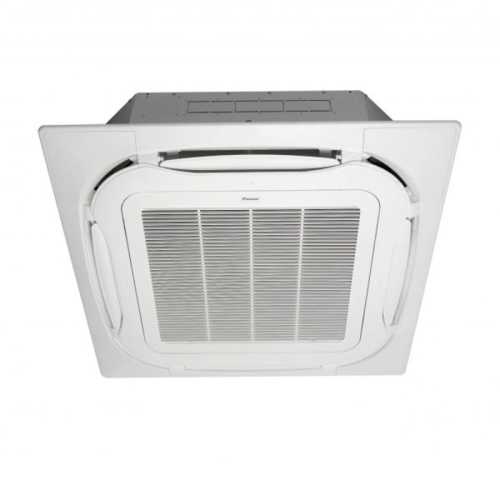

▪ Indoor Unit FCAG140B
Cassette Round Flow ultra power impotrable with maximum circular distribution
Full model: FCAG140B - Cassette Round Flow Ultra Power Series Advance with Japanese technology inverter SWING
S Technical Specifications Interior
13.4 kW
Nominal Cold Power
15.5 kW
Nominal heat power
29 dBA
Minimum Sound Level
26.0 m³/min
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 246×840×840 mm |
| Weight Indoor Unit | 24.0 kg |
| Food | 1Ph/220V |
| Air distribution | Round Flow circular ultra capacity |
| Caudales (A/M/B) | 26,0/19,2/12,4 m3/min |
| Sound levels (A/M/B) | 41/35/29 dB(A) |
| Ventilator speeds | 3 speeds |
| Option control | Wi-Fi BRP069C81 |
Ultra Power Exclusive Technologies:
Distribution Round Flow circular ultra capacity, indoor Unit reinforced 246mm height, maximum efficiency lavable filter and BRC7FA532F command included for advanced local control.
Distribution Round Flow circular ultra capacity, indoor Unit reinforced 246mm height, maximum efficiency lavable filter and BRC7FA532F command included for advanced local control.

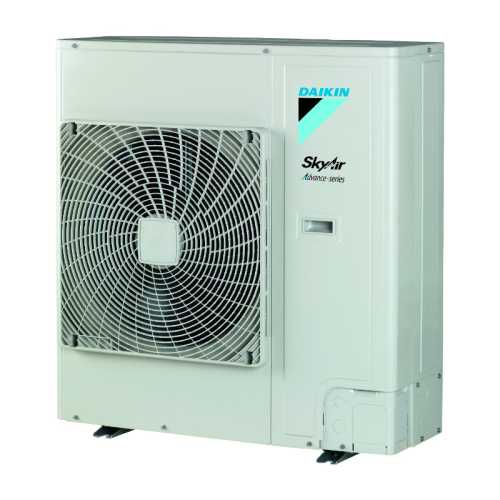

🏭 Outdoor Unit RZASG140MV1
Ultra Power Monophasic Condenser with SWING Inverter Compressor
Full model: RZASG140MV1 - Ultra-capacity Condensing unit Advance series with inverter compressor SWING and R32 gas
S️ Foreign Technical Specifications
54 dBA
External sound level
R32
Refrigerant Gas Ecological
78 kg
Weight Unit
SWING
Compressor Type
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 990×940×380 mm |
| Weight | 78 kg |
| Compressor | Inverter SWING hermetic |
| Refrigerant Gas | R32 (2.90 kg preload) |
| Air Fridge Refrigeration | 76.0 m3/min |
| Air heating | 82.0 m3/min |
| TCO2eq | 1.96 kg |
S Advanced technical characteristics:
Ultra-capacity SWING inverter compressor with variable frequency control optimized for maximum commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve and advanced marine antico-red protection.
Ultra-capacity SWING inverter compressor with variable frequency control optimized for maximum commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve and advanced marine antico-red protection.
Y Energy and Consumption
A++
Label Cold
A+
Label Calor
1231 kWh/a
Annual Consumption Cold
2534 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- SEER 6,53: Optimized seasonal efficiency for ultra power
- SCOP 4,31: High performance heating guaranteed A+
- Charge cold design: 13,40 kW nominal
- Charge heat design: 7,80 kW to -10°C
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9.5 mm (3/8") |
| Tubería Gas | Ø 15.9 mm (5/8") |
| Maximum Length Tuberia | 50 meters (70 ev.) |
| Maximum level | 30 meters |
| Charge Refrigerant Gas | Standard 30m |
| Additional charge | Check table |
Del Request Information Round Flow 140 Series Advance
Find out why the Cassette Daikin Round Flow 140 is the perfect choice for your ultra-power commercial project.
📞
Technical informationConsultation ultra capacity technology
💰
Commercial BudgetCotization for megaprojects
️
Official ServiceCertified professional installation
▷ Warranty Daikin Ultra Power
Cassette Daikin Round Flow 140 with official guarantee and technical service specialized in Japanese ultra-commercial technology.
Cassette Daikin Round Flow 140 with official guarantee and technical service specialized in Japanese ultra-commercial technology.
CASG140B
Data sheet
- Brand
- Daikin
- Indoor Unit
- FCAG140B
- Outdoor Unit
- RZASG140MV1
- Panel
- BYCQ140E
- I send
- BRC7FA532F
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 4.880
- SEER
- 6,5
- Heat capacity (W)
- 15.500
- Heat capacity (Kcal / h)
- 13.330
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 29
- Dimensions u.i (anxfxh) mm
- 840 x 840 x246
- Dimensions u.e (anxfxh) mm
- 940 x 380 x 990
- Weight Indoor Unit (Kg)
- 24,0
- Weight Outdoor Unit (Kg)
- 78,0
- Net weight (kg)
- 104,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
