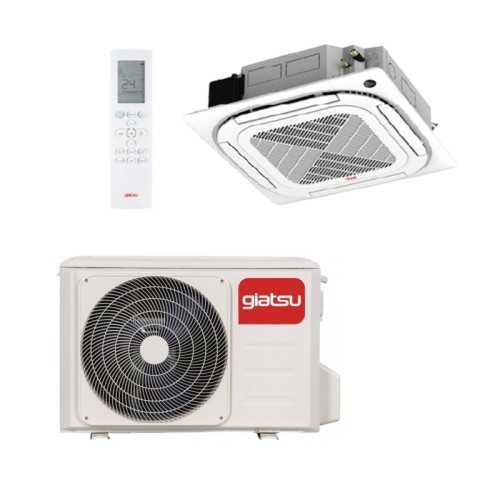

Air Conditioning Cassette Giatsu GIAC9-48ADM2R32-WF
Refrigeration 14070W 日本語 Heating 16120W 日本語 SEER 6,1 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-48ADM2R32-WF represents ultra maximum monophase power of the Cassette Admira Plus Series 14070W in cooling and 16120W in heating. With panel 90x90 standard and technology DC Inverter complete, offers ultra-maximum 4-way air conditioning with remote control included and Golden Fin protection for ultra large and demanding commercial spaces.
️ 14070W Refrigeration
Rank 3.52-15.83 kW
Calefacción 16120W Heating
Rank 4,20-17,0 kW
▪ SEER 6,1 A++
SCOP 4.0 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 48
Indoor Unit: GIA-C9I-48ADM2R32WF
Outdoor Unit: GIA-UO-48ADM2R32
Air flow: 1600-1900 m3/h
Sonic Pressure: 39-53 dBA
Remote control: Serial included
Nominal consumption: 4,65 kW cold
Refrigerant Gas: R-32 (2.9 kg)
Protection: Golden Fin
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 90x90 Giatsu GIA-C9-48ADM2R32-WF Monof.
Referencia: GIA-C9-48ADM2R32-WF
€2,104.63
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Giatsu GIAC9-48ADM2R32-WF
Refrigeration 14070W 日本語 Heating 16120W 日本語 SEER 6,1 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-48ADM2R32-WF represents ultra maximum monophase power of the Cassette Admira Plus Series 14070W in cooling and 16120W in heating. With panel 90x90 standard and technology DC Inverter complete, offers ultra-maximum 4-way air conditioning with remote control included and Golden Fin protection for ultra large and demanding commercial spaces.
️ 14070W Refrigeration
Rank 3.52-15.83 kW
Calefacción 16120W Heating
Rank 4,20-17,0 kW
▪ SEER 6,1 A++
SCOP 4.0 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 48
Indoor Unit: GIA-C9I-48ADM2R32WF
Outdoor Unit: GIA-UO-48ADM2R32
Air flow: 1600-1900 m3/h
Sonic Pressure: 39-53 dBA
Remote control: Serial included
Nominal consumption: 4,65 kW cold
Refrigerant Gas: R-32 (2.9 kg)
Protection: Golden Fin
Security policy
Delivery policy
Refund policy
1 DC Inverter Advanced and Ultra Maximum Performance Technology
The Cassette Air Conditioner Giatsu GIAC9-48ADM2R32-WF integrate technology DC Inverter complete both in compressor and fan, ensuring ultra-efficient operation with SEER 6,1 A++ in cooling and SCOP 4.0 A+ in heating. Your power 14070W cold and 16120W in heat position it as the ultra maximum monophase power solution for ultra large commercial spaces that require extreme and economic climate.
The system modulates its power from 3520W to 15830W cold and from 4200W up to 17000W in heat, adapting perfectly to variable loading conditions and ensuring maximum comfort with optimal energy consumption at any season of the year.
2 90x90 Standard and Ultra Maximum Distribution Panel

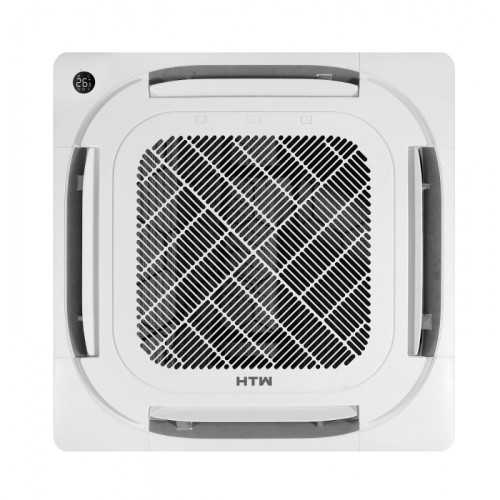

Equipped with standard panel 90x90 cm without independent control of lamas, the GIAC9-48ADM2R32-WF provides uniform air distribution through its 4 directional lanes. The variable flow rate 1600 to 1900 m3/h guarantees optimal coverage for spaces 120 to 160 m2, maintaining homogeneous temperature throughout the ultra wide commercial stay.

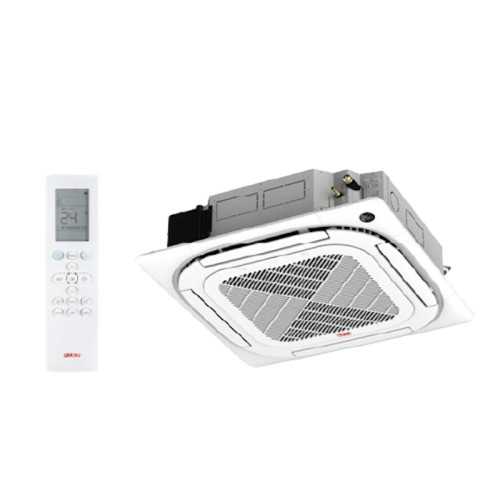

La indoor Unit of 830x287x830 mm is integrated into false standard ceilings, while its operation 39 to 53 dBA maintains appropriate acoustic comfort for users and workers in ultra-high-power commercial environments.
3 Intelligent Control and Ultra Advanced Commercial Features
The equipment includes remote serial control with 24-hour programming functions, allowing advanced time and temperature configuration to optimize energy consumption in ultra-intensive commercial applications. La protection Golden Fin in exchangers protects against marine corrosion and aggressive environments, while the integrated capacitor pump facilitates automatic evacuation of condensed water without additional installations.
4 Refrigerant Gas R32 Ecological and Ultra Commercial Operative Efficiency
Use coolant Organic R32 with load of 2.9 kg, reducing environmental impact and improving energy efficiency. The system operates in extended range -15°C to +50°C in refrigeration and -20°C to +24°C in heating, guaranteeing reliable operation throughout the year in any ultra demanding weather condition.

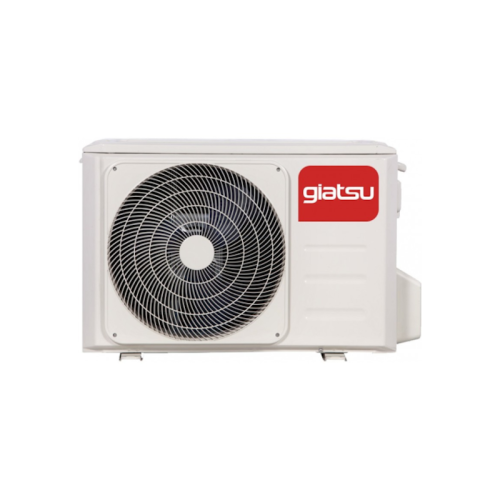

La outdoor Unit of 975x980x375 mm facilitates installation in large commercial spaces, with frigorific connections 3/8" liquid and 5/8" gas and maximum pipe length of 75 meters with a slope of up to 30 meters, providing maximum flexibility in large-scale complex commercial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 14070W (3520-15830W) | Heating | 16120W (4200-17000W) |
| SEER / SCOP | 6.1 A++ / 4.0 A+ | Nominal consumption | 4650W / 4500W |
| Air flow | 1600-1900 m3/h | Sound level | 39-53 dBA |
| Refrigerant Gas | R32 (2.9 kg) | Dimensions IU | 830x287x830 mm |
| Max Pipe | 75m / 30m deseven | Weight Neto UI | 29.3 kg + 6 kg panel |
Recommended Commercial Applications
S Corporate Megaoffices
Ultra large corporate 120-160m2 spaces that require ultra-maximum air conditioning with efficient and reliable operation.
S️ Hipermercados
Hypermarkets and mega malls that need ultra maximum air distribution and maximum absolute capacity.
S️ Gastronomic Mega Complexes
Large mega restaurants and gastronomic complexes that require ultra-maximum air conditioning for massive occupation.
S Big Industrial Ships
Large industrial ships and spaces that need ultra-maximum air conditioning with ultra-resistant operation.
Extended warranty Giatsu
3 years guarantee total + 5 years warranty compressor
GIA-C9-48ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-C9I-48ADM2R32WF
- Outdoor Unit
- GIA-UO-48ADM2R32
- Panel
- GIA-C9P-ADM2R32
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 14.000
- Refrigerator capacity (kcal / h)
- 12.040
- Nominal consumption Cold (W)
- 4.650
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 16.120
- Heat capacity (Kcal / h)
- 13.863
- Nominal heat consumption (W)
- 4.500
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 39
- Dimensions u.i (anxfxh) mm
- 830 x 830 x 287
- Dimensions u.e (anxfxh) mm
- 975 x 375 x 980
- Weight Indoor Unit (Kg)
- 29,3
- Weight Outdoor Unit (Kg)
- 82,5
- Net weight (kg)
- 114,3
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
