Cassette Haier AB125S2SR1FA(H) + 1U125S2SN3FA
Round-Flow 125 Monofásico - High Commercial Power
Cassette Haier Round-Flow 125 - High-power cassette air conditioning system with 8-way Round-Flow technology, ideal for large commercial and industrial spaces up to 125m2. Circular air distribution with integrated Wi-Fi and high capacity UVC sterilization.
12.4 kW
Cold power
13.5 kW
Power Calor
3,00
EER
A++/A++
Energy Label
34 dBA
Sound level
1950 m3/h
Maximum rate
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Commercial use ▪ Double Inverter Panel 950mm

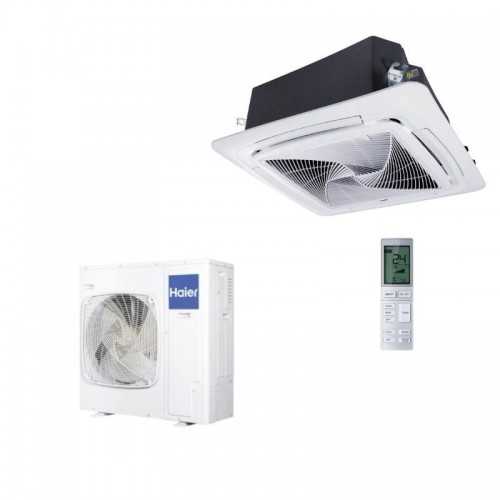

Full model: Indoor Unit AB125S2SR1FA(H) + Outdoor Unit 1U125S2SN3FA
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for large commercial and industrial spaces up to 125m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
High-Power Monofs: 12.4kW efficiency A++ and technology inverter
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Haier Round-Flow 125 Monof. AB125S2SR1FA (H) + 1U125S2SN3FA
Referencia: HAIROUNDCAS125MHC
€1,887.33
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB125S2SR1FA(H) + 1U125S2SN3FA
Round-Flow 125 Monofásico - High Commercial Power
Cassette Haier Round-Flow 125 - High-power cassette air conditioning system with 8-way Round-Flow technology, ideal for large commercial and industrial spaces up to 125m2. Circular air distribution with integrated Wi-Fi and high capacity UVC sterilization.
12.4 kW
Cold power
13.5 kW
Power Calor
3,00
EER
A++/A++
Energy Label
34 dBA
Sound level
1950 m3/h
Maximum rate
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Commercial use ▪ Double Inverter Panel 950mm
Full model: Indoor Unit AB125S2SR1FA(H) + Outdoor Unit 1U125S2SN3FA
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for large commercial and industrial spaces up to 125m2
Panel: PB-950QB(H) 950×950mm removable in false ceiling
High-Power Monofs: 12.4kW efficiency A++ and technology inverter
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Haier Round-Flow 125 - High Commercial Power
High-power cassette air conditioning system with commercial leader Round-Flow technology
Cassette System Round-Flow 125 - Advanced Commercial Technology
The Air Conditioning Cassette Haier Round-Flow 125 combines high commercial power with circular distribution of 8 independent channels. With 12.4kW cooling power and 13,5kW in heat mode, this system is designed to provide optimal comfort in demanding commercial facilities up to 125m2 with energy efficiency A++.
️ ALTA CAPACITY ROUND-FLOW TECHNOLOGY
High Capacity Circular Distribution with 8 Independent Ways
High-capacity Round-Flow 125 technology creates a circular airflow that ensures uniform air conditioning in commercial facilities, completely eliminating dead areas and providing exceptional comfort in high thermal demand conditions.
High Power Technical Specifications
12.4 kW
Refrigeration capacityHigh power up to 125m2
13.5 kW
Capacity HeatingHeat Pump high capacity
EER 3,00
Energy efficiencyOptimized for high power
SEER 6,10
Seasonal efficiencyA++ rating guaranteed
🌟 High Capacity Round-Flow Technology
Exclusive technology Round-Flow 125 distributes air through 8 independent tracks with flow rates of up to 1,950 m³/h, creating a uniform, high-capacity circular flow.The 950x950mm panel integrates perfectly into commercial false ceilings, offering optimal radial distribution for demanding installations.
️
8-Way High CapacityCircular distribution until 1950 m3/h
📐
950×950mm panelComplete commercial coverage
️
Monofic ControlHigh power management 1Ph
🌀
Total coverageNo dead zones 125m²
🏭 High-Capacity Commercial Performance
The Round-Flow 125 system is designed for high-demand commercial applications, providing 4 vent speeds with flow rates from 1,250 to 1,950 m³/h.This capacity allows for efficient air conditioning of commercial facilities while maintaining consistent comfort and optimized energy consumption.
High Capacity Air Flows
- Maximum speed: 1950 m3/h - Ultra-fast Refrigeration
- High Speed: 1650 m3/h - Intensive commercial use
- Medium speed: 1480 m3/h - Standard commercial operation
- Quiet speed: 1250 m3/h - Night performance 34dBA

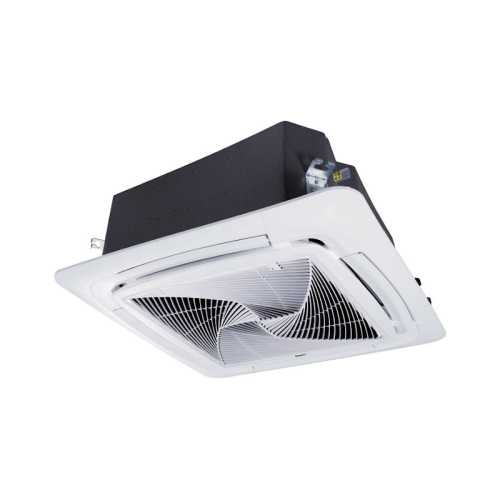

▪ Indoor Unit AB125S2SR1FA(H)
High-power, flush-mounted Round-Flow cassette with 8 independent channels
Full model: AB125S2SR1FA(H) - High-power Round-Flow cassette with professional Wi-Fi and UVC sterilization
S Technical Specifications Interior
12.4 kW
Nominal Cold Power
13.5 kW
Nominal heat power
34 dBA
Minimum Sound Level
1950 m3/h
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 840×840×288 mm |
| Gross dimensions (An×Pr×Al) | 978×978×353 mm |
| Net/Gross Weight | 27/33 kg |
| Food | 1Ph/220~240V/50/60Hz |
| Air distribution | 8 independent Round-Flow tracks |
| (H/M/L/Q) | 1950/1650/1480/1250 m3/h |
| Sound levels (H/M/L/Q) | 47/44/38/34 dB(A) |
| Connectivity | Integrated professional Wi-Fi |
| High Power Sound | 64 dB |
) Decorative panel PB-950QB(H)
| Specification Panel | Measures |
|---|---|
| Dimensions Netas Panel | 950×950×50 mm |
| Brute dimensions Panel | 1013×1035×125 mm |
| Weight Neto/Bruth Panel | 5.5.5 kg |
| Type Installation | Impotrable in false commercial ceiling |
Interior Exclusive Technologies:
High-power UVC sterilization, outdoor cooling, 8-way Round-Flow distribution, washable maximum efficiency filter and professional anti-bacterial system.
High-power UVC sterilization, outdoor cooling, 8-way Round-Flow distribution, washable maximum efficiency filter and professional anti-bacterial system.
Technical Specifications Details
Haier Round-Flow 125 - High Power Components

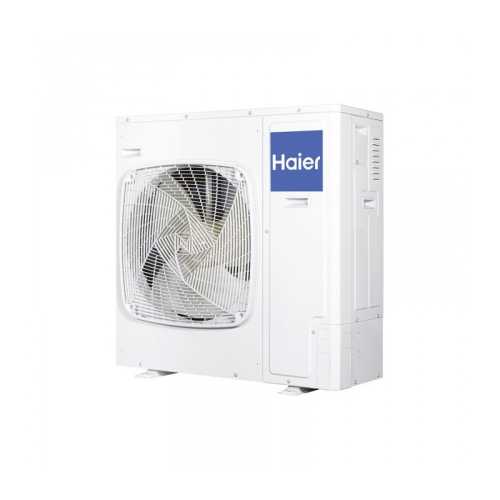

🏭 Outdoor Unit 1U125S2SN3FA
High-Power Single Condenser with Rotary Double Inverter Compressor
Full model: 1U125S2SN3FA - High-capacity condensing unit with dual rotary inverter compressor and R32 gas
S️ Foreign Technical Specifications
4.13 kW
Consumption Frío Nominal
3,85 kW
Nominal heat consumption
58 dBA
External sound level
R32
Refrigerant Gas Ecological
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 950×370×965 mm |
| Gross dimensions (An×Pr×Al) | 1050×485×1130 mm |
| Net/Gross Weight | 63.0/73.0 kg |
| Compressor | Double hermetic rotary inverter |
| Refrigerant Gas | R32 (2.30 kg factory preload) |
| Food | 1Ph/220~240V/50/60Hz |
| Power supply | 3 x 6.0 mm2 |
| Interconnection cable | 4 x 2.5 mm2 |
| Maximum intensity | 26.0 A cold/hot |
| Intensity Start | 4.0 A |
| Sonora Power | 72 dB |
S Advanced technical characteristics:
High-capacity rotary inverter double compressor with variable frequency control optimized for commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve, marine anticorrhage protection and smart automatic discard.
High-capacity rotary inverter double compressor with variable frequency control optimized for commercial loads, heat exchanger with high-performance hydrophilic fins, precision electronic expansion valve, marine anticorrhage protection and smart automatic discard.
De Professional Connectivity and UVC Purification of High Power
Integrated technology includes Professional Wi-Fi which allows total control and centralized management from multiple devices with business protocols optimized for commercial installations. The system incorporates high-power UVC sterilization which eliminates bacteria and viruses in large volumes of air, ensuring a healthy environment in critical facilities. Includes outdoor fresh air intake up to 20% of nominal flow.
📱
Professional Wi-FiCentralized commercial control
🦠
UVC High PowerProfessional purification
🌿
Air FrescoRenovation up to 20%
🔇
Silence 34dBADiscreet operation
Y Energy and Consumption
A++
Label Cold
A++
Label Calor
736 kWh/a
Annual Consumption Cold
3003 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- EER 3.00: Energy efficiency optimized for high power
- SEER 6,10: High seasonal performance guaranteed A++
- COP 3.50: Efficient high capacity heat pump
- SCOP 4,80: Maximum annual energy use A++
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9,52 mm (3/8") |
| Tubería Gas | Ø 15.88 mm (5/8") |
| Standard length without charge | 30 meters |
| Maximum Length Tuberia | 50 meters |
| Maximum UI-EU | 30 meters |
| Additional charge | 45 g/m on standard length |
| Limits Functioning Cold | -20°C to +46°C |
| Limits Calor operation | -20°C to +24°C |
| TCO2eq Refrigerant Gas | 1.55 kg |
▼ Energy Saving:
The Round-Flow 125 system can generate savings of up to 30% compared to conventional systems of similar power, thanks to its optimized dual rotary inverter compressor and efficient circular distribution that eliminates dead zones.
The Round-Flow 125 system can generate savings of up to 30% compared to conventional systems of similar power, thanks to its optimized dual rotary inverter compressor and efficient circular distribution that eliminates dead zones.
🏭 High Power Capabilities:
High commercial power of 12,4kW, flows up to 1950 m3/h, intensity of 26,0A and robust weight of 63kg for high demand commercial facilities with monophase power.
High commercial power of 12,4kW, flows up to 1950 m3/h, intensity of 26,0A and robust weight of 63kg for high demand commercial facilities with monophase power.
⚡ High Capacity Double Inverter Compressor
Equipped with rotary inverter compressor optimized for high capacity providing precise control even under the highest thermal loads.The latest generation of inverter technology automatically adjusts power, maintaining A++ energy efficiency even at maximum power of 12.4kW.
🌿 Refrigerant Gas R32 High Capacity
Use coolant Organic R32 optimized for high power outputs with a lower environmental impact.Compatible with R410A for easy retrofits.The factory charge of 2.30 kg ensures optimal operation with pipes up to 30 meters long without additional charge, ideal for large-scale commercial installations.
️ Cassette Haier Round-Flow 125
AB125S2SR1FA(H) + 1U125S2SN3FA |High Power Commercial 12.4kW
🏭
High Commercial Power
12.4kW cooling and 13.5kW heating.Industry-leading power for demanding commercial installations.
️
Round-Flow High Capacity
Circular distribution with 8 tracks until 1950 m3/h. Eliminates dead areas in spaces up to 125m2.
▪
Efficient Double Inverter
Dual rotary inverter compressor optimized for high capacity with A++ efficiency.
📱
Professional Wi-Fi + UVC
Professional centralized control and high-power UVC sterilization for large volumes.
🔇
Silence 34dBA
4 high capacity speeds (1250-1950 m3/h). Discreet operation in commercial environments.
🏢
Commercial application
Perfect for commercial facilities, large offices and shopping centers up to 125m2.
🌟 Exclusive Features Round-Flow 125
Complete model
AB125S2SR1FA(H) + 1U125S2SN3FA
AB125S2SR1FA(H) + 1U125S2SN3FA
Round-Flow Panel
PB-950QB(H) 950×950mm
PB-950QB(H) 950×950mm
High Capabilities
1250/1480/1650/1950 m3/h
1250/1480/1650/1950 m3/h
Annual summary
736 kWh/a cold
736 kWh/a cold
Interior dimensions
840×840×288 mm
840×840×288 mm
Refrigerant Gas
R32 ecological (2.30 kg)
R32 ecological (2.30 kg)
Es Ideal commercial applications
Large Offices
Up to 125m² with high occupancy
Up to 125m² with high occupancy
Shopping Centres
Central areas and spacious shops
Central areas and spacious shops
Hotels and Restaurants
Main halls and dining rooms
Main halls and dining rooms
Medical Centres
Room waiting and extensive consultations
Room waiting and extensive consultations
Educational facilities
Large wings and meeting rooms
Large wings and meeting rooms
Sports spaces
Clothings and common areas
Clothings and common areas
Exclusive Competitive Advantages
High Power Efficient
12,4kW with A++ rating
12,4kW with A++ rating
Maximum capacity
1950 m3/h for total coverage
1950 m3/h for total coverage
Higher efficiency
SEER 6,10 optimized for commercial
SEER 6,10 optimized for commercial
Advanced technology
Wi-Fi + UVC + fresh air
Wi-Fi + UVC + fresh air
Transform your Commercial Space with Round-Flow 125!
THE ONLY FORCES THAT WILL CONVERT YOU
AHORRO GARANTIZED
A++ efficiency reduces energy costs up to 30% vs conventional models
A++ efficiency reduces energy costs up to 30% vs conventional models
️ TOTAL CONFORT
Round-Flow technology eliminates air currents and hot/cold points
Round-Flow technology eliminates air currents and hot/cold points
CONTROL INTELIGENT
Remote Wi-Fi hOn management from anywhere in the world
Remote Wi-Fi hOn management from anywhere in the world
SENCILLA INSTALATION
Drainage pump included, without additional works
Drainage pump included, without additional works
HEALTH ENVIRONMENT
Optional UVC antibacterial filters and sterilization
Optional UVC antibacterial filters and sterilization
MÁXIMO SILENCIO
Only 34 dB(A) in silent mode - quieter than a library
Only 34 dB(A) in silent mode - quieter than a library
CONSULTA PRECIO AND DISPONIBILITY INMEDIATE
Contact our certified specialists Haier to receive:
Customized budget
no engagement in 24h
no engagement in 24h
️ Technical advice
expertise and power calculation
expertise and power calculation
Official technical service
Haier in all España
Haier in all España
Tailored funding
up to 60 months without interest
up to 60 months without interest
WHERE'S OUR CASSETTE HAIER ROUND-FLOW 125?
Đ ONLY TECHNOLOGY:
Unique system with 8 independent tracks and 360° flow
Unique system with 8 independent tracks and 360° flow
▪ EFFECTIVE POTENCE:
12.4kW with energy rating A++
12.4kW with energy rating A++
LINE EFFICIENCY:
SEER 6,10 for maximum energy saving
SEER 6,10 for maximum energy saving
PERFECT DISTRIBUTION:
+23% more airflow than traditional cassettes
+23% more airflow than traditional cassettes
️ TOTAL CONTROL:
Wi-Fi integrated with hOn app for smartphone
Wi-Fi integrated with hOn app for smartphone
PURIFICATION:
Optional antibacterial filters + UVC
Optional antibacterial filters + UVC
Offer valid for limited time - Don't miss this opportunity!
Del Request Information of Round-Flow 125
Find out why the Cassette Haier Round-Flow 125 is the perfect choice for your high-power commercial project.
📞
Technical informationCheck High Power Round-Flow Technology
💰
Commercial BudgetQuotation for commercial projects
️
Professional ServiceAdvice for commercial applications
▷✅ Round-Flow
Cassette Haier Round-Flow 125 with official warranty and technical service specialized in high-power circular technology.
Cassette Haier Round-Flow 125 with official warranty and technical service specialized in high-power circular technology.
Tecnología️ High Power Exclusive Technology
8-way Round-Flow distribution with flows up to 1950 m3/h. Commercial power leader for dead arealess facilities.
8-way Round-Flow distribution with flows up to 1950 m3/h. Commercial power leader for dead arealess facilities.
Complete Commercial Solution
Ideal for large offices, shopping centers and hotels up to 125m2 with standard monophase feeding.
Ideal for large offices, shopping centers and hotels up to 125m2 with standard monophase feeding.
HAIROUNDCAS125MHC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB125S2SR1FA(H)
- Outdoor Unit
- 1U125S2SN3FA
- Panel
- PB-950QB(H)
- I send
- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.400
- Refrigerator capacity (kcal / h)
- 10.664
- Nominal consumption Cold (W)
- 4.150
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.850
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 34
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 288
- Dimensions u.e (anxfxh) mm
- 920 x 372 x 965
- Weight Indoor Unit (Kg)
- 27,0
- Weight Outdoor Unit (Kg)
- 63,0
- Net weight (kg)
- 92,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
New
No customer reviews for the moment.
