Air Conditioning Cassette Giatsu GIAC9-42ADM2R32-WF
Refrigeration 12020W 日本語 Heating 13480W 日本語 SEER 6,1 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-42ADM2R32-WF represents maximum commercial power of the Cassette Admira Plus Series 12020W in cooling and 13480W in heating. With panel 90x90 standard and technology DC Inverter complete, offers ultra-powerful 4-way air conditioning with remote control included and Golden Fin protection for large and demanding commercial spaces.
1️ 12020W Refrigeration
Rank 2,93-12,31 kW
Calefacción 13480W Heating
Rank 3,37-14,07 kW
▪ SEER 6,1 A++
SCOP 4.0 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 42
Indoor Unit: GIA-C9I-42ADM2R32WF
Outdoor Unit: GIA-UO-42ADM2R32
Air flow: 1600-1900 m3/h
Sonic Pressure: 40-52.5 dBA
Remote control: Serial included
Nominal consumption: 4,20 kW cold
Refrigerant Gas: R-32 (2.8 kg)
Protection: Golden Fin
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

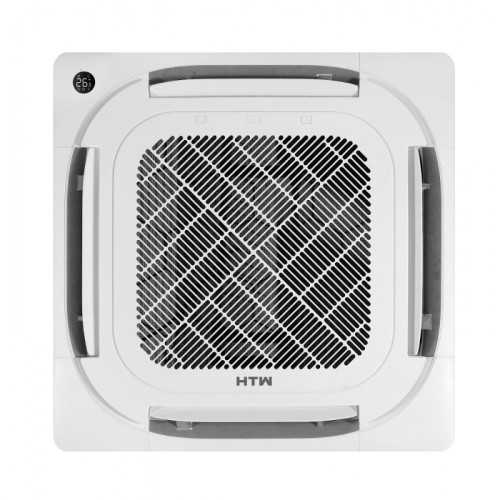

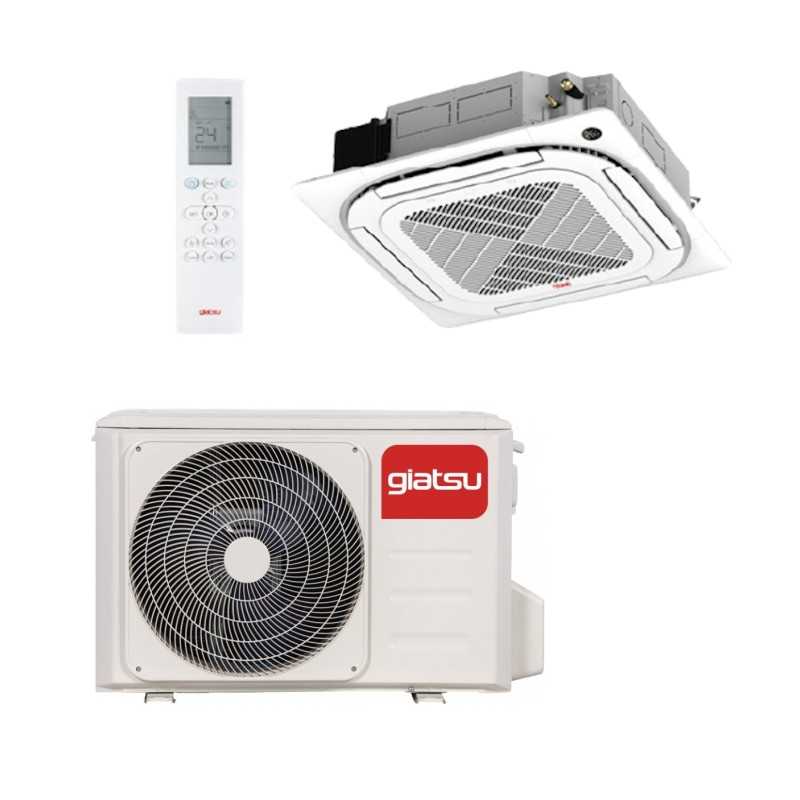

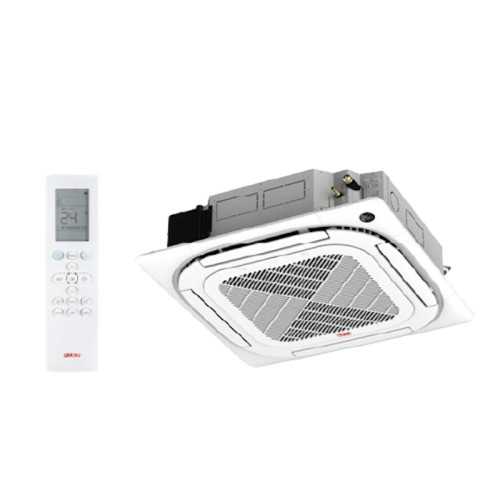

Air Conditioning Cassette 90x90 Giatsu GIA-C9-42ADM2R32-WF Monof.
Referencia: GIA-C9-42ADM2R32-WF
€1,853.61
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Giatsu GIAC9-42ADM2R32-WF
Refrigeration 12020W 日本語 Heating 13480W 日本語 SEER 6,1 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-42ADM2R32-WF represents maximum commercial power of the Cassette Admira Plus Series 12020W in cooling and 13480W in heating. With panel 90x90 standard and technology DC Inverter complete, offers ultra-powerful 4-way air conditioning with remote control included and Golden Fin protection for large and demanding commercial spaces.
1️ 12020W Refrigeration
Rank 2,93-12,31 kW
Calefacción 13480W Heating
Rank 3,37-14,07 kW
▪ SEER 6,1 A++
SCOP 4.0 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 42
Indoor Unit: GIA-C9I-42ADM2R32WF
Outdoor Unit: GIA-UO-42ADM2R32
Air flow: 1600-1900 m3/h
Sonic Pressure: 40-52.5 dBA
Remote control: Serial included
Nominal consumption: 4,20 kW cold
Refrigerant Gas: R-32 (2.8 kg)
Protection: Golden Fin
Security policy
Delivery policy
Refund policy
1 DC Inverter Advanced Technology and Maximum Commercial Performance
The Cassette Air Conditioner Giatsu GIAC9-42ADM2R32-WF integrate technology DC Inverter complete both in compressor and fan, ensuring ultra-efficient operation with SEER 6,1 A++ in cooling and SCOP 4.0 A+ in heating. Your power 12020W in cold and 13480W in heat position it as the maximum power solution for large commercial spaces that require ultra powerful and economic air conditioning.
The system modulates its power from 2930W to 12310W in cold and from 3370W up to 14070W in heat, adapting perfectly to variable loading conditions and ensuring maximum comfort with optimal energy consumption at any season of the year.
2 90x90 Standard and Ultra Powerful Distribution Panel
Equipped with standard panel 90x90 cm without independent control of lamas, the GIAC9-42ADM2R32-WF provides uniform air distribution through its 4 directional lanes. The variable flow rate 1600 to 1900 m3/h guarantees optimal coverage for spaces 100 to 130 m2, maintaining homogeneous temperature throughout the wide commercial stay.
La indoor Unit of 830x287x830 mm is integrated into false standard ceilings, while its operation 40 to 52.5 dBA maintains acoustic comfort suitable for users and workers in maximum-power commercial environments.
3 Intelligent Control and Advanced Commercial Features
The equipment includes remote serial control with 24-hour programming functions, allowing advanced time and temperature configuration to optimize energy consumption in intensive commercial applications. La protection Golden Fin in exchangers protects against marine corrosion and aggressive environments, while the integrated capacitor pump facilitates automatic evacuation of condensed water without additional installations.
4 Refrigerant Gas R32 Ecological and Commercial Operational Efficiency
Use coolant Organic R32 with load of 2.8 kg, reducing environmental impact and improving energy efficiency. The system operates in extended range -15°C to +50°C in refrigeration and -20°C to +24°C in heating, guaranteeing reliable performance throughout the year in any demanding weather condition.

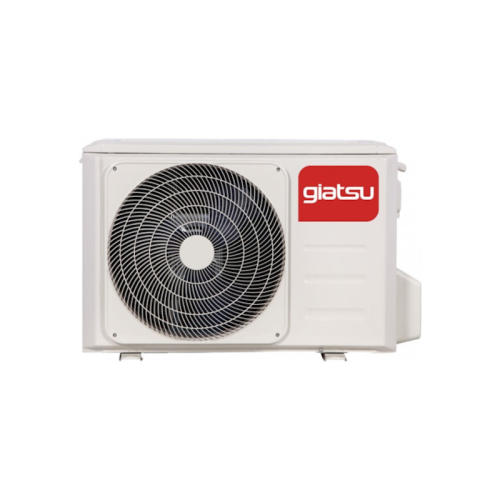

La outdoor Unit of 946x810x410 mm facilitates installation in commercial spaces, with cold connections 3/8" liquid and 5/8" gas and maximum pipe length of 75 meters with a slope of up to 30 meters, providing maximum flexibility in large-scale complex commercial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 12020W (2930-12310W) | Heating | 13480W (3370-14070W) |
| SEER / SCOP | 6.1 A++ / 4.0 A+ | Nominal consumption | 4200W / 3700W |
| Air flow | 1600-1900 m3/h | Sound level | 40-52.5 dBA |
| Refrigerant Gas | R32 (2.8 kg) | Dimensions IU | 830x287x830 mm |
| Max Pipe | 75m / 30m deseven | Weight Neto UI | 29.3 kg + 6 kg panel |
Recommended Commercial Applications
S Corporate Offices
Large corporate spaces 100-130m2 that require ultra-powerful air conditioning with efficient and reliable operation.
Grande️ Great Surfaces
Large malls and megastores that need ultra-powerful air distribution and maximum capacity.
S️ Gastronomic Complexes
Ultra large restaurants and gastronomic complexes that require maximum air conditioning for high occupancy.
Es Industrial ships
Medium industrial spaces and ships that need ultra-powerful air conditioning with robust and reliable operation.
Extended warranty Giatsu
3 years guarantee total + 5 years warranty compressor
GIA-C9-42ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-C9I-42ADM2R32WF
- Outdoor Unit
- GIA-UO-42ADM2R32
- Panel
- GIA-C9P-ADM2R32
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.500
- Refrigerator capacity (kcal / h)
- 10.750
- Nominal consumption Cold (W)
- 4.200
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 13.480
- Heat capacity (Kcal / h)
- 11.593
- Nominal heat consumption (W)
- 3.700
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 40
- Dimensions u.i (anxfxh) mm
- 830 x 830 x 287
- Dimensions u.e (anxfxh) mm
- 946 x 410 x 810
- Weight Indoor Unit (Kg)
- 29,3
- Weight Outdoor Unit (Kg)
- 71,0
- Net weight (kg)
- 102,8
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
