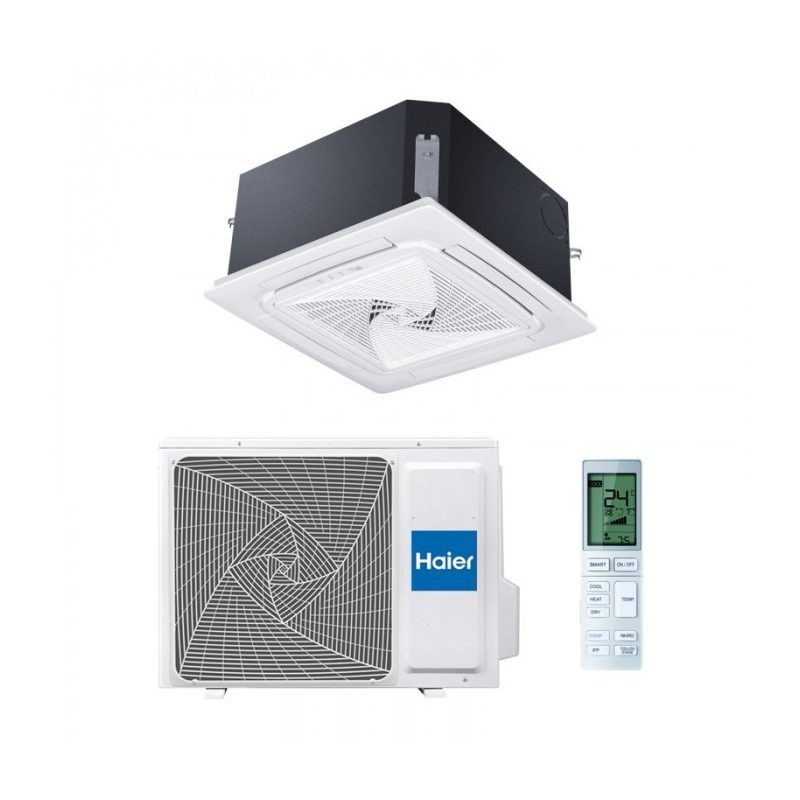

Cassette Haier AB25S2SC2FA(H) + 1U25S2SM1FA-2
CASSETTE 620 Series - Cassette 4 Vias with Wi-Fi and UVC
2.5 kW
FRENCH POTENCE
3,25 kW
CALOR POTENCE
EER 2,8
EFFECTIVE
SEER 6,10
STATIONAL EFFECTIVE
28 dBA
SILENCE
A++/A++
ENERGÉTIC ETIQUETA
The Haier CASSETTE 620 Series model AB25S2SC2FA(H) + 1U25S2SM1FA-2 combines technology cassette 4 tracks with integrated Wi-Fi control and uVC sterilization. With 2.5kW power, silent operation of 28 dB and independent distribution by sector, it is ideal for residential and commercial spaces small looking for intelligent comfort.
▷ Cassette 4 Independent roads • Integrated Wi-Fi Control • UVC sterilization • Quiet 28dB
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 60x60 Haier Health Connect 25 (H) Monkey
Referencia: CASCONNECT25H
€974.57
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB25S2SC2FA(H) + 1U25S2SM1FA-2
CASSETTE 620 Series - Cassette 4 Vias with Wi-Fi and UVC
2.5 kW
FRENCH POTENCE
3,25 kW
CALOR POTENCE
EER 2,8
EFFECTIVE
SEER 6,10
STATIONAL EFFECTIVE
28 dBA
SILENCE
A++/A++
ENERGÉTIC ETIQUETA
The Haier CASSETTE 620 Series model AB25S2SC2FA(H) + 1U25S2SM1FA-2 combines technology cassette 4 tracks with integrated Wi-Fi control and uVC sterilization. With 2.5kW power, silent operation of 28 dB and independent distribution by sector, it is ideal for residential and commercial spaces small looking for intelligent comfort.
▷ Cassette 4 Independent roads • Integrated Wi-Fi Control • UVC sterilization • Quiet 28dB
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette 60x60 Haier Health Connect 25 (H) with Intelligent Connectivity
Sistema Cassette 4 Ways with Integrated Wi-Fi and UVC
The Haier AB25S2SC2FA(H) + 1U25S2SM1FA-2 of the CASSETTE 620 Series represents the evolution in cassette air conditioning. With distribution 4 independent channels, , integrated Wi-Fi control factory, , uVC sterilization and guaranteed silent operation of 28 dB, offers smart air conditioning for spaces that demand personalized comfort and pure air.
↓ Cassette
- 🔹 Cold Power: 2.5kW (0.7-4.3kW modulant)
- 🔹 Power Heat: 3,25kW (0.9-4,5kW modulant)
- 🔹 Distribution: 4 independent tracks
- 🔹 Caudal: 580/480/360/280 m3/h
Tecnología Healthy and Efficient Technology
- 🔹 UVC sterilization: Continuous purified air
- 🔹 EER 2,8 / SEER 6,10: Tag A++/A++
- 🔹 Refrigerant Gas R32: Ecological
- 🔹 Quiet 28 dB guaranteed
Technical Specifications CASSETTE 620 Series
Annual summary
Refrigeration: 210 kWh/a
Heating: 1.398 kWh/a
Heating: 1.398 kWh/a
Efficiency
EER: 2.8 (Efficient)
SEER: 6,10 (A++)
SEER: 6,10 (A++)
Sound level
Interior: 35/32/28 dBA
Exterior: 47 dBA
Exterior: 47 dBA
Dimensions
Panel: 620×620×115 mm
Net weight: 2.80/4.50 kg
Net weight: 2.80/4.50 kg
S Exclusive Features CASSETTE 620 Series
Control 4 Ways: Independent
Each separately controlled sector
Each separately controlled sector
Wi-Fi Integrated: Factory
No additional facilities
No additional facilities
Air Fresco: Built-in exterior
Allows to introduce outdoor air up to 20%
Allows to introduce outdoor air up to 20%
Taritor ON/OFF: Included
Automatic presence control
Automatic presence control
Es Ideal applications Cassette 4 Vias
Perfect for small to medium spaces: Offices (20-35 m2), medical offices, professional offices, main bedrooms, studies, living rooms and small business spaces that require sector-led climate control, , remote control and uVC air purification.

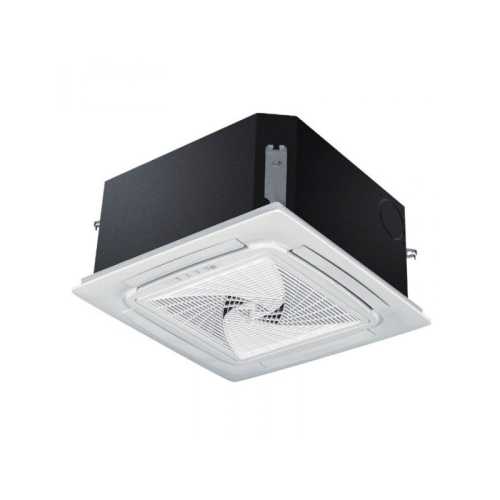

▪ Indoor Unit AB25S2SC2FA(H) - Cassette 4 Intelligent Ways
La indoor Unit AB25S2SC2FA(H) cASSETTE 620 Series incorporates technology cassette 4 independent with sector-led distribution. Its compact design 620×620mm integration wi-Fi control factory, , uVC sterilization and outdoor air intake for maximum personalized comfort and healthy air.
Nivel Interior sound level
4 Speeds: 35/32/28 dBA
Guaranteed: 28 dBA minimum
Ultra silent for night use
4 Air flow 4 Ways
580/480/360/280 m3/h
Independent sector control
Dimensions Cassette
Visible panel: 620×620×115 mm
Drive: 570×570×260 mm
Compact integrated design

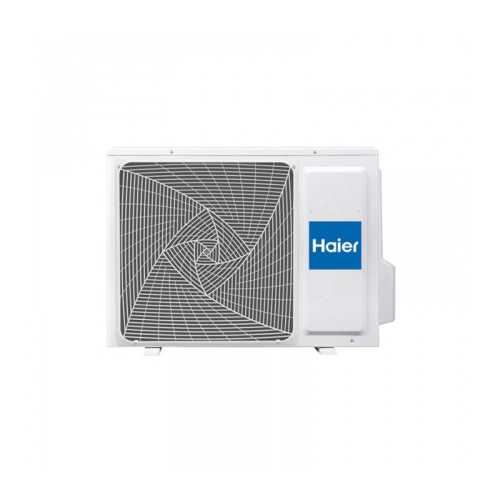

🏭 Outdoor Unit 1U25S2SM1FA-2 - Rotative Inverter Technology
La outdoor Unit 1U25S2SM1FA-2 incorporates rotary inverter compressor last generation. Its robust construction ensures efficient operation, , minimum sound level of 47 dBA and exceptional durability in all weather conditions, optimized for the CASSETTE 620 Series.
Nivel External sound level
Operation: 47 dBA
Absorption boot: 8,00 A (cold)
External discrete operation
Outer dimensions
800×279×553 mm
Weight: 27,60/30,40 kg
Compact and light for easy installation
️ System Refrigerant Gas R32
Preload: 0.61 kg R32
TCO2eq: 0,43
Ecological and efficient
De Installation Specifications CASSETTE 620 Series
Frigorific connections
Liquid: 6.35mm (1/4")
Gas: 9,52mm (3/8")
Gas: 9,52mm (3/8")
Longitudes Tubería
Standard without charge: 7 meters
Maximum: 20 meters
Maximum: 20 meters
Operational range
Refrigeration: -20°C to +43°C
Heating: -20°C to +24°C
Heating: -20°C to +24°C
Electrical supply
Voltage: 1~/220-240V/50/60Hz
Type: Monof Classic
Type: Monof Classic
␡️ Professional Installation CASSETTE 620 Series
Cassette 4-way system that requires installation by certified professionals. Includes sector-specific distribution configuration, Wi-Fi programming, UVC calibration and external air-take adjustment for maximum performance and full functionality of the system.
CASCONNECT25H
Data sheet
- Brand
- Haier
- Indoor Unit
- AB25S2SC2FA (H)
- Outdoor Unit
- 1U25S2SM1FA-2
- Panel
- PB-620KB

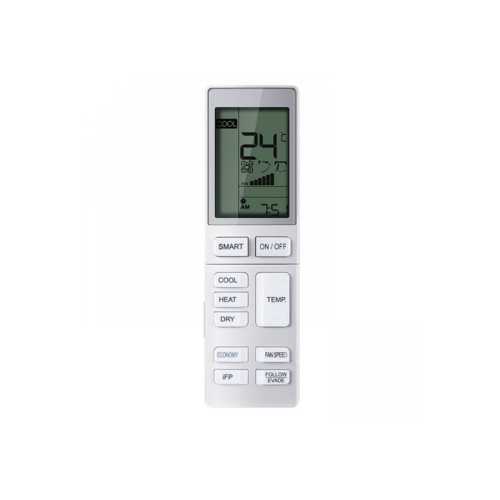

- I send
- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 15 a 25 m2
- Refrigerator capacity (W)
- 2.500
- Refrigerator capacity (kcal / h)
- 2.150
- Nominal consumption Cold (W)
- 890
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 3.250
- Heat capacity (Kcal / h)
- 2.795
- Nominal heat consumption (W)
- 870
- Energy class (heat)
- A++
- SCOP
- 5,3
- Minimum sound pressure UI DB
- 27
- Dimensions u.i (anxfxh) mm
- 570 x 570 x 260
- Dimensions u.e (anxfxh) mm
- 800 x 275 x 553
- Weight Indoor Unit (Kg)
- 18,5
- Weight Outdoor Unit (Kg)
- 31,5
- Net weight (kg)
- 52,5
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- WiFi Included
