Cassette Daikin FCAG125B + RZASG125MV1
Round Flow 125 Monofásico - Inverter R-32 Maximum Power
Cassette Daikin Round Flow 125 - High-power cassette air conditioning system with superior Round Flow radial distribution technology, ideal for demanding commercial facilities up to 125m2. Power 12.1kW refrigeration and 13,5kW heating with flow rates up to 26,0 m3/min and outdoor Unit RZASG125MV1.
12.1 kW
Cold power
13.5 kW
Power Calor
SEER 5,76
Seasonal efficiency
29 dBA
Sound level
26,0 m3/min
Maximum rate
1261 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Maximum Power Panel 950mm Advance series

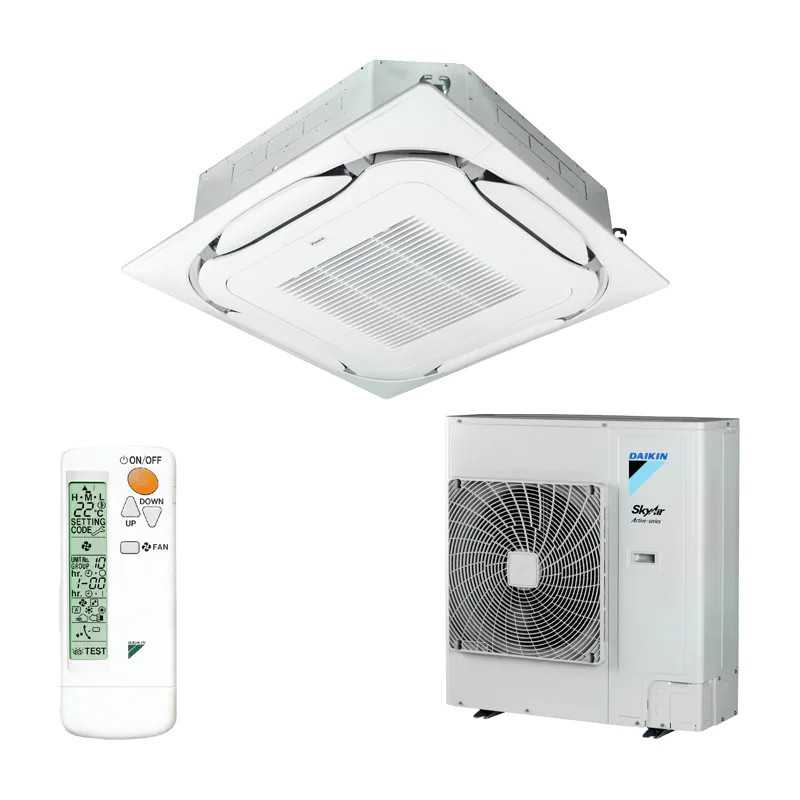

Full model: Indoor Unit FCAG125B + Outdoor Unit RZASG125MV1
Series: Sky Air Series Advance - Maximum Japanese Commercial Power
Application: Ideal for demanding commercial facilities up to 125m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Maximum Efficiency: SEER 5,76 / SCOP 4,05 with maximum capacity SWING compressor
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Daikin CASG125B
Referencia: CASG125B
€4,351.95
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Daikin FCAG125B + RZASG125MV1
Round Flow 125 Monofásico - Inverter R-32 Maximum Power
Cassette Daikin Round Flow 125 - High-power cassette air conditioning system with superior Round Flow radial distribution technology, ideal for demanding commercial facilities up to 125m2. Power 12.1kW refrigeration and 13,5kW heating with flow rates up to 26,0 m3/min and outdoor Unit RZASG125MV1.
12.1 kW
Cold power
13.5 kW
Power Calor
SEER 5,76
Seasonal efficiency
29 dBA
Sound level
26,0 m3/min
Maximum rate
1261 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Maximum Power Panel 950mm Advance series
Full model: Indoor Unit FCAG125B + Outdoor Unit RZASG125MV1
Series: Sky Air Series Advance - Maximum Japanese Commercial Power
Application: Ideal for demanding commercial facilities up to 125m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Maximum Efficiency: SEER 5,76 / SCOP 4,05 with maximum capacity SWING compressor
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Daikin Round Flow 125 - Maximum Commercial Power Advance Series
High-power cassette air conditioning system with Round Flow Series Advance commercial leader technology
Cassette System Round Flow 125 - Maximum Power Series Advance
The Air Conditioning Cassette Daikin Round Flow CASG125B combines maximum commercial power with radial distribution upper Advance series. With 12.1kW of cooling power and 13,5kW in heat mode, This system is designed to provide optimal comfort in demanding commercial facilities up to 125m² with maximum energy efficiency.
️ TECNOLOGY ROUND FLOW DE MÁXIMA CAPACITY SERIE ADVANCE
Maximum Radial Distribution Capacity with RZASG125MV1
The Advance Series Round Flow technology of maximum capacity creates a radial airflow that guarantees uniform air conditioning in demanding commercial installations, completely eliminating dead zones and providing exceptional comfort in conditions of maximum thermal demand with outdoor Unit RZASG125MV1.
Technical Specifications of Maximum Power
12.1 kW
Refrigeration capacityMaximum power up to 125m2
13.5 kW
Capacity HeatingHeat Pump maximum capacity
SEER 5.76
Seasonal efficiencyOptimized maximum power
SCOP 4,05
Efficient heatingMaximum capacity performance
High Quality Round Flow Technology Advance Series
Exclusive technology Round Flow Advance Series with maximum capacity distributes air through upper radial distribution with flows up to 26,0 m3/min, creating a uniform radial flow of maximum capacity. The 950×950mm dimension panel is perfectly integrated into false commercial ceilings, offering optimal radial distribution for demanding installations up to 125m2.
️
Round Flow Maximum CapacityRadial distribution up to 26.0 m³/min
📐
950×950mm panelMaximum commercial coverage
️
RZASG125MV1Outdoor Unit maximum power
🌀
Total coverageNo dead areas 125m2
Maximum Capacity Commercial Performance
The Round Flow 125 system is designed for peak demand commercial applications, providing 3 vent speeds flow rate from 12.4 to 26.0 m3/min. This capacity allows efficient air conditioning of demanding commercial facilities while maintaining homogeneous comfort and optimized energy consumption.
Maximum Capacity Air Supply
- Maximum speed: 26,0 m3/min - Commercial ultra-fast cooling
- High Speed: 19.2 m3/min - Maximum commercial use
- Medium speed: 12.4 m3/min - Standard commercial operation
- Sound level: 29-41 dBA depending on speed

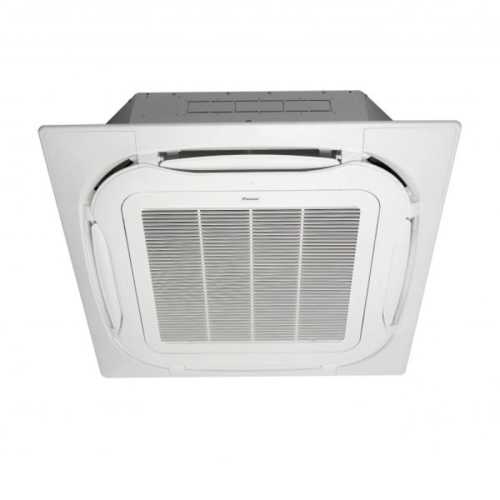

▪ Indoor Unit FCAG125B
Cassette Round Flow maximum power impotrable with superior radial distribution
Full model: FCAG125B - Advance Series Maximum Power Round Flow Cassette with Japanese SWING Inverter Technology
S Technical Specifications Interior
12.1 kW
Nominal Cold Power
13.5 kW
Nominal heat power
29 dBA
Minimum Sound Level
26.0 m³/min
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 246×840×840 mm |
| Weight Indoor Unit | 24.0 kg |
| Food | 1Ph/220V |
| Air distribution | Round Flow radial maximum capacity |
| Caudales (A/M/B) | 26,0/19,2/12,4 m3/min |
| Sound levels (A/M/B) | 41/35/29 dB(A) |
| Ventilator speeds | 3 speeds |
| Option control | Wi-Fi BRP069C81 |
🌟 Exclusive Technologies Maximum Power:
High capacity Round Flow radial distribution, indoor Unit reinforced 246mm height, maximum efficiency lavable filter and BRC7FA532F command included for advanced local control.
High capacity Round Flow radial distribution, indoor Unit reinforced 246mm height, maximum efficiency lavable filter and BRC7FA532F command included for advanced local control.

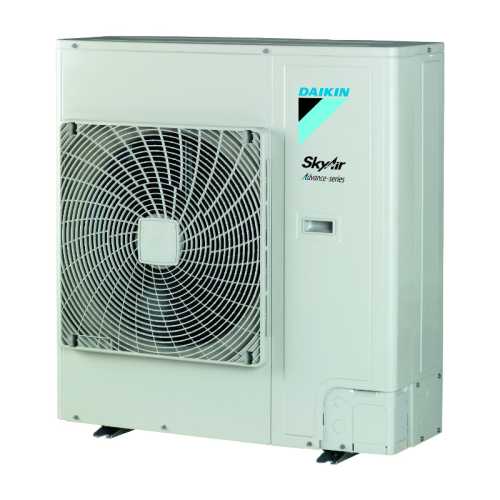

🏭 Outdoor Unit RZASG125MV1
High-power single-phase Condenser with SWING Inverter Compressor
Full model: RZASG125MV1 - Advance Series maximum capacity condensing unit with SWING inverter compressor and R32 gas
S️ Foreign Technical Specifications
53 dBA
External sound level
R32
Refrigerant Gas Ecological
70 kg
Weight Unit
SWING
Compressor Type
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 990×940×380 mm |
| Weight | 70 kg |
| Compressor | Inverter SWING hermetic |
| Refrigerant Gas | R32 (2.60 kg preload) |
| Air Fridge Refrigeration | 71.0 m3/min |
| Air heating | 82.0 m3/min |
| TCO2eq | 1,76 kg |
S Advanced technical characteristics:
Maximum-capacity SWING inverter compressor with variable frequency control optimized for demanding commercial loads, high-performance hydrophilic finned heat exchanger, precision electronic expansion valve, and marine corrosion protection.
Maximum-capacity SWING inverter compressor with variable frequency control optimized for demanding commercial loads, high-performance hydrophilic finned heat exchanger, precision electronic expansion valve, and marine corrosion protection.
Y Energy and Consumption
SEER 5.76
Seasonal efficiency
SCOP 4,05
Calor Efficiency
1261 kWh/a
Annual Consumption Cold
2074 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- SEER 5.76: Optimized seasonal efficiency for maximum power
- SCOP 4,05: High performance heating guaranteed
- Charge cold design: 12.10 kW nominal
- Charge heat design: 6,00 kW to -10°C
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9.5 mm (3/8") |
| Tubería Gas | Ø 15.9 mm (5/8") |
| Maximum Length Tuberia | 50 meters (70 ev.) |
| Maximum level | 30 meters |
| Charge Refrigerant Gas | Standard 30m |
| Additional charge | Check table |
Del Request Information of Round Flow 125 Series Advance
Find out why the Cassette Daikin Round Flow 125 is the perfect choice for your maximum power commercial project.
📞
Technical informationSee maximum technology capacity
💰
Commercial BudgetQuotation for demanding facilities
️
Official ServiceCertified professional installation
▷ Warranty Daikin Maximum Power
Cassette Daikin Round Flow 125 with official guarantee and technical service specialized in Japanese technology of maximum commercial capacity.
Cassette Daikin Round Flow 125 with official guarantee and technical service specialized in Japanese technology of maximum commercial capacity.
CASG125B
Data sheet
- Brand
- Daikin
- Indoor Unit
- FCAG125B
- Outdoor Unit
- RZASG125MV1
- Panel
- BYCQ140E
- I send
- BRC7FA532F
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 4.950
- SEER
- 5,8
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 29
- Dimensions u.i (anxfxh) mm
- 840 x 840 x246
- Dimensions u.e (anxfxh) mm
- 940 x 380 x 990
- Weight Indoor Unit (Kg)
- 24,0
- Weight Outdoor Unit (Kg)
- 70,0
- Net weight (kg)
- 96,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
