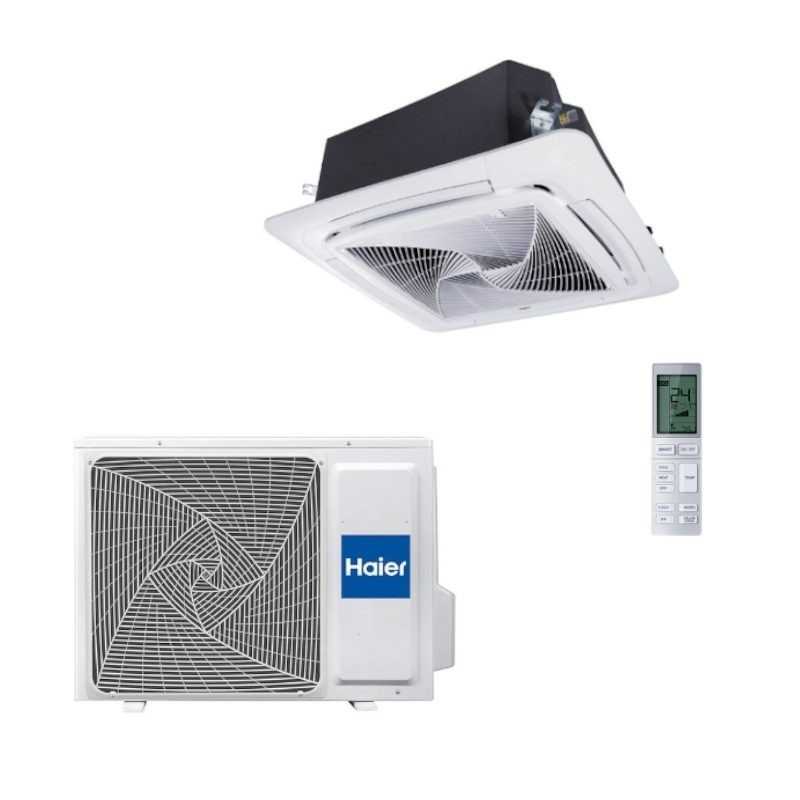

Cassette Haier AB71S2SR1FA(H) + 1U71S2ST1FA
Round-Flow 71 Monof Classic
Cassette Haier Round-Flow 71 - cassette air conditioning system with 8-way Round-Flow technology, ideal for commercial spaces up to 70m2. Circular air distribution with integrated Wi-Fi and advanced UVC sterilization.
7,10 kW
Cold power
8,00 kW
Power Calor
3,23
EER
A++/A++
Energy Label
35 dBA
Sound level
1260 m3/h
Maximum rate
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Commercial use ▪ Double Inverter Panel 950mm
Full model: Indoor Unit AB71S2SR1FA(H) + Outdoor Unit 1U71S2ST1FA
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for offices, shops and spaces up to 70m2
Panel: PB-950KB(H) 950×950mm removable in false ceiling
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Haier Round-Flow 71 Monof. AB71S2SR1FA(H)+1U71S2ST1FA
Referencia: HAIROUNDCAS71HC
€1,262.61
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB71S2SR1FA(H) + 1U71S2ST1FA
Round-Flow 71 Monof Classic
Cassette Haier Round-Flow 71 - cassette air conditioning system with 8-way Round-Flow technology, ideal for commercial spaces up to 70m2. Circular air distribution with integrated Wi-Fi and advanced UVC sterilization.
7,10 kW
Cold power
8,00 kW
Power Calor
3,23
EER
A++/A++
Energy Label
35 dBA
Sound level
1260 m3/h
Maximum rate
️ Round-Flow Wi-Fi Integrated UVC Sterilization R32 Ecological 8 8 Independent roads Commercial use ▪ Double Inverter Panel 950mm
Full model: Indoor Unit AB71S2SR1FA(H) + Outdoor Unit 1U71S2ST1FA
Series: Round-Flow - Circular distribution technology with 8 independent tracks
Application: Ideal for offices, shops and spaces up to 70m2
Panel: PB-950KB(H) 950×950mm removable in false ceiling
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Haier Round-Flow 71 with Advanced Circular Distribution
Professional cassette air conditioning system with 8-way Round-Flow technology
Cassette System Round-Flow 71 - Superior Commercial Power
The Air Conditioning Cassette Haier Round-Flow 71 represents the evolution of the cassette air conditioning technology with circular distribution of 8 independent channels. With 7,10kW cooling power and 8,00kW in heat mode, this system is designed to provide optimal comfort in offices, shops and spaces up to 70m2 with maximum energy efficiency A++/A++.
️ EXCLUSIVE ROUND-FLOW TECHNOLOGY
Circular Air Distribution with 8 Independent Ways
The innovative Round-Flow technology creates a uniform circular airflow that eliminates dead areas and ensures a homogeneous temperature throughout the room, providing exceptional comfort without disturbing currents.
・ Main Technical Specifications
7,10 kW
Refrigeration capacityNominal power for spaces up to 70m2
8,00 kW
Capacity HeatingHeat Pump high efficiency
EER 3.23
Energy efficiencyHigh performance with minimal consumption
SEER 6,10
Seasonal efficiencyClassification A++/A++ guaranteed
Tecnología Round-Flow 8-way Independent Technology
Exclusive technology Round-Flow distributes air through 8 independent tracks that create a uniform circular flow. The 950×950mm dimension panel is perfectly integrated into false ceilings, offering an elegant design that maximizes comfort throughout the room by radial air distribution.
️
8 Round-Flow roadsUniform circular distribution
📐
950×950mm panelPerfect integration in ceiling
️
Independent controlRadial sector adjustment
🌀
Circular flowNo dead areas
Commercial Performance and Air Flows
The Round-Flow 71 system is designed specifically for intensive commercial applications, providing 4 vent speeds with flow rates from 680 to 1260 m3/h. This versatility allows you to adapt performance to the specific needs of each moment, ensuring optimal comfort with minimal energy consumption.
Escalated Air Flows
- High Speed: 1260 m3/h - Quick commercial
- Medium-high speed: 1070 m3/h - Intensive use
- Medium speed: 820 m3/h - Standard operation
- Quiet speed: 680 m3/h - Night performance 35dBA
Y Intelligent Connectivity and UVC Purification
Integrated technology includes Native Wi-Fi which allows total control from smartphone or tablet. The system incorporates uVC sterilization that eliminates bacteria and viruses, ensuring a healthier air. In addition, it integrates outdoor cooling up to 20% of the nominal flow.
📱
Wi-Fi IntegratedFull remote control
🦠
UVC sterilizationRemoving pathogens
🌿
Air FrescoRenovation up to 20% of the flow
🔇
Silence35 dBA at minimum speed
Doble️ Double Inverter Rotative Compressor
Equipped with rotary inverter double compressor which provides accurate temperature control with maximum energy efficiency. Inverter technology automatically adjusts the power to maintain the desired temperature with minimal fluctuations and maximum energy savings.
Gas Refrigerant Gas R32 Ecological
Use coolant Organic R32 with less environmental impact and greater energy efficiency. Compatible with R410A to facilitate transition in renovations. The 1.30kg factory load ensures optimal operation with standard pipes up to 10 meters without additional charge.
Technical Specifications Details
Haier Round-Flow 71 - System Components

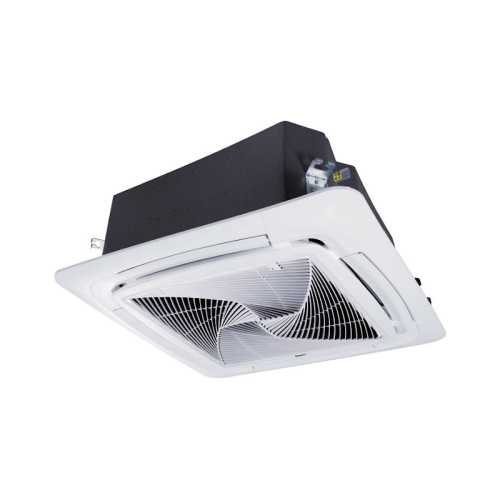

▪ Indoor Unit AB71S2SR1FA(H)
Cassette Round-Flow with 8 independent tracks
Full model: AB71S2SR1FA(H) - Cassette Round-Flow with integrated Wi-Fi and UVC sterilization
S Technical Specifications Interior
7,10 kW
Nominal Cold Power
8,00 kW
Nominal heat power
35 dBA
Minimum Sound Level
1260 m3/h
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 840×840×204 mm |
| Gross dimensions (An×Pr×Al) | 990×990×310 mm |
| Weight | 27.0/32.0 kg |
| Food | 1Ph/220~240V/50/60Hz |
| Air distribution | 8 independent Round-Flow tracks |
| (H/M/L/Q) | 1260/1070/820/680 m3/h |
| Sound levels (H/M/L/Q) | 42/40/38/35 dB(A) |
| Connectivity | Native integrated Wi-Fi |
) Decorative panel PB-950KB(H)
| Specification Panel | Measures |
|---|---|
| Dimensions Netas Panel | 950×950×50 mm |
| Brute dimensions Panel | 1013×1025×123 mm |
| Weight Neto/Bruth Panel | 6.5/9.5 kg |
| Type Installation | Impotrable in false ceiling |
Interior Exclusive Technologies:
Integrated UVC sterilization, outdoor cooling (up to 20% of nominal flow), 8-way Round-Flow distribution, washable high efficiency filter and advanced anti-bacterial system.
Integrated UVC sterilization, outdoor cooling (up to 20% of nominal flow), 8-way Round-Flow distribution, washable high efficiency filter and advanced anti-bacterial system.

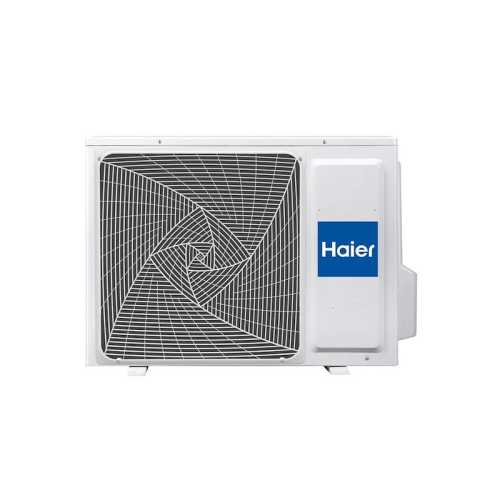

🏭 Outdoor Unit 1U71S2ST1FA
Single-phase Condenser with rotary inverter double compressor
Full model: 1U71S2ST1FA - Condensing unit with double rotary inverter compressor and R32 gas
S️ Foreign Technical Specifications
2,20 kW
Consumption Frío Nominal
1.91 kW
Nominal heat consumption
54 dBA
External sound level
R32
Refrigerant Gas Ecological
| Feature | Specification |
|---|---|
| Dimensions Netas (An×Pr×Al) | 890×340×705 mm |
| Weight | 45,0/50,0 kg |
| Compressor | Double hermetic rotary inverter |
| Refrigerant Gas | R32 (1.30 kg preload factory) |
| Food | 1Ph/220~240V/50/60Hz |
| Power supply | 3 x 4.0 mm2 |
| Interconnection cable | 4 x 2.5 mm2 |
| Maximum intensity | 13,1 A cold/heat |
| Intensity Start | 2.0 A |
S Advanced technical characteristics:
Double rotary inverter compressor with variable frequency control, heat exchanger with hydrophilic fins, electronic expansion valve, marine corrosion protection and intelligent automatic discard.
Double rotary inverter compressor with variable frequency control, heat exchanger with hydrophilic fins, electronic expansion valve, marine corrosion protection and intelligent automatic discard.
Y Energy and Consumption
A++
Label Cold
A++
Label Calor
406 kWh/a
Annual Consumption Cold
1831 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- EER 3.23: Excellent energy efficiency in cooling
- SEER 6,10: High seasonal performance guaranteed A++
- COP 3.72: Efficient heat pump in heating mode
- SCOP 5,01: Maximum annual energy use A++
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 9,52 mm (3/8") |
| Tubería Gas | Ø 15.88 mm (5/8") |
| Standard length without charge | 10 meters |
| Maximum Length Tuberia | 50 meters |
| Maximum UI-EU | 30 meters |
| Additional charge | 45 g/m on standard length |
| Limits Functioning Cold | -20°C to +46°C |
| Limits Calor operation | -20°C to +24°C |
▼ Energy Saving:
The Round-Flow 71 system can generate savings of up to 40% compared to conventional systems, thanks to its rotary inverter compressor and efficient circular distribution that eliminates dead areas.
The Round-Flow 71 system can generate savings of up to 40% compared to conventional systems, thanks to its rotary inverter compressor and efficient circular distribution that eliminates dead areas.
️ Cassette Haier Round-Flow 71
AB71S2SR1FA(H) + 1U71S2ST1FA Δ Circular 8 Vias 7,10kW
️
Round-Flow technology
Circular distribution with 8 independent tracks. Eliminates dead areas and annoying currents.
▪
Commercial Power 7,10kW
EER 3.23 and SEER 6,10 A++. Ideal for commercial spaces up to 70m2.
🔄
Double Inverter Rotative
Double inverter compressor with precise control and maximum energy efficiency.
📱
Wi-Fi + UVC
Integrated smart control and UVC sterilization for healthy air.
🔇
Ultra-silent 35dBA
4 ventilation speeds (680-1260 m3/h). Ultra-silenced operation.
🌿
R32 + Fresco Air
Ecological gas R32 and outdoor cooling up to 20% of the flow.
S Exclusive features Round-Flow 71
Complete model
AB71S2SR1FA(H) + 1U71S2ST1FA
AB71S2SR1FA(H) + 1U71S2ST1FA
Round-Flow Panel
PB-950KB(H) 950×950mm
PB-950KB(H) 950×950mm
Caudales
680/820/1070/1260 m3/h
680/820/1070/1260 m3/h
Annual summary
406 kWh/ cold
406 kWh/ cold
Interior dimensions
840×840×204 mm
840×840×204 mm
Refrigerant Gas
Organic R32 (1.30 kg)
Organic R32 (1.30 kg)
Del Request Information of Round-Flow 71
Find out why the Cassette Haier Round-Flow 71 is the perfect choice for your commercial project.
📞
Technical informationRound-Flow technology consultation
💰
Personalized budgetQuote for your project
️
Professional ServiceTechnical advice
▷✅ Round-Flow
Cassette Haier Round-Flow 71 with official guarantee and technical service specialized in circular technology.
Cassette Haier Round-Flow 71 with official guarantee and technical service specialized in circular technology.
Tecnología️ Exclusive Technology
8-way Round-Flow distribution. No dead areas, guaranteed homogeneous comfort.
8-way Round-Flow distribution. No dead areas, guaranteed homogeneous comfort.
HAIROUNDCAS71HC
Data sheet
- Brand
- Haier
- Indoor Unit
- AB71S2SR1FA(H)
- Outdoor Unit
- 1U71S2ST1FA
- Panel
- PB-950KB
- I send

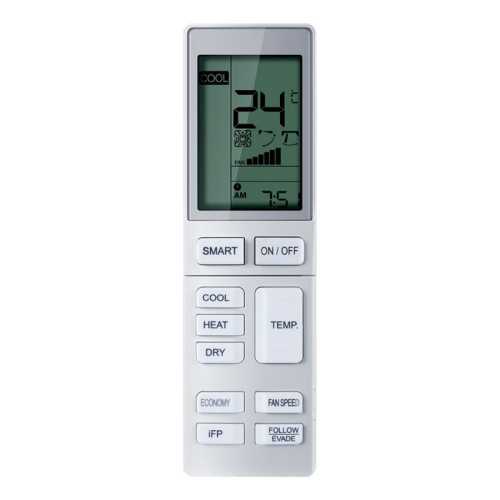

- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 60 a 70 m2
- Refrigerator capacity (W)
- 7.100
- Refrigerator capacity (kcal / h)
- 6.106
- Nominal consumption Cold (W)
- 2.200
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 8.000
- Heat capacity (Kcal / h)
- 6.880
- Nominal heat consumption (W)
- 1.910
- Energy class (heat)
- A++
- SCOP
- 5,0
- Minimum sound pressure UI DB
- 35
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 204
- Dimensions u.e (anxfxh) mm
- 890 x 353 x 697
- Weight Indoor Unit (Kg)
- 27,0
- Weight Outdoor Unit (Kg)
- 48,0
- Net weight (kg)
- 77,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
