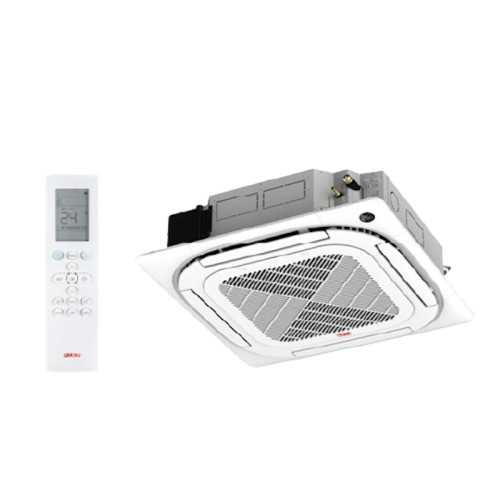

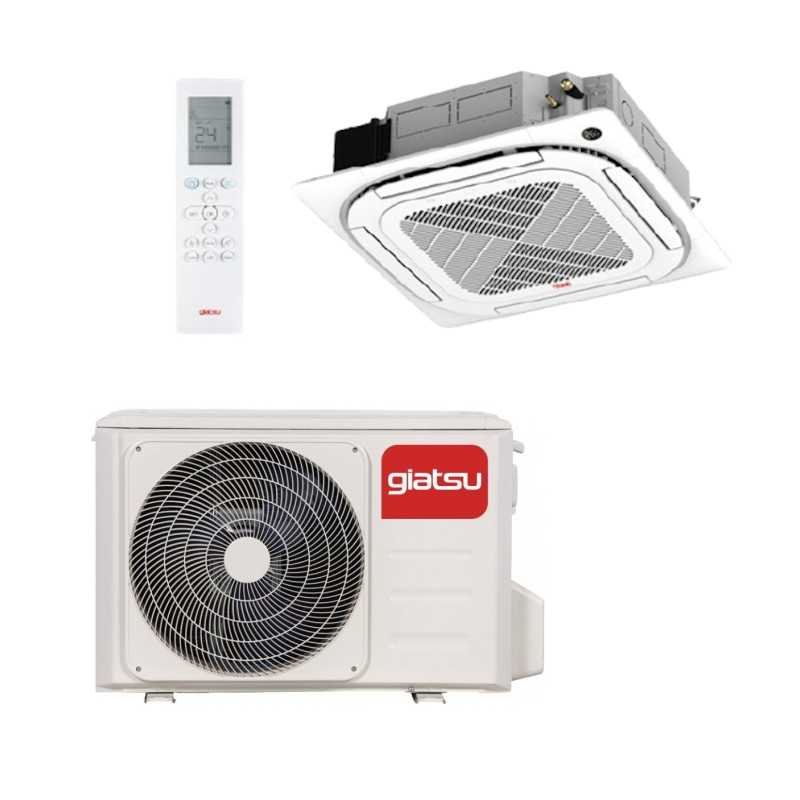

Air Conditioning Cassette Giatsu GIAC9-30ADM2R32-WF
Refrigeration 8790W 日本語 Heating 9380W 日本語 SEER 6,6 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-30ADM2R32-WF represents high power advanced of the Cassette Admira Plus Series 8790W in cooling and 9380W in heating. With panel 90x90 standard without independent control and technology DC Inverter complete, offers ultra-powerful 4-way air conditioning with remote control included and Golden Fin protection for large commercial spaces.
️ 8790W Refrigeration
Rank 2,23-9,38 kW
9380W Heating
Rank 2,70-9,73 kW
▪ SEER 6,6 A++
SCOP 4,2 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 30
Indoor Unit: GIA-C9I-30ADM2R32WF
Outdoor Unit: GIA-UO-30ADM2R32
Air flow: 1300-1700 m3/h
Sonic Pressure: 40-50.5 dBA
Remote control: Serial included
Nominal consumption: 2.75 kW cold
Refrigerant Gas: R-32 (1.8 kg)
Protection: Golden Fin
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette 90x90 Giatsu GIA-C9-30ADM2R32-WF Monof.
Referencia: GIA-C9-30ADM2R32-WF
€1,359.63
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Giatsu GIAC9-30ADM2R32-WF
Refrigeration 8790W 日本語 Heating 9380W 日本語 SEER 6,6 A++ 90x90 Δ DC Inverter
The Air Conditioning Cassette Giatsu GIAC9-30ADM2R32-WF represents high power advanced of the Cassette Admira Plus Series 8790W in cooling and 9380W in heating. With panel 90x90 standard without independent control and technology DC Inverter complete, offers ultra-powerful 4-way air conditioning with remote control included and Golden Fin protection for large commercial spaces.
️ 8790W Refrigeration
Rank 2,23-9,38 kW
9380W Heating
Rank 2,70-9,73 kW
▪ SEER 6,6 A++
SCOP 4,2 A+
Panel 90x90
Remote control
Key Specifications Cassette Admira Plus 30
Indoor Unit: GIA-C9I-30ADM2R32WF
Outdoor Unit: GIA-UO-30ADM2R32
Air flow: 1300-1700 m3/h
Sonic Pressure: 40-50.5 dBA
Remote control: Serial included
Nominal consumption: 2.75 kW cold
Refrigerant Gas: R-32 (1.8 kg)
Protection: Golden Fin
Security policy
Delivery policy
Refund policy
1 DC Inverter Advanced Technology and Higher Performance
The Cassette Air Conditioner Giatsu GIAC9-30ADM2R32-WF integrates technology DC Inverter complete both in compressor and fan, ensuring ultra-efficient operation with SEER 6,6 A++ in cooling and SCOP 4,2 A+ in heating. Your power 8790W cold and 9380W in heat positions it as the ideal solution for large commercial spaces that require powerful and economical air conditioning.
The system modulates its power from 2230W to 9380W in cold and from 2700W up to 9730W in heat, adapting perfectly to variable load conditions and ensuring maximum comfort with minimal energy consumption at any season of the year.
2 90x90 Standard and Optimized Distribution Panel

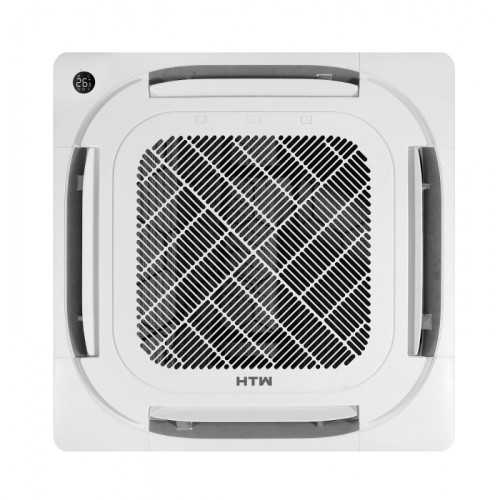

Equipped with standard panel 90x90 cm without independent control of lamas, the GIAC9-30ADM2R32-WF provides uniform air distribution through its 4 directional lanes. The variable flow rate 1300 to 1700 m3/h guarantees optimal coverage for spaces 70 to 90 m2, maintaining a homogeneous temperature throughout the room.
La indoor Unit compact of 830x205x830 mm is discreetly integrated into false standard ceilings, while its ultra silent operation 40 to 50.5 dBA guarantees maximum acoustic comfort for users and workers in demanding business environments.
3 Intelligent Control and Advanced Features
The equipment includes remote serial control with programming functions 24 hours, allowing advanced setup of hours and temperatures to optimize energy consumption. La protection Golden Fin in exchangers protects against marine corrosion and aggressive environments, while the integrated capacitor pump facilitates automatic evacuation of condensed water without additional installations.
4 Refrigerant Gas R32 Ecological and Operational Efficiency
Use coolant Organic R32 with load of 1.8 kg, reducing environmental impact and improving energy efficiency. The system operates in extended range -15°C to +50°C in refrigeration and -20°C to +24°C in heating, ensuring reliable operation year-round in any weather conditions.

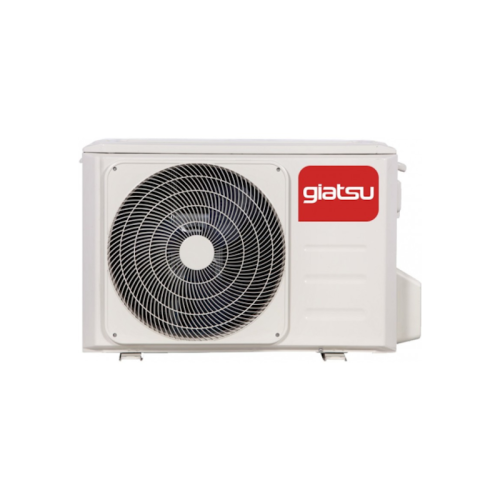

La outdoor Unit compact of 946x810x410 mm facilitates installation in small spaces, with frigorific connections 3/8" liquid and 5/8" gas and maximum pipe length of 50 meters with a slope of up to 25 meters, providing maximum flexibility in complex commercial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 8790W (2230-9380W) | Heating | 9380W (2700-9730W) |
| SEER / SCOP | 6.6 A++ / 4.2 A+ | Nominal consumption | 2750W / 2450W |
| Air flow | 1300-1700 m3/h | Sound level | 40-50.5 dBA |
| Refrigerant Gas | R32 (1.8 kg) | Dimensions IU | 830x205x830 mm |
| Max Pipe | 50m / 25m | Weight Neto UI | 24.6 kg + 6 kg panel |
Recommended Commercial Applications
S Large Offices
Corporate 70-90m2 spaces that require powerful air conditioning with silent operation and superior energy efficiency.
Es️ Commercial premises
Large stores and shopping centers that require uniform air distribution and precise room temperature control.
S️ Restaurants Grandes
Large main rooms that require powerful air conditioning to maintain comfort with high occupancy and variable thermal loads.
Medical Centres
Large clinics and offices that require clean air, quiet operation, and precise temperature and humidity control.
Extended warranty Giatsu
3 years guarantee total + 5 years warranty compressor
GIA-C9-30ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-C9I-30ADM2R32WF
- Outdoor Unit
- GIA-UO-30ADM2R32
- Panel
- GIA-C9P-ADM2R32
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 70 a 80 m2
- Refrigerator capacity (W)
- 9.000
- Refrigerator capacity (kcal / h)
- 7.740
- Nominal consumption Cold (W)
- 2.750
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 9.380
- Heat capacity (Kcal / h)
- 8.067
- Nominal heat consumption (W)
- 2.450
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 40
- Dimensions u.i (anxfxh) mm
- 830 x 830 x 205
- Dimensions u.e (anxfxh) mm
- 946 x 410 x 810
- Weight Indoor Unit (Kg)
- 24,6
- Weight Outdoor Unit (Kg)
- 51,0
- Net weight (kg)
- 78,1
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
New
No customer reviews for the moment.
