LG CT18F CONFORT+ - UNDER 18 MEDIA POTENCE
Technology R32 LG Δ EER 3,19 Δ Tag A++/A+
Power Media
5,00kW cold / 5,70kW heat
EER 3,19 trade efficiency
Tecnología Technology R32
Refrigerant Gas ecological
1.9 kg average load
o️ Compact Panel
620x620mm PT-QAGW0
Distribution 4 tracks
Balance
37-41 dBA discreet
Balanced operation
▪ Medium application: Medium offices, medical consultations and commercial spaces of 18-25m2 that require medium power and energy efficiency EER 3,19
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

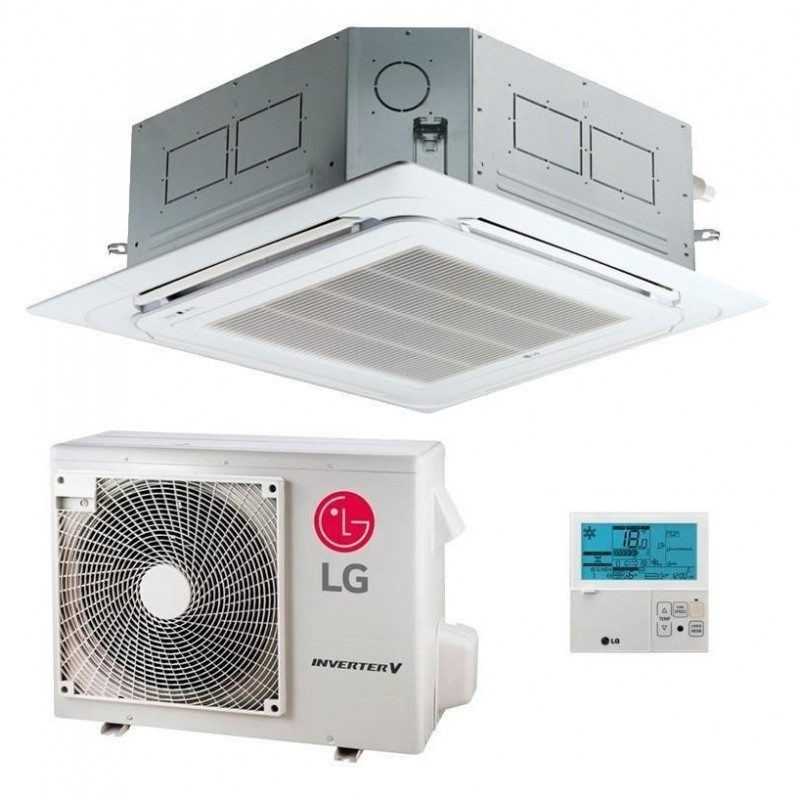

Cassette LG 60x60 Comfort + 18 MONOF.
Referencia: CONFORT+ 18 MONO CAS
€1,597.83
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG CT18F CONFORT+ - UNDER 18 MEDIA POTENCE
Technology R32 LG Δ EER 3,19 Δ Tag A++/A+
Power Media
5,00kW cold / 5,70kW heat
EER 3,19 trade efficiency
Tecnología Technology R32
Refrigerant Gas ecological
1.9 kg average load
o️ Compact Panel
620x620mm PT-QAGW0
Distribution 4 tracks
Balance
37-41 dBA discreet
Balanced operation
▪ Medium application: Medium offices, medical consultations and commercial spaces of 18-25m2 that require medium power and energy efficiency EER 3,19
Security policy
Delivery policy
Refund policy
LG CT18F CONFORT+ Cassette
Set 18 - Medium Power Solution
The LG CT18F CONFORT+ of Set 18 offers capabilities 2,00-5,00-5,80 kW cold and 2,30-5,70-6,60 kW in heat (minin-nom-max), achieving a EER 3,19 and SEER of 6.40 with energy label A++/A+. This medium power cassette with panel PT-QAGW0 of 620x35x620 mm weight 13.9 kg and represents the balanced solution for medium commercial spaces up to 25m2.
▪ Media capacities and consumos
- Cold capacity: 2,00-5,00-5,80 kW (min-nom-máx)
- Heat capacity: 2,30-5,70-6,60 kW (min-nom-máx)
- Cold consumption: 0,30-1,57-2,20 kW (min-nom-máx)
- Consumption heat: 0,30-1,52-2,13 kW (min-nom-máx)
S Certified Energy Efficiencies
- EER: 3.19 (middle trade efficiency)
- SEER: 6.40 (A++ classification)
- COP: 3.74 (coefficient heat performance)
- SCOP: 4,30 (seasonal heat coefficient)

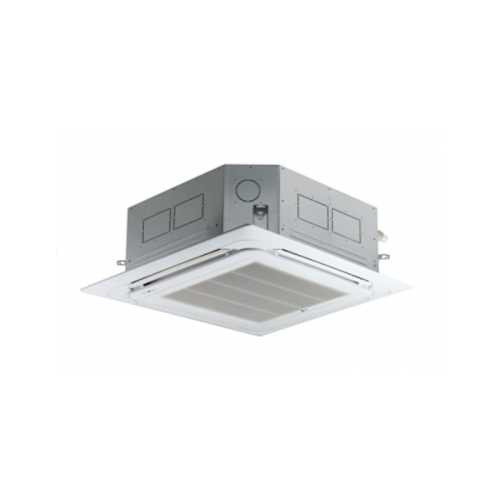

️ Specifications Indoor Unit CT18F.NQ0
Dimensions 570x256x570 mm
IDU weight 13.9 kg
PT-QAGW0 Panel 620x35x620 mm (3 kg)
Sound and Air Caudal Pressure
Cold Sonic Pressure (H/M/L)
High (H): 41 dBA
Average (M): 39 dBA
Low (L): 37 dBA
Air flow rate (H/M/L)
High (H): 13 m3/min
Average (M): 12 m3/min
Low (L): 11 m3/min
S Frigorific connections
Liquid Line
Ø 6,35 mm (1/4")
Gas line
Ø 12.7 mm (1/2")

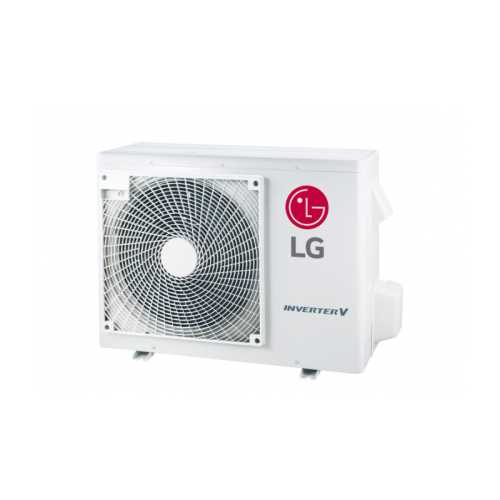

🏭 Outdoor Unit UUC1.U40
Dimensions 950x834x330 mm
Weight 59 kg
Air flow rate 58 x 1 m3/min
Sound Pressure Outdoor Unit
Cold mode
47 dBA
Calor mode
52 dBA
🌿 Refrigerant Gas R32
- Preload: 1,9 kg ecological R32
- Length pipe preloading: 20 meters
- T-CO2eq: 1,283
- Refrigerant Gas additional: 55 g/m
De️ Operation Range
- Cold (Máx/Mín): 50°C / -20°C (CB)
- Heat (Máx/Mín): 18°C / -20°C (WB)
- Operation: Broad climate range
- Reliability: Extreme temperatures
De Installation Specifications
Longitudes
Total min/max: 5/50 meters
Uneven: 30 meters
Frigorific connections
Liquid: Ø 9,52 mm (3/8")
Gas: Ø 15.88 mm (5/8")
Energy Label
Average climate: A++/A+
Certification: High efficiency
Middle Power Applications
S Medium Offices
18-25m2 working spaces
S Medical Consultations
Medium medical spaces
S Medium trades
Shops and showrooms
S Meetings
Corporate spaces
Joint Technical Summary 18
Certified capacities
Cold nom: 5,00 kW
Calor nom: 5,70 kW
Cold range: 2,00-5,80 kW
Hot range: 2,30-6,60 kW
Certified efficiency
EER: 3.19 (average power)
SEER: 6.40 (A++)
COP: 3.74 (heat)
SCOP: 4,30 (seasonal)
Installation
Distance: 50 meters
Max: 30 meters
Total weight: 72.9 kg (IDU+ODU)
Silence: 37 dBA minimum
CT CT18F: Balanced Middle Power Solution
With 5,00 kW nominal, , EER 3,19 balanced, , 37 dBA silent and label A++/A+, the CT18F offers the perfect medium power solution with technology Green R32 LG.
CONFORT+ 18 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- CT18F.NQ0
- Outdoor Unit
- UUB1.U20
- Panel
- PT-QAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 35 a 45 m2
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.570
- Energy class (cold)
- A++
- SEER
- 6,4
- Heat capacity (W)
- 5.700
- Heat capacity (Kcal / h)
- 4.902
- Nominal heat consumption (W)
- 1.520
- Energy class (heat)
- A+
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 37
- Dimensions u.i (anxfxh) mm
- 570 x 570 x 256
- Dimensions u.e (anxfxh) mm
- 870 x 330 x 650
- Weight Indoor Unit (Kg)
- 13,9
- Weight Outdoor Unit (Kg)
- 44,5
- Net weight (kg)
- 61,4
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- Optional WiFi
