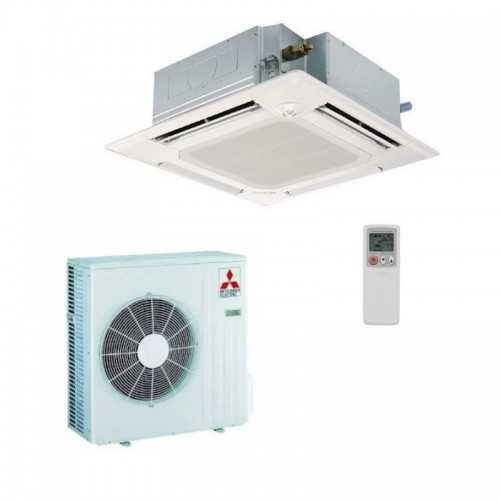

Air Conditioning Cassette Mitsubishi MGPLZ-140VEA
Refrigeration 13400W 日本語 Heating 15000W 日本語 SEER 5.5 A
The Air Conditioning Cassette Mitsubishi MGPLZ-140VEA represents maximum monophase commercial power of the series Mr. Slim PRO with 13400W in cooling and 15000W in heating. With standard panel with wireless control included and technology DC Inverter, offers ultra-powerful 4-way air conditioning for ultra-big commercial spaces that require japanese quality and maximum monophase air conditioning with the possibility of premium optional upgrades.
13️ 13400W Refrigeration
Rank 5.8-14.1 kW
15000W Heating
Rank 4.2-15.8 kW
▪ SEER 5.5 A
SCOP 3.9 A
Maximum Power
Monof Classic 230V
Specifications Clave Cassette Mr. Slim PRO 140
Indoor Unit: PLA-SM140EA
Outdoor Unit: PUZ-SM140VKA
Air flow: 24-32 m3/min
Sonic Pressure: 36-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 5.13 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette MGPLZ-140VEA Mitsubishi Pro Monof Series.
Referencia: MGPLZ-140VEA
€3,576.40
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Mitsubishi MGPLZ-140VEA
Refrigeration 13400W 日本語 Heating 15000W 日本語 SEER 5.5 A
The Air Conditioning Cassette Mitsubishi MGPLZ-140VEA represents maximum monophase commercial power of the series Mr. Slim PRO with 13400W in cooling and 15000W in heating. With standard panel with wireless control included and technology DC Inverter, offers ultra-powerful 4-way air conditioning for ultra-big commercial spaces that require japanese quality and maximum monophase air conditioning with the possibility of premium optional upgrades.
13️ 13400W Refrigeration
Rank 5.8-14.1 kW
15000W Heating
Rank 4.2-15.8 kW
▪ SEER 5.5 A
SCOP 3.9 A
Maximum Power
Monof Classic 230V
Specifications Clave Cassette Mr. Slim PRO 140
Indoor Unit: PLA-SM140EA
Outdoor Unit: PUZ-SM140VKA
Air flow: 24-32 m3/min
Sonic Pressure: 36-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 5.13 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
Security policy
Delivery policy
Refund policy
1 Technology DC Inverter and Maximum Japanese Monofic Power
The Air Conditioning Cassette Mitsubishi MGPLZ-140VEA integrate technology DC Inverter Advanced for maximum energy efficiency with premium japanese quality. With SEER 5.5 A in cooling and SCOP 3.9 A in heating, its maximum monophase power 13400W cold and 15000W in heat guarantees ultra powerful and reliable air conditioning for ultra large commercial spaces that require maximum capacity with standard power.
The system modulates its power from 5800W up to 14100W in cold and from 4200W up to 15800W in heat, automatically adapting to variable load conditions and ensuring maximum comfort and operational efficiency in ultra wide commercial spaces with the possibility of adding optional smart features for demanding projects.
2 Standard Panel and Ultra Powerful Distribution
Includes pLP-6EALM standard panel with wireless serial control for full control of all basic functions. The panel 95x95 cm provides uniform air distribution air conditioning through its 4 directional pathways, with variable flow rate 24 to 32 m3/min for ultra large spaces 110-140 m2 which requires maximum capacity for monophase air conditioning.

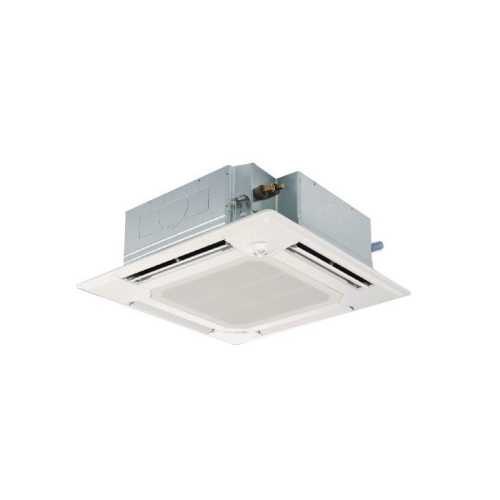

La indoor Unit of 298x840x840 mm is discreetly integrated into false standard commercial ceilings, while their operation 36-44 dBA maintains acoustic comfort suitable for ultra large offices and commercial spaces that require ultra-powerful yet acoustically controlled air conditioning with standard monophase power.
3 Premium and Ultra Available Commercial Upgrades
The base unit of maximum monophase power can upgrade optionally with premium technologies easyClean automatic panel that descends to facilitate maintenance, sensor 3D i-see for intelligent detection of people, Plasma Quad Connect for advanced air purification, and wiFi adapter for smartphone control, allowing to customize the equipment according to specific needs of ultra large and demanding commercial projects that require maximum monophase power.
4 Refrigerant Gas R32 Ecological and Ultra Commercial Operative Efficiency
Use coolant Organic R32 with load 3,60 kg, significantly reducing environmental impact while improving energy efficiency. The system operates in extended range -15°C to +46°C in cooling and -15°C to +21°C in heating, guaranteeing reliable performance throughout the year in ultra-big commercial applications with demanding weather conditions and maximum monophase power.
La outdoor Unit of 981x1050x330 mm facilitates installation in commercial spaces, with cold connections 9,52mm liquid and 15,88mm gas and maximum pipe length 30 meters with uneven 40 meters, providing greater flexibility in ultra large and complex commercial projects that require maximum power with standard monophase power.
Complete Technical Specifications Maximum Power
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 13400W (5800-14100W) | Heating | 15000W (4200-15800W) |
| SEER / SCOP | 5.5 A/ 3.9 A | Nominal consumption | 5130W / 4540W |
| Air flow | 24-32 m3/min | Sound level | 36-44 dBA |
| Refrigerant Gas | R32 (3.60 kg) | Dimensions IU | 298x840x840 mm |
| Tube Max | 30m / 40m deseven | Weight Neto UI | 26 kg + 5 kg panel |
Recommended Ultra Large Commercial Applications
S Offices Ultra Great
Corporate 110-140m2 spaces that require maximum monophase power with Japanese quality and optional upgrades.
️ Shopping Centres
Medium malls that need ultra-powerful air conditioning with reliable monophase Japanese quality.
S️ Restaurants Ultra
Ultra large gastronomic establishments that require maximum air conditioning capacity with optional functions.
S Medical Megacentres
Ultra large medical centers that need reliable ultra potent air conditioning with premium Japanese quality 24/7.
Technology Mitsubishi Electric Maximum Power
Japanese quality with maximum monophase commercial power and premium optional
MGPLZ-140VEA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PLA-SM140EA
- Outdoor Unit
- PUZ-SM140VKA
- Panel
- PLP-6EALM
- I send

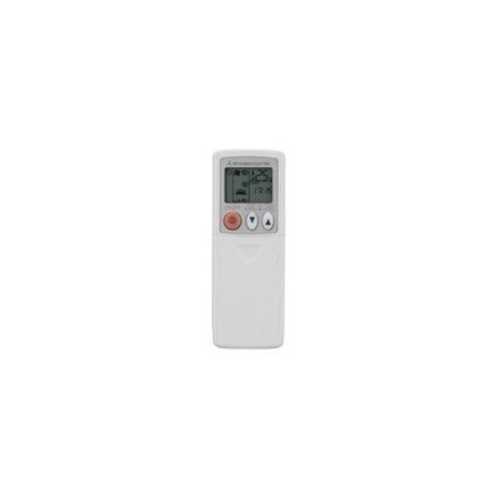

- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.130
- Energy class (cold)
- TO
- SEER
- 5,5
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 4.540
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 36
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 298
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 26,0
- Weight Outdoor Unit (Kg)
- 84,0
- Net weight (kg)
- 112,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
