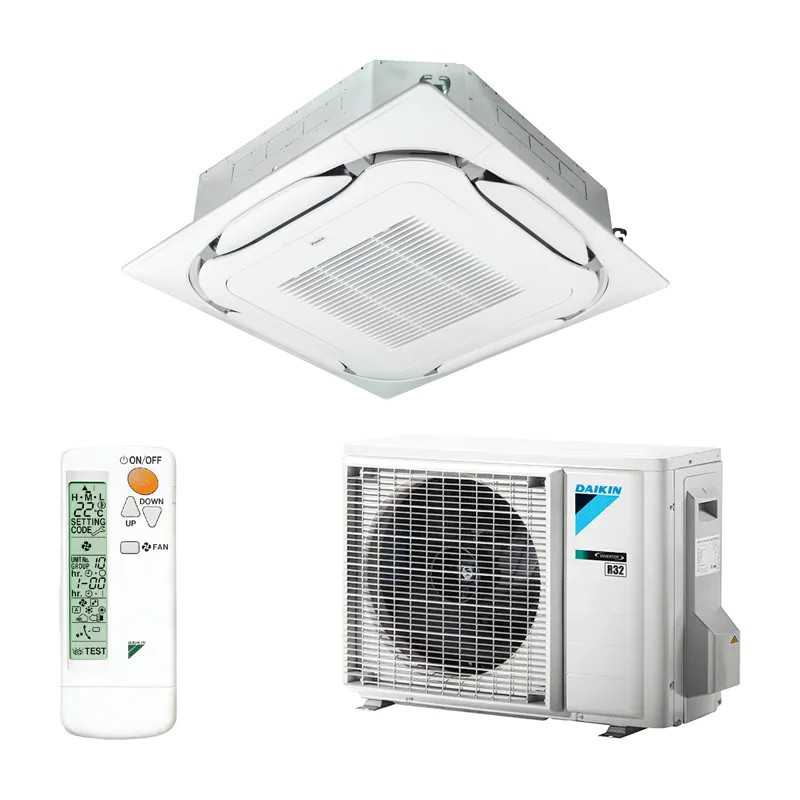

Cassette Daikin FCAG60B + RXM60R
Round Flow 60 Monofásico - Inverter R-32
Cassette Daikin Round Flow 60 - Advanced cassette air conditioning system with 360° Round Flow distribution technology, ideal for offices and shops up to 60m2. Power 5.7kW cooling and 7.0kW heating efficiency A+/A+ and eco-friendly R-32 coolant.
5.7 kW
Cold power
7.0 kW
Power Calor
A++/A+
Energy Label
28 dBA
Sound level
13,6 m3/min
Maximum rate
312 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Commercial use Panel 950mm Tecnología Japanese technology
Full model: Indoor Unit FCAG60B + Outdoor Unit RXM60R
Series: Round Flow - Japanese 360° Distribution Technology
Application: Ideal for offices and medium-sized shops up to 60m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Higher efficiency: SEER 6,40 / SCOP 4,20 with inverter compressor SWING
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Cassette Daikin CASG60B
Referencia: CASG60B
€2,695.19
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Daikin FCAG60B + RXM60R
Round Flow 60 Monofásico - Inverter R-32
Cassette Daikin Round Flow 60 - Advanced cassette air conditioning system with 360° Round Flow distribution technology, ideal for offices and shops up to 60m2. Power 5.7kW cooling and 7.0kW heating efficiency A+/A+ and eco-friendly R-32 coolant.
5.7 kW
Cold power
7.0 kW
Power Calor
A++/A+
Energy Label
28 dBA
Sound level
13,6 m3/min
Maximum rate
312 kWh/a
Annual summary
️ Round Flow Wi-Fi Optional R32 Ecological ・ Inverter SWING Ultra Quiet Commercial use Panel 950mm Tecnología Japanese technology
Full model: Indoor Unit FCAG60B + Outdoor Unit RXM60R
Series: Round Flow - Japanese 360° Distribution Technology
Application: Ideal for offices and medium-sized shops up to 60m2
Panel: BYCQ140E of 950×950mm impotrable in false ceiling
Higher efficiency: SEER 6,40 / SCOP 4,20 with inverter compressor SWING
Security policy
Delivery policy
Refund policy
Air Conditioning Cassette Daikin Round Flow 60 - Advanced Japanese Technology
Advanced cassette air conditioning system with Japanese Round Flow 360° technology
Cassette System Round Flow 60 - Advanced Technology 360°
The Air Conditioning Cassette Daikin Round Flow CASG60B combines advanced power with distribution 360° japanese. With 5.7kW cooling power and 7.0kW in heat mode, this system is designed to provide optimal comfort in medium commercial spaces up to 60m2 with energy efficiency A++/A+.
️ ROUND FLOW 360° TECHNOLOGY AVANZADA
360° Distribution with Inverter SWING Advanced Technology
The advanced Round Flow 360° technology creates a radial airflow that ensures a uniform air conditioning in medium commercial spaces, completely eliminating the dead areas and providing exceptional comfort with ultrasilency performance since 28dBA.
Advanced Technical Specifications
5.7 kW
Refrigeration capacityAdvanced power up to 60m2
7.0 kW
Capacity HeatingHeat Pump powerful
SEER 6,40
Seasonal efficiencyA++ guaranteed classification
SCOP 4,20
Efficient heatingAdvanced A+ performance
Tecnología Round Flow 360° Advanced Technology
Exclusive technology Round Flow 360° Japanese distributes air through advanced radial distribution with flows up to 13.6 m3/min, creating a uniform flow of high efficiency. The 950×950mm dimension panel is perfectly integrated into false commercial ceilings, offering an optimal distribution for spaces up to 60m2.
️
Round Flow 360°Radio distribution up to 13.6 m3/min
📐
950×950mm panelAdvanced commercial coverage
️
Monofic ControlAdvanced management 220V
🌀
Total coverageNo dead areas 60m2
Advanced Commercial Performance
The Round Flow 60 system is designed for medium commercial applications, providing 3 vent speeds flow rate from 8.7 to 13.6 m3/min. This capacity allows efficient air-conditioning of medium-sized commercial spaces while maintaining homogeneous comfort and optimized energy consumption.
Advanced Commercial Air Stations
- High Speed: 13,6 m3/min - Quick commercial refrigerator
- Medium speed: 11,2 m3/min - Intensive commercial use
- Low speed: 8.7 m3/min - Silent night operation
- Sound level: 28-33 dBA according to speed

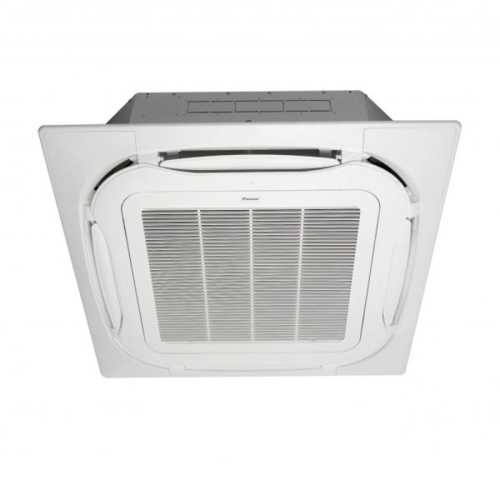

🏢 Indoor Unit FCAG60B
Cassette Round Flow advanced impotrable distribution 360°
Full model: FCAG60B - Advanced Cassette Round Flow with Japanese technology inverter SWING
S Technical Specifications Interior
5.7 kW
Nominal Cold Power
7.0 kW
Nominal heat power
28 dBA
Minimum Sound Level
13,6 m3/min
Maximum Air
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 204×840×840 mm |
| Weight Indoor Unit | 19.0 kg |
| Food | 1Ph/220V |
| Air distribution | Round Flow 360° Japanese |
| Caudales (A/M/B) | 13,6/11,2/8,7 m3/min |
| Sound levels (A/M/B) | 33/31/28 dB(A) |
| Ventilator speeds | 3 speeds |
| Option control | Wi-Fi BRP069C81 |
Advanced Japanese Technologies:
Advanced SWING inverter compressor, 360° Round Flow distribution, high efficiency lavable filter and BRC7FA532F command included for advanced local control.
Advanced SWING inverter compressor, 360° Round Flow distribution, high efficiency lavable filter and BRC7FA532F command included for advanced local control.

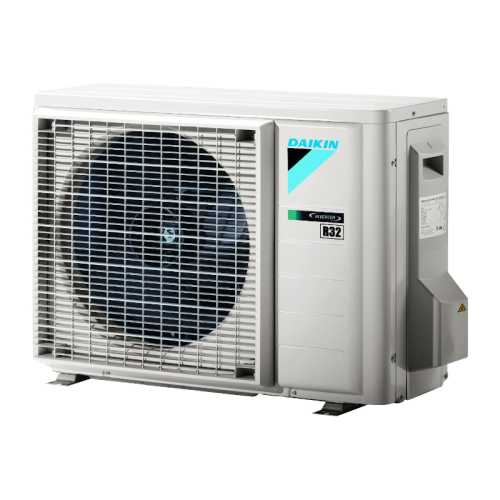

🏭 Outdoor Unit RXM60R
Advanced Monophase Condenser with SWING Inverter Compressor
Full model: RXM60R - Advanced Condensing Unit with SWING Inverter Compressor and R32 gas
S️ Foreign Technical Specifications
49 dBA
External sound level
R32
Refrigerant Gas Ecological
49 kg
Weight Unit
SWING
Compressor Type
| Feature | Specification |
|---|---|
| Dimensions (Al×An×Fo) | 734×954×401 mm |
| Weight | 49 kg |
| Compressor | Inverter SWING hermetic |
| Refrigerant Gas | R32 (1.15 kg preload) |
| Air Fridge Refrigeration | 46.6 m³/min |
| Air heating | 44.1 m3/min |
| TCO2eq | 0.78 kg |
S Advanced technical characteristics:
SWING inverter compressor with advanced variable frequency control, exchanger with high-performance hydrophilic fins, optimized expansion valve and advanced marine antico-red protection.
SWING inverter compressor with advanced variable frequency control, exchanger with high-performance hydrophilic fins, optimized expansion valve and advanced marine antico-red protection.
Y Energy and Consumption
A++
Label Cold
A+
Label Calor
312 kWh/a
Annual Consumption Cold
1569 kWh/a
Annual Calor consumption
S Guaranteed efficiency
- SEER 6,40: Advanced optimized seasonal efficiency
- SCOP 4,20: High performance heating guaranteed A+
- Charge cold design: 5,70 kW nominal
- Charge heat design: 4.71 kW to -10°C
Installation data
| Parameter | Specification |
|---|---|
| Liquid Tube | Ø 6.4 mm (1/4") |
| Tubería Gas | Ø 12.7 mm (1/2") |
| Maximum Length Tuberia | 30 meters |
| Maximum level | 20 meters |
| Charge Refrigerant Gas | Standard 10m |
| Additional charge | 20 gr/m |
Del Request Information of Round Flow 60
Find out why the Cassette Daikin Round Flow 60 is the perfect choice for your medium commercial project.
📞
Technical informationRound Flow 360° technology consultation
💰
Commercial BudgetQuote for medium spaces
️
Official ServiceCertified professional installation
▷ Warranty Daikin
Cassette Daikin Round Flow 60 with official guarantee and technical service specialized in advanced Japanese technology.
Cassette Daikin Round Flow 60 with official guarantee and technical service specialized in advanced Japanese technology.
CASG60B
Data sheet
- Brand
- Daikin
- Indoor Unit
- FCAG60B
- Outdoor Unit
- RXM60R9
- Panel
- BYCQ140E
- I send
- BRC7FA532F
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 50 a 60 m2
- Refrigerator capacity (W)
- 5.700
- Refrigerator capacity (kcal / h)
- 4.902
- Nominal consumption Cold (W)
- 1.720
- Energy class (cold)
- A++
- SEER
- 6,4
- Heat capacity (W)
- 7.000
- Heat capacity (Kcal / h)
- 6.020
- Nominal heat consumption (W)
- 2.070
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 28
- Dimensions u.i (anxfxh) mm
- 840 x 840 x204
- Dimensions u.e (anxfxh) mm
- 954 x 401 x 734
- Weight Indoor Unit (Kg)
- 19,0
- Weight Outdoor Unit (Kg)
- 49,0
- Net weight (kg)
- 70,5
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- Optional WiFi
