Cassette Haier AB50S2SC2FA(H) + 1U50S2SJ2FA-2
Health Connect 50 (H) Monkey - Cassette 4 Ways High Power
5,0 kW
FRENCH POTENCE
5,50 kW
CALOR POTENCE
EER 3.26
ALTA EFFECTIVE
SEER 6,10
STATIONAL EFFECTIVE
33 dBA
SILENCE
A++/A++
ENERGÉTIC ETIQUETA
The Cassette Haier Health Connect 50 (H) Mono model AB50S2SC2FA(H) + 1U50S2SJ2FA-2 represents maximum monophase power with technology cassette 4 independent. With 5,0kW power, EER 3,26 efficient, integrated Wi-Fi control and uVC sterilization, it is ideal for large commercial spaces looking for powerful, intelligent and purified air conditioning.
▷ Cassette 4 Independent Ways • Integrated Wi-Fi Control • UVC Sterilization • Quiet 33dB
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette 60x60 Haier Health Connect 50 (H) Monkey
Referencia: CASCONNECT50H
€1,157.39
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Cassette Haier AB50S2SC2FA(H) + 1U50S2SJ2FA-2
Health Connect 50 (H) Monkey - Cassette 4 Ways High Power
5,0 kW
FRENCH POTENCE
5,50 kW
CALOR POTENCE
EER 3.26
ALTA EFFECTIVE
SEER 6,10
STATIONAL EFFECTIVE
33 dBA
SILENCE
A++/A++
ENERGÉTIC ETIQUETA
The Cassette Haier Health Connect 50 (H) Mono model AB50S2SC2FA(H) + 1U50S2SJ2FA-2 represents maximum monophase power with technology cassette 4 independent. With 5,0kW power, EER 3,26 efficient, integrated Wi-Fi control and uVC sterilization, it is ideal for large commercial spaces looking for powerful, intelligent and purified air conditioning.
▷ Cassette 4 Independent Ways • Integrated Wi-Fi Control • UVC Sterilization • Quiet 33dB
Security policy
Delivery policy
Refund policy

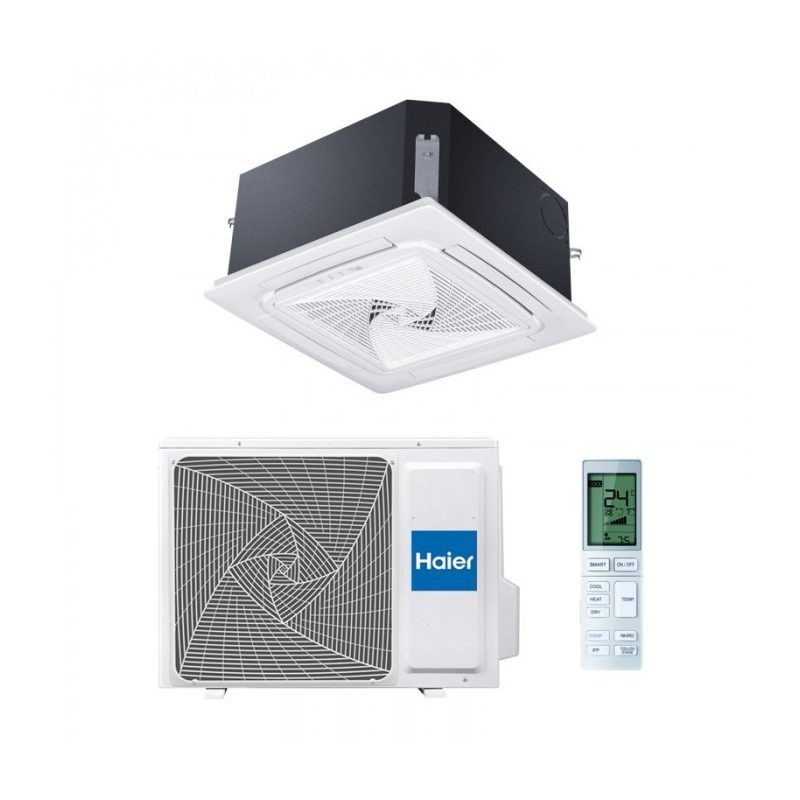

Air Conditioning Cassette 60x60 Haier Health Connect 50 (H) of Maximum Power
Cassette 4 Highway System Health Connect
The Cassette Haier AB50S2SC2FA(H) + 1U50S2SJ2FA-2 line Health Connect 50 (H) Mono represents the maximum power in monophasic cassette air conditioning. With distribution cassette 4 independent channels, , integrated Wi-Fi control factory, , uVC continuous sterilization and 5,0kW top power, offers healthy air conditioning for large commercial and residential spaces.
▪ Maximum Cassette Power
- 🔹 Cold Power: 5,0kW (1,8-6,0kW modulant)
- 🔹 Power Heat: 5,50kW (2,0-6,5kW modulant)
- 🔹 Distribution: 4 independent tracks
- 🔹 Caudal: 700/650/500/400 m3/h
Health Connect Advanced Technology
- 🔹 UVC sterilization: Continuous purified air
- 🔹 EER 3.26 / SEER 6,10: Tag A++/A++
- 🔹 Refrigerant Gas R32: Ecological
- 🔹 Quiet 33 dB guaranteed
S Technical Specifications Health Connect 50 (H)
Annual summary
Refrigeration: 363 kWh/a
Heating: 1.932 kWh/a
Heating: 1.932 kWh/a
Efficiency
EER: 3,26 (Alta)
SEER: 6,10 (A++)
SEER: 6,10 (A++)
Sound level
Interior: 42/37/35/33 dBA
Exterior: 50 dBA
Exterior: 50 dBA
Dimensions
Panel: 620×620×115 mm
Net weight: 2.80/4.50 kg
Net weight: 2.80/4.50 kg
) Exclusive Features Health Connect 50 (H)
Control 4 Ways: Independent
Each separately controlled sector
Each separately controlled sector
Wi-Fi Integrated: Factory
Connectivity without additional facilities
Connectivity without additional facilities
Air Fresco: Built-in exterior
Allows to introduce outdoor air up to 20%
Allows to introduce outdoor air up to 20%
Taritor ON/OFF: Included
Automatic presence control
Automatic presence control
De Maximum Power Cassette 4 Vias applications
Perfect for large commercial spaces: Large offices (60-80 m2), large medical offices, executive offices, large commercial shops, university classrooms, spacious conference rooms and commercial spaces that require maximum monophase power, , sector-led climate control and uVC air purification for maximum health.

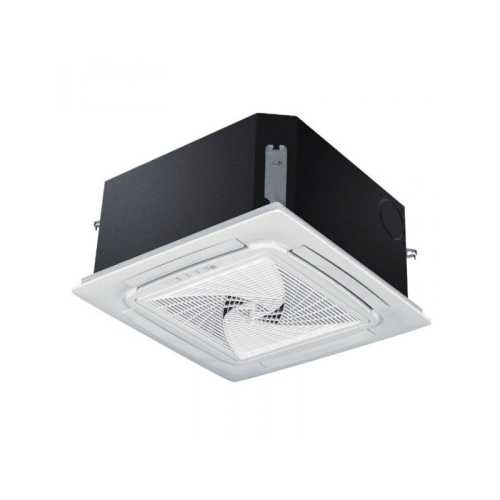

▪ Indoor Unit AB50S2SC2FA(H) - Cassette 4 Ways Maximum Power
La indoor Unit AB50S2SC2FA(H) health Connect 50 (H) incorporates technology cassette 4 independent tracks maximum power with sector-led distribution. Its compact design 620×620mm integration wi-Fi control factory, , uVC sterilization and outdoor air intake for personalized comfort in large spaces and constantly purified air.
Nivel Interior sound level
4 Speeds: 42/37/35/33 dBA
Guaranteed: 33 dBA minimum
Quiet for continuous commercial use
4 Air flow 4 Ways
700/650/500/400 m3/h
Maximum independent control power
Dimensions Cassette
Visible panel: 620×620×115 mm
Drive: 570×570×260 mm
Compact high power design

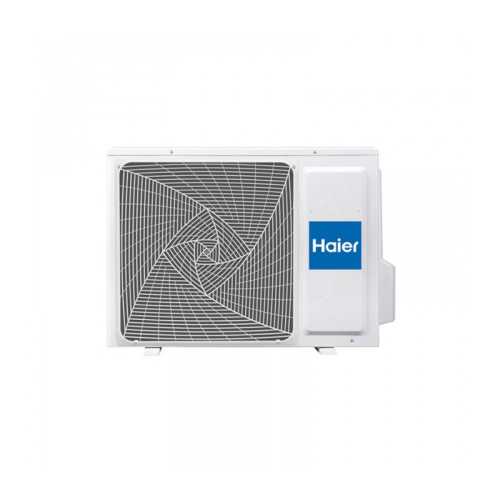

🏭 Outdoor Unit 1U50S2SJ2FA-2 - Inverter Double Rotative
La outdoor Unit 1U50S2SJ2FA-2 incorporates double rotary inverter compressor maximum efficiency. Its robust construction ensures powerful operation, , controlled sound level of 50 dBA and exceptional durability in all weather conditions, specifically optimized for the highest-powered Health Connect 50 (H).
Nivel External sound level
Operation: 50 dBA
Absorption boot: 10,68 A (cold)
Controlled for maximum power
Outer dimensions
820×300×643 mm
Weight: 35,70/38,50 kg
Robust for maximum power
️ System Refrigerant Gas R32
Preload: 1,10 kg R32
TCO2eq: 0,74
High capacity Ecological
Specifications Health Connect 50 (H)
Frigorific connections
Liquid: 6.35mm (1/4")
Gas: 12,70mm (1/2")
Gas: 12,70mm (1/2")
Longitudes Tubería
Standard without charge: 15 meters
Maximum: 35 meters
Maximum: 35 meters
Operational range
Refrigeration: -20°C to +43°C
Heating: -20°C to +24°C
Heating: -20°C to +24°C
Electrical supply
Voltage: 1~/220-240V/50/60Hz
Type: Monof Classic
Type: Monof Classic
␡️ Technical Specifications
Cassette 4-way maximum power system with inverter Health Connect technology. It includes specialized R32 refrigerant management, advanced Wi-Fi system configuration and UVC sterilization calibration for maximum performance and complete functionality of the air purification system in large spaces.
Cassette Haier Health Connect 50 (H)
AB50S25C2FA(H) + 1U50S25J2FA-2 Δ Maximum Commercial Power 5,0kW
🏢
Higher Commercial Power
5,0kW cooling and 5,50kW heating. Ideal for offices and shops up to 50m2.
▪
Efficiency A+/A++
EER 3.26 and SEER 6.10. Minimum consumption with maximum energy efficiency.
📱
Health Connect Advanced
Wi-Fi integrated, UVC purification and smart smartphone control.
🔇
Ultra-silent 32dBA
4 ventilation speeds (300-750 m3/h). A productive working environment.
🌿
Air Healthy R32
Organic gas R32, UVC purification and outdoor fresh air renewal.
🎯
Cassette 4 Vias 620mm
360° distribution with 620×620mm impotrable panel for discreet integration.
) Exclusive Features Health Connect 50 (H)
Complete model
AB50S25C2FA(H) + 1U50S25J2FA-2
AB50S25C2FA(H) + 1U50S25J2FA-2
Caudales
300/460/580/750 m3/h
300/460/580/750 m3/h
Annual summary
269 kWh/ cold
269 kWh/ cold
Interior dimensions
620×620×257 mm
620×620×257 mm
Total
18kg interior + 35kg exterior
18kg interior + 35kg exterior
Refrigerant Gas
Organic R32 (1.10 kg)
Organic R32 (1.10 kg)
) Request Health Connect 50 (H) Information
Find out why the Cassette Haier Health Connect 50 (H) is the perfect choice for your business project.
📞
Technical informationCheck out detailed specifications
💰
Personalized budgetQuote for your project
️
Professional ServiceTechnical advice
▷ Health Connect Warranty
Cassette Haier Health Connect 50 (H) with official warranty and specialized technical service.
Cassette Haier Health Connect 50 (H) with official warranty and specialized technical service.
CASCONNECT50H
Data sheet
- Brand
- Haier
- Indoor Unit
- AB50S2SC2FA (H)
- Outdoor Unit
- 1U50S2SJ2FA
- Panel
- PB-620KB
- I send

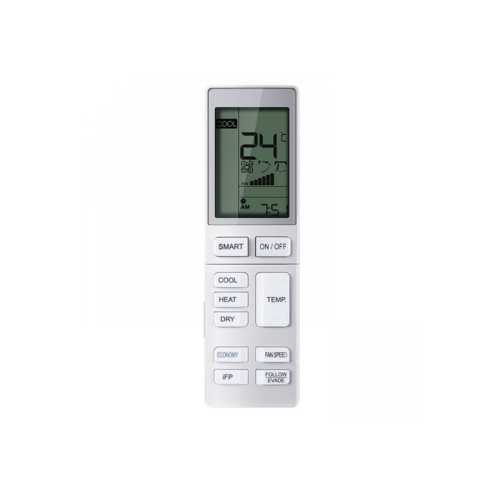

- Infrarrojos YR-HQS01
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 35 a 45 m2
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.530
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 5.500
- Heat capacity (Kcal / h)
- 4.730
- Nominal heat consumption (W)
- 1.520
- Energy class (heat)
- A++
- SCOP
- 5,3
- Minimum sound pressure UI DB
- 32
- Dimensions u.i (anxfxh) mm
- 570 x 570 x 260
- Dimensions u.e (anxfxh) mm
- 820 x 338 x 614
- Weight Indoor Unit (Kg)
- 19,0
- Weight Outdoor Unit (Kg)
- 37,8
- Net weight (kg)
- 59,3
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- WiFi Included
