LG CT09F CONFORT+ - _
Technology R32 LG Δ EER 4,10 Récord Δ Tag A++/A+
▪ Efficiency Récord
2,50kW cold / 3,20kW heat
EER 4,10 maximum range
Tecnología Technology R32
Refrigerant Gas ecological
1.0 kg minimum preload
o️ Compact Panel
620x620mm PT-QAGW0
Distribution 4 tracks
Ultra Quiet
30 dBA minimum
Absolute silence at night
▪ Ideal application: Bedrooms, studios and small offices of 8-12m2 that require maximum energy efficiency EER 4,10 and ultra silent operation of 30 dBA
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

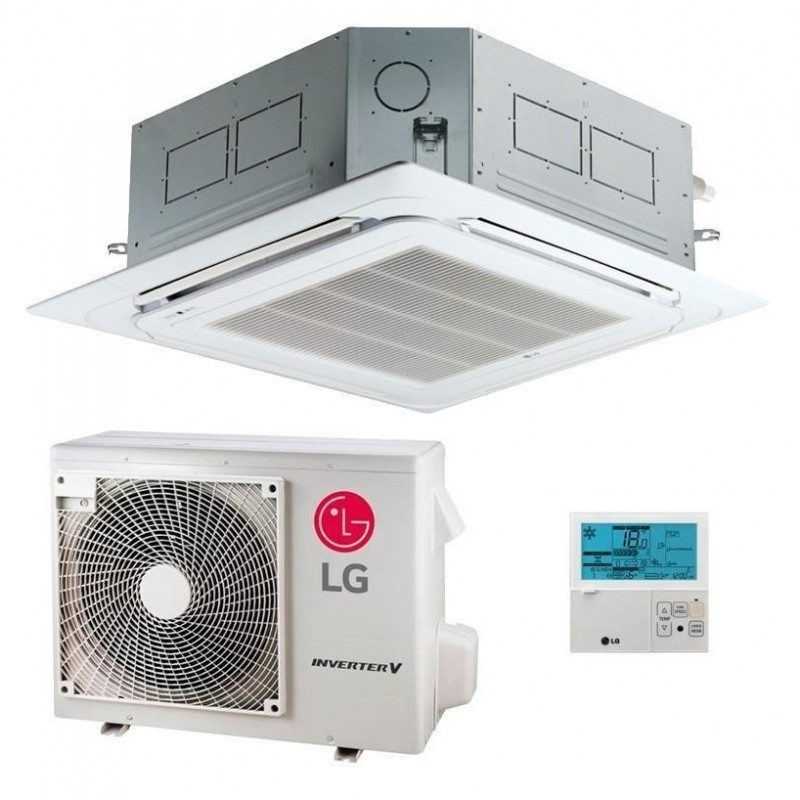

Cassette LG 60x60 Comfort + 09 Monof.
Referencia: CONFORT+ 9 MONO CAS
€1,312.50
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG CT09F CONFORT+ - _
Technology R32 LG Δ EER 4,10 Récord Δ Tag A++/A+
▪ Efficiency Récord
2,50kW cold / 3,20kW heat
EER 4,10 maximum range
Tecnología Technology R32
Refrigerant Gas ecological
1.0 kg minimum preload
o️ Compact Panel
620x620mm PT-QAGW0
Distribution 4 tracks
Ultra Quiet
30 dBA minimum
Absolute silence at night
▪ Ideal application: Bedrooms, studios and small offices of 8-12m2 that require maximum energy efficiency EER 4,10 and ultra silent operation of 30 dBA
Security policy
Delivery policy
Refund policy
LG CT09F CONFORT+ - Cassette Compacto
▪ Set 9 - Maximum Compact Efficiency
The LG CT09F CONFORT+ of Set 9 offers capabilities 1,50-2,50-3,20 kW cold and 1,80-3,20-3,70 kW in heat (minin-nom-max), achieving a Exceptional EER of 4,10 and SEER of 6,70 with energy label A++/A+. This compact cassette with panel PT-QAGW0 of 620x35x620 mm weight only 12.4 kg and represents the maximum efficiency in intimate spaces.
▪ Verified capacities and consumos
- Cold capacity: 1,50-2,50-3,20 kW (min-nom-máx)
- Heat capacity: 1,80-3,20-3,70 kW (min-nom-máx)
- Cold consumption: 0,30-0,61-0,87 kW (min-nom-máx)
- Consumption heat: 0,30-0,75-0,89 kW (min-nom-máx)
S Certified Energy Efficiencies
- EER: 4,10 (maximum range)
- SEER: 6,70 (high seasonal efficiency)
- COP: 4,30 (coefficient heat performance)
- SCOP: 4,00 (seasonal heat ratio)

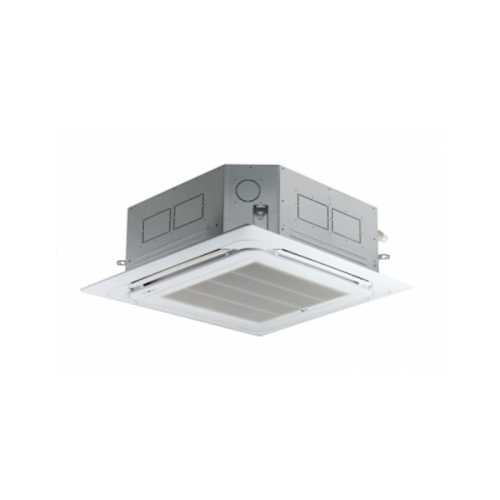

️ Specifications Indoor Unit CT09F.NR0
Dimensions 570x214x570 mm
IDU weight 12.4 kg
PT-QAGW0 Panel 620x35x620 mm (3 kg)
Sound and Air Caudal Pressure
Cold Sonic Pressure (H/M/L)
High (H): 36 dBA
Average (M): 33 dBA
Low (L): 30 dBA
Air flow rate (H/M/L)
High (H): 8.5 m3/min
Average (M): 7 m3/min
Low (L): 6 m3/min
S Frigorific connections
Liquid Line
Ø 6,35 mm (1/4")
Gas line
Ø 9,52 mm (3/8")

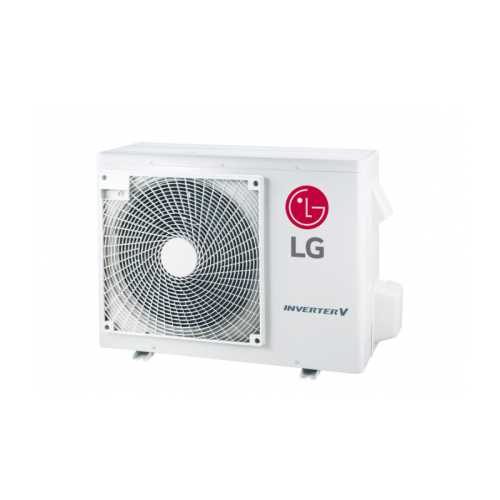

🏭 Outdoor Unit UUA1.UL0
Dimensions 770x545x288 mm
Weight 33.3 kg
Air flow rate 28 x 1 m3/min
Sound Pressure Outdoor Unit
Cold mode
49 dBA
Calor mode
52 dBA
🌿 Refrigerant Gas R32
- Preload: 1.0 kg Organic R32
- Length pipe preloading: 10 meters
- T-CO2eq: 0,675
- Refrigerant Gas additional: 20 g/m
De️ Operation Range
- Cold (Máx/Mín): 50°C / -15°C (CB)
- Heat (Máx/Mín): 18°C / -20°C (WB)
- Operation: Broad climate range
- Reliability: Extreme temperatures
De Installation Specifications
Longitudes
Total min/max: 5/30 meters
Uneven: 30 meters
Frigorific connections
Liquid: Ø 6,35 mm (1/4")
Gas: Ø 9,52 mm (3/8")
Energy Label
Average climate: A++/A+
Certification: Maximum efficiency
Specific Applications
Dormitorios️ Bedrooms
8-12m2 quiet rest
Studies
Spaces work concentration
S Small Offices
Individual equipment
S Small Consultations
Intimate medical spaces
Technical Summary Set 9
Verified capacities
Cold nom: 2.50 kW
Calor nom: 3.20 kW
Cold range: 1,50-3,20 kW
Hot range: 1,80-3,70 kW
Certified efficiency
EER: 4,10 (record)
SEER: 6.70 (A++)
COP: 4,30 (heat)
SCOP: 4,00 (seasonal)
Compact Installation
Distance: 30 meters
Max: 30 meters
Total weight: 45.7 kg (IDU+ODU)
Silence: 30 dBA minimum
: CT09F: Absolute Leader in Energy Efficiency
With EER 4,10 record, , 30 dBA absolute silence, , label A++/A+ and ultralight weight 12.4 kg, CT09F represents the hub of energy efficiency in compact cassettes with technology Green R32 LG.
CONFORT+ 9 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- CT09F.NR0
- Outdoor Unit
- UUA1.UL0
- Panel
- PT-QAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 15 a 25 m2
- Refrigerator capacity (W)
- 2.500
- Refrigerator capacity (kcal / h)
- 2.150
- Nominal consumption Cold (W)
- 610
- Energy class (cold)
- A++
- SEER
- 6.7
- Heat capacity (W)
- 3.200
- Heat capacity (Kcal / h)
- 2.752
- Nominal heat consumption (W)
- 750
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 30
- Dimensions u.i (anxfxh) mm
- 570 x 570 x 214
- Dimensions u.e (anxfxh) mm
- 770 x 288 x 545
- Weight Indoor Unit (Kg)
- 12,4
- Weight Outdoor Unit (Kg)
- 33,3
- Net weight (kg)
- 48,7
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 3/8
- Possibility Integration
- Optional WiFi
