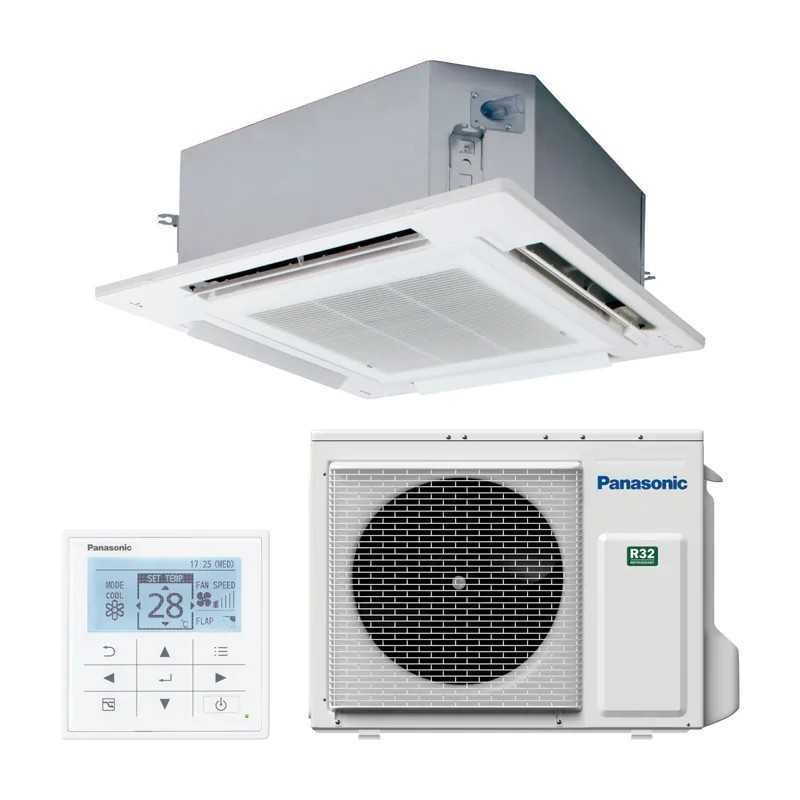

Air Conditioning Cassette Panasonic KIT-100PU3Z5-6W
Refrigeration 10000W 日本語 Heating 10000W 日本語 SEER 6.8 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-100PU3Z5-6W represents high professional power pACi NX Standard Series with 10000W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and smart control for large commercial spaces up to 100m2.
10️ 10000W Refrigeration
Range 3.0-11.5 kW
10000W Heating
Range 3.0-14.0 kW
▪ SEER 6,8 A++
SCOP 4,4 A+
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 100

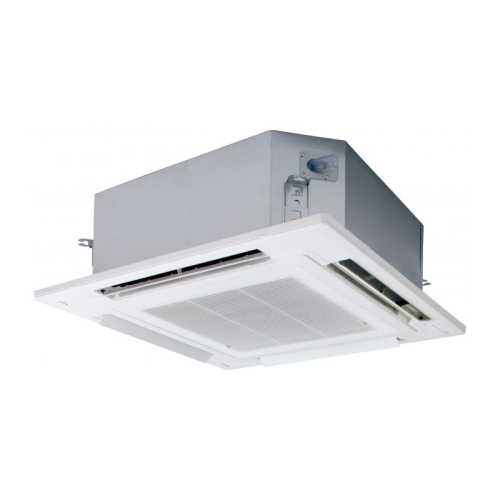

Indoor Unit: S-1014PU3E

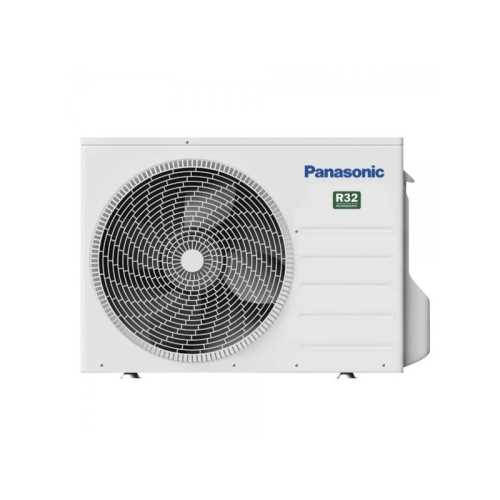

Outdoor Unit: U-100PZ3E5
Air flow: 18,0-36,0 m3/min
Sonic Pressure: 38 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 2.62 kW cold
Refrigerant Gas: R-32 (2.40 kg)
nanoeTM X: 4.8 billion OH/s
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Panasonic Kit-100PU3Z5-6W PACI NX Standard
Referencia: KIT-100PU3Z5-6W
€2,188.30
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Panasonic KIT-100PU3Z5-6W
Refrigeration 10000W 日本語 Heating 10000W 日本語 SEER 6.8 A+ Δ Wi-Fi + Bluetooth Δ nanoeTM X
The Air Conditioning Cassette Panasonic KIT-100PU3Z5-6W represents high professional power pACi NX Standard Series with 10000W in cooling and heating. With command CZ-RTC6BLW Wi-Fi + Bluetooth integrated and technology nanoeTM X Mark 1 series, offers ultra-powerful 4-way air conditioning with advanced air purification and smart control for large commercial spaces up to 100m2.
10️ 10000W Refrigeration
Range 3.0-11.5 kW
10000W Heating
Range 3.0-14.0 kW
▪ SEER 6,8 A++
SCOP 4,4 A+
Wi Wi-Fi + nanoeTM X
CZ-RTC6BLW
Key Specifications Cassette PACi NX Standard 100
Indoor Unit: S-1014PU3E
Outdoor Unit: U-100PZ3E5
Air flow: 18,0-36,0 m3/min
Sonic Pressure: 38 dBA
Wi-Fi Control: CZ-RTC6BLW
Nominal consumption: 2.62 kW cold
Refrigerant Gas: R-32 (2.40 kg)
nanoeTM X: 4.8 billion OH/s
Security policy
Delivery policy
Refund policy
Panasonic KIT-100PU3Z5-6W + CZ-RTC6BLW
CASSETTE PACI NX STANDARD • 10000W/10000W • Wi-Fi + Bluetooth • nanoeTM X Mark 1
Cassette PACi NX Standard 100: High Professional Power + Intelligent Technology
The Panasonic KIT-100PU3Z5-6W establishes the professional high power standard in the PACi NX Standard Series 10000W in cooling and heating for large commercial and industrial spaces. Integrates cZ-RTC6BLW controller with Wi-Fi + Bluetooth which allows total remote control and intelligent configuration, while technology nanoeTM X Mark 1 series guarantees purified air with 4.8 billion hydroxyl radicals per second in wide spaces.
Designed for large offices, shopping centers, large restaurants and spaces up to 100m2, combine the high performance turboventilator with intelligent Econavi sensor which automatically optimizes energy consumption. His 4-way air distribution with cassette 90x90 cm ensures uniform and powerful air conditioning SEER 6,8 A++, maintaining high efficiency despite its professional power.
️ High Professional Power
10000W Refrigeration: Modulant range 3.0-11.5 kW
10000W Heating: Modulant range 3,0-14,0 kW
Coverage: 70-100m2 commercial spaces
Intelligent Control Wi-Fi

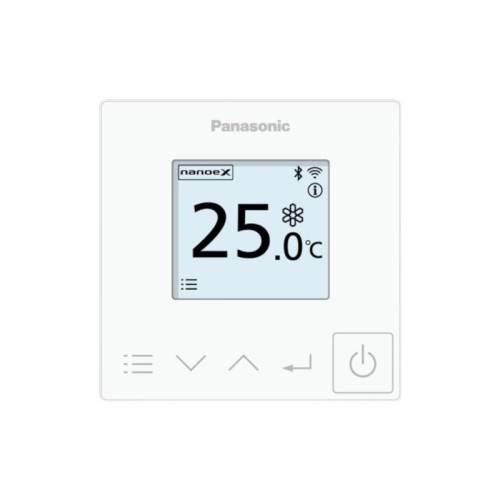

CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Easy configuration: Bluetooth for setup
Remote control: Total from smartphone
Advanced technology PACi NX Standard
🌀
Turboventilator
High performance + exchanger
️
Sensor Econavi
Reduces automatic energy loss
Đ
nanoetm X Mark 1
4.8 billion radical OH/second
💧
Drying pump
Light-series integrated
Energy Efficiency High Power A++
SEER 6,8 A++
High power cooling
SCOP 4,4 A+
Professional heating
EER 3,82
Instant performance
COP 4,93
Coefficient upper heat
Technical Specifications • PACi NX Standard KIT-100PU3Z5-6W
INVERTER+ • 4 4 Vias 90x90 • W WI-FI + BLUETOOTH • R32 ECOLÓGICO
Cassette 4 Via Technology + High Power Turboventilator
The 4-way cassette 90x90 cm kIT-100PU3Z5-6W incorporates a high-performance turboventilator optimized for high power that maximizes the air trajectory through the heat exchanger. With flow rate from 18,0 to 36,0 m3/min, adapts automatically to the air conditioning needs of large spaces while maintaining a sound level of 38 dBA in medium speed, ideal for commercial environments that require power and comfort.
The sensor Econavi intelligent automatically detects the activity in large spaces and adjusts the operation for optimize energy consumption without compromising power. Technology Green R32 with 2.40 kg load offers superior thermodynamic properties for high power while maintaining SEER 6,8 A++, exceptional for its power category.
Aire️ High Power Air Performance
Variable flow rate: 18,0-36,0 m3/min
Distribution: 4 tracks 90x90
Sound level: 38 dBA (average velocity)
Dehumidification: 2.7 L/h elimination
Electrical Specifications
Food: 220-240V monophasic
Consumption Cold: 2.62 kW (nominal)
Consumption Calor: 2,03 kW (nominal)
Intensity: 12,00-13,10 A (cold)
S Dimensions and Technical Specifications
| Component | Specification | Value |
|---|---|---|
| Indoor Unit | Model | S-1014PU3E |
| Interior dimensions | High x Width x Deep | 319 x 840 x 840 mm |
| Cassette Panel | High x Width x Deep | 33.5 x 950 x 950 mm |
| Weight Interior/Panel | Net | 25 / 5 kg |
| Outdoor Unit | Model | U-100PZ3E5 |
| Outer dimensions | High x Width x Deep | 996 x 980 x 370 mm |
| Tuberias | Liquid / Gas | 3/8" (9,52mm) / 5/8" (15,88mm) |
| Maximum length | Tuberia | 5-50 meters |
Es Ideal Commercial Applications High Power
🏢
Large Offices
70-100m2 workspaces
️
Shopping Centres
Large locations
️
Restaurants Spacious
Main halls
🏭
Commercial ships
Industrial spaces
Advantages High Power Cassette
▷ Advantages High Power:
- Rapid air conditioning of large spaces
- Uniform distribution in 4 directions
- Variable air flow rate up to 36,0 m3/min
- Easy maintenance from below
- Precise temperature control large areas
Es Professional characteristics:
- Indoor Unit reinforced (25 kg vs 20 kg)
- nanoetm X purification large volumes
- Wi-Fi + Bluetooth total professional control
- Light integrated drainage pump
- Tubing up to 50m maximum length
PROFESSIONAL POTENCE + WI-FI!
Panasonic KIT-100PU3Z5-6W • 10000W/10000W • SEER 6.8 A+ • CZ-RTC6BLW
HIGH PROFESSIONAL POTENCE: 10000W + Intelligent Technology
The high-power solution for large commercial spaces that require professional air conditioning. Cassette 4 tracks with uniform distribution up to 100m2, full Wi-Fi control and nanoeTM X purification for large spaces. The perfect professional model for large offices, shopping centers and large restaurants that need power and efficiency.
Cassette High Power
10000W Professional: Range 3.0-14.0 kW
Variable flow rate: 18,0-36,0 m3/min
Coverage: 70-100m2 large spaces
Professional Wi-Fi Control
CZ-RTC6BLW: Wi-Fi + Bluetooth integrated
Professional Setup: Commercial configuration
Total control: Complete remote management
WHERE'S THE PANASONIC KIT-100PU3Z5-6W?
▷ Professional Technical Advantages:
- SEER 6,8 A++ high power efficiency
- 10000W power professional wide range
- Turboventilator optimized large spaces
- Sensor Econavi automatic trade
- 38 dBA silent despite high power
: Professional applications:
- Large offices 70-100m2 professionals
- Commercial centres spacious premises
- Large restaurants main halls
- Commercial ships industrial spaces
- Commercial projects high power
Es Professional Characteristics High Power
SEER 6,8 A++
High power efficiency
COP 4,93
Higher heat performance
NanoeTM X
Purification large volumes
50 50m Max
Professional pipe length
PROFESSIONAL TECHNOLOGIES INCLUDED
Turboventilator
Optimized high power 36 m3/min
️ Econavi Pro
Smart sensor large spaces
Light pump
Integrated drainage
R32 Pro
Ecological 2,40kg high load
CHECK YOUR TAPE NOW!
Professional air conditioning specialists Panasonic • Commercial technical advice • High power solutions
Commercial
info@tualmacendelclima.es
More information
Your Warehouse of Climate
⭐ PANASONIC OFFICIAL GARANTIA • SPECIALIZED TECHNICAL SOPORT • JAPONESA PREMIUM ⭐
KIT-100PU3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PU3E
- Outdoor Unit
- U-100PZ3E5
- I send
- CZ-RTC6BLW
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 90 a 100 m2
- Refrigerator capacity (W)
- 10.000
- Refrigerator capacity (kcal / h)
- 8.600
- Nominal consumption Cold (W)
- 2.620
- Energy class (cold)
- A++
- SEER
- 6,8
- Heat capacity (W)
- 10.000
- Heat capacity (Kcal / h)
- 8.600
- Nominal heat consumption (W)
- 2.030
- Energy class (heat)
- A+
- SCOP
- 4,4
- Minimum sound pressure UI DB
- 32
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 319
- Dimensions u.e (anxfxh) mm
- 980 x 370 x 996
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 83,0
- Net weight (kg)
- 113,0
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- WiFi Included
