LG UT30F CONFORT CASSETTE 4 VIAS
Cassette Comercial 60x60 High Efficiency Monophase
7.50 kW
FRENCH POTENCE
7,90 kW
CALOR POTENCE
EER 3.25
ALTA EFFECTIVE
SEER 6,80
STATIONAL EFFECTIVE
35 dBA
LEVEL SONORO MINE
A++/A+
ENERGÉTIC ETIQUETA
The Cassette of ceiling LG UT30F CONFORT Set 30 combines high energy efficiency with fREE COMBINATION technology advanced. With 7,50kW of frigorific power and 7,90kW heated, offers EER 3,25 efficient, SEER 6,80 excellent and 950mm Dual Vane panel for higher commercial climate with silent operation since 35 dBA.
▷ Technology R32 Ecological • Dual Vane 950mm • Tag A+/A+ • FREE COMBINATION
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

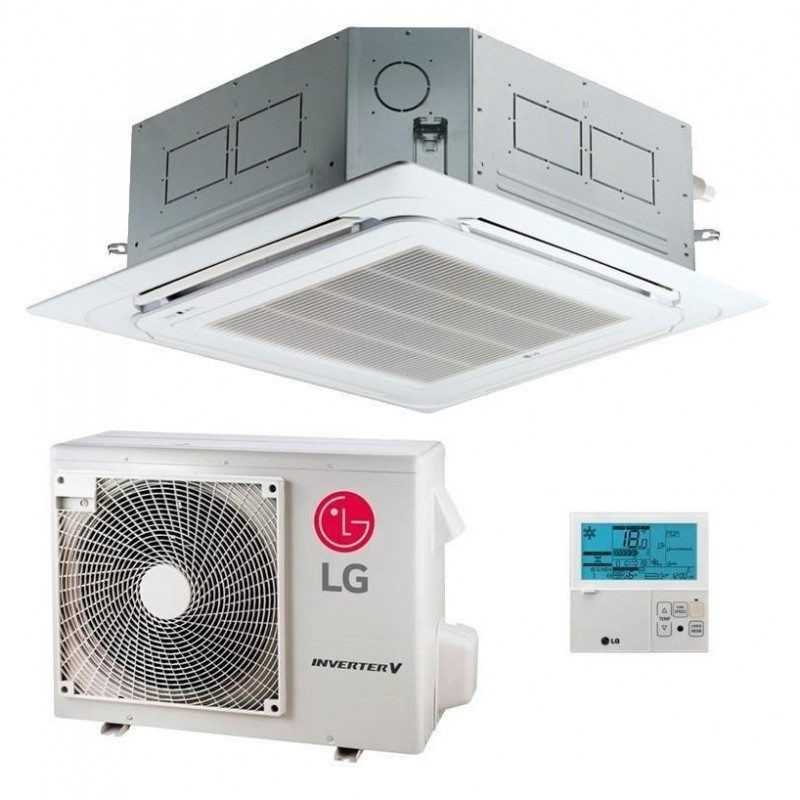

Cassette 90x90 LG Comfort 30 Monof.
Referencia: CONFORT 30 MONO CAS
€1,606.83
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
LG UT30F CONFORT CASSETTE 4 VIAS
Cassette Comercial 60x60 High Efficiency Monophase
7.50 kW
FRENCH POTENCE
7,90 kW
CALOR POTENCE
EER 3.25
ALTA EFFECTIVE
SEER 6,80
STATIONAL EFFECTIVE
35 dBA
LEVEL SONORO MINE
A++/A+
ENERGÉTIC ETIQUETA
The Cassette of ceiling LG UT30F CONFORT Set 30 combines high energy efficiency with fREE COMBINATION technology advanced. With 7,50kW of frigorific power and 7,90kW heated, offers EER 3,25 efficient, SEER 6,80 excellent and 950mm Dual Vane panel for higher commercial climate with silent operation since 35 dBA.
▷ Technology R32 Ecological • Dual Vane 950mm • Tag A+/A+ • FREE COMBINATION
Security policy
Delivery policy
Refund policy
LG UT30F CONFORT - Cassette High Efficiency
Tecnología High Efficiency FREE COMBINATION Technology
The 4-way Cassette LG UT30F CONFORT Set 30 represents evolution in monophasic commercial climate. With its advanced technology FREE COMBINATION and coolant Organic R32, provides 7,50kW of frigorific power, , EER 3,25 efficient and SEER 6,80 excellent for commercial applications that demand high energy efficiency and superior comfort.
▪ Advanced Commercial Power
- 🔹 Cold capacity: 3,00 - 7.50 - 8,30 kW (min-nom-máx)
- 🔹 Capacity Heat: 3,20 - 7,90 - 8,70 kW (min-nom-máx)
- 🔹 EER 3.25: High energy efficiency
- 🔹 SEER 6,80: Excellent seasonal savings
Optimized sustainability
- 🔹 Refrigerant Gas R32: Low environmental impact
- 🔹 Tag A++/A+: Maximum energy classification
- 🔹 COP 3.34: Good heating performance
- 🔹 SCOP 4,20: Seasonal heat efficiency
S Technical Specifications Set 30
Energy consumption
Cold: 0.50 - 2.31 - 2.77 kW
Heat: 0.50 - 2.37 - 3.08 kW
Heat: 0.50 - 2.37 - 3.08 kW
Efficiency
EER: 3,25 (Alta)
SEER: 6,80 (Excellent)
SEER: 6,80 (Excellent)
Heat performance
COP: 3,34 (Good)
SCOP: 4,20 (Very good)
SCOP: 4,20 (Very good)
Classification
Tag: A++/A+
Climate: Media
Climate: Media
🎯 Advanced Business Applications
Ideal for large commercial spaces: Large offices (70-100 m2), medium stores, specialized offices, conference rooms, university classrooms, coworking spaces and commercial establishments that require efficient climate with uniform distribution and continuous silent operation.

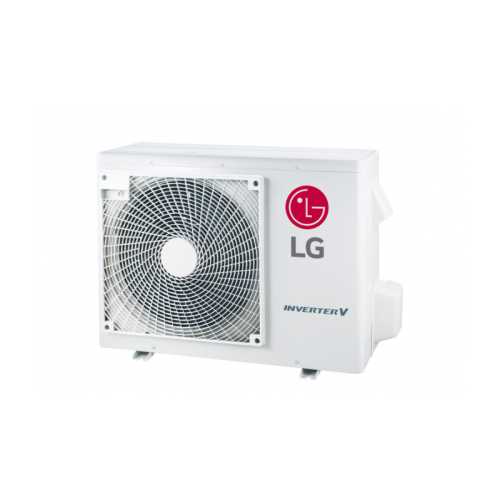

🏢 Outdoor Unit UUC1.U40 - Advanced Technology
La outdoor Unit UUC1.U40 uT30F system is designed for advanced commercial applications. Its robust construction and cutting-edge technology guarantee efficient functioning, , exceptional durability and optimized energy performance for intense commercial loads with maximum reliability.
Nivel External sound level
Cold mode: 50 dBA
Heat mode: 54 dBA
Controlled and efficient operation
Air flow rate
58 m3/min
Single high capacity vent
Dimensions
950 × 834 × 330 mm
Weight: 59.0 kg
Robust commercial design
️ System Refrigerant Gas R32 Advanced
Charge Refrigerant Gas
Preload: 1.9 kg R32
Preload length: 20 ml
Preload length: 20 ml
Environmental Impact
T-CO2eq: 1,283
Additional: 55 g/m
Additional: 55 g/m
Operational range
Cold: -20°C to +50°C
Heat: -15°C to +18°C
Heat: -15°C to +18°C
Connections
Liquid: 9,52mm (3/8")
Gas: 15,88mm (5/8")
Gas: 15,88mm (5/8")
De Advanced Installation Flexibility
Total length: 5 - 50 meters
Maximum commercial versatility
Maximum commercial versatility
Maximum Level: 30 meters
Architectural adaptation
Architectural adaptation

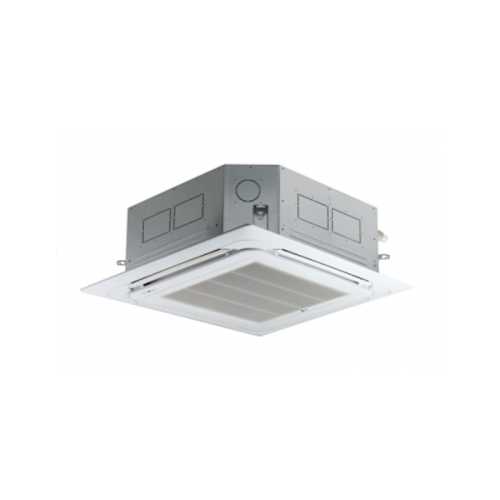

▼ Indoor Unit Commercial UT30F.NB0
Commercial dimensions: 840×204×840 mm with weight of 21.1 kg. PT-AAGW0 Dual Vane panel of 950×35×950 mm (7.1 kg) for distribution 4 standard tracks. Sound levels of 35-40 dBA and 15.5-19.0 m3/min for maximum comfort.
CONFORT 30 MONO CAS
Data sheet
- Brand
- LG
- Indoor Unit
- UT30F.NB0
- Outdoor Unit
- UUB1.U20
- Panel
- PT-AAGW0
- I send
- PREMTB001
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 65 a 70 m2
- Refrigerator capacity (W)
- 7.500
- Refrigerator capacity (kcal / h)
- 6.450
- Nominal consumption Cold (W)
- 2.310
- Energy class (cold)
- A++
- SEER
- 6,8
- Heat capacity (W)
- 7.900
- Heat capacity (Kcal / h)
- 6.794
- Nominal heat consumption (W)
- 2.370
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 35
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 204
- Dimensions u.e (anxfxh) mm
- 870 x 330 x 650
- Weight Indoor Unit (Kg)
- 21,1
- Weight Outdoor Unit (Kg)
- 44,5
- Net weight (kg)
- 68,6
- Diameter Liquid pipe
- 1/4
- Diameter Gas Pipe
- 1/2
- Possibility Integration
- Optional WiFi
