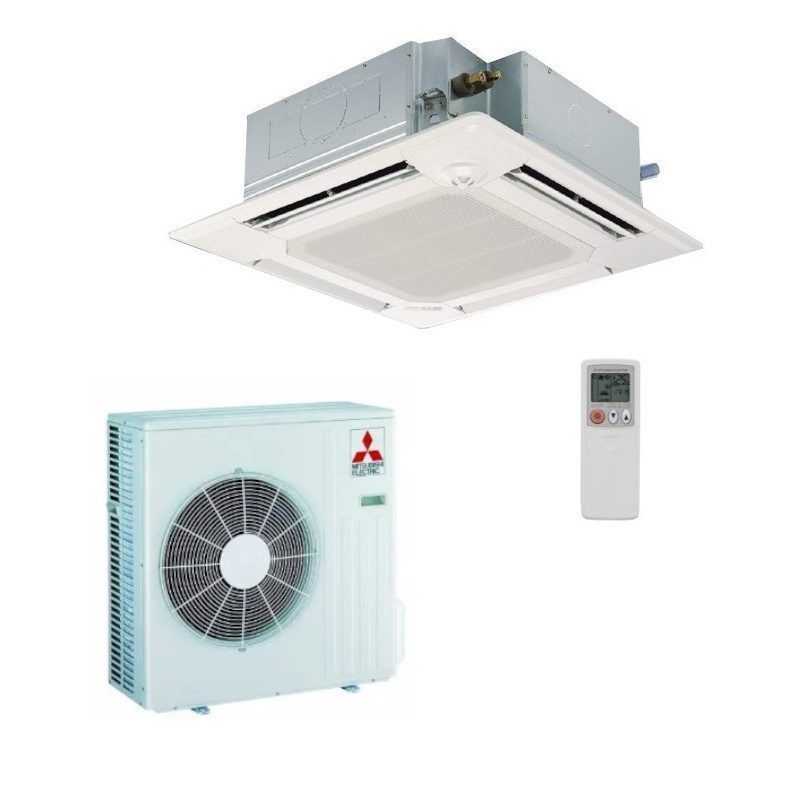

Air Conditioning Cassette Mitsubishi MGPLZ-140YEA Triphasic
Refrigeration 13400W 日本語 Heating 15000W 日本語 SEER 5.5 A Δ 400V Triphasic Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-140YEA represents maximum industrial power of the series Mr. Slim PRO with 13400W in cooling and 15000W in heating. With 400V triphase, standard panel with wireless control included and technology DC Inverter, offers ultra-maximum 4-way air conditioning for ultra-big industrial spaces that require japanese quality, maximum operating stability and ultra-maximum air conditioning capacity with possibility of premium optional upgrades.
13️ 13400W Refrigeration
Rank 5.8-14.1 kW
15000W Heating
Rank 4.2-15.8 kW
▪ SEER 5.5 A
SCOP 3.9 A
400V Triphasic
12.2A maximum
Specifications Clave Cassette Mr. Slim PRO 140 Triphasic
Indoor Unit: PLA-SM140EA
Outdoor Unit: PUZ-SM140YKA
Air flow: 24-32 m3/min
Sonic Pressure: 36-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 4,54 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette MGPLZ-140yea Mitsubishi Pro Trif Series.
Referencia: MGPLZ-140YEA
€3,901.04
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Mitsubishi MGPLZ-140YEA Triphasic
Refrigeration 13400W 日本語 Heating 15000W 日本語 SEER 5.5 A Δ 400V Triphasic Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-140YEA represents maximum industrial power of the series Mr. Slim PRO with 13400W in cooling and 15000W in heating. With 400V triphase, standard panel with wireless control included and technology DC Inverter, offers ultra-maximum 4-way air conditioning for ultra-big industrial spaces that require japanese quality, maximum operating stability and ultra-maximum air conditioning capacity with possibility of premium optional upgrades.
13️ 13400W Refrigeration
Rank 5.8-14.1 kW
15000W Heating
Rank 4.2-15.8 kW
▪ SEER 5.5 A
SCOP 3.9 A
400V Triphasic
12.2A maximum
Specifications Clave Cassette Mr. Slim PRO 140 Triphasic
Indoor Unit: PLA-SM140EA
Outdoor Unit: PUZ-SM140YKA
Air flow: 24-32 m3/min
Sonic Pressure: 36-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 4,54 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
Security policy
Delivery policy
Refund policy
1 Technology DC Inverter Triphasic and Maximum Industrial Power Absolute
The Air Conditioning Cassette Mitsubishi MGPLZ-140YEA integrate technology DC Advanced Inverter with 400V triphasic power for maximum energy efficiency and absolute operating stability with premium japanese quality. With SEER 5.5 A in cooling and SCOP 3.9 A in heating, its maximum three-phase power 13400W cold and 15000W in heat guarantees ultra maximum and reliable air conditioning for ultra large industrial spaces that require maximum capacity with ultra-balanced load distribution.
The system modulates its power from 5800W up to 14100W in cold and from 4200W up to 15800W in heat, adapting automatically to variable load conditions with ultra reduced intensity by phase (12.2A maximum) compared to monophasic equivalents, ensuring maximum comfort and operational efficiency in ultra demanding industrial installations with the possibility of adding optional intelligent functions.
2 Standard and Industrial Distribution Panel Ultra Maximum

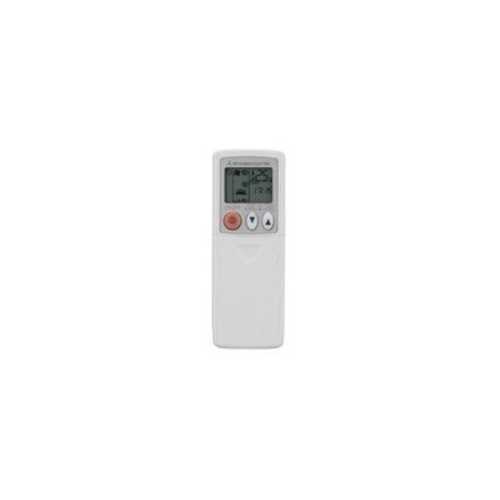

Includes pLP-6EALM standard panel with wireless serial control for full control of all basic functions. The panel 95x95 cm provides uniform air distribution air conditioning through its 4 directional pathways, with variable flow rate 24 to 32 m3/min for ultra large industrial spaces 110-140 m2 which requires maximum air conditioning capacity with maximum three-phase operational stability.

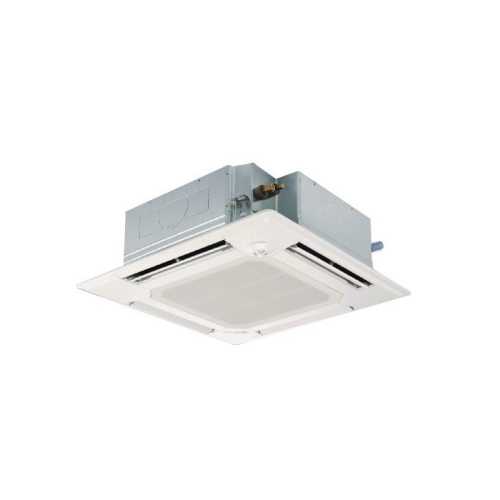

La indoor Unit of 298x840x840 mm is discreetly integrated into false standard industrial ceilings, while their operation 36-44 dBA maintains acoustic comfort suitable for ultra large industrial offices and commercial spaces that require ultra-maximum air conditioning but acoustically controlled with ultra-balanced triphase power.
3 Premium and Ultra Available Industrial Upgrades
The maximum three-phase base unit can upgrade optionally with premium technologies easyClean automatic panel that descends to facilitate maintenance, sensor 3D i-see for intelligent detection of people, Plasma Quad Connect for advanced air purification, and wiFi adapter for smartphone control, allowing to customize the equipment according to specific needs of ultra large and demanding industrial projects that require maximum ultra-stable triphase power.
4 Refrigerant Gas R32 Ecological and Industrial Operative Efficiency Ultra
Use coolant Organic R32 with load 3,60 kg, significantly reducing environmental impact while improving energy efficiency. The system operates in extended range -15°C to +46°C in cooling and -15°C to +21°C in heating, guaranteeing reliable operation throughout the year in ultra large industrial applications with demanding weather conditions and maximum ultra-stable triphase power.
La outdoor Unit of 981x1050x330 mm facilitates installation in industrial spaces, with cold connections 9,52mm liquid and 15,88mm gas and maximum pipe length 30 meters with uneven 40 meters, providing greater flexibility in ultra large and complex industrial projects with ultra-balanced triphase feeding.
Complete Technical Specifications Maximum Triphasic Power
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 13400W (5800-14100W) | Heating | 15000W (4200-15800W) |
| SEER / SCOP | 5.5 A/ 3.9 A | Nominal consumption | 5130W / 4540W |
| Food | 400V Triphasic (12.2A) | Sound level | 36-44 dBA |
| Refrigerant Gas | R32 (3.60 kg) | Dimensions IU | 298x840x840 mm |
| Tube Max | 30m / 40m deseven | Weight Neto UI | 26 kg + 5 kg panel |
Recommended Industrial Applications
Es Industrial megaoffices
110-140m2 industrial spaces that require maximum three-phase power with Japanese quality and optional upgrades.
️ Facilities Ultra
Large industrial ships that need ultra maximum triphase air conditioning with reliable Japanese quality.
S️ Gastronomic Mega Complexes
Ultra large installations with ultra high electrical demand that require ultra-balanced triphase feeding.
S Supercentros Médicos
Ultra large medical facilities that need maximum 24/7 stability with ultra industrial triphase power.
Technology Mitsubishi Electric Maximum Triphasic Power
Japanese quality with maximum three-phase industrial power and ultra-balanced power
MGPLZ-140YEA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PLA-SM140EA
- Outdoor Unit
- PUZ-SM140YKA
- Panel
- PLP-6EALM
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Recommended area (M2)
- Estancia de 110 a 120 m2
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.130
- Energy class (cold)
- TO
- SEER
- 5,5
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 4.540
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 36
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 298
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 26,0
- Weight Outdoor Unit (Kg)
- 85,0
- Net weight (kg)
- 113,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
