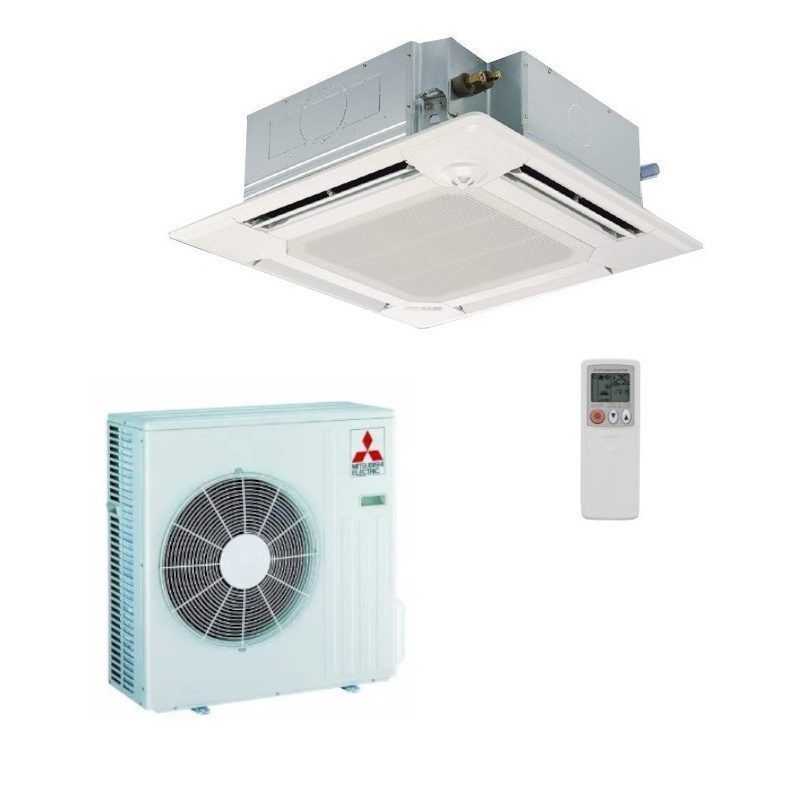

Air Conditioning Cassette Mitsubishi MGPLZ-125VEA
Refrigeration 12100W Δ Heating 13500W Δ SEER 5.5 A Δ Panel Standard Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-125VEA represents high commercial power of the series Mr. Slim PRO with 12100W in cooling and 13500W in heating. With standard panel with wireless control included and technology DC Inverter, offers 4-way air conditioning for large commercial spaces that require japanese quality and high air conditioning capacity with possibility of premium optional upgrades.
12️ 12100W Refrigeration
Rank 5.8-13.0 kW
13 13500W Heating
Rank 4,1-15,0 kW
▪ SEER 5.5 A
SCOP 3.9 A
Included Command
Standard panel
Specifications Clave Cassette Mr. Slim PRO 125
Indoor Unit: PLA-SM125EA
Outdoor Unit: PUZ-SM125VKA
Air flow: 21-31 m3/min
Sonic Pressure: 33-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 4,17 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Cassette Mgplz-125vea Mitsubishi Pro Monof Series.
Referencia: MGPLZ-125VEA
€2,638.83
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Cassette Mitsubishi MGPLZ-125VEA
Refrigeration 12100W Δ Heating 13500W Δ SEER 5.5 A Δ Panel Standard Δ DC Inverter
The Air Conditioning Cassette Mitsubishi MGPLZ-125VEA represents high commercial power of the series Mr. Slim PRO with 12100W in cooling and 13500W in heating. With standard panel with wireless control included and technology DC Inverter, offers 4-way air conditioning for large commercial spaces that require japanese quality and high air conditioning capacity with possibility of premium optional upgrades.
12️ 12100W Refrigeration
Rank 5.8-13.0 kW
13 13500W Heating
Rank 4,1-15,0 kW
▪ SEER 5.5 A
SCOP 3.9 A
Included Command
Standard panel
Specifications Clave Cassette Mr. Slim PRO 125
Indoor Unit: PLA-SM125EA
Outdoor Unit: PUZ-SM125VKA
Air flow: 21-31 m3/min
Sonic Pressure: 33-44 dBA
Standard Panel: Include PLP-6EALM
Nominal consumption: 4,17 kW cold
Refrigerant Gas: R-32 (3.60 kg)
Optional: EasyClean, 3D i-see, WiFi
Security policy
Delivery policy
Refund policy
1 DC Inverter and High Power Japanese Technology
The Air Conditioning Cassette Mitsubishi MGPLZ-125VEA integrate technology DC Inverter Advanced for maximum energy efficiency with premium japanese quality. With SEER 5.5 A in cooling and SCOP 3.9 A in heating, its high power 12100W cold and 13500W in heat guarantees powerful and reliable air conditioning for large commercial spaces that require high capacity.
The system modulates its power from 5800W up to 13000W cold and from 4100W up to 15000W in heat, automatically adapting to variable load conditions and ensuring maximum comfort and operational efficiency in large commercial spaces with the possibility of adding optional smart features.
2 Standard Panel and Powerful Distribution

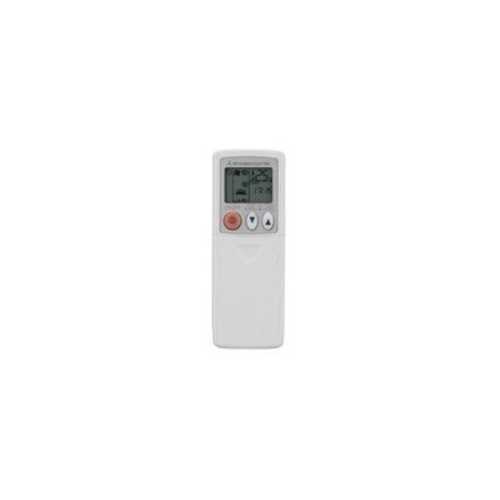

Includes pLP-6EALM standard panel with wireless serial control for full control of all basic functions. The panel 95x95 cm provides uniform air distribution air conditioning through its 4 directional pathways, with variable flow rate 21 to 31 m3/min for large spaces 90-120 m2 which require high air conditioning capacity.

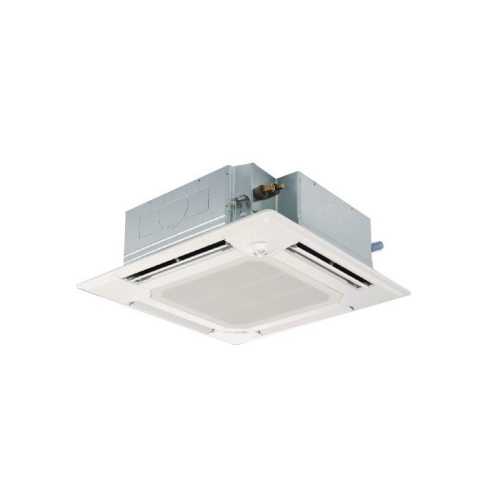

La indoor Unit of 298x840x840 mm is discreetly integrated into false standard ceilings, while their operation 33 to 44 dBA maintains acoustic comfort suitable for large offices and commercial spaces that require powerful yet acoustically controlled air conditioning.
3 Premium and Commercial Upgrades Available
High power base unit can upgrade optionally with premium technologies easyClean automatic panel that descends to facilitate maintenance, sensor 3D i-see for intelligent detection of people, Plasma Quad Connect for advanced air purification, and wiFi adapter for smartphone control, allowing to customize the equipment according to specific needs of large and demanding commercial projects.
4 Refrigerant Gas R32 Ecological and Commercial Operational Efficiency
Use coolant Organic R32 with load 3,60 kg, significantly reducing environmental impact while improving energy efficiency. The system operates in extended range -15°C to +46°C in cooling and -15°C to +21°C in heating, guaranteeing reliable operation throughout the year in commercial applications with demanding weather conditions.

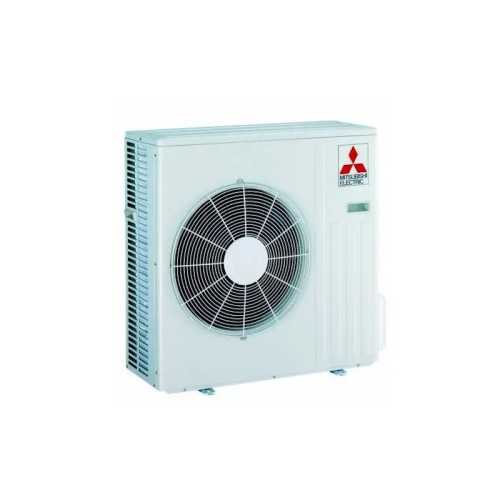

La outdoor Unit of 981x1050x330 mm facilitates installation in commercial spaces, with cold connections 9,52mm liquid and 15,88mm gas and maximum pipe length 30 meters with uneven 40 meters, providing greater flexibility in large and complex commercial projects.
Complete Technical Specifications
| Feature | Specification | Feature | Specification |
|---|---|---|---|
| Refrigeration | 12100W (5800-13000W) | Heating | 13500W (4100-15000W) |
| SEER / SCOP | 5.5 A/ 3.9 A | Nominal consumption | 4170W / 3730W |
| Air flow | 21-31 m3/min | Sound level | 33-44 dBA |
| Refrigerant Gas | R32 (3.60 kg) | Dimensions IU | 298x840x840 mm |
| Tube Max | 30m / 40m deseven | Weight Neto UI | 26 kg + 5 kg panel |
Recommended Commercial Applications
S Big Offices
Corporate 90-120m2 spaces that require high power with Japanese quality and premium optional upgrades.
Grande️ Great Surfaces
Shopping centers and large surfaces that need powerful air conditioning with reliable Japanese quality.
S️ Restaurants Grandes
Large gastronomic establishments that require high air conditioning capacity with optional functions.
Hospitals
Large medical centers that need reliable powerful air conditioning with premium Japanese quality 24/7.
Technology Mitsubishi Electric
Japanese quality with high commercial power and premium optional
MGPLZ-125VEA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PLA-SM125EA
- Outdoor Unit
- PUZ-SM125VKA
- Panel
- PLP-6EALM
- I send
- Mando Infrarrojos
- Color
- Blanco
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Recommended area (M2)
- Estancia de 100 a 110 m2
- Refrigerator capacity (W)
- 12.100
- Refrigerator capacity (kcal / h)
- 10.406
- Nominal consumption Cold (W)
- 4.170
- Energy class (cold)
- TO
- SEER
- 5,5
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.730
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 33
- Dimensions u.i (anxfxh) mm
- 840 x 840 x 298
- Dimensions u.e (anxfxh) mm
- 1050 x 330 x 981
- Weight Indoor Unit (Kg)
- 26,0
- Weight Outdoor Unit (Kg)
- 84,0
- Net weight (kg)
- 112,5
- Diameter Liquid pipe
- 3/8
- Diameter Gas Pipe
- 5/8
- Possibility Integration
- Optional WiFi
