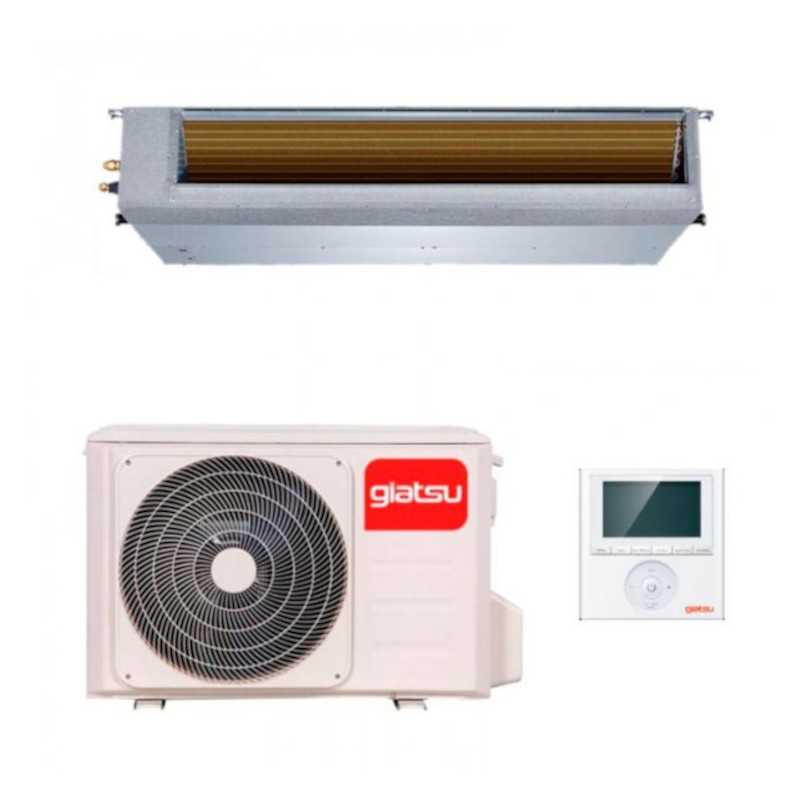

Ducted Air Conditioner Giatsu GIA-D-24ADM2R32-WF
Admira Plus Series 24000 BTU A++/A+ Русский Great Capacity 50m Tube
The Air Conditioning by Conduct Giatsu GIA-D-24ADM2R32-WF of the Admira Plus series reaches new professional power points with 7,09 kW in cooling and 8 kW in heating. Its advanced DC inverter technology allows modulation from 11000 to 27000 BTU/h, while its installation capabilities extend to 50 meters of pipe with static pressure of 160 Pa. With improved energy rating A++/A+ (SEER 6,6 / SCOP 4,2), multi-position and indoor Unit enlarged 1000×245×750 mm, represents the definitive solution for large commercial spaces that demand high-end premium air conditioning.
️ 24000 BTU Professional
7,09 kW cold / 8 kW heat
50 50m
Big size
▪ SEER 6,6 Improved
A++/A+ higher
da Expanded Unit
1000×245×750 mm
Key Specifications Great Capacity
Capacity: 24200 BTU/h
Modulation: 11000-27000 BTU/h
Cold consumption: 2280W (750-2860W)
Consumption heat: 2000W (640-2500W)
Static pressure: 0-160 Pa
Air flow: 700-1200 m3/h
Refrigerant Gas: R32 (1.4 kg)
Pipe length: Up to 50m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-D-24ADM2R32-WF series Admira Plus Monof.
Referencia: GIA-D-24ADM2R32-WF
€1,049.09
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-D-24ADM2R32-WF
Admira Plus Series 24000 BTU A++/A+ Русский Great Capacity 50m Tube
The Air Conditioning by Conduct Giatsu GIA-D-24ADM2R32-WF of the Admira Plus series reaches new professional power points with 7,09 kW in cooling and 8 kW in heating. Its advanced DC inverter technology allows modulation from 11000 to 27000 BTU/h, while its installation capabilities extend to 50 meters of pipe with static pressure of 160 Pa. With improved energy rating A++/A+ (SEER 6,6 / SCOP 4,2), multi-position and indoor Unit enlarged 1000×245×750 mm, represents the definitive solution for large commercial spaces that demand high-end premium air conditioning.
️ 24000 BTU Professional
7,09 kW cold / 8 kW heat
50 50m
Big size
▪ SEER 6,6 Improved
A++/A+ higher
da Expanded Unit
1000×245×750 mm
Key Specifications Great Capacity
Capacity: 24200 BTU/h
Modulation: 11000-27000 BTU/h
Cold consumption: 2280W (750-2860W)
Consumption heat: 2000W (640-2500W)
Static pressure: 0-160 Pa
Air flow: 700-1200 m3/h
Refrigerant Gas: R32 (1.4 kg)
Pipe length: Up to 50m
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Giatsu GIA-D-24ADM2R32-WF represents the technological culmination of the prestigious Admira Plus Series, designed specifically for large commercial and residential applications that demand maximum power without compromising energy efficiency. With a robust rated capacity of 7.09 kW in cooling (24200 BTU/h) and 8 kW in heating (27200 BTU/h), this system incorporates state-of-the-art DC inverter technology that allows intelligent modulation from 11000 to 27000 BTU/h in cold mode, ensuring precise adaptation to the variable demands of large and demanding commercial spaces.
The extraordinary combination of optimized GMCC inverter compressor and high-efficiency DC fan ensures an improved A++ energy rating in cooling (SEER 6,6) and A+ in heating (SCOP 4,2), exceeding the previous standards of the series and translated into exceptional energy savings even with this higher power. The system employs eco-friendly R32 coolant with 1.4 kg optimized load, maximizing thermal efficiency while maintaining environmental commitment and significantly reducing long-term operating costs.

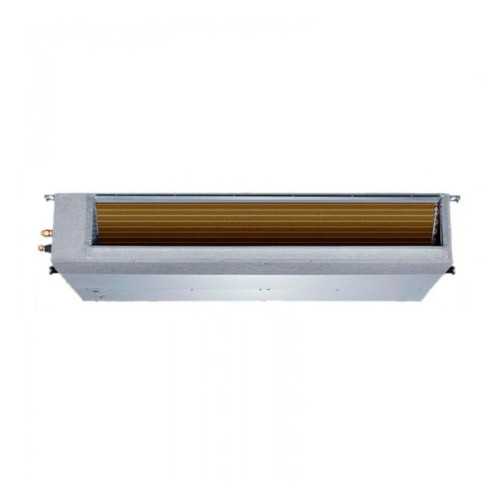

La indoor Unit has been redesigned with enlarged dimensions of 1000×245×750 mm and weight of 31.8 kg, maintaining the versatility of multiposition horizontal and vertical installation while providing airflows greater than 700 to 1200 m3/h with static pressure up to 160 Pa. These specifications allow highly complex installations with distribution in multiple areas and extensive spaces. Its optimized sound levels of 33,5/32,5/31 dB(A) according to speed guarantee discreet operation even with this superior power, ideal for commercial applications that require silent professional environment.

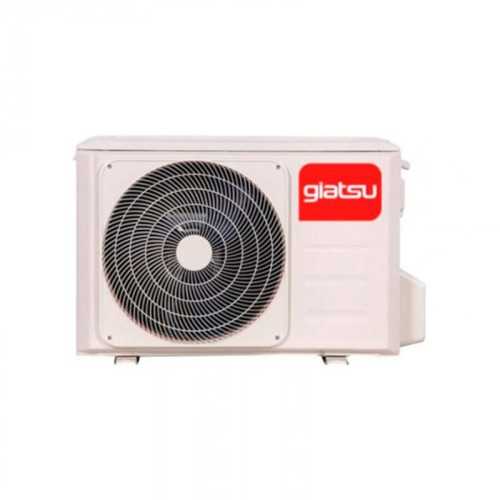

La outdoor Unit GMCC, with dimensions of 890×673×342 mm and weight of 41.9 kg, incorporates protection Golden Fin premium anticorrosion and has been specifically designed to support the demands of intensive commercial operation. The system allows maximum-green installations with pipe length up to 50 meters and height up to 25 meters, while the improved 3/8" - 5/8" refrigerator connections ensure optimal flow for this capacity. The cable control included offers advanced weekly programming for automatic optimization in complex commercial applications.
Professional Characteristics Great Capacity
🏢
Professional Commercial Capacity
24200 BTU/h with modulation 11000-27000 BTU/h. Designed specifically for large commercial spaces and demanding professional applications.
📏
Installation of Large Enlarged
Up to 50 meters of 25m dip pipe. Improved 3/8" - 5/8" cold connections for maximum flow.
▪
Improved efficiency SEER 6,6
Higher A+/A+ rating with SEER 6,6 and SCOP 4,2. Maximum energy savings even with great power.
📐
Indoor Unit Enlarged
1000×245×750 mm for greater flow (1200 m3/h maximum) maintaining horizontal and vertical multiposition installation.
🔇
Silent Professional
Sound levels since 31 dB even with 24000 BTU. Silent professional environment for commercial applications.
🌿
R32 Great Capacity
1.4 kg R32 optimized for maximum power with environmental sustainability and superior thermal efficiency.
Technical Specifications Great Capacity
| Feature | Value |
|---|---|
| Model Set | GIA-D-24ADM2R32-WF (Admira Plus Great Capacity Series) |
| Refrigeration capacity | 7,09 kW (3,23~7,92) - 24200 BTU/h (11000~27000) |
| Capacity Heating | 8 kW (2,79~8,56) - 27200 BTU/h (9500~29200) |
| Consumption Refrigeration | 2280W (750~2860W) |
| Consumption Heating | 2000W (640~2500W) |
| SEER / SCOP | 6,6 / 4.2 (Best) |
| Energy label ( Cold/Calor) | A++ / A+ |
| Installation Available | Horizontal & Vertical (Multiposition) |
| Sonic pressure Indoor Unit | 33,5/32,5/31 dB(A) (Alto/Medio/Bajo) |
| Sonic pressure Outdoor Unit | 60 dB(A) |
| Air flow rate | 1200/1000/700 m3/h (Alto/Medium/Bajo) |
| Static pressure | 25 Pa nominal (0-160 Pa maximum) |
| Dimensions Indoor Unit | 1000×245×750 mm (Enlarged) |
| Dimensions Outdoor Unit | 890×673×342 mm |
| Weight Indoor Unit | 31.8 kg |
| Weight Outdoor Unit | 41.9 kg |
| Refrigerant Gas / Charge | R32 / 1.4 kg |
| Length Tuberia Maximum | 50 meters |
| Maximum level | 25 meters |
| Frigorific connections | Liquid 3/8" - Gas 5/8" (Best) |
Business Advantages Great Capacity
✓
Solution for wide commercial spaces
24000 BTU ideal for large offices, showrooms, large restaurants, large shops and commercial spaces of 70-100 m2 that require strong professional air conditioning.
✓
Installation of maximum width
50 meters of pipe allow air conditioning complete buildings, multiple plants and complex architectural configurations with maximum flexibility.
✓
Improved efficiency with high power
SEER 6.6 and SCOP 4.2 exceed previous standards, ensuring exceptional energy savings even with 24000 BTU capacity.
✓
Silent commercial operation
Sound levels since 31 dB maintain a peaceful professional environment ideal for offices, consultations and demanding commercial spaces.
Main Commercial Applications
🏢
Corporate offices
Large offices, spacious board rooms, coworking spaces, business centers and corporate headquarters that require silent professional air conditioning.
️
Trade and Retail
Large shops, large showrooms, dealers, small shopping centers and retail spaces that need comfortable atmosphere.
️
Hostelry and Services
Large restaurants, large cafes, boutique hotels, large clinics and professional service centers.
Professional Commercial Power of Great Enlargement!
The Giatsu Admira Plus 24000 BTU Series combines maximum commercial power, installation up to 50m and improved efficiency SEER 6,6. The definitive solution for large commercial spaces that demand high-capacity professional air conditioning.
Request your commercial budget today!
GIATSU ADMIRA PLUS 24000 BTU G
GREAT Commercial CAPACITY + 50m Tube + SEER 6,6 Improved
Commercial capacity
24200 BTU/h professional
Smart modulation 11000-27000 BTU/h
50 50m Maximum Tube
Big size + 25m of height
Improved connections 3/8" - 5/8"
▪ SEER 6,6 Superior
Improved A+/A+ vs Standard
Maximum savings with high power
Da Expanded Unit
1000×245×750 mm multiposition
Caudal up to 1200 m3/h
🏢 Ideal spaces 70-100 m2
🔄 Multiposition H+V
▪ SEER 6.6 improved
🔇 Quiet since 31 dB
📏 Pressure 160 Top
🌿 Organic R32 1.4 kg
GREAT TRADE CAPACITY
24000 BTU with 50m pipe and efficiency SEER 6.6 improved
Perfect for large offices, large shops and hospitality
▷ SPECIALIZED COMMERCIAL INSTALATION
️ Warranty 3+5 years
🔧 National Technical Service
📋 Certification A++/A+
🏢 Gama Office Professional
GIA-D-24ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 7.090
- Refrigerator capacity (kcal / h)
- 6.097
- Nominal consumption Cold (W)
- 2.280
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 8.000
- Heat capacity (Kcal / h)
- 6.880
- Nominal heat consumption (W)
- 2.000
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 31
- Weight Indoor Unit (Kg)
- 31,8
- Weight Outdoor Unit (Kg)
- 41,9
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Incluido de serie
- Recommended area
- Estancia de 60m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 750 x 245
- EU dimensions (anxfxh) mm
- 890 x 342 x 673
