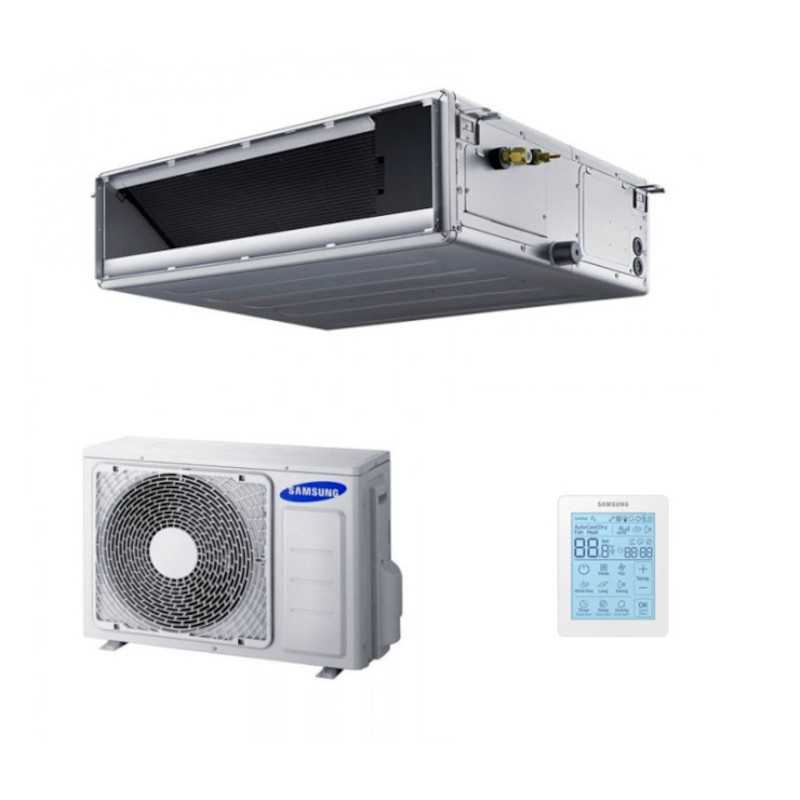

Air Conditioning Samsung AC100RNMDKG/EU
Refrigeration 10000W 日本語 Heating 11200W ̄s Efficiency A+ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC100RNMDKG/EU is the professional solution of the Deluxe Conduct Series with 10000W in cooling and 11200W heating. With indoor Unit of 250mm high, this hidden duct system offers professional and discreet air conditioning for large commercial spaces with advanced technology Samsung and monophasic/core options.
10️ 10000W Refrigeration
EER 2,90 - Professional
11 11200W Heating
COP 3,20 - Excellent
▪ SEER 5.9 / SCOP 4.0
Efficiency A+ / A+
Professional 250mm
Deluxe Conduct
Product Specifications Professional Deluxe Conduct
Indoor Unit: AC100RNMDKG/EU
Outdoor Unit: AC100RXADKG/EU
Air flow: 22,0-28,0 m3/min
Static pressure: 0-147 Pa
Sonic Pressure: 30 dBA
Tactile control: MWR-SH11N
Nominal consumption: 3,44 kW cold
Refrigerant Gas: R-32 (2.7 kg)
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Samsung KIT-100MDKG Inverter Deluxe Monof.
Referencia: F-AC100MDKG
€1,639.36
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Samsung AC100RNMDKG/EU
Refrigeration 10000W 日本語 Heating 11200W ̄s Efficiency A+ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC100RNMDKG/EU is the professional solution of the Deluxe Conduct Series with 10000W in cooling and 11200W heating. With indoor Unit of 250mm high, this hidden duct system offers professional and discreet air conditioning for large commercial spaces with advanced technology Samsung and monophasic/core options.
10️ 10000W Refrigeration
EER 2,90 - Professional
11 11200W Heating
COP 3,20 - Excellent
▪ SEER 5.9 / SCOP 4.0
Efficiency A+ / A+
Professional 250mm
Deluxe Conduct
Product Specifications Professional Deluxe Conduct
Indoor Unit: AC100RNMDKG/EU
Outdoor Unit: AC100RXADKG/EU
Air flow: 22,0-28,0 m3/min
Static pressure: 0-147 Pa
Sonic Pressure: 30 dBA
Tactile control: MWR-SH11N
Nominal consumption: 3,44 kW cold
Refrigerant Gas: R-32 (2.7 kg)
Security policy
Delivery policy
Refund policy
Samsung AC100RNMDKG/EU
Ducted Air Conditioner 10000W Professional Deluxe Conduct Series
Professional Power Deluxe
The AC100RNMDKG/EU represents the professional power of technology Samsung Deluxe driver with 10000W in cooling and 11200W heating. Equipped with 450-step electronic expansion valve (EEV) and variable static pressure of 0-147 Pa. Your rating SEER 5.9 A+ optimizes efficiency for commercial applications of 70-100m2.
Tecnología Professional R32 Technology
Use coolant R32 new generation with load 2.7 kg optimized for professional applications. It significantly reduces environmental impact while maximizing efficiency. It includes Auto Restart function that automatically restarts the system after power cuts, essential for critical commercial applications.
S Professional Technical Specifications
Re️ Cooling
- • Nominal power: 10000W
- • Operation Range: 3.0-12,0 kW
- • EER: 2,90 (Professional)
- • SEER: 5.9 A+ (Efficient)
- • Nominal consumption: 3,44 kW
Performance Heating
- • Nominal power: 11200W
- • Operation Range: 2.2-15.5 kW
- • COP: 3,20 (Excellent)
- • SCOP: 4.0 A+ (High Efficiency)
- • Nominal consumption: 3.5 kW
S Technical characteristics
- • Indoor Unit: AC100RNMDKG/EU
- • Outdoor Unit: AC100RXADKG/EU
- • Dimensions: 1200x250x700mm
- • Interior weight: 34.0 kg
- • Tuberia: Ø3/8" - 5/8"
Y️ Control and Functionality
- • Tactile control: MWR-SH11N
- • Air flow: 22,0-28,0 m3/min
- • Static pressure: 0-147 Pa variable
- • Sound level: 30-34 dBA
- • Food: 220-240V Monkey/Trip
▼ Professional technology Samsung
450-step EEV valve 日本語 Dual feeding Mono/Tri Δ Auto Restart
Optimized professional power with technology Samsung Commercial Deluxe Conduct
Es Installation and Professional Dimensions

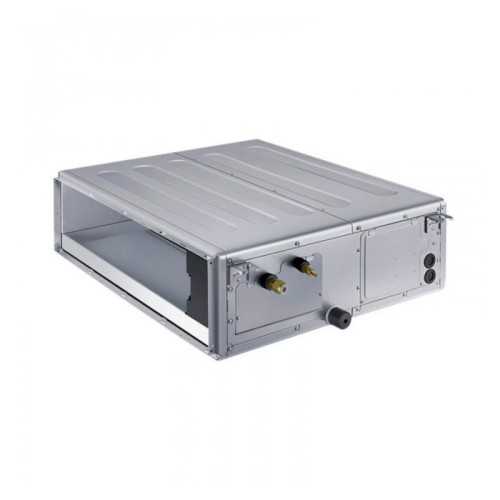

📐 Indoor Unit AC100RNMDKG/EU
- • Dimensions: 1200 x 250 x 700 mm
- • Compact height: Only 250mm
- • Weight: 34.0 kg (professional)
- • Air flow: 22,0-25,0-28,0 m3/min
- • Static pressure: 0-147 Pa variable
- • Sound level: 30-32-34 dBA

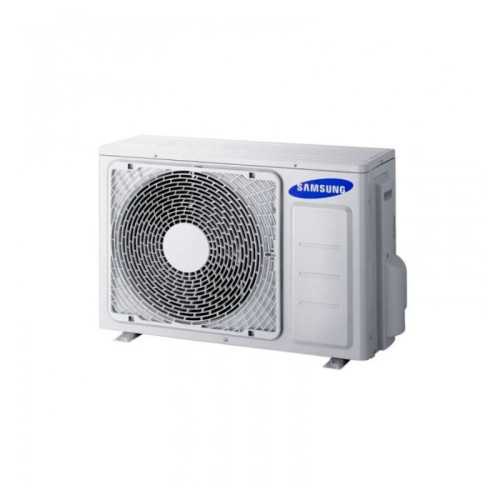

🏢 Outdoor Unit AC100RXADKG/EU
- • Dimensions: 940 x 998 x 330 mm
- • Weight: 75.0 kg (robust)
- • Sound level: 52-54 dBA
- • Food: 220-240V Monkey/Trip
- • Max intensity: 25A Monkey / 16A Tri
- • Protection: Professional external IPX4

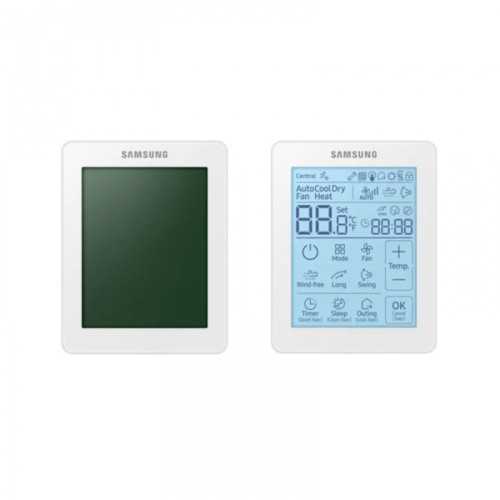

️ MWR-SH11N Tactile Control Professional
Includes touch control MWR-SH11N with LCD display and advanced professional features. Full weekly programming, precision temperature control and multiple operating modes for commercial applications. Optional Wi-Fi kit compatible MIM-H04EN for corporate remote control.
Professional functions: Dual control Monkey/Tri, Variable static pressure, Corporate Wi-Fi
Commercial connectivity
System prepared for commercial applications. Wi-Fi Kit MIM-H04EN for corporate remote control, optional drain pump MDP-G075SP/SQ with elevation of 750mm, and optional SPi ionizer MSD-CAN1 for commercial air purification.
Commercial accessories: Corporate Wi-Fi Kit, Disposal Pump, SPi Ionizer, Professional Termostato
Es️ Installation and Professional Features
Requirements Installation
- • Liquid pipe: Ø3/8" (9,52mm)
- • Gas pipe: Ø5/8" (15.88mm)
- • Max length: 50m total / 30m vertical
- • Disclaimer: VP25 (Ext.32, Int.25mm)
Das️ Advanced Features
- • EV valve: 450 steps precision
- • Permanent filter: Professional laundry
- • Auto Restart: Automatic reinstatement
- • Double feeding: Monkey/Trific
Gos️ Rangos Operation
- • Refrigeration: -15°C to +50°C ext.
- • Heating: -15°C to +24°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Es Commercial Warranty and Certifications
Warranty Samsung Commercial 日本語 CE Certification Cumple ErP 2019
Korean quality with specialized commercial technical support and national service network
El Professional power with AC100RNMDKG/EU
10000W commercial air conditioning with A+ efficiency and professional MWR-SH11N touch control
️
SEER 5.9 A+
Professional efficiency
🔥
COP 3,20
Heating 11200W commercial
🔇
30 dBA Controlled
Quiet for your power
▪
Monkey/Trific
Double feeding
+️ MWR-SH11N Tactile Control + Dual Power
Professional LCD touch control • Electronic expansion valve 450 steps • Single-phase/core power • Variable static pressure 0-147 Pa • Refrigerant Gas Ecological R32 • Auto Restart • Spaces 70-100m2
▷ Includes in the Price
- • Indoor Unit AC100RNMDKG/EU
- • Outdoor Unit AC100RXADKG/EU
- • MWR-SH11N Tactile Control
- • Washable permanent filter
S Unique benefits
- • Warranty Samsung Commercial
- • Professional installation available
- • Commercial technical support
- • Deluxe Conduct Technology
▪ Professional Power Available!
AC100RNMDKG/EU with dual power and efficiency A+ - Deluxe driver Samsung
🎯 Spaces: 70-100m2
▪ Consumption: 3,44 kW nominal
🌿 Gas: R32 Ecological
️ Control: Touch MWR-SH11N
🏆 Samsung Deluxe driver AC100RNMDKG/EU
Professional air conditioning with Korean technology • MWR-SH11N touch control included • Commercial installation available
F-AC100MDKG
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC100RNMDKG
- Outdoor Unit
- AC100RXADKG
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 10.000
- Refrigerator capacity (kcal / h)
- 8.600
- Nominal consumption Cold (W)
- 3.440
- Energy class (cold)
- A+
- SEER
- 5,9
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 3.500
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 34,0
- Weight Outdoor Unit (Kg)
- 75,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Wifi Opcional con módulo MIM-H04EN
- Recommended area
- Estancia de 85m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1200 x 700 x 250
- EU dimensions (anxfxh) mm
- 940 x 330 x 998
