Air Conditioning Low Silueta Conduct Daikin DXM25F SKY AIR SERIE ADVANCE
Referencia: DXM25F
€1,593.78
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin DXM25F represents the perfect solution for small spaces and residential applications that require efficient air conditioning with discreet installation. With capacity 2400W in refrigeration (2064 kcal/h) and 3200W heating (2752 kcal/h), this model of the Sky Air Advance Series combines state-of-the-art inverter technology with eco-friendly R-32 coolant, offering maximum efficiency in a single ultra-compact design 200mm high.
Its exceptional energy efficiency A+/A+ with SEER values 5,68 and SCOP de 4,24 guarantees annual seasonal energy consumption only optimized 148 kWh in cooling and 858 kWh heating, setting new energy saving standards in its category. The system uses coolant R-32 with a minimum load 0.76 kg and an impact 0.52 TCO2eq, demonstrating maximum commitment to environmental sustainability.

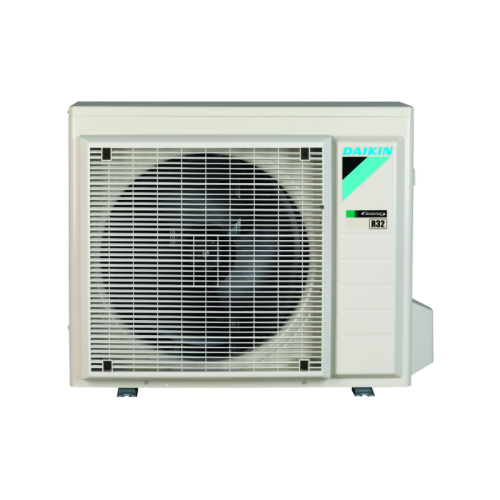

La outdoor Unit RXM25R9 incorporates a compressor SWING high efficiency with air flow 28.3 m3/min both in cooling and in heating. Its compact dimensions 552×840×350 mm and weight alone 32 kg facilitate installation in small spaces, while their sound pressure 46 dBA in refrigeration and 47 dBA in heating ensures a quiet operation ideal for residential applications.

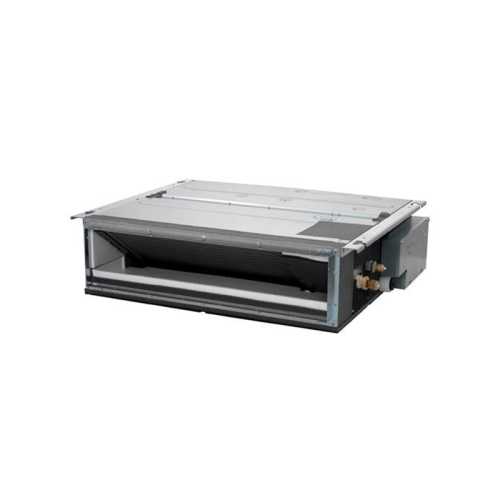

La indoor Unit FDXM25F9 stands out for its low silhouette revolutionary design with only 200 mm height, dimensions 200×750×620 mm and weight 21 kg. Its variable air flow 8.7 m3/min at high speed, , 7,3 m3/min at medium speed and 6,2 m3/min at super low speed allows perfect adaptation to comfort needs, ensuring homogeneous distribution of air-conditioned.
The system allows flexible installations maximum pipe length 20 meters and maximum level difference of 15 meters. Your cold connections 1/4" for liquid and 3/8" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, they simplify the installation considerably.
With standard available pressure 30 Pa and 3 fan speeds, the system provides the perfect comfort for residential spaces. Its exceptional internal sound pressure 35 dBA at high speed and 27 dBA at low speed makes it one of the most silent options on the market, ideal for bedrooms, studios and spaces that require maximum acoustic comfort.
Nominal consumptions 640W in cooling and 800W heating demonstrate the exceptional efficiency of the system. Your design load 2.40 kW in cooling and 2.60 kW heating at -10°C ensures constant performance even in adverse weather conditions, fundamental for comfort throughout the year.
Main characteristics Low silhouette
📐
Low silhouette 200mm
Ultra-compact design for installation in spaces with height limitations.
️
Refrigeration 2400W
Ideal capacity for small spaces and residential applications.
🔥
Heating 3200W
Superior heating power for thermal comfort throughout the year.
▪
Efficiency A+/A+
SEER 5.68 and SCOP 4.24 for maximum energy savings.
🌿
R-32 Ecological
Refrigerant Gas sustainable with minimal environmental impact.
🔇
Ultra Quiet
From 27 dBA for maximum residential acoustic comfort.
Technical specifications Low silhouette
| Feature | Value |
|---|---|

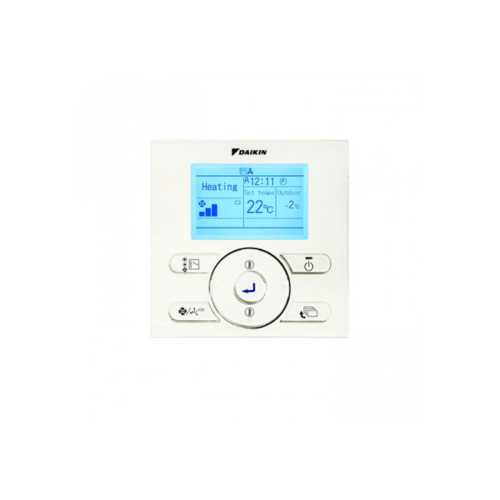

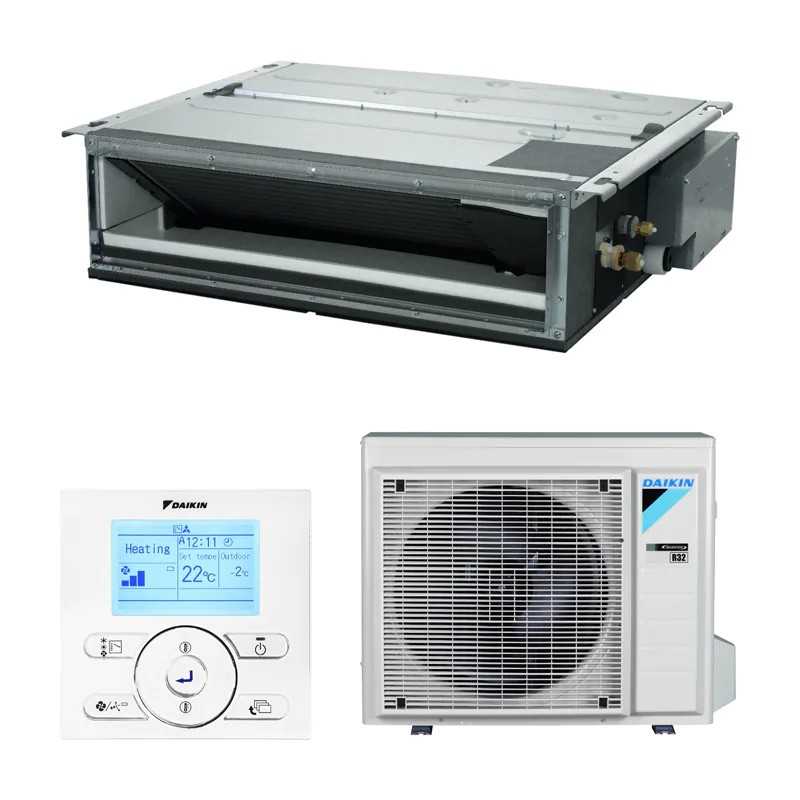

| Model Set | DXM25F (FDXM25F9 + RXM25R9 + BRC1E53A) |
| Refrigeration capacity | 2400W (2064 kcal/h) |
| Capacity Heating | 3200W (2752 kcal/h) |
| Nominal consumption | 640W (Refrigeration), 800W (Calefaction) |
| SEER / SCOP | 5,68 / 4,24 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Annual Energy Consumption | 148 kWh (Refrigeration), 858 kWh (Calefaction) |
| Charge Design (Pdesign) | 2.40 kW (cold), 2.60 kW (Calor -10°C) |
| Refrigerant Gas | R-32 (0.76 kg / 0.52 TCO2eq / PCA 675) |
| Frigorific connections | Liquid 6.4mm (1/4") - Gas 9.5mm (3/8") |
| Electrical supply | I/220V (3+T interconnected threads) |
| Maximum Length Tuberia | 20 meters |
| Maximum level difference | 15 meters |
| Air flow Indoor Unit | 8,7/7,3/6.2 m3/min (A/B/SB) Refrigeration and Heating |
| Available pressure | 30 Pa (Standard) |
| Ventilator speeds | 3 speeds |
| Dimensions Indoor Unit | 200×750×620 mm (Alto×Ancho×Fondo) |
| Weight Indoor Unit | 21 kg |
| Sonic pressure Indoor Unit | 35/27 dBA (Refrigeration A/B), 35/27 dBA (A/B) |
| Level Domestic acoustic power | 53 dBA |
| Air flow Outdoor Unit | 28.3 m3/min (Refrigeration and Heating) |
| Type Compressor | SWING |
| Dimensions Outdoor Unit | 552×840×350 mm (Alto×Ancho×Fondo) |
| Weight Outdoor Unit | 32 kg |
| Sonic pressure Outdoor Unit | 46 dBA (Refrigeration), 47 dBA (Calefaction) |
| Level External Acoustic Power | 59 dBA |
| Charge Refrigerant Gas Included | 10 meters |
| Additional charge | 20 gr/m |
Ideal applications Low silhouette
▪
Residential applications
Houses, apartments, studios and small residential spaces that require discreet air conditioning.
🏢
Small offices
Offices, offices, small offices and professional spaces with height limitations.
🏪
Small Trades
Small shops, boutiques and commercial establishments that need discreet installation.
Lower Silueta 200mm with Maximum A+/A+ Efficiency!
The Daikin DXM25F combines the most compact design of only 200mm high with A+/A+ energy efficiency and ultra silent operation since 27 dBA. The perfect solution for spaces with height limitations that do not want to give up maximum comfort.
Request your residential budget today!
DXM25F
Data sheet
- Brand
- Daikin
- Indoor Unit
- FDXM25F9
- Outdoor Unit
- RXM25R
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 2.400
- Refrigerator capacity (kcal / h)
- 2.064
- Nominal consumption Cold (W)
- 640
- Energy class (cold)
- A+
- SEER
- 5,7
- Heat capacity (W)
- 3.200
- Heat capacity (Kcal / h)
- 2.752
- Nominal heat consumption (W)
- 800
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 21,0
- Weight Outdoor Unit (Kg)
- 32,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 20m2 aprox.
- Dimensions UI (ANXFXH) mm
- 750 x 620 x 200
- EU dimensions (anxfxh) mm
- 765 x 285 x 550
